Ⅰ. Product introduction

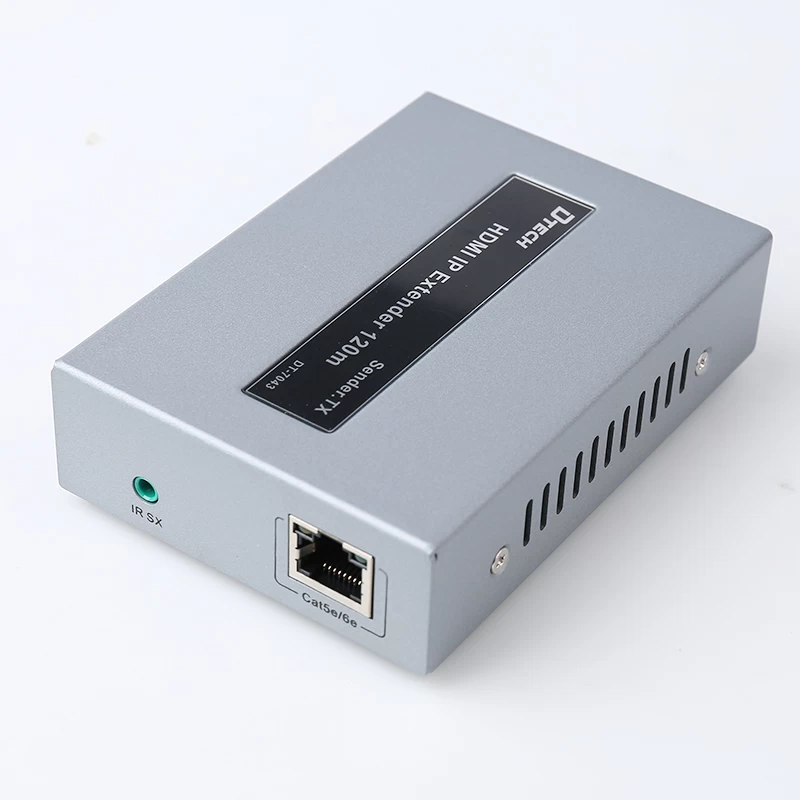

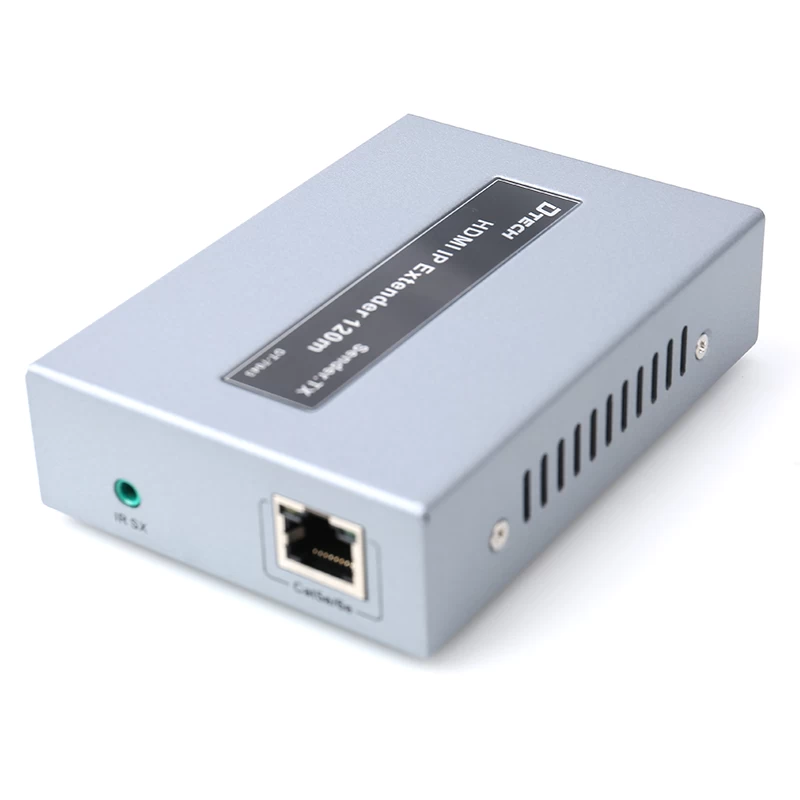

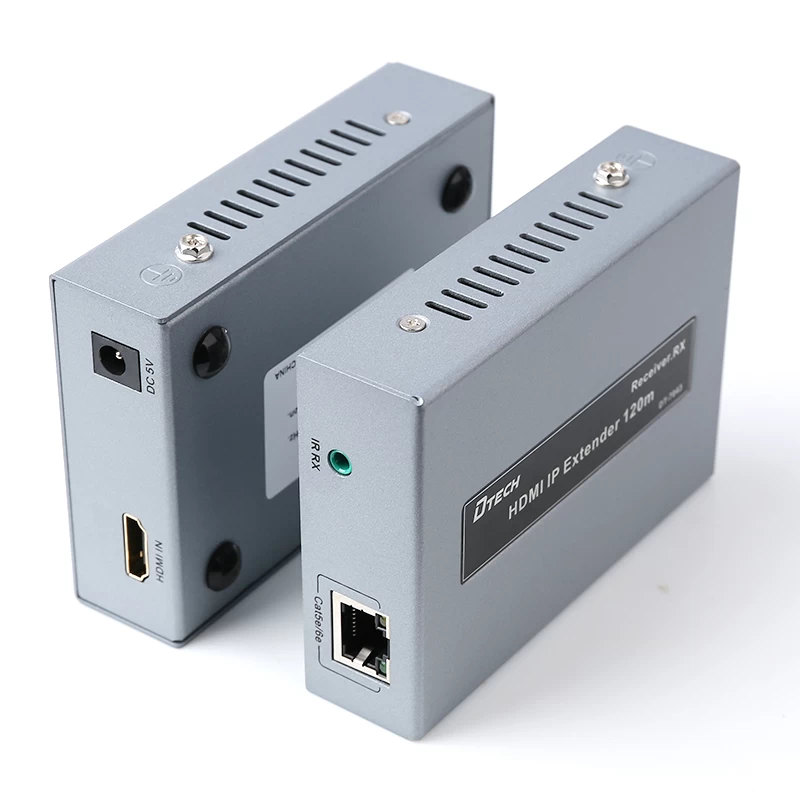

This extender consists of a transmitter and a receiver. Transmitter is for the completion of signal acquisition and compression, the receiver for the completion of signal decoding and port allocation, the middle of the transmission medium for high-quality CAT5e/6 cable, support 120 meters point to point transmission, support multiple receivers with a switch, Max. 253 receivers. Widely used in computer teaching system, high-quality multimedia display, video conferencing, computer, LCD plasma high-definition display venue, digital home theater, exhibition, education, finance, research, meteorology and other fields.

Ⅱ. Specification

1. Using broadcast bandwidth balanced transmission, anti-interference, support point to point 120 meters transmission;

2. Supports Cat5 / Cat6 / single shield / unshielded twisted pair real-time point-to-point, point-to-multipoint transmission of images and audio signals;

3. VGA signal support 1920 X1080 @ 60Hz resolution, backward compatible with a variety of resolutions;

4. HDMI signal support 1080P @ 60Hz resolution, backward compatible with a variety of resolutions;

5. KVM products support keyboard, mouse remote operation;

6. POE-enabled products that can be connected to POE-enabled switches without adapter power supply;

7. Support IR IR return function;

8. With signal 3dB gain or pre-compensation to ensure that the signal high-definition true reduction;

9. Lightning protection, dust, anti-static, to extend the service life;

10. Can be through the switch / router and other relay equipment to achieve cascade and zoom transmission, to achieve an extension of 240 meters.
