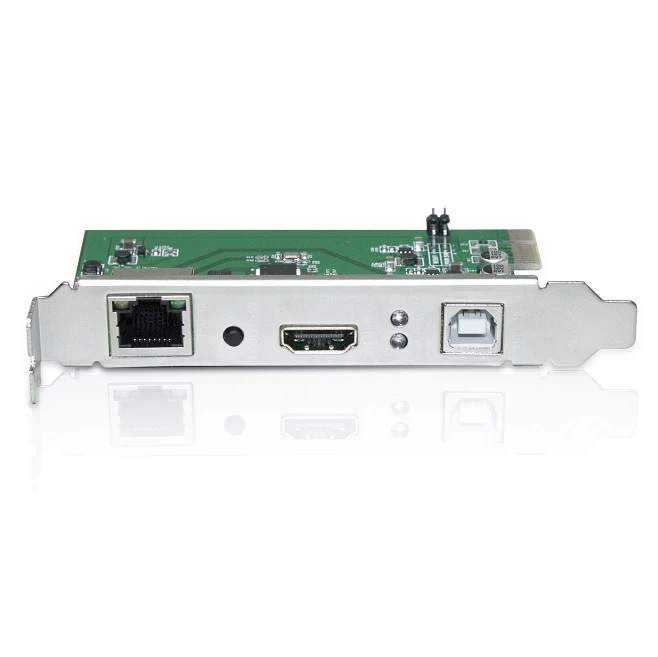

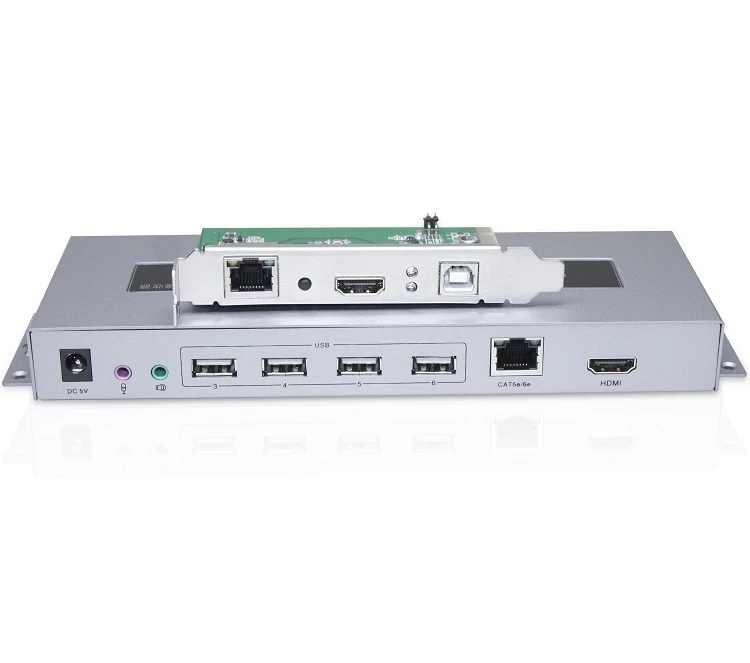

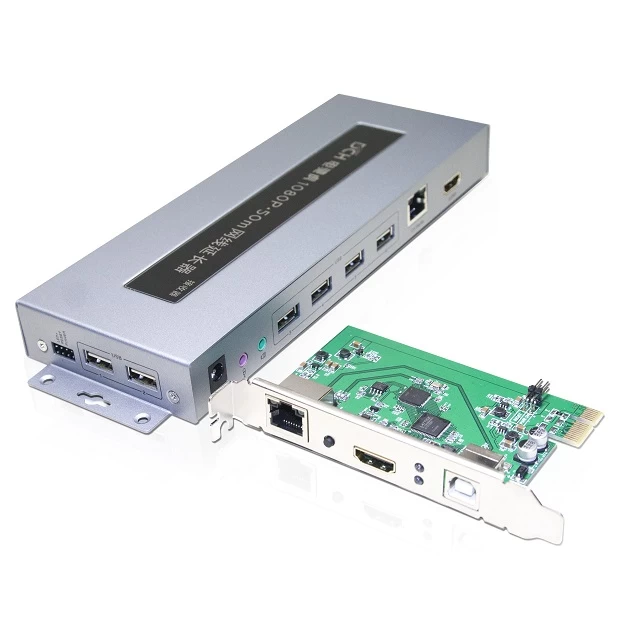

DTECH DT-7055 HDMI USB2.0 KVM Extender 50m

HDMI USB2.0 KVM Extender is an Internet cafe extender specially designed for internet cafe centralized management. It supports HDMI signals, USB signals, keyboard, mouse and audio signal extension transmission, as well as supports switch and reset the computer host remotely. This product consists of a transmitter and a receiver,  the transmitter and receiver connected through a CAT5e/6e LAN cable. The transmitter is connected to the HDMI and USB output of the computer host, and it is sent to the receiver via the LAN cable to restore the signals. The HDMI signal is used to connect the monitor, USB is used to connect the U-disk, camera  and other USB external devices, and the receiver can also connect the keyboard mouse with USB port.



DTECH DT-7055 HDMI USB2.0 KVM Extender 50m

Feature:

1. supports HDMI HD digital signals and USB signals.

2. Supports USB2.0 devices and compatible with various kinds of USB1.1 devices, such as USB camera, keyboard, mouse, rocking bar, writing pad, drawing board (digitizer) etc.

3. Supports CAT5e/6e ethernet cable, standard USB cable, UTP cable, lossless transmission, maximum distance up to 50m.

4. 2K maximum supports 1920*1080@60Hz, completely eliminate interference from mobile phone and walkie-talkie, refuse  blank screen and splash screen.

5. Standard RJ45 connection mode, make site construction more easy.

Remotely switch ON/OFF the computer host.

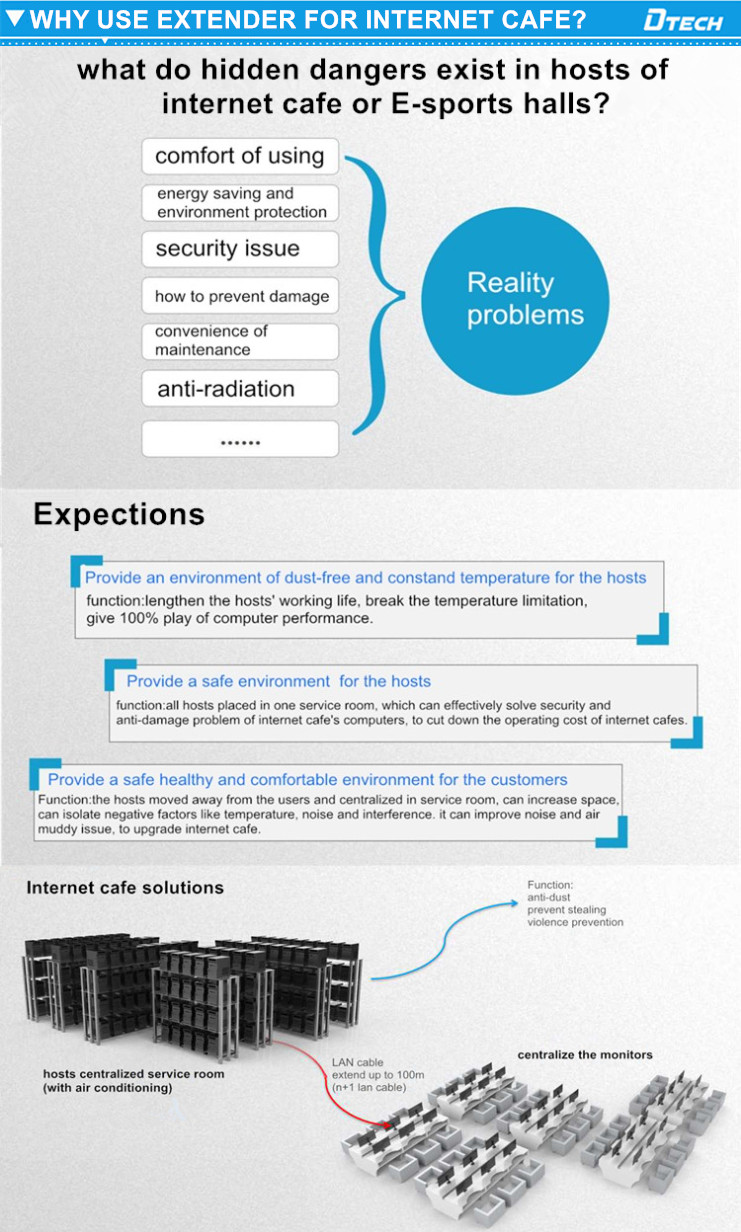

Why use HDMI extender for internet cafe solution?


Connection:
