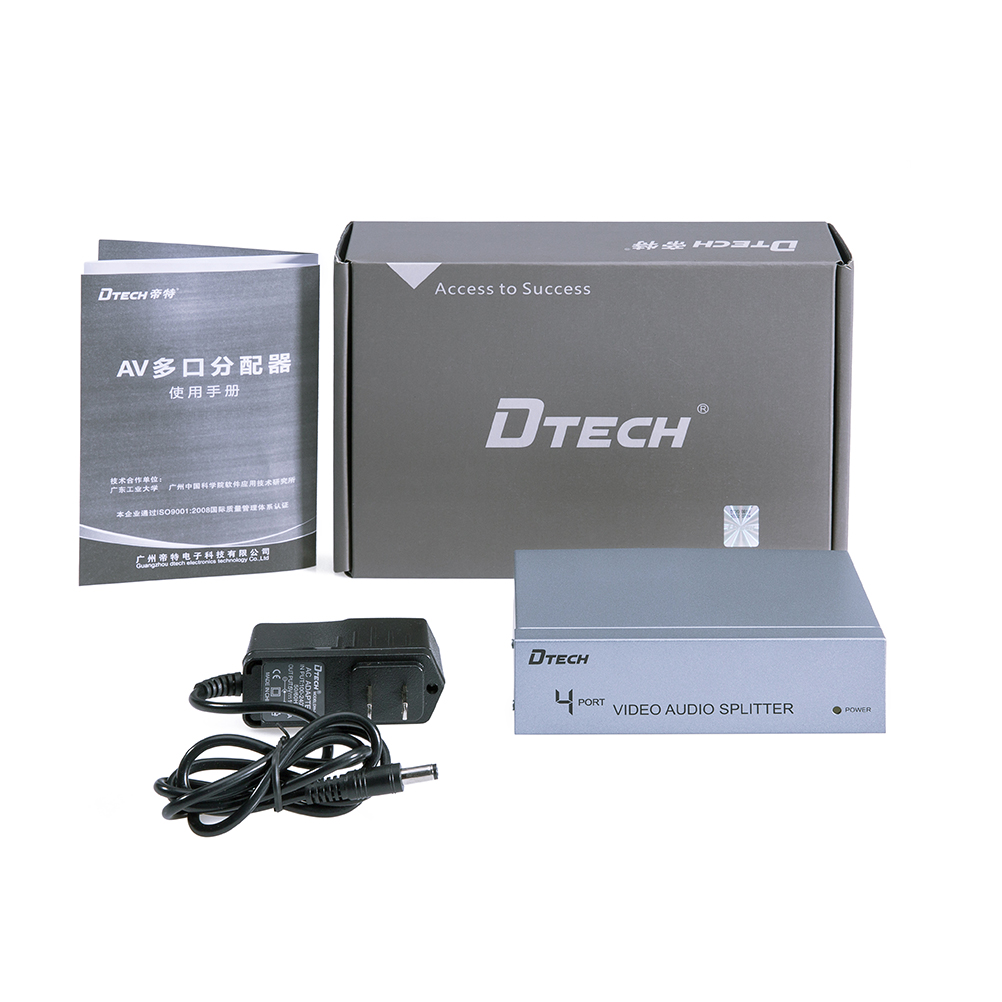

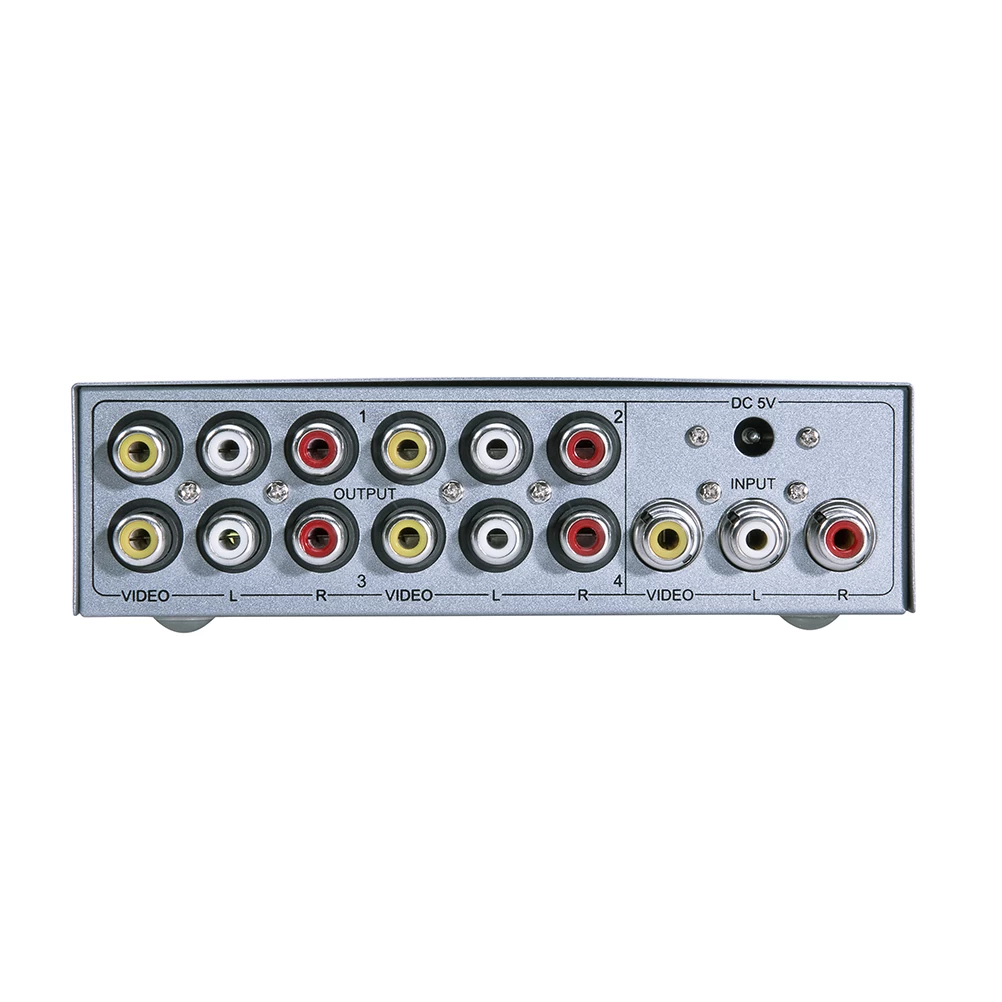

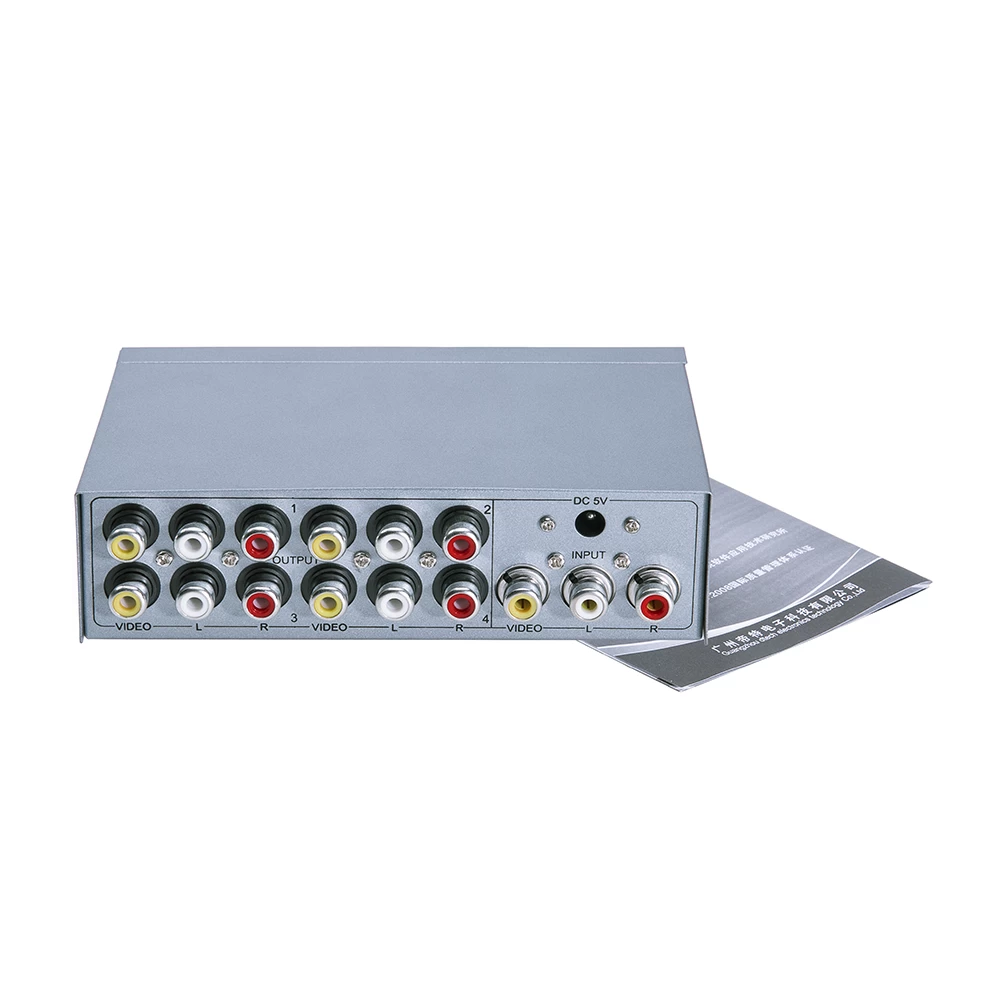

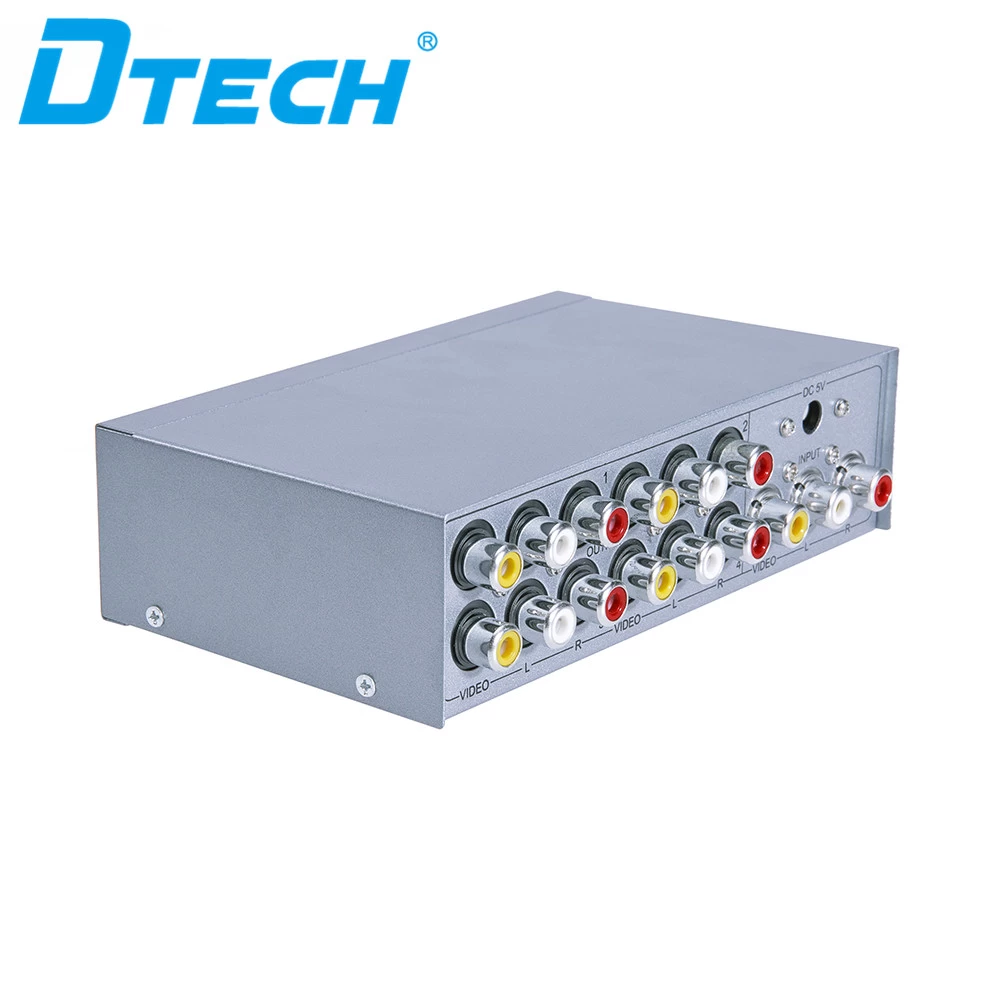

DTECH DT-7204 AV splitter 1X4
Feature:
1. Video:
Rate input signal level and impedance:VS 0.8-1.0Vp-p/75Ω；
Rate output signal level and impedance:VS 0.8-1.0Vp-p/75Ω；
Bandwidth:50Hz-5.5MHz;
Input the imlet:1 port;
Output the imlet:4/8 ports.
2. Audio:
Rate input signal level and impedance:2V(RMS)/47Ω；
Rate output signal level and impedance:2V(RMS)/1Ω；
Frequency characteristics:10Hz-20KHz,0db;
Input the imlet:1 port(left and right channels);
Output the imlet:4/8 port(left and right channels).
