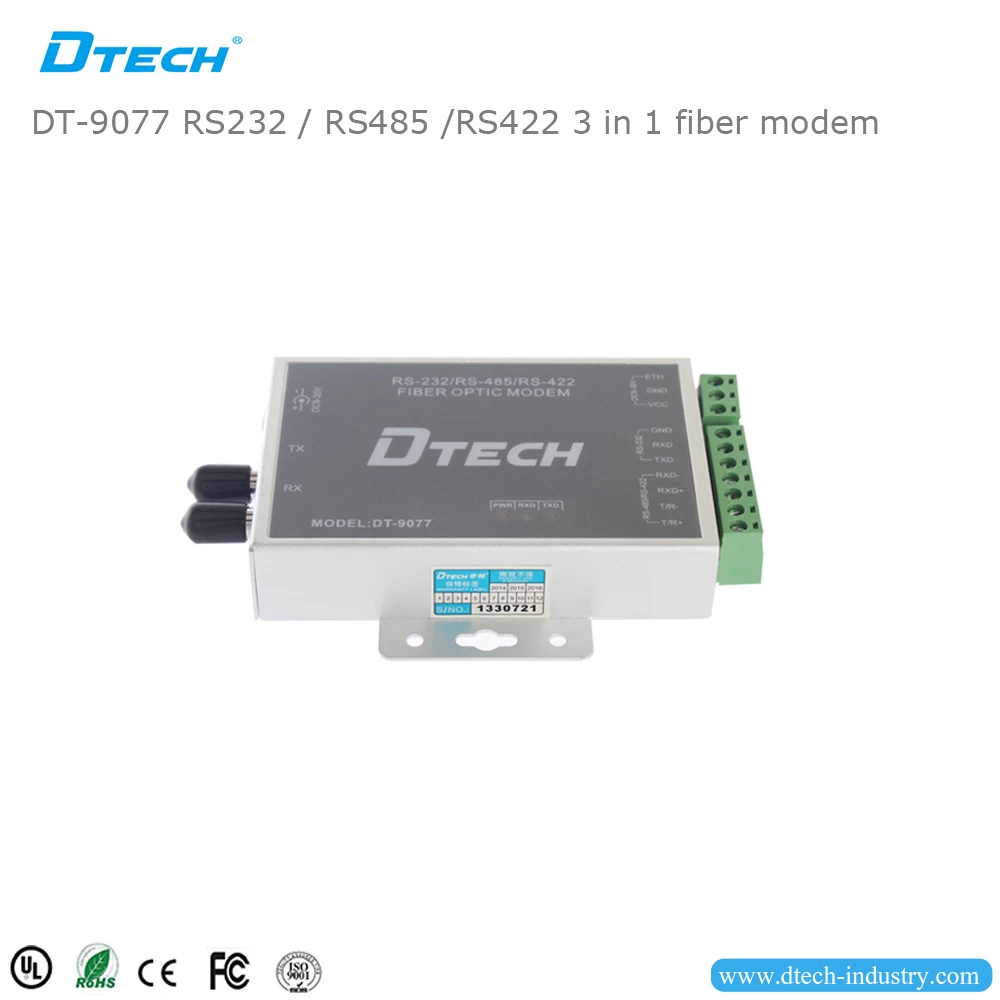

DTECH DT-9077 Industrial-grade high-speed RS232/RS485/RS422 3 in 1 fiber modem Instruction
Feature:
1. Comply with EIA RS-232/485/422 standard.
2. Industrial-grade design, SMT arts and crafts.
3. Self- negotiate without delayed

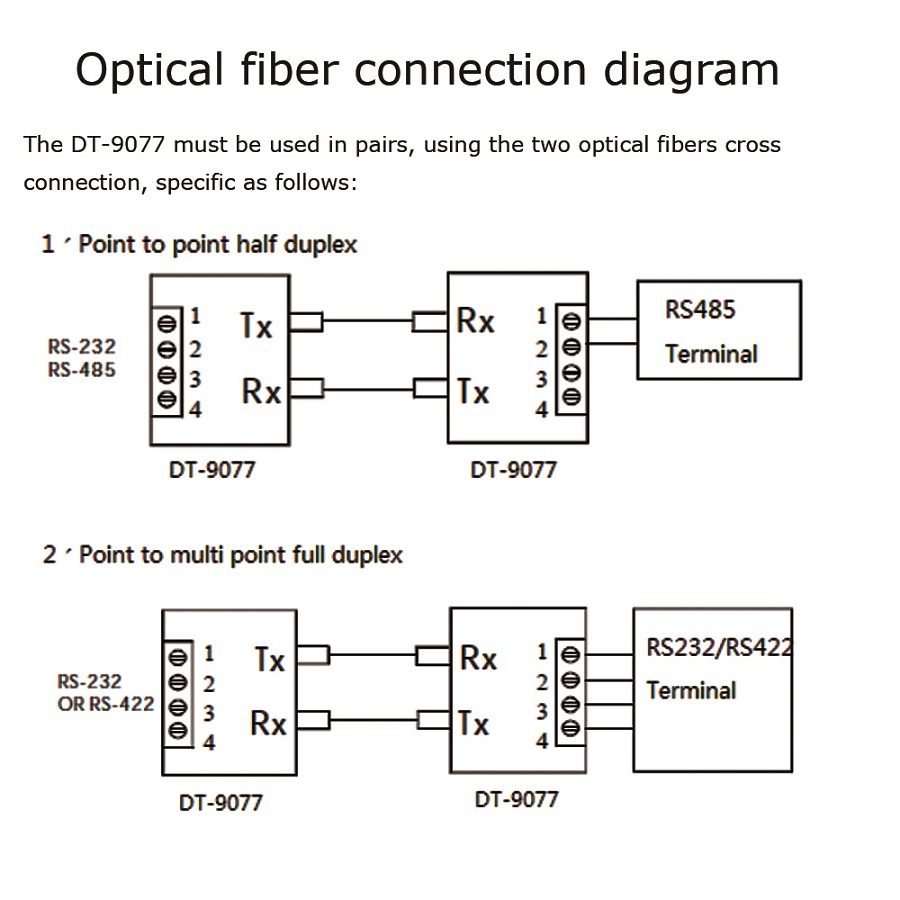

4. Asynchronous transmission, In point-to-point mode, RS422 connector convert with fiber optic.
5. Self-detect the rate of serial port, distinguish and control direction of data transmission.
6. The largest communication rate:120Kbps
7. External power supply 9V DC or 220V AC, dispense with steeling electricity of serial port, high adaptability.
8. Single or multimode optional, FC/SC/ST optional.
9. Operating Wavelength:1310nm/1550nm(single mode), 1310nm, 1550nm
10. Supply 1500W surge protection, 15KV static protection, with thunder and lightning protection.
11. Multimode communication reach 2 km, single mode reaches 120 km.
12. Power and video status indicators LED can monitor the system operating conditions
13. Plug and play , Hot-swap function
14. Support centralized management 19" 2U or 16 rack-mount chassis
