Ⅰ. Product introduction

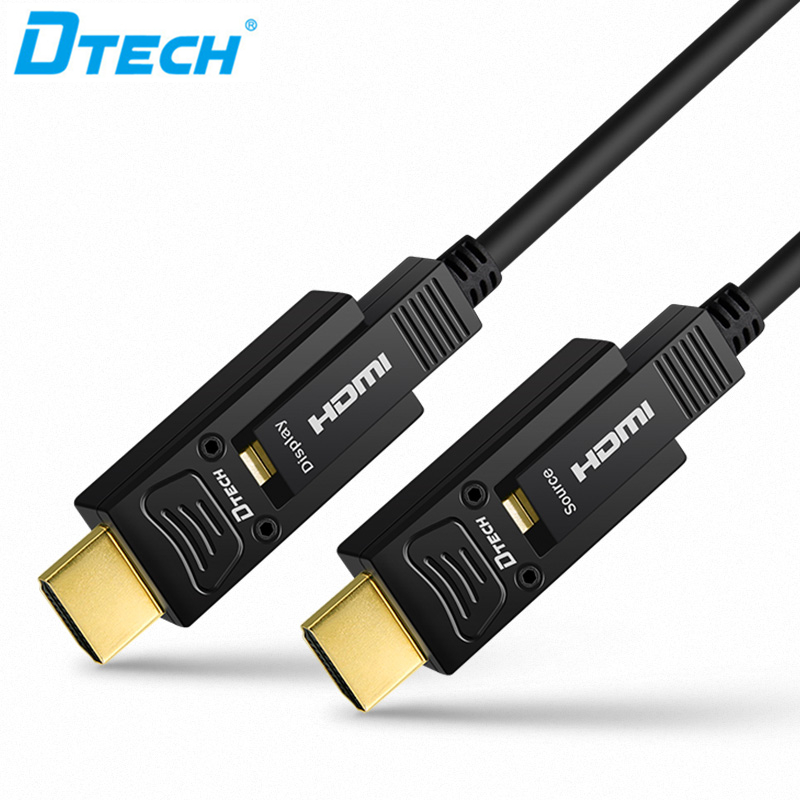

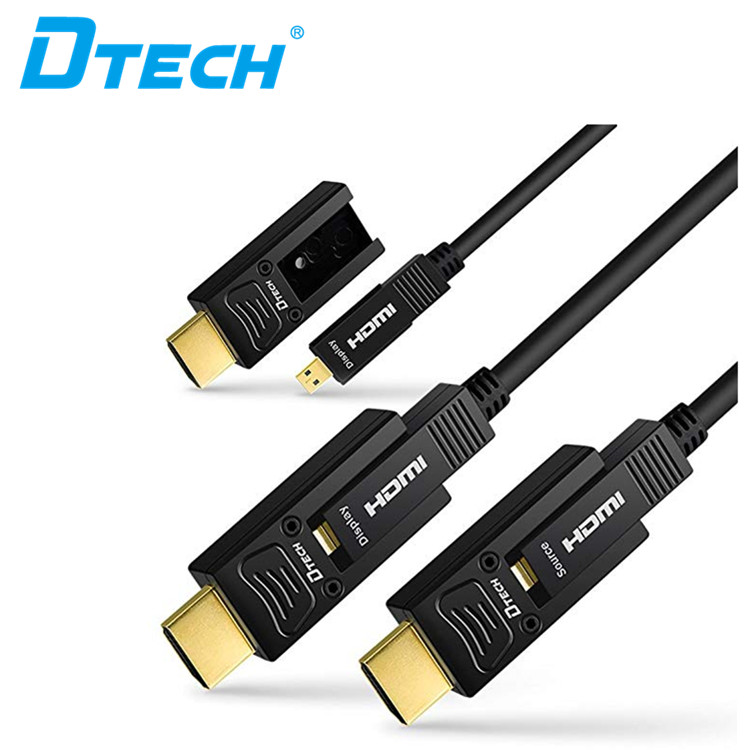

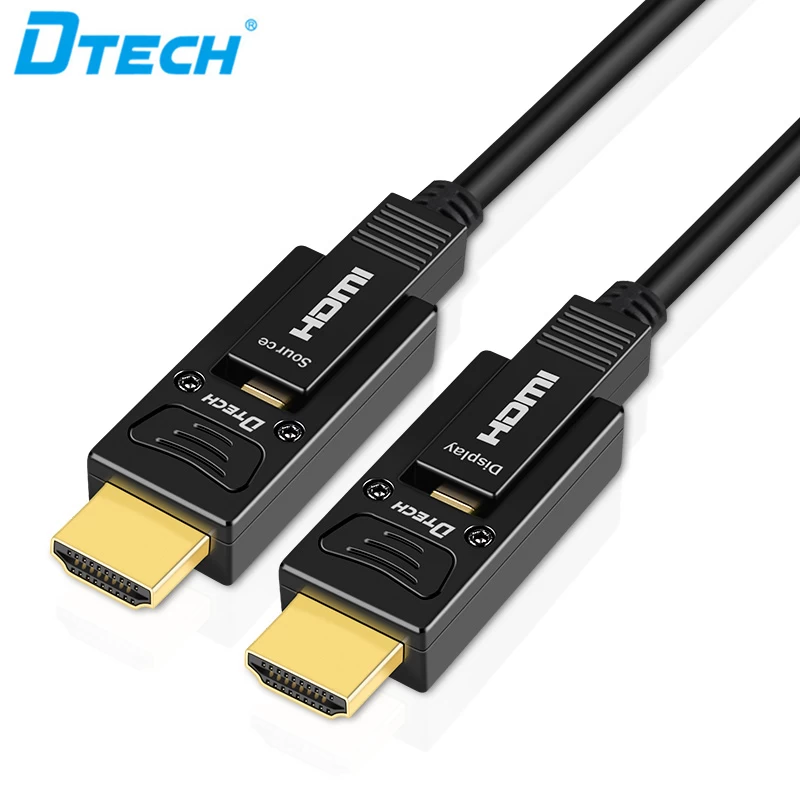

HDMI 2.0 Type D-A AOC is a fiber optic connection cable launched by us. This cable photoelectric ‘s unique core 45° FA patent technology, utilizes optical fiber as the transmission media of HDMI signal, supports HDMI2.0 protocol. It is equipped with the miniaturization Type D housing, is a mature and competitive high-definition interconnection solution in the market.

Ⅱ. Specification

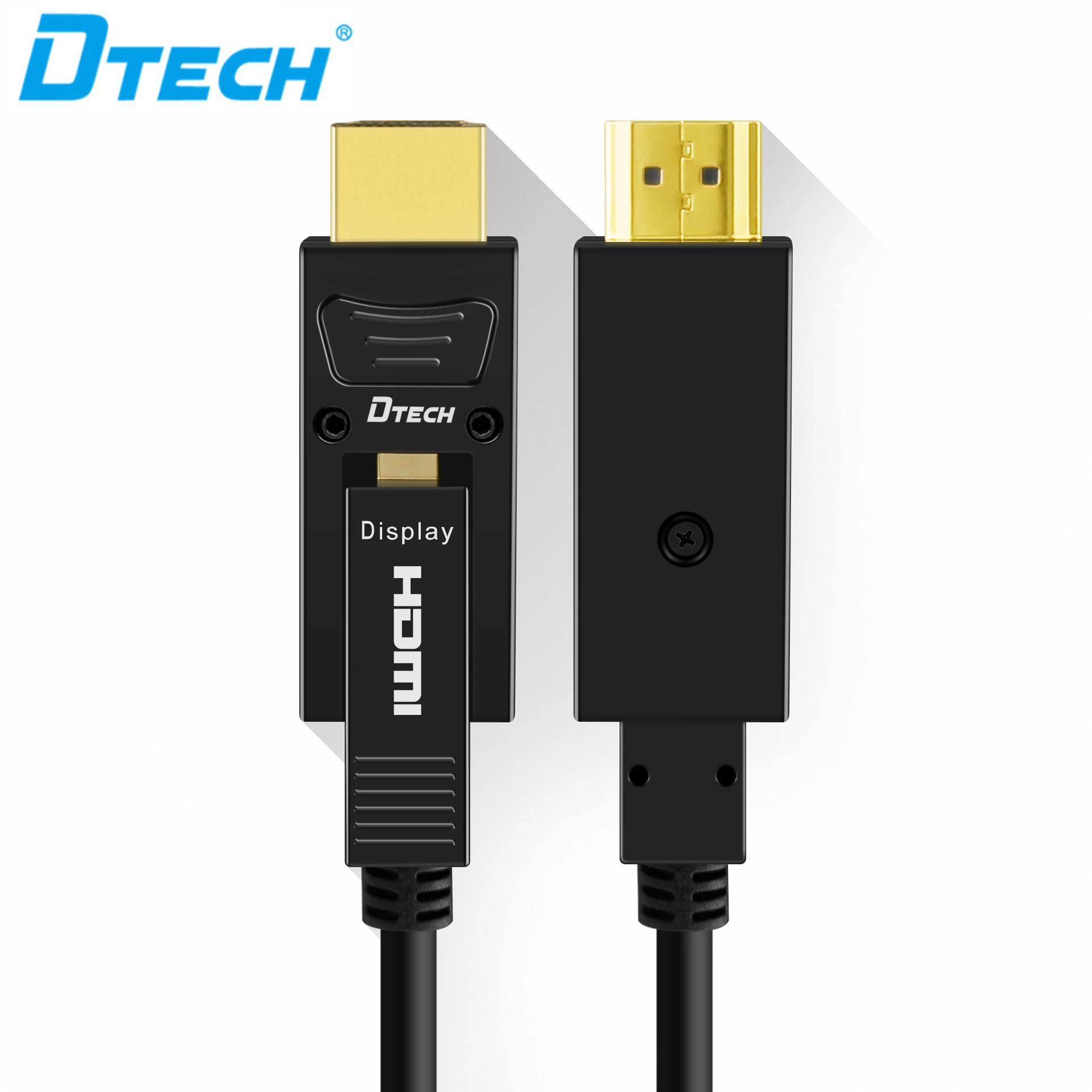

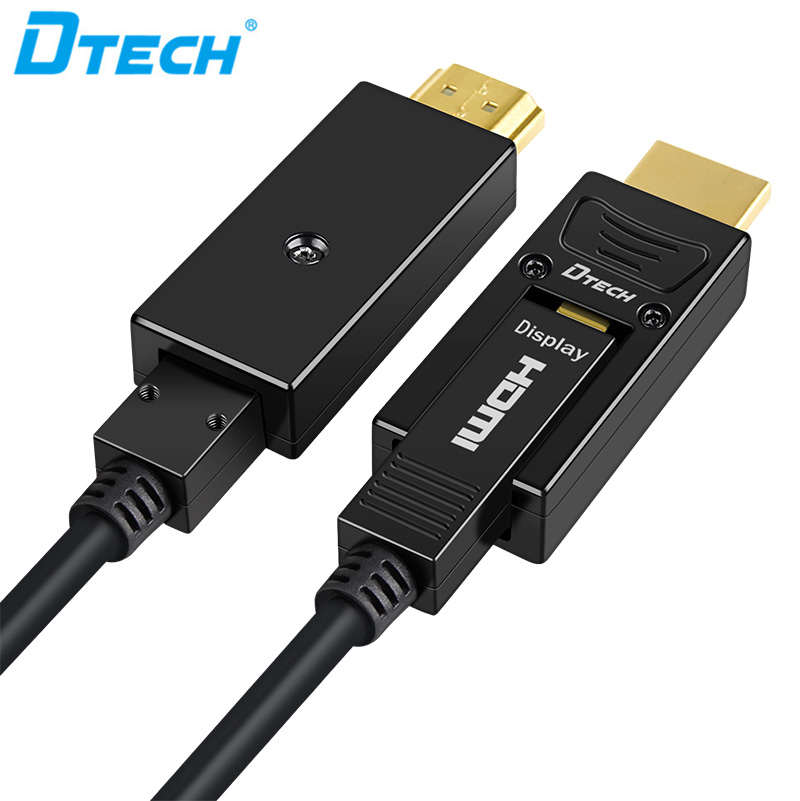

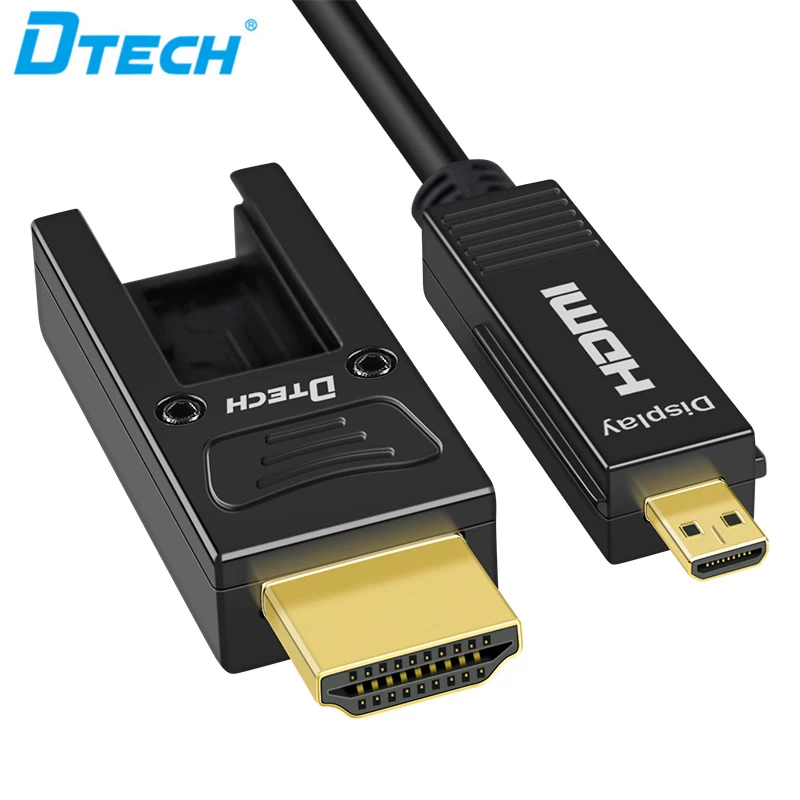

1) Type D connector has the super small dimension: 35*13.9*8.6mm, easy for poling. With built-in advanced optical engine, supports ultra long distance signal transmission. Besides, it is plug and play, no need external power supply and power amplifier unit.

 2) Adopts optical fiber to transmit TMDS high frequency signals, copper wire transmit CEC, HEAC and other control signals, with good resistance to electromagnetic and radio frequency interference. It works with good stability and reliability under challenging environment.

 3) The cable adopts photoelectric composite cable structure, cable cores are made up from four-core optical unit and seven-core electrical unit. Aramid yarn used as reinforcement, black PVC coat, the outer diameter is only 4.8mm.

 4) It conform to HDMI2.0 protocol standard, compatible with HDMI1.4 protocol.
