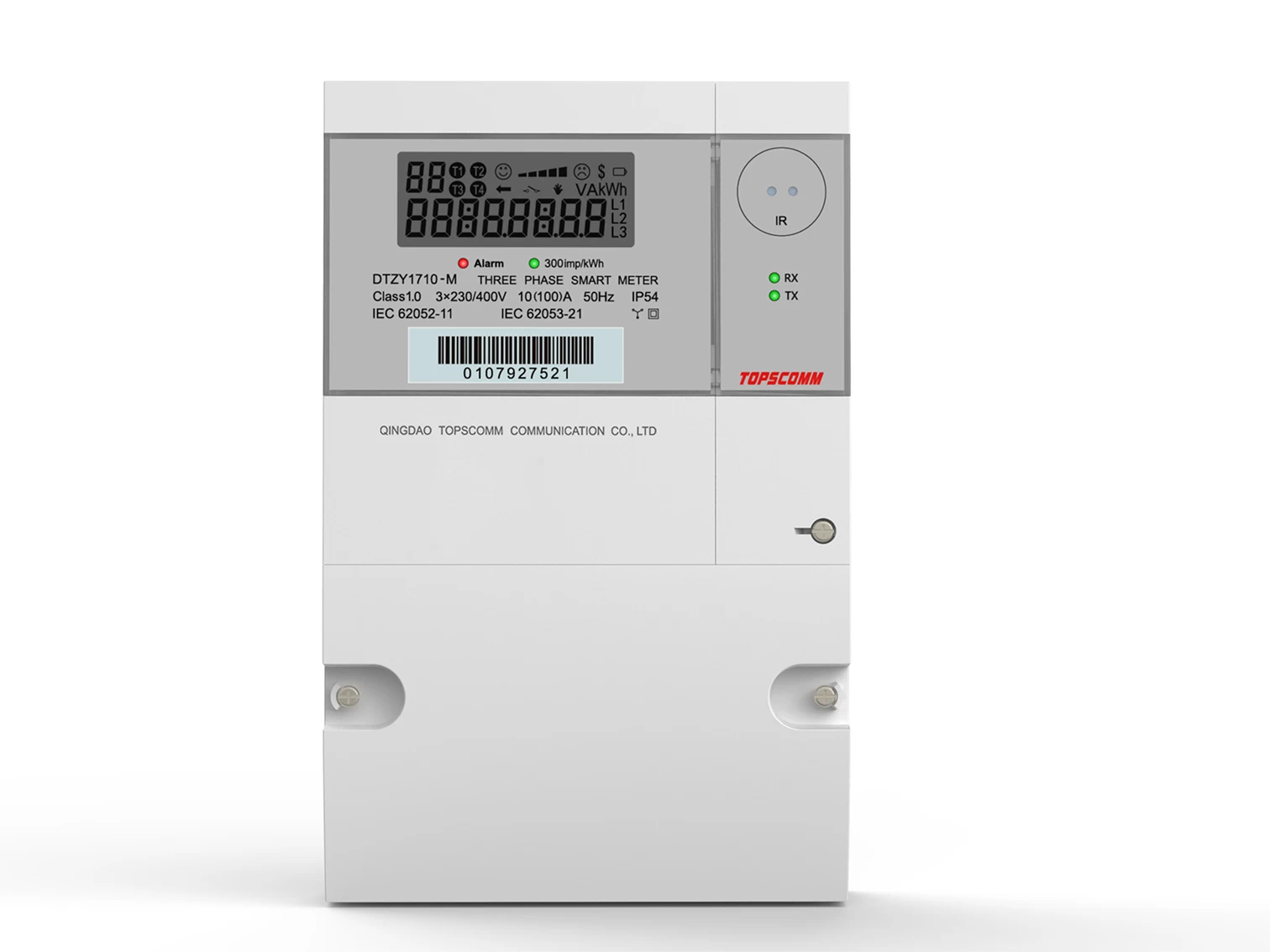

DTZY1710-M Three Phase AMI Smart Energy Meter complies with DLMS/COSEM open standard communication protocol, has high compatibility with the utilities' currently deployed systems and electric smart meters. Meanwhile, the meter is featured with dual communication and automatic events reports function, is capable to timely inform the utilities of the real-time events status, greatly helped the utilities on the metering management.
Standards
|
IEC 62052-11, IEC 62053-21, IEC-62053-23, IEC 62056-21
|
Accuracy
|
Active:Class 1.0 Reactive:Class 2.0
|
Rated Voltage
|
3*220/380V~3*240/415V
|
Operating range
|
70%-120%Un
|
Current
|
Basic Current
|
5A, 10A
|
Maximum Current
|
100A
|
Starting Current
|
0.4%Ib
|
Frequency
|
50Hz or 60Hz
|
Power consumption
|
Voltage circuit
|
≤2W, 10VA
|
Current circuit
|
≤1 VA
|
Display
|
LCD 7+0/6+2/7+1( Optional)
|
Communication
|
GPRS/3G/4G/RF/PLC, Infrared, RS 485
|
Communication protocol
|
DLT/645, DLMS/COSEM
|
Protection degree
|
IP54
|
Operating temperature
|
-25℃-70℃
|
Humidity
|
＜95%
|
