Home Appliance switching power supply +24VDC 2A -24VDC 1A
Description:
100-240VAC input dual 24V switching power supply,it is designed for one of our customers,at present it is widely used to the stage lights and home appliance.
Features:
1, dual power supply 24V is high efficiency, low temperature rise;
2, 72W switching power supply;
3, Dual output power supply 24V with short circuit, overload, overvoltage protection.
Parameter
|
|
Item NO
|
K05-U60D24
|
|
Output
|
Output Voltage
|
CH1:+24VDC; CH2:-24VDC
|
|
Rated Current
|
CH1:2A; CH2:1A
|
|
Current Range
|
CH1:0.2-2.5A; CH2:0.1-1A
|
|
Rated Power
|
72W
|
|
Ripple & Noise
|
CH1:240mVp-p; CH2:240mVp-p
|
|
Adjustable Output Range
|
CH1:21.6-26.4V
|
|
Output Accuracy
|
CH1:±1% CH2:+/-6%
|
|
Line Regulation
|
CH1:±0.5% CH2:+/-2%
|
|
Load Regulation
|
CH1:±0.5% CH2: +/-5%
|
|
Set up,Rise,Keep up time
|
500ms, 100ms, 30ms
|
|
Input
|
Input Voltage Range
|
88~264VAC,120-360VDC
|
|
Input Current
|
2.4A/115V,1.2A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
82%@230V
|
|
Power Factor
|
>0.5
|
|
Inrush Current
|
Cool start 30A/230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~180%,Hiccup protection,automatic recovery
|
|
Short Circuit Protection
|
Hiccup protection,automatic recevery.
|
|
Output over-voltage protection
|
>150% automatic recovery
|
|
Over-temperature protection
|
＞105 ℃ protection, automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-20~60℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4706,EN60950-1,EN55022 CLASSA
|
|
Withstand Voltage
|
I/P-O/P:1.5KV;I/P-FG:1.5KV;O/P-FG:0.06KV AC
|
|
Insulation Resistance
|
I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
............
|
|
Others
|
Dimension
|
110*78*35mm(L*W*H)
|
|
Weight
|
0.35kg
|
|
MTBF
|
>50hrs
|
|
Fan Supply
|
NO
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 20cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

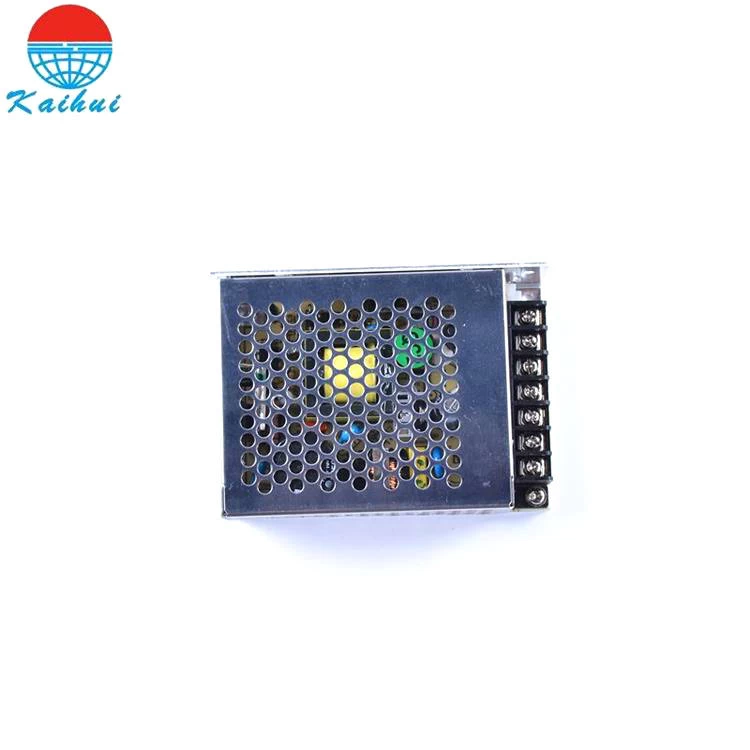

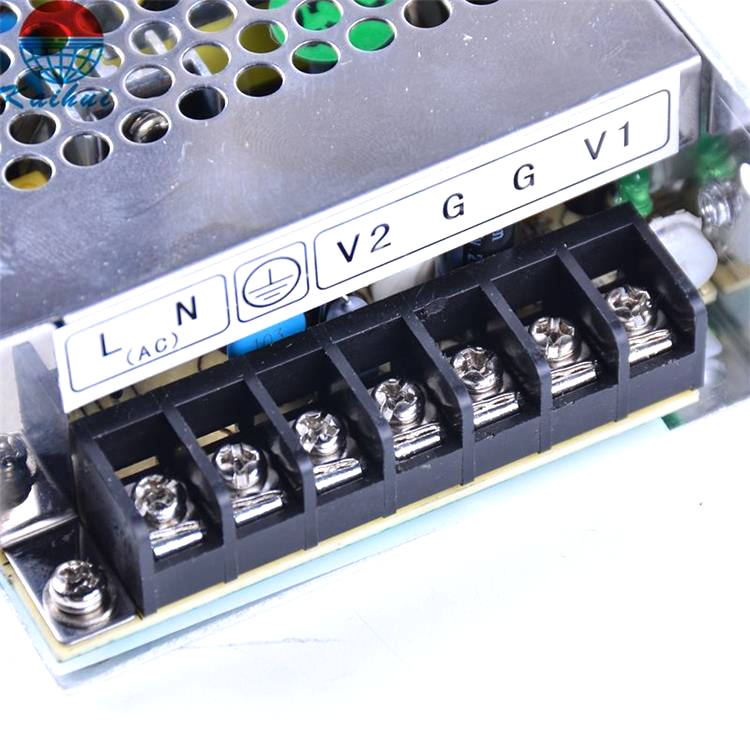

Product picture:
