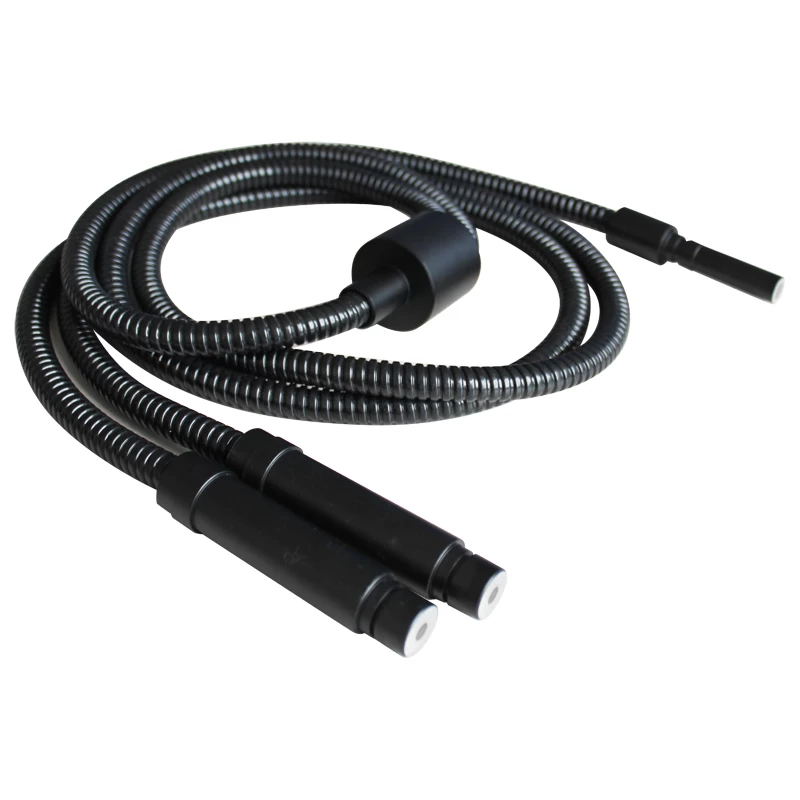

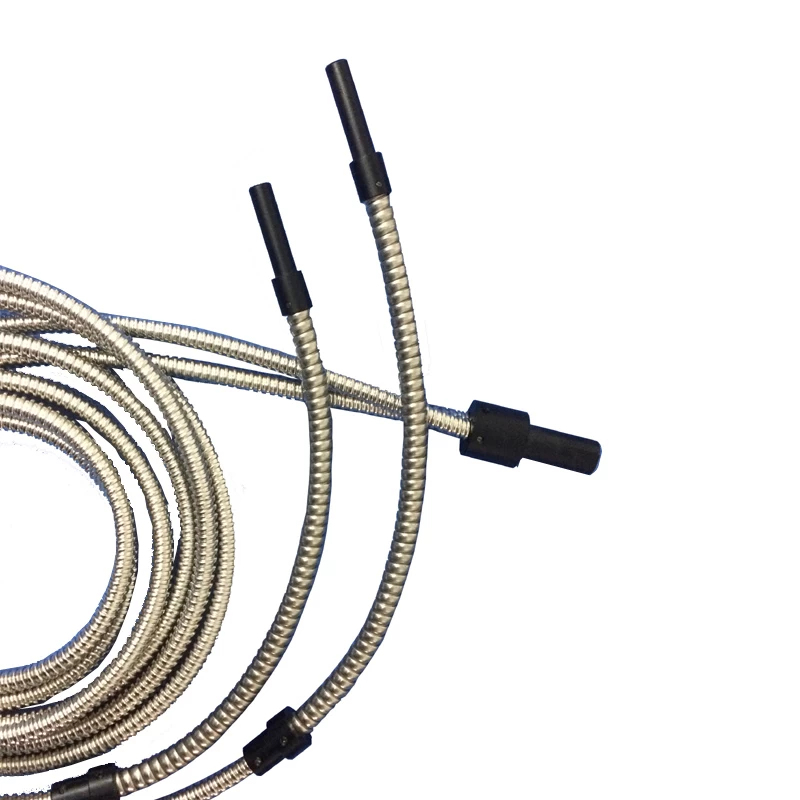

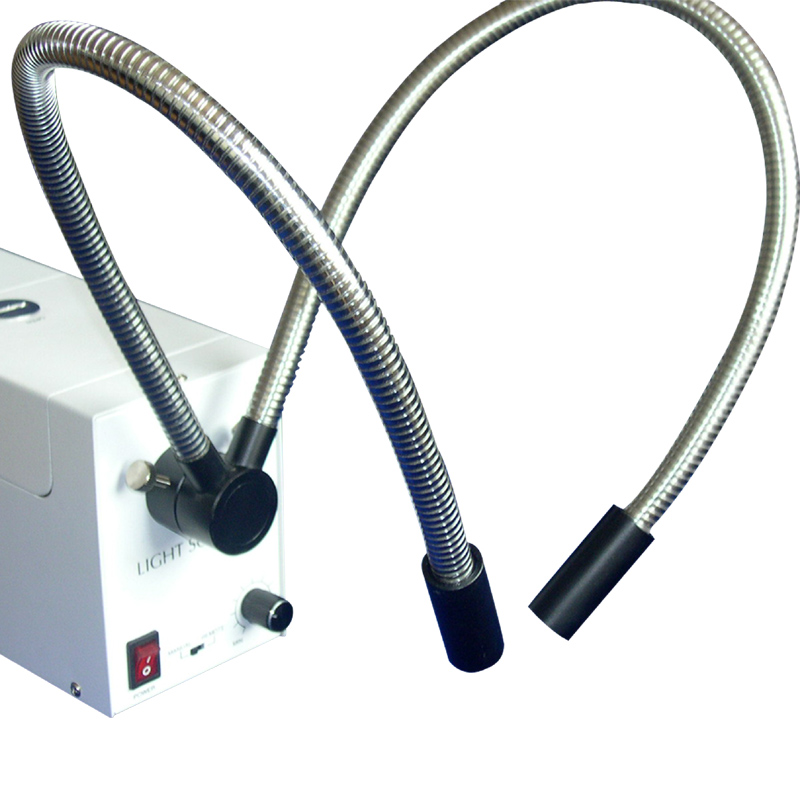

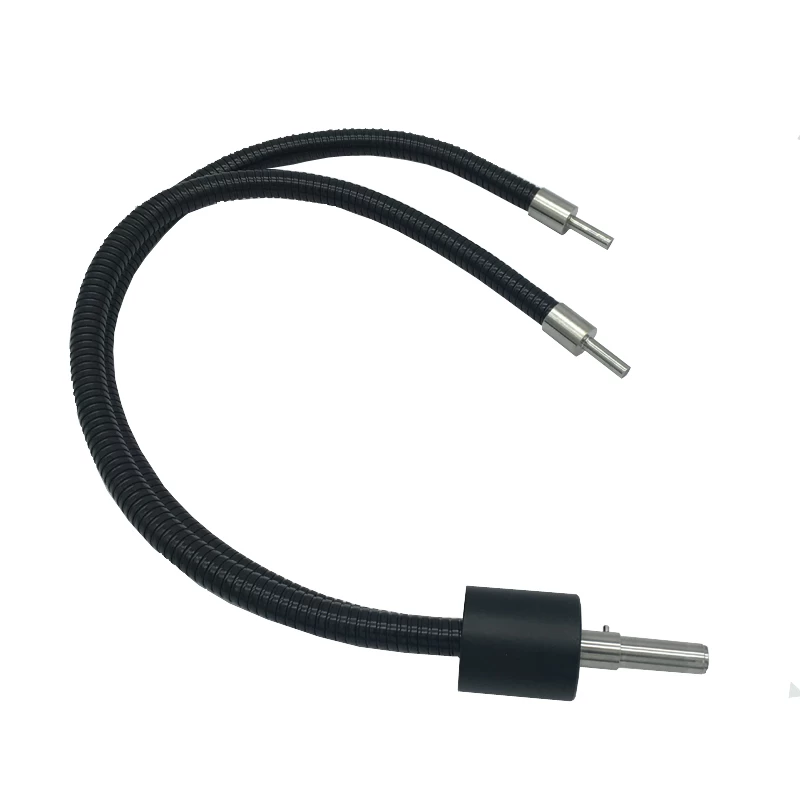

Product item: Dual Arm Fiber Optic Light Guide
|
Model
|
Core Dia.
|
Fiber material
|
Length
|
Tubes
|
Spectral range
|
|
GOFC-S3H-1000-F2H
|
3mm
|
GOF
|
1000mm
|
Flexible SUS
|
400 ~ 1400nm
|
|
SOFC-S5H-1000-F2
|
5mm
|
Silica fiber
|
1000mm
|
Flexible SUS
|
190 ~ 1100nm
|
|
POFC-S7H-1000-F2
|
7mm
|
PMMA
|
1000mm
|
Flexible SUS
|
380 ~ 780nm
|
|
GOFC-S7H-1000-F2
|
7mm
|
GOF
|
1000mm
|
Flexible SUS
|
400 ~ 1400nm
|
|
GOFC-S7.8V-500-IB2
|
7.8mm
|
GOF
|
500mm
|
Gooseneck
|
400 ~ 1400nm
|
|
POFC-S8V-500-IT2
|
8mm
|
PMMA
|
500mm
|
Gooseneck
|
380 ~ 780nm
|
|
GOFC-S8V-500-IT2
|
8mm
|
GOF
|
500mm
|
Gooseneck
|
400 ~ 140nm
|
|
POFC-S8V-500-IT2L
|
8mm
|
PMMA
|
500mm
|
Gooseneck
|
380 ~ 780nm
|
|
GOFC-S8V-500-IT2L
|
8mm
|
GOF
|
500mm
|
Gooseneck
|
400 ~ 1400nm
|
|
POFC-S8H-1640-FR2
|
8mm
|
PMMA
|
1640mm
|
Flexible + Rigid
|
380 ~ 780nm
|
|
GOFC-S8H-1640-FR2
|
8mm
|
GOF
|
1640mm
|
Flexible + Rigid
|
400 ~ 1400nm
|
Other dimensions can be customized.
* GOFC series Compatiable with HECHO Fiber Optic Illuminators: LED light source: S3000/S5000; Halogen light source: H-100/H-150/B5100/B5200
* POFC series Compatiable with Hech
* We also supply Single Flexible Light Guide, welcome to view more.
