Dual Band 2.4/ 5.8 GHz 90 Degree Sector Antenna Wifi Panel

  • 16dBi

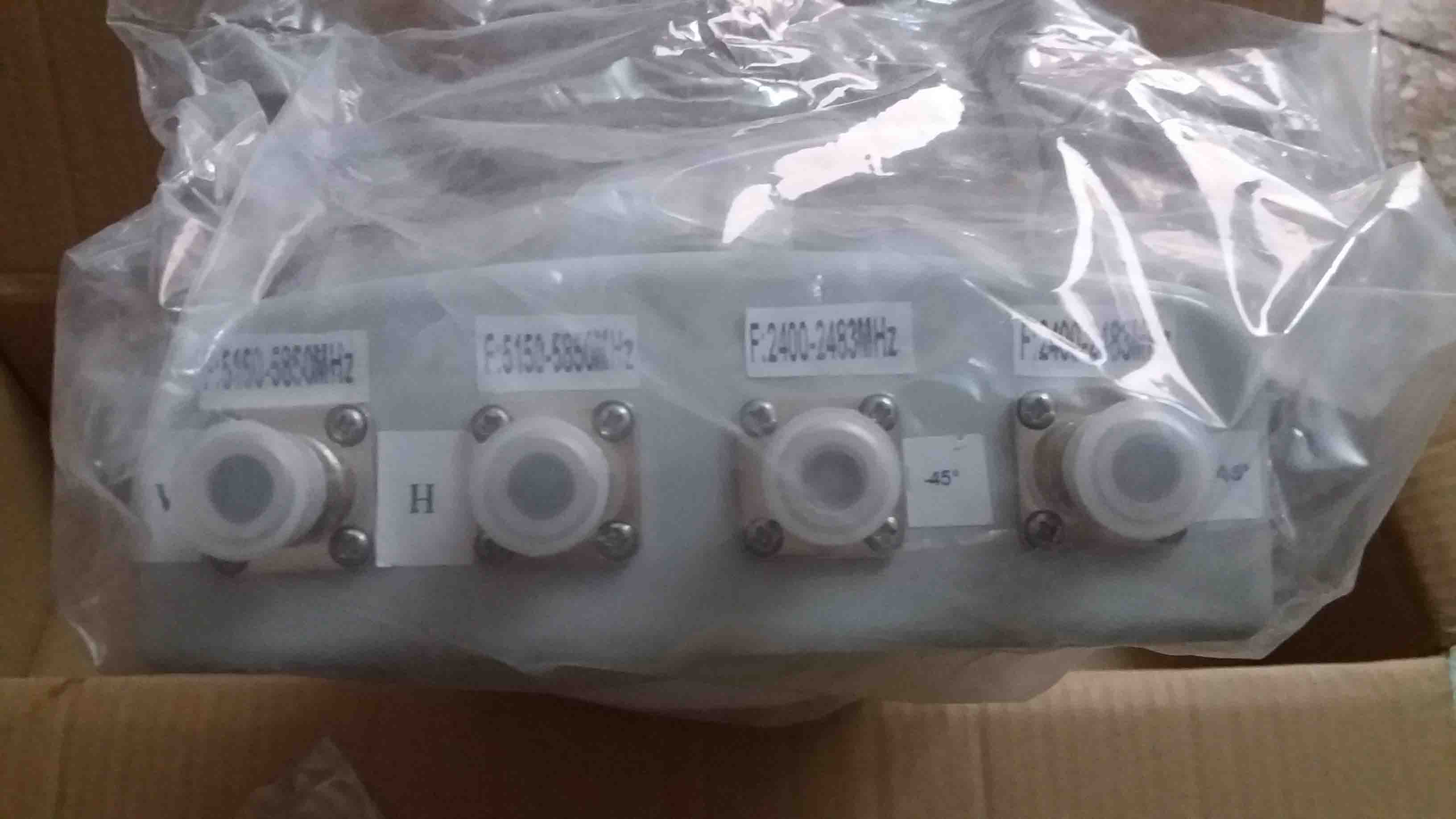

  • N female x 4
  • 470x170x50mm;MIMO wlan panel antenna 16dBi x4

Facebook Twitter Pinterest LinkedIn 分享

Frequency Range-MHz;2400-2483/5150-5850

Gain-dBi;14x2/16x2

Horizontal Beamwidth-°;120º/90º

Vertical Beamwidth-°;15/10º

F/B Ratio-dB;>25

VSWR;≤1.5

Polarization;Vertical

Nominal Impedance-Ω;50

Maximum Power-W;100
