Dual-Filtration System For NMP Vapor Of Li-Ion Battery Coating

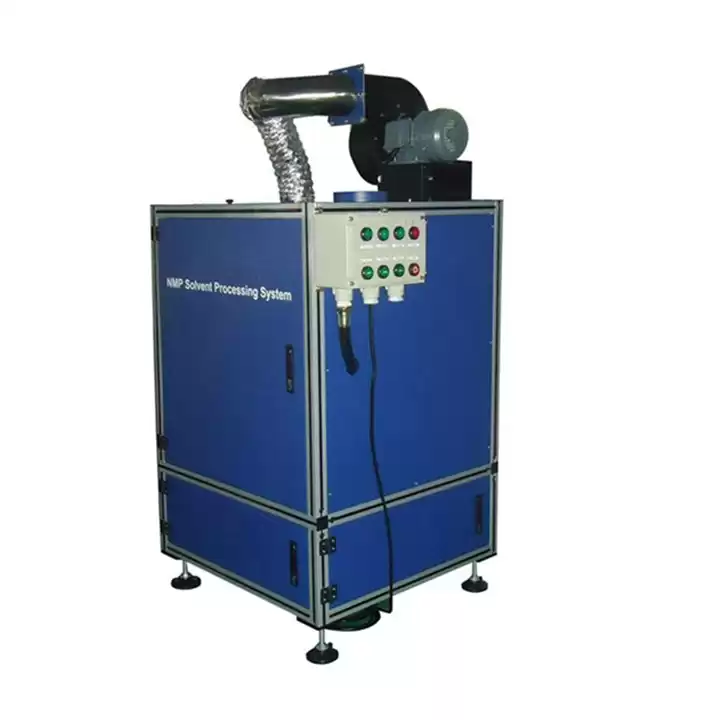

MSK-NMP-1 is a CE Certified Dual-Filtration System for NMP(N-Methyl-2-pyrrolidone) Vapor of Li-ion Battery coating. It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D. Water-filter design provides dedusting, NMP filtering, and vapor purification methods.
Specifications
|
Structure
|
SS 304
|
|
Features
|
Dual-filtration level
NMP filtering
|
|
Working Voltage
|
Three-phase AC380V 50Hz
|
|
Power
|
1.5 KW
|
|
Working Temperature
|
0-40℃
|
|
Filling Gas Temperature
|
<=150℃
|
|
Capacity
|
600mm³/h
|
|
Recycle Rate
|
>=80%
|
|
Recycle Object
|
Vapor
|
|
Inlet Flow Rate
|
600mm³/h
|
|
Product Dimensions
|
900mm L x 700mm W x 1500mm H
|
|
Compliance
|
CE Certified
|
|
Warranty
|
1. One year limited warranty with lifetime support
2. Rusting and damage due to improper storage condition or maintenance is not covered by warranty
|
|
Net Weight
|
500 kg
|
