ELECTRICAL DATA (STC)
|
|
Peak Power Watts-PMAX (Wp)*
|
340
|
345
|
350
|
355
|
360
|
365
|
370
|
375
|
|
Power Output Tolerance-PMAX (W)
|
0 ~
+5
|
|
Maximum Power Voltage-VMPP (V)
|
38.1
|
38.4
|
38.8
|
39.1
|
39.2
|
39.5
|
39.7
|
40
|
|
Maximum Power Current-IMPP (A)
|
8.93
|
8.99
|
9.03
|
9.08
|
9.18
|
9.25
|
9.32
|
9.39
|
|
Open Circuit Voltage-VOC (V)
|
46.3
|
46.4
|
46.6
|
46.7
|
46.9
|
47.1
|
47.3
|
47.5
|
|
Short Circuit Current-ISC (A)
|
9.41
|
9.44
|
9.48
|
9.52
|
9.57
|
9.61
|
9.66
|
9.71
|
|
Module Eficiency m (%)
|
17.3
|
17.6
|
17.8
|
18.1
|
18.3
|
18.6
|
18.9
|
19.1
|
|
STC:
Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM1.5. *Measuring
tolerance: ±3%.
|
|
ELECTRICAL DATA
(NOCT)
|
|
Maximum Power-PMAX (Wp)
|
253
|
257
|
261
|
264
|
268
|
272
|
276
|
279
|
|
Maximum Power Voltage-VMPP (V)
|
35.3
|
35.6
|
36
|
36.3
|
36.4
|
36.6
|
36.8
|
37.1
|
|
Maximum Power Current-IMPP (A)
|
7.18
|
7.22
|
7.26
|
7.3
|
7.38
|
7.43
|
7.49
|
7.54
|
|
Open Circuit Voltage-VOC (V)
|
43
|
43.1
|
43.3
|
43.4
|
43.6
|
43.8
|
44
|
44.1
|
|
Short Circuit Current-ISC (A)
|
7.6
|
7.62
|
7.65
|
7.69
|
7.73
|
7.76
|
7.8
|
7.84
|
|
NOCT: Irradiance at
800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.
|
|

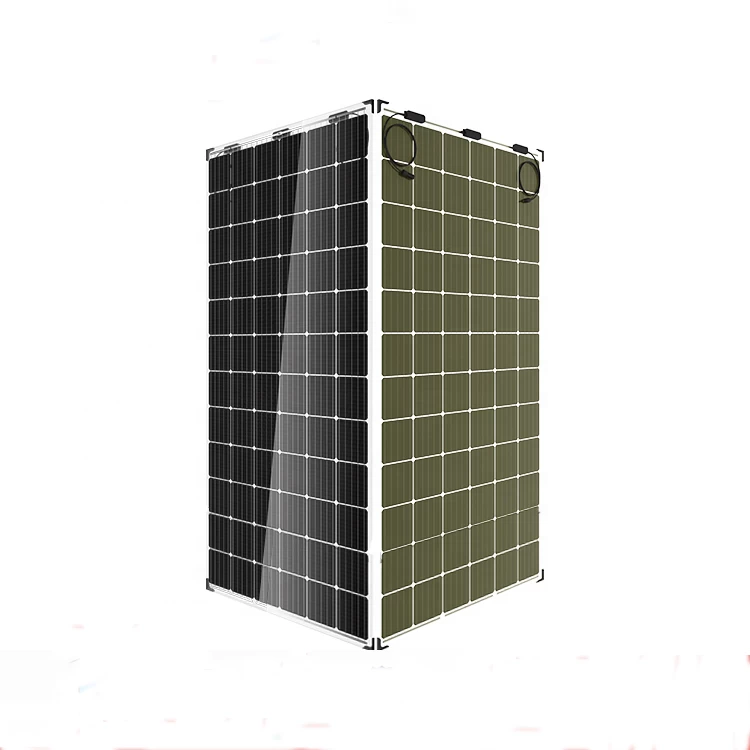

MECHANICAL DATA
|
|
Solar Cells
|
Monocrystalline
156.75 × 156.75 mm (6 inches)
|
|
Cell Orientation
|
72
cells (6 × 12)
|
|
Module Dimensions
|
1978
× 992 × Z5 mm (77.9 × 39.1 × 0.ª8 inches)
|
|
1982 × 996 × 6 mm with edge banding (78.0 × 39.2 × 0.ª8
inches)
|
|
1984 × 998 × 7.6 mm with corner protector (78.1 × 39.3 × 0.ª8 inches) (Std)*
|
|
Weight
|
28.0
kg (61.7 lb)
|
|
Front Glass
|
2.5 mm (0.10 inches), High Transmission, AR Coated Heat Strengthened Glass
|
|
EVA
|
White
|
|
Back Glass
|
2.5
mm (0.10 inches), Heat Strengthened Glass
|
|
Frame
|
Frameless
|
|
J-Box
|
IP 67
or IP 68 rated
|
|
Cables
|
Photovoltaic Technology Cable 4.0 mm² (0.006 inches²)
Portrait: 140/285 mm (5.5/11.2 inches)
|
|
|
Landscape:
1400/1400 mm (55.1/55.1 inches)
|
|
Connector
|
UTX/MC4-EVO2
|
|
Fire Type
|
Type
13
|
|
TEMPERATURE RATINGS
|
|
NOCT(Nominal
Operating Cell Temperature)
|
44°C (±2°C)
|
|
Temperature Coeficient of PMAX
|
- 0.39%/°C
|
|
Temperature Coeficient of VOC
|
- 0.29%/°C
|
|
Temperature Coeficient of ISC
|
0.05%/°C
|
|
MAXIMUM RATINGS
|
|
Operational
Temperature
|
-40~+85°C
|
|
Maximum SystemVoltage
|
1500V DC (IEC)
|
|
1000V DC (UL)
|
|
Max Series Fuse Rating
|
15A(Power ≤365W)
|
|
20A(Power ≥370W)
|
|
(DO NOT connect Fuse in Combiner Box with two or more strings
in parallel connection)
|
|
WARRANTY
|
|
10 year Product Workmanship Warranty
|
|
30 year Linear Power Warranty
|
|
(Please refer to product warranty for details)
|
|
PACKAGING CONFIGURATION
|
|
Modules per box: 33 pieces
|
|
Modules per 40’ container: 726 pieces
|
