Dual head automatic feeding laser cutter with camera is with small ccd camera on laser head, it is for positioning the pritned pattern contour. Need to make a pattern drawing first, then make a pattern model, use the drawing to match the pattern in laser software. After totally match the pattern, the laser head can cut accoring to the pattern model.

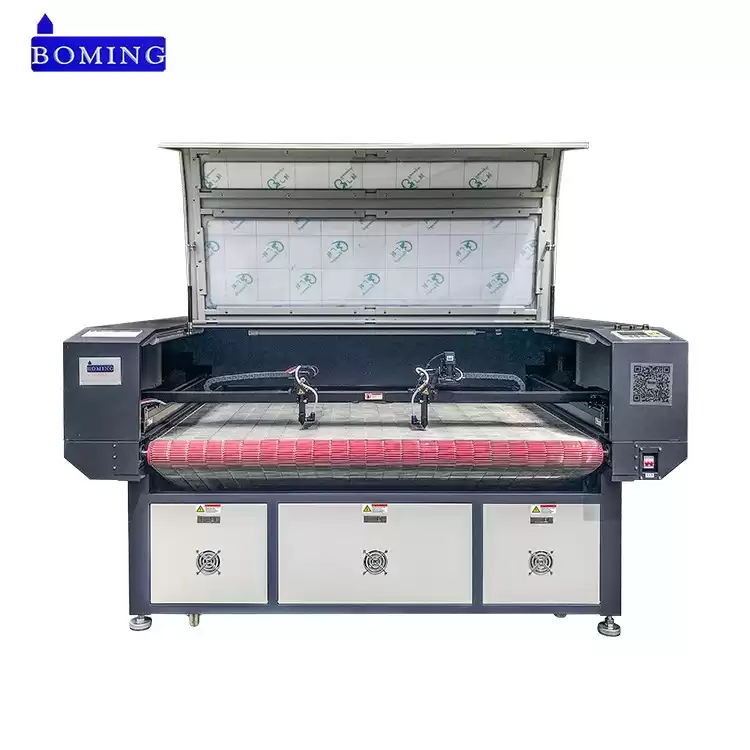

Machine Pictures:
Features: of Dual head automatic feeding laser cutter with camera
1、It feeds the materials fully automatically, the worker can operate several machines at the same time.
2、The follow-up rolling platform is developed indepently, cutting 2-6 layers according to different materials.It can achieve
more accurate, higher speed, higher efficiency cutting comparing the normal auto feeding machine
3、Choosing the 150W-180W big capacity laser tube can make the machine achieving fast stable and continous cutting in 24 hours.
Software advantages: of small fabric pattern cutting machine
1) Software comes with memory option. Machine can work offline without computer.
2) Designs can be sent to machine with one step function.
3) Most kind of design format can be accepted.
4) Machine can be accessed and operated directly from CorelDRAW software.
5) Software has powerful auto backup function.
Applicable Industries: of laser cutting machine ccd camera
The machine is widely used in the industries such as shoe,bag, garment,toy,furniture, advertisement,car accessories,sports Accessories,etc.
Applicable Materials: of laser cutting machine for roll fabric
Suitable for the materials, such as plush,fur,paper board,insole,PU,cloth,microfiber leather,
microfiber PU,etc.
Technical Parameters:of laser cutting machine textile
Laser Capacity | 100W 130W 150W CO2 glass tube |
Processing Area(mm) | 1600*1000 1800*1000 1800*1200 1800*1400 2000*1000 2000*1200mm |
Camera resolution | 2 mega pixel |
Working way | Auto feeing |
Cutting Speed | 0-60m/min |
Max Traverse Speed | 0-64m/min |
Type of belt drive | X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt |
Air exhaust | Big capacity lower air exhaust |
Graphic Format Supported | CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc. |
Optical system | Φ25mm Molybdenum reflector; Φ25mm Silicon reflector; Φ20mm, focal length50.8 focusing mirror |
Sample show:
The camera
laser cutting machine adopts a large-format visual positioning system
and an automatic feeding system. Accurately identify image contours and
automatically crop. The machine is simple and easy to learn, the motion
control algorithm is mature and stable, the cutting process is complete,
and the human-computer interaction interface is friendly. The camera laser cutting machine is suitable for intelligent identification and
cutting of flexible materials.
Our Payment: of ccd camera laser cutting machine
1) Usually we accept T/T, Irrevocable L/C at sight.
2) 30% deposit, the 70% balance should be paid clear before delivery.
3) The delivery day is 7-10 working days.
4) The MOQ is 1set.
The ccd laser
cutter is a laser cutting machine with a CCD camera visual recognition
system to achieve the purpose of precise cutting. And it is precisely
because of the high precision of the ccd laser cutter that it is also
very popular in the market.
How to choose our machine:
The following information is important for us to recommend you the suitable models of laser cutting/engraving machine:
1) What materials and size will you cut?
2) What laser capacity and working area size you need?
3) What industries are you in, shoe, clothes, handicraft or advertisement?
4) Your destination port, it is for checking shipping price.
5) Other relative information, please let me know.
Our woven label laser cutting system can cut different types of labels such as
woven labels, embroidered labels, printed labels and roll woven labels.
Packaging & Shipping:
1) Standard seaworthy plywood case, without fumigation, can be exported directly.
2) Forklift-lift loading, much safer for machine.
3) We will arrange telex release for you or send original BL to you for customs clearance.
