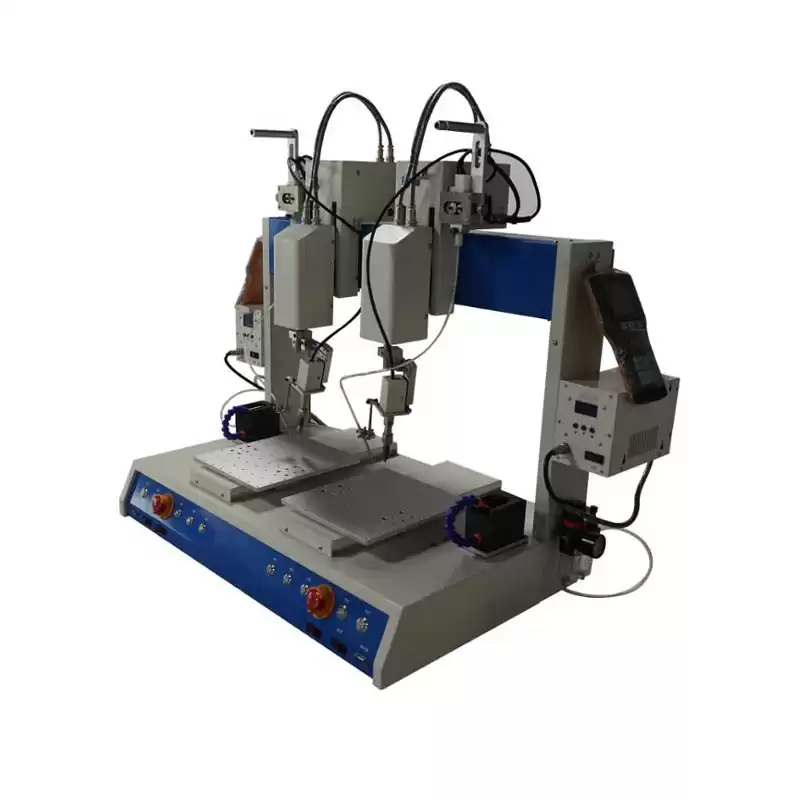

Dual Heads Desktop Automatic Soldering Robot For High Volume
The automatic soldering robot is a multi-function, which can adjust the welding angle, orientation, and set the point at will, control the amount of tin in and out, control the size of the solder point, and better guarantee the welding process requirements of customer products. This automatic soldering robot has eight axes, in addition to the ordinary XYZ axis, there is an independent stepping motor controlled tin feeding axis, and there is also a rotating axis that can rotate 360° in all directions. We call it the R axis, which has this rotating axis. The main function is that it can effectively avoid the over-high components on various PCB boards, and the influence of objects such as chips, wires, or terminals on the movement space of the soldering iron head, and can adjust the welding angle, the tin catheter and the needle tip at will. The tin wire can be accurately sent to the soldering iron head to match the appropriate molten tin surface of the customer's product to avoid the phenomenon of tin jamming caused by various reasons during the soldering process. The automatic soldering robot can increase the production capacity by more than 50% in the actual production and application process, and is suitable for various electronic products such as electronic automobiles, integrated circuits, printed circuits, color LCD screens, motors, pin headers, plugs, switches and PCBs
Automatic Soldering Robot ;Specs:
|
Model
|
SMTSR224
|
|
Dimension
|
880*700*830mm
|
|
Weight
|
95Kg
|
|
Control
|
PLC
|
|
Programming
|
Teaching box
|
|
Driving mode
|
Stepper motor
|
|
Stroke
|
500(X)x300(Y1)x300(Y2)x80(Z)x360°(R1)x360°(R2)
|
|
Soldering head
|
2
|
|
Repeatability
|
±0.02mm(X/Y/Z)
|
|
Temp. Range
|
0-500℃
|
|
Solder Wire Spec
|
￠0.3-1.6mm
|
|
Number of axes
|
6
|
|
Working pressure
|
0.4~0.6Mpa(No water mist)
|
|
Power
|
AC110V/220V 300W
|
|
Display
|
LCD
|
;
Automatic Soldering Robot ;Features:
Applicable for different products. Soldering
temperature can be set as per actual need, (different temperature can be set
for each solder joint)
The soldering iron unit can be multi-directionally adjusted, which can protect
the PCB and components from damage.
Numerically controlled temperature ( static air condition : +/- 1C ).
With the handheld LCD Teaching Pendant , the programming is simple and easy to
learn .
In the soldering process, the solder tip has rapid heat recovery and a long
life span.
Automatic Soldering Robot ;Applications:
Automatic soldering robot is suitable for automotive electronics, digital, electronic, electro-acoustic, LCD, circuit board and other production industries, connectors, networks, transformers, cable, FPC / COF soldering, computer motherboards, CABLE, speakers and motors high quality soldering.
Automatic Soldering Robot ;Congiguration:

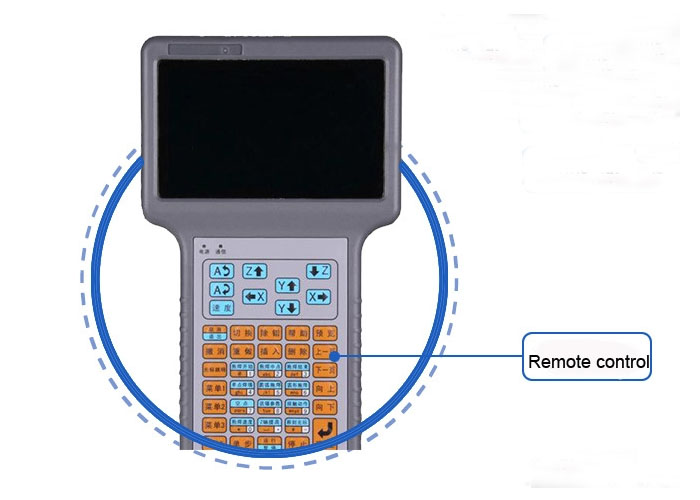

1. ;Handheld teach programmer
2. ;Heating controller
3. ;Broken tin controller
4. ;Soldering tip
5. ;Tin out components
6. ;Smoke purification filter system (optional)

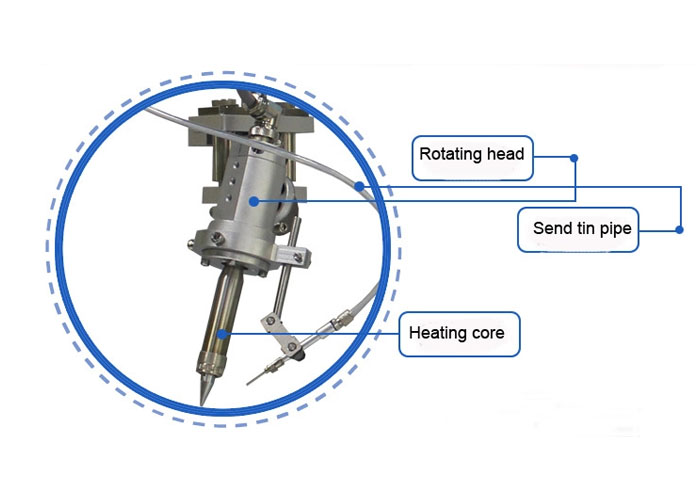

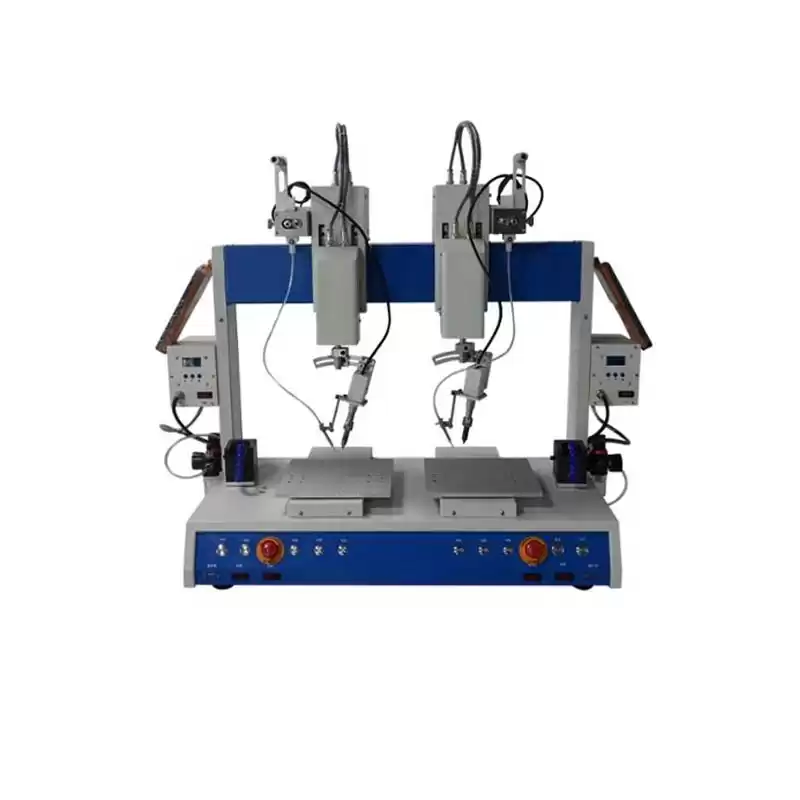

Machine details:
Automatic Soldering Robot Spare Parts Available:
1. Customized soldering tips
2. Heater
3. Customized fixture
4. Solder wire
5. Soldering head set
; ;
; ;
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
