Dual output 28V 12V switching power supply 500W with 385V output LED beam lamp

KAIHUI beam lamp series 500W 385V 28V 12V high efficiency up tp 88% samll size open frame power supply model,this type power supply can be customized and ODM and OEM.



Dual output 28V 12V switching power supply 500W with 385V output LED beam lamp

Description:

Beam lamp series K18-UP500D2812HV 500W 385Vdc 28Vdc 12Vdc open frame single output switching power supply with built-in active PFC function,PF>0.9,high efficiency up to 88%,it has 2 years warranty,be widely used is stage lighting and beam lamp field.


Features:

1, High efficiency 500W 385V 28V 12V switching power supply;
2, Built-in PFC function, low interference 500W 28VDC 12VDC output power supply;
3, 385V 28V 12V power supply with wide range of AC input voltage ;
4, Overload, short circuit over voltage and overheating protection;

5, Single output samll size beam lamp power supply.


                                                                                    Parameter
Item NO
                                               K18-UP500D2812HV
CH1 CH2 CH3
Output DC Output Voltage +28VDC +12VDC +385VDC
Rated Current 5A 1A 0.92A
Current Range(natural cooling) 0.1-3A 0.1-1A 0.1-0.78A
Current Range(fan cooling) 0.1-5A 0.1-1A 0.1-0.92A
Ripple & Niose 280mVp-p 150mVp-p 10Vp-p
Rated Power(natural cooling) 400W (CH1 and CH2 total power does not exceed 100W, CH1, CH2, CH3 three-way  total power does not exceed 400W)
Rated Power(fan cooling) 500W (CH1 and CH2 total power does not exceed 150W, CH1, CH2, CH3 three-way total power does not exceed 500W)
DC Output ADJ CH1:±5%
DC Output Tolerance ±1% ±8% ±2%
Line Regulation ±0.5% ±2% ±1%
Load Regulation ±0.5% ±6% ±1%
Set up,Rise,Keep up time 500ms,50ms,20ms
Input Input Voltage Range 100-240V AC
Input Range 3A@220V AV
Input frequency 50-60Hz
Efficiency >88%
Inrush Current

COLD START 15A/115V,30A/230V

Leakage Current

<0.35mA 240V AC

Power Factor

>0.99@110V;>0.95@220V

Protection
Over Load Protection 110~200%,Hiccup,automatic recovery,385V does not allow overload
Over Voltage Protection --
Over Temp.,Protcetion
Housing (Q1 position) temperature is greater than 105 °, the output is off, automatic recovery
Environment

Working Temp.,Humidity

-20~50℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH
Temp., Drift
±0.03%/℃(0~50℃)
Vibration 10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
Safety & EMC Standard

Safety standards

GB4943,EN60950-1

Withstand Voltage

I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:600VAC

Insulation resistance

IP-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
EMC standards
---
Others Dimensiosn 127*82*40mm(L*W*H)
Weight
0.6KG
Notes 1.All the parameters in the 230VAC input, rated load, temperature 25 ℃, humidity 70% under the conditions of determination;

2.Accuracy: including setting error, line adjustment rate, load regulation rate;

3.Ripple test: connect the power supply and load with 30cm long wire and 0.1u and 47u capacitance at the load end, measured on the load side with 20MHz oscilloscope;

4.Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5.Load regulation: the measured output load from 0 to 100% load change measured.

Product picture:

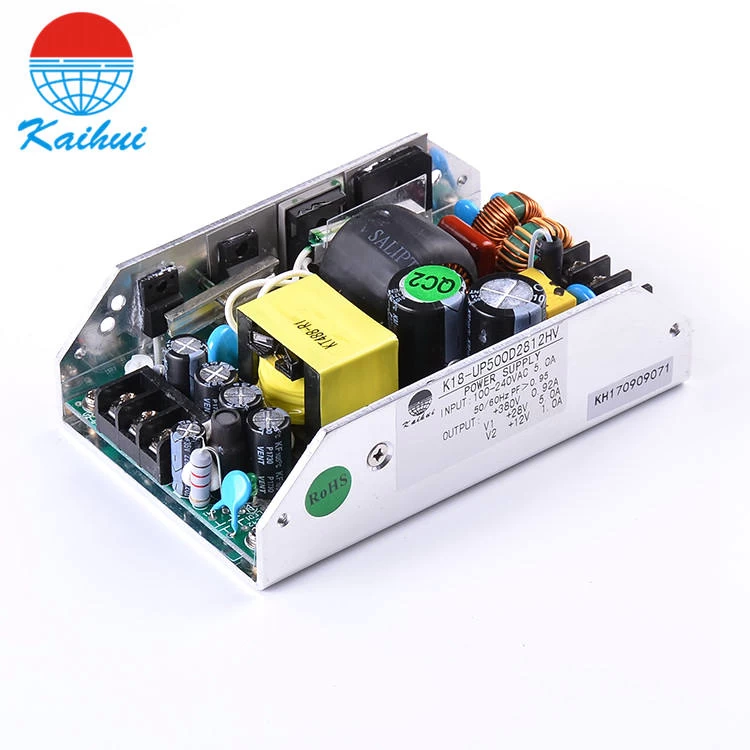

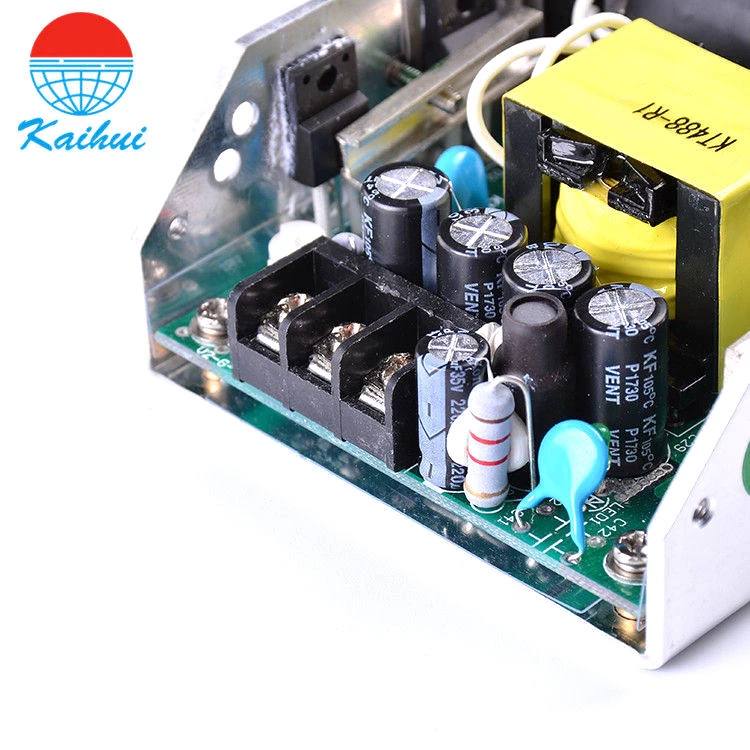

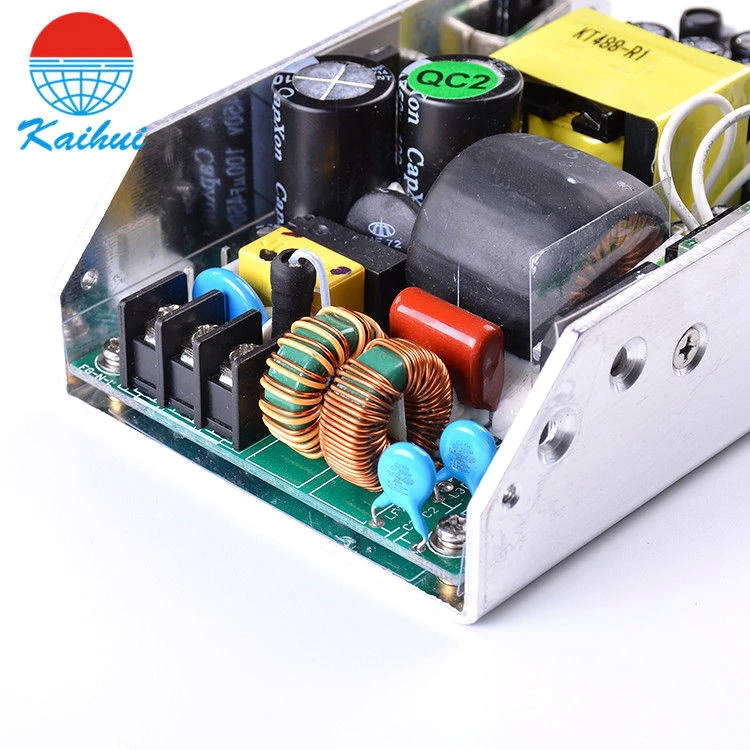

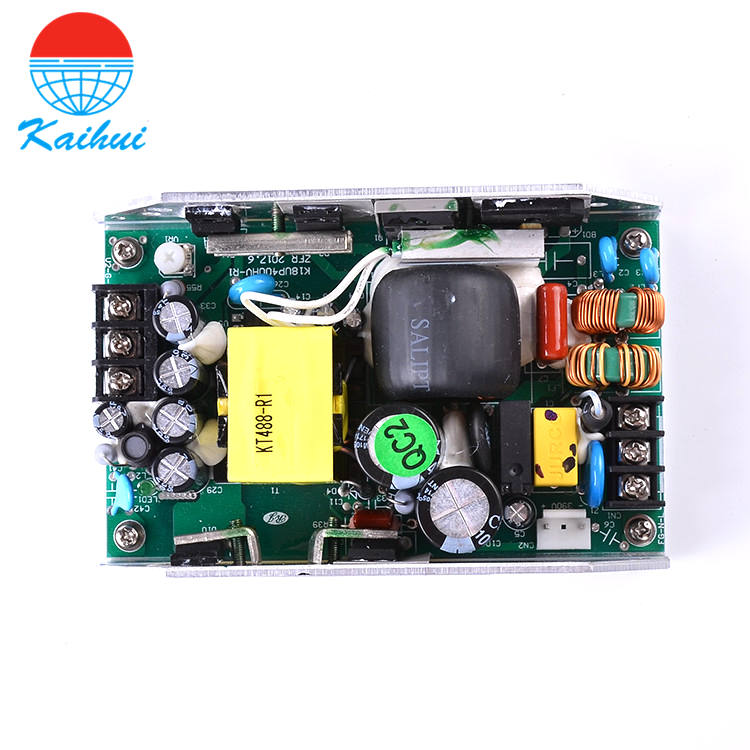

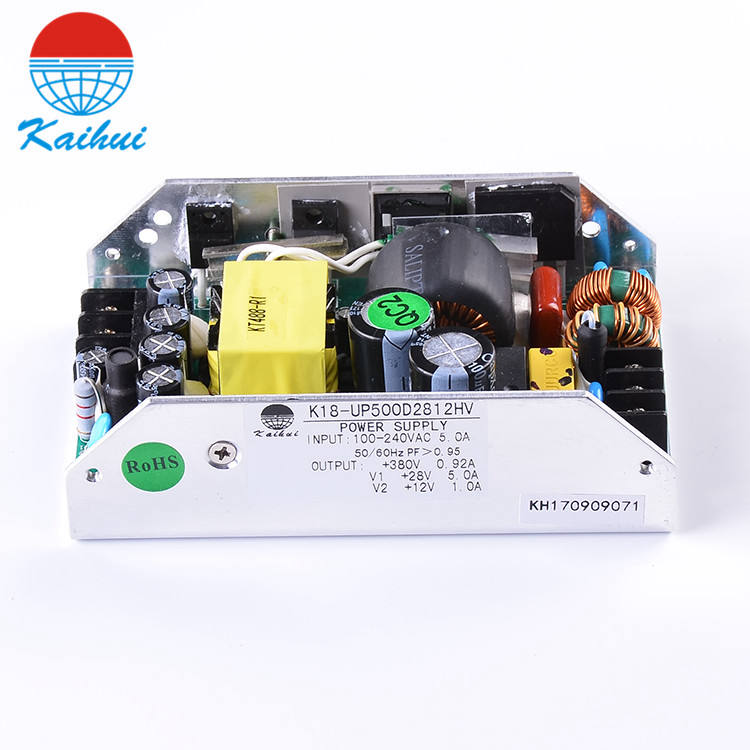

500W 28V 12 385V switching power supply
