Dual output 300W 48V 12V switching power supply open frame with PFC function
Description:
K18N-UP300D series dual output series 300W 48V 12A open frame item switching power supply is wide range of AC input voltage,built-in active PFC function,PF＞0.95,free air convection for 200W and forced air convection for 300W.
Features:
1, 300W high efficiency 48V 12V dual output switching power supply;
2, Built-in active PFC function power supply;
3, Wide range of AC input voltage,48V/6A, 12V/1A dual output power supply;
4, It have short circuit, over load, over voltage,over hearting protection;
5, 300W 48V 12V power supply used in LED driver,stage light etc.
|
Parameter |
|||||||
|
Item NO |
K18N-UP300D24+12 | K18N-UP300D36+12 | K18N-UP300D48+12 | ||||
| CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | ||
| Output |
Output Voltage |
+24V | +12V | +36V | +12V | +48V | +12V |
| Rated Current | 12A | 1A | 8A | 1A | 6A | 1A | |
| Current Range(natural cooling） | 0-7.8A | 0-1A | 0-5.2A | 0-1A | 0-4.2A | 0-1A | |
| Current Range（with fan cooling) | 0-12A | 0-1A | 0-8A | 0-1A | 0-6A | 0-1A | |
| Rated Power(natural cooling) | 199.2W | 199.2W | 199.2W | ||||
| Rated Power(with fan cooling) | 300W |
300W |
300W |
||||
| Ripple | 240mVp-p | 120mVp-p | 360mVp-p | 120mVp-p | 480mVp-p | 120mVp-p | |
| Output Adjustable Range | ±10% | ||||||
|
Output Accurancy |
±1% |
||||||
| Line Regulation |
±0.5% |
||||||
| Load Regulation | ±0.5% | ||||||
| Set up,Rise,Keep up time |
500ms,50ms,20ms |
||||||
| Input | Input Voltage | 90-264VAC | |||||
| Input Current | 1.6A@220VAC | ||||||
| Frequency |
47-63Hz |
||||||
| Efficiency @220V AC | ＞88% | ＞88% | ＞88% | ||||
| Power Factor |
＞0.99@110V,＞0.95@220V |
||||||
| Inrush Current |
Cold start 20A/115V,40A/230V |
||||||
| Leakage Current |
＜0.75mA@240V AC |
||||||
| Protection | Over Load Protection | 110~200%,Hiccup-type protection,automatic recovery | |||||
| Over Output Protection | CH1:27-31V | CH1:39-43V | CH1:55-60V | ||||
| Over Tmep.,Protection |
105℃. Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
||||||
|
Environment |
Working Temp.,Humidity |
-20~50℃,10~90% RH,No condensation. |
|||||
|
Storage Temp., Humidity |
-20~85℃,10~95% RH |
||||||
|
Temperature Drift |
±0.03%/℃(0~50℃) |
||||||
|
Vibration |
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES |
||||||
|
Safety & EM C Standards |
Safety Standards |
EN61347-1:2008, EN61347-2-13:2006 |
|||||
| Withstand Voltage |
I/P-O/P:3.75KVAC； I/P-FG:1.5KVAC;O/P-FG:500VAC |
||||||
|
Insulation Resistance |
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms |
||||||
|
EMC Standards |
EN55015:2006+A1:2007+A2:2009, EN61000-3-2:2006+A1:2009+A2:2009,EN61000-3-3:2008, EN61547:2009 |
||||||
|
Others |
Dimension |
127*82*45mm(L*W*H) |
|||||
|
Weight |
0.6KG |
||||||
| Function |
--- |
||||||
| Notes |
1. All parameters are measured at 220 V AC input, rated load, ambient temperature 25 ° C, humidity 70%; 2. Accuracy: including setting error, line regulation, load regulation rate; 3. Ripple test: 30cm long wire with the power and load, load and 0.1u and 47u capacitance to 20MHz oscilloscope measured at the load side; 4. Line regulation: the rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: Measured output is measured from 0% load to 100% load change. |
||||||

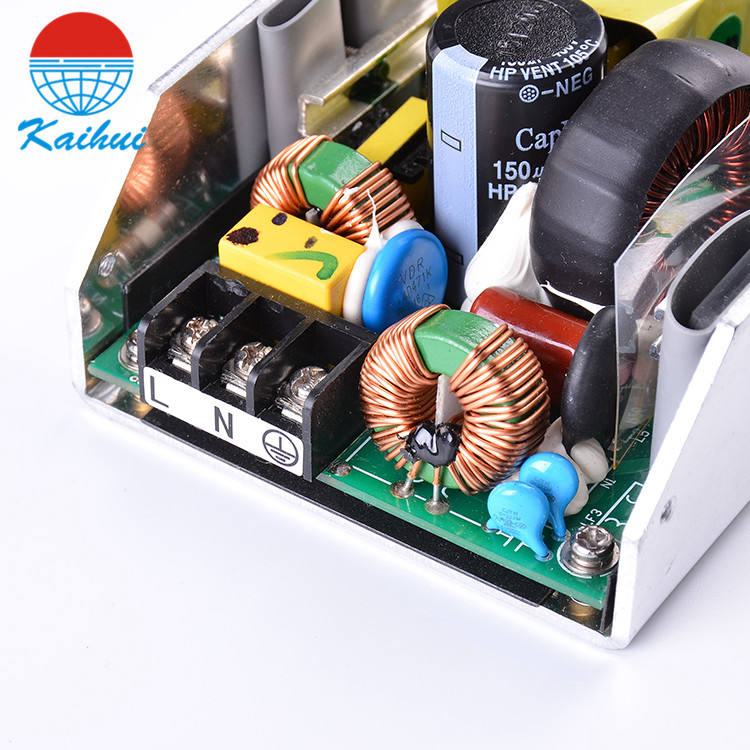

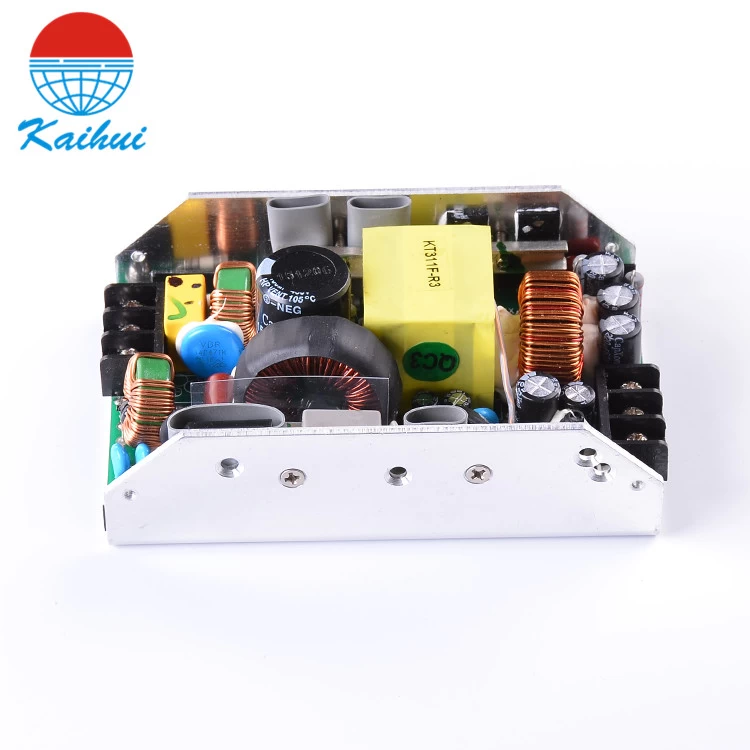

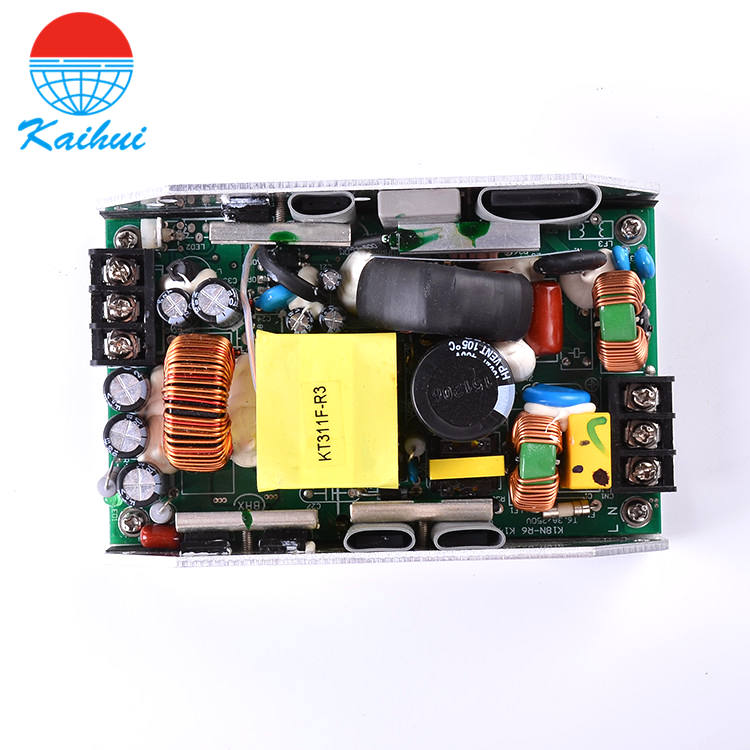

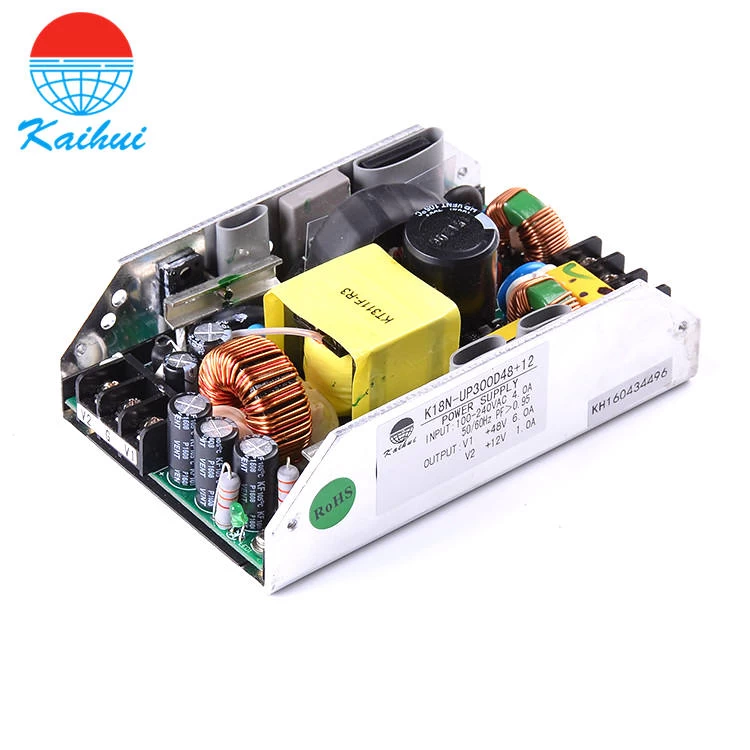

Product picture:
