Dual output 400W 36V 12V switching power supply open frame with ETL certification
Description:
K18-UP400D dual output series 400W 36V 12A open frame item switching power supply is wide range of AC input voltage,built-in active PFC function,high efficiency up to 90%,free air convection for 300W and forced air convection for 400W.
Features:
1, 400W high efficiency 36V 12V dual output switching power supply,low interference;
2, Built-in active PFC function power supply;
3, Wide range of AC input voltage,36V/10A, 12V/3A dual output power supply;
4, It have short circuit, over load, over voltage,over hearting protection;
5, 400W 36V 12V power supply used in LED drive,stage light etc.
Parameter
|
Item NO
|
K18-UP400D24+12
|
K18-UP400D36+12
|
K18-UP400D48+12
|
|
CH1
|
CH2
|
CH1
|
CH2
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+24V
|
+12V
|
+36V
|
+12V
|
+48V
|
+12V
|
|
Rated Current
|
15A
|
3A
|
10A
|
3A
|
7.5A
|
3A
|
|
Current Range(natural cooling）
|
0.1-12A
|
0.1-2A
|
0.1-7.7A
|
0.1-2A
|
0.1-6A
|
0.1-2A
|
|
Current Range（with fan cooling)
|
0-15A
|
0.1-3A
|
0-10A
|
0.1-3A
|
0-7.5A
|
0.1-3A
|
|
Rated Power(natural cooling)
|
312W
|
301.2W
|
312W
|
|
Rated Power(with fan cooling)
|
396W
|
396W
|
396W
|
|
Ripple
|
240mVp-p
|
200mVp-p
|
360mVp-p
|
200mVp-p
|
480mVp-p
|
200mVp-p
|
|
Output Adjustable Range
|
CH1:±10%
|
Output Accurancy
|
CH1:±1% CH2:±5%
|
|
Line Regulation
|
CH1:±0.5% CH2:±1%
|
|
Load Regulation
|
CH1:±0.5% CH2:±4%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage
|
90-264VAC
|
|
Input Current
|
2.2A@220VAC
|
|
Frequency
|
47-63Hz
|
|
Efficiency
|
90%
|
90%
|
90%
|
|
Power Factor
|
＞0.99@110V,＞0.95@220V
|
|
Inrush Current
|
Cold start 15A/115V,30A/230V
|
|
Leakage Current
|
＜0.35mA@240V AC
|
|
Protection
|
Over Load Protection
|
110~200%,Hiccup-type protection,automatic recovery
|
|
Over Output Protection
|
CH1:30-35V
|
CH1:42-48V
|
CH1:55-60V
|
|
Over Tmep.,Protection
|
The cover temp.,>105℃,the output shut up,then automatic recovery
|
Environment
|
Working Temp.,Humidity
|
-20~50℃,10~90% RH,No condensation.
|
Storage Temp., Humidity
|
-20~85℃,10~95% RH
|
Temperature Drift
|
±0.03%/℃(0~50℃)
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
Safety & EM
C Standards
|
Safety Standards
|
GB4943,EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:3KVAC； I/P-FG:1.5KVAC;O/P-FG:500VAC
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
EMC Standards
|
MEET EN55022 CLASS B; EN61000-3-2
|
Others
|
Dimension
|
127*82*45mm(L*W*H)
|
Weight
|
0.6KG
|
|
Function
|
With additional one channel output DC385V
|
|
Notes
|
1. All parameters are measured at 220 V AC input, rated load, ambient temperature 25 ° C, humidity 70%;
2. Accuracy: including setting error, line regulation, load regulation rate;
3. Ripple test: 30cm long wire with the power and load, load and 0.1u and 47u capacitance to 20MHz
oscilloscope measured at the load side;
4. Line regulation: the rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: Measured output is measured from 0% load to 100% load change.
|

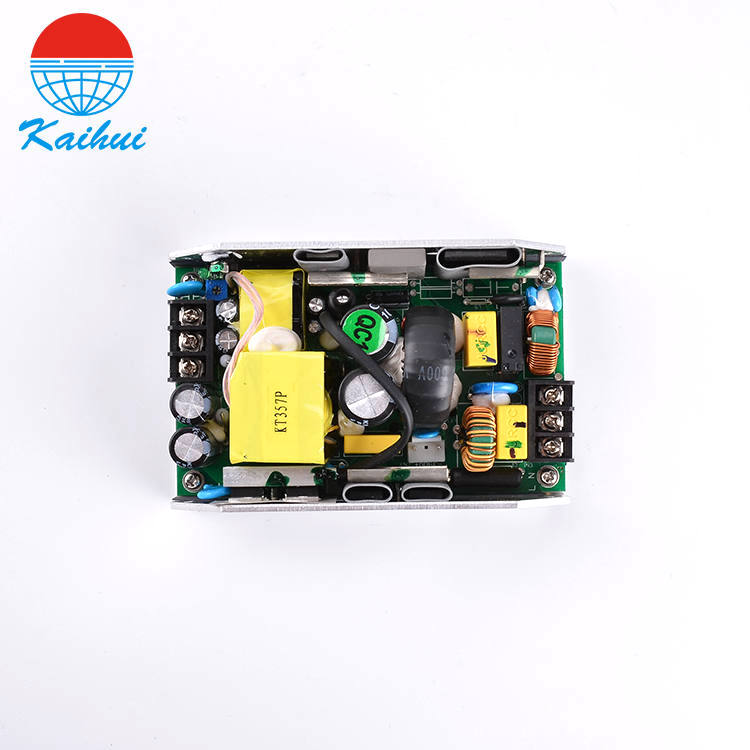

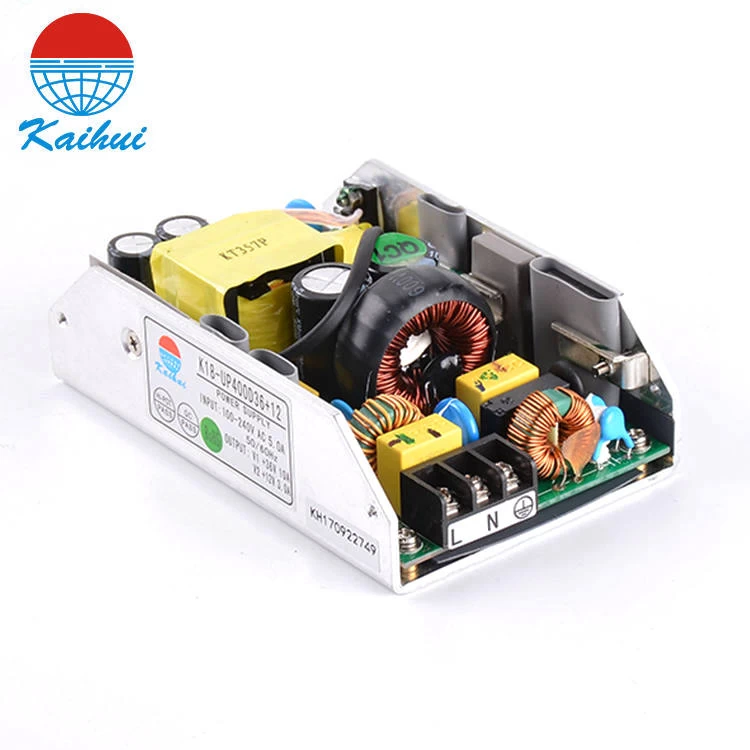

Product picture:
