Dual Pille Solar Bificial Solar Aluminum Photovoltaic Ground Mounting Bracket

Dual Pille Solar Bificial Solar Aluminum Photovoltaic Ground Mounting Bracket

Jesfer's GM10 no need drill on portrait beam,It improves the strength of the longitudinal beam fixation system, and is fixed on the column by a specially designed fixture, while applying the same force gravity direction.this is a cost effective solution applied for the installation of large scale for commercial solar energy ground system.

System Structure

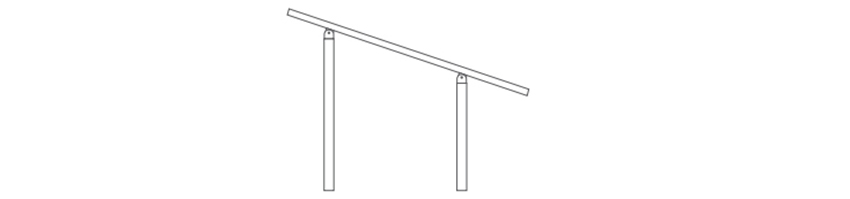

                                                          Double Posts Without Side Support

Technical Parameters

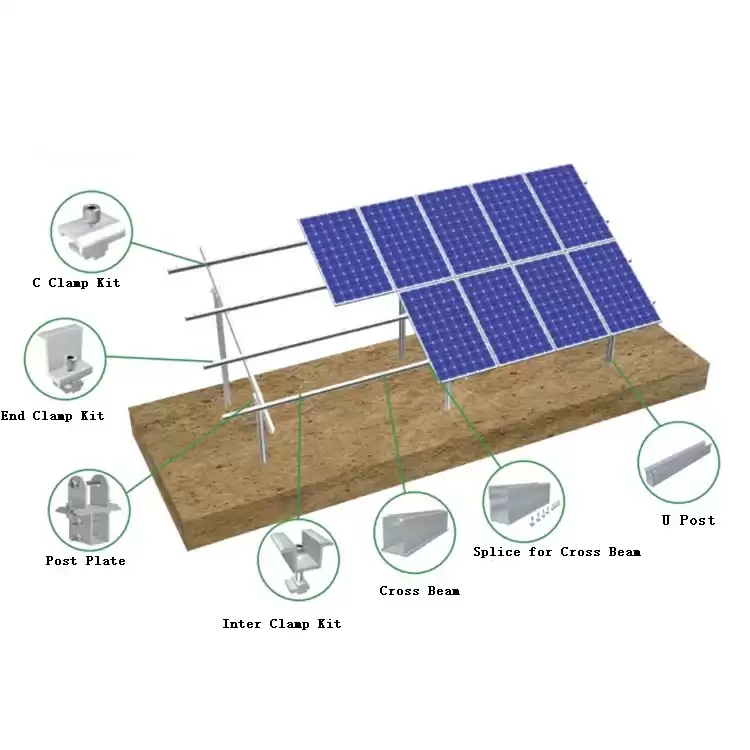

Components Details

Splice for Cross Beam kit Specification：L260mm Components:Splice for Cross Beam 85 ,Hexa Self-Tapping Screw With EPDM Washer ST6.3*19	Cross Beam Specification：L*71*85 Standard Length：3100mm,4100mm,5100mm
Pre-Assemble Support Components:Beam,C Clamp 80,T Shaped Joint Flat Washer M8,Spring Washer M8 Hexagon Socket Head Bolt M8*25	U Post Specification：L150 Material：Steel Q235B(Hot-Dip Galvanized)
Wide End ClampKit Components:Wide End Clamp, Cross Module, Spring Washer M8,Hexagon Socket Bolt	Inter Clamp Kit Components：Inter Clamp,Cross Module Spring Washer M8,Hexagon Socket Bolt
C Clamp Kit Components:C Clamp, Cross Module,Spring Washer M8 Hexagon Socket Bolt	Post Plate A Specification:L90 Material:AL6005-T5(anodized)
Post Plate B Specification:L70 Material:AL6005-T5(anodized)

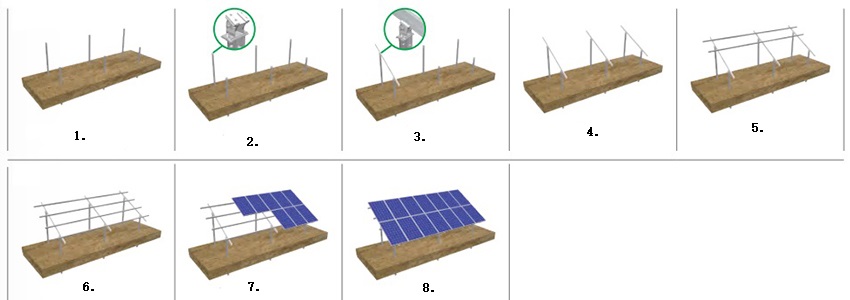

Installation Guide

1.Install U post based on project solution.

2.Install post plate

3.Install rail.

4.The installation of rail is done.

5.Install beam.

6.The installation of Beam is done

7.Fix the solar module with Inter Clamp Kit & End Clamp Kit.

8.Installation is done.

1).Delivery Terms:FOB, CNF, CIF,EXW are available.

For some countries, we can cooperate with DDP, such as Philippines, Malaysia, Thailand, Vietnam, Botswana and so on.

2).Terms of payment:Deposit before production by T/T, The balance shall be paid after inspection and before shipment.

3).Production time:Sample order normally take about 3-7days .and bulk orders usually take about 20-30 days.

4).Time of shipment:

For Southeast Asia:10-15days.

For Europe:around 30days

For Africa:around 20-30 days

For the Middle East :around 20-30 days

For South American countries:around 40-50 days

Production and transportation of Aluminum Solar Ground Structure

1).Production:We have a lot of production equipment, for large orders, we can complete production faster than many competitors.

2).Transportation:Our city has international seaport by Xiamen and international airport  by Gaoqi, goods can be easily transported to all parts of the world.

Excellent quality made us more competitive in the markets, we are always looking for good partners for long cooperation, if you are interested in High Quality & Free Design For Concrete Foundation Ground Mounting Brackets, pls contact us right now.Jesfer! Your Best Choice, Your Reliable Supplier!

Our Packaging

Jesfer packing design engineer team care the safety of workers, both for hand-carrying and forklift processing.The small accessories of Solar Pv Ground Mounting are packed with 3 standard kinds of paper cartons, weight range from 5-25kg per box, 0.5-1.5tons per pallet. Longer components of Jesfer Solar Ground Mounting Rack like solar rail, solar structure beams are loaded on pallets with 2 to 8 pieces per bundle. The sizes of cartons and pallets are always calculated according to 20ft and 40ft containers to ship by sea and by truck inland.Optionally, bulk bundles of longer components like solar rails to be loaded in containers can save some space and logistic freight.
