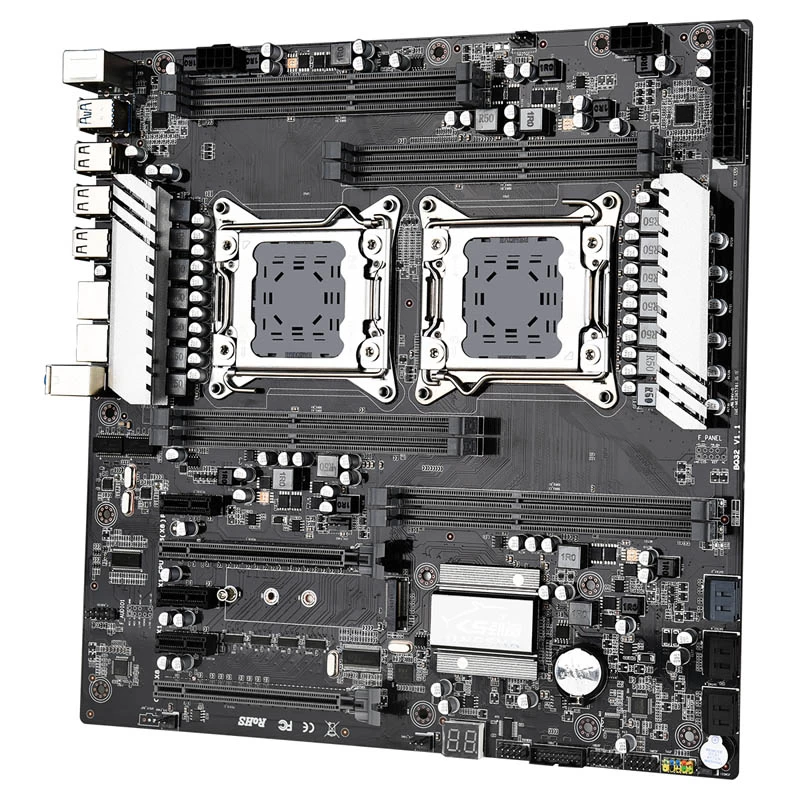

Dual-processor motherboard with Intel C600 chipset 2 LGA 2011 sockets Octa channel DDR3 up to 256GB

  • Dual processor motherboard
  • Intel C600 chipset with dual LGA 2011 socket, support Intel Core/Xeon series processors
  • Octa channel DDR3 up to 256GB, support REG ECC RAM
  • Dual Gigabit LAN
  • 2-way PCIE 3.0 16x slots
  • 6 SATA3 (6Gb/s) slots
  • NVME M.2 slot

  • MemoryOcta channel DDR3 up to 256GB
  • ChipsetIntel C600 series
  • CPU socketDual LGA 2011 sockets
Facebook Twitter Pinterest LinkedIn 分享

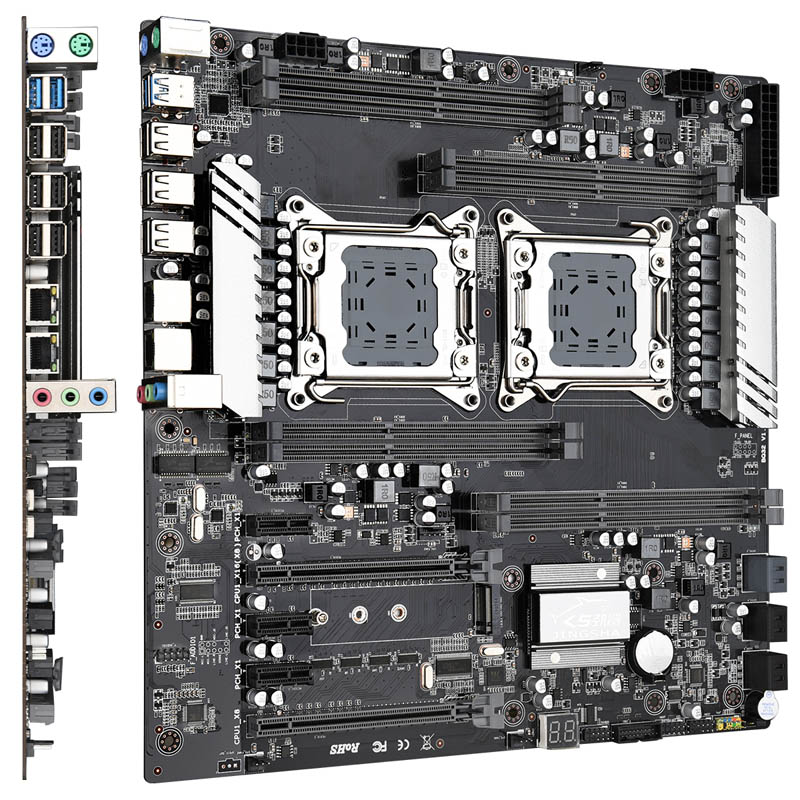

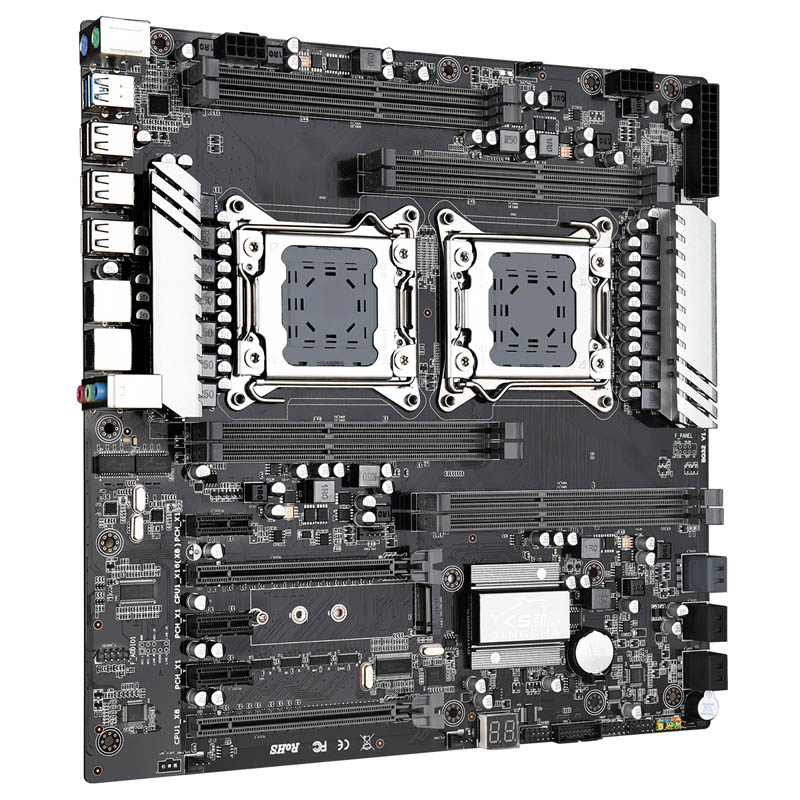

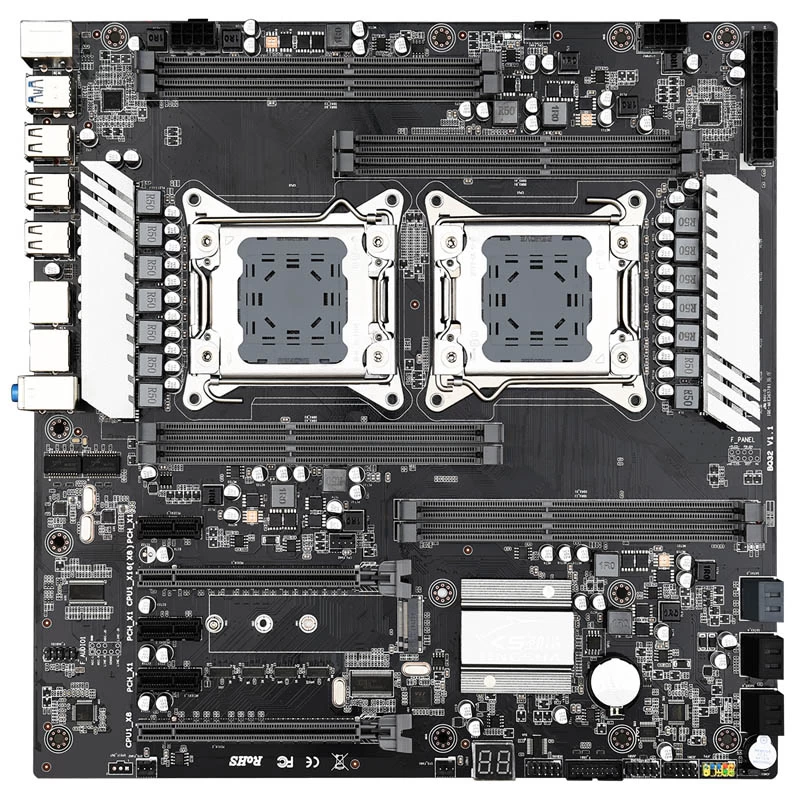

Dual-Processor Motherboard X79DUAL-S8 detail...

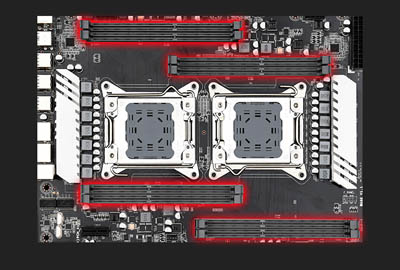

Octa DDR3 256GB

8 channel DDR3 DIMM slot
Support REG ECC RAM
Support 1600mhz 32GB single lath.

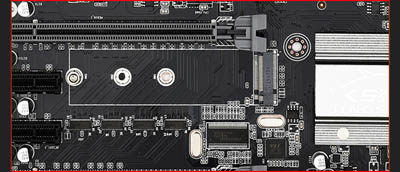

NVME M.2 Slot

High speed onboard SSD
Boot your OS in an instant
Data transfer speeds up to 30Gb/s

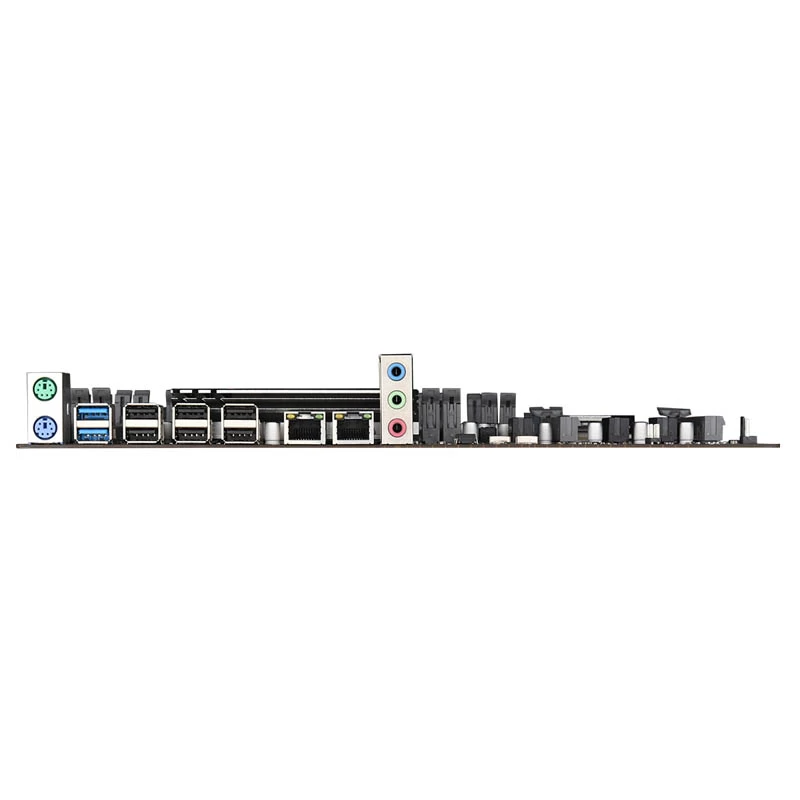

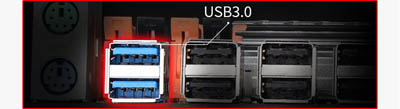

USB 3.0

2 * USB 3.0 ports
6 * USB 2.0 ports
1 * USB 3.0 20-pin internal header
2 * USB 2.0 header

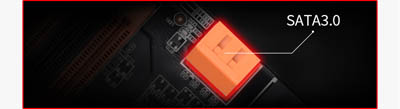

SATA3.0

High speed SATA3.0 6Gb/s
High speed data transmission

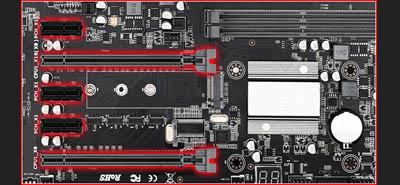

PCIE slot

2 * PCIE 3.0 16x
3 * PCIE 1x
Support CrossFire

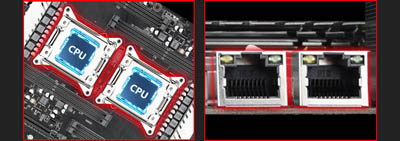

2 CPU sockets

Dual processors LGA 2011 sockets
Support Intel Core/Xeon series processors

2 Gigabit LAN

2 * Realtek RTL8111H - 100/1000 LAN Controller

Support LGA2011 CPU list:
Desktop (Sandy Bridge-E/Ivy Bridge-E）
Name Cores Threads Frequency Turbo Boost Multiplier L2 cache L3 cache TDP
Sandy Bridge-E
Core i7-3820 4 8 3.60 GHz 3.80 GHz Partially unlocked 4 × 256 KB 10 MB 130 W
Core i7-3930K 6 12 3.20 GHz Unlocked 6 × 256 KB 12 MB
Core i7-3960X Extreme Edition 3.30 GHz 3.90 GHz 15 MB
Core i7-3970X Extreme Edition 3.50 GHz 4.00 GHz 150 W
Ivy Bridge-E
Core i7-4820K 4 8 3.70 GHz 3.90 GHz Unlocked 4 × 256 KB 10 MB 130 W
Core i7-4930K 6 12 3.40 GHz 6 × 256 KB 12 MB
Core i7-4960X Extreme Edition 3.60 GHz 4.00 GHz 15 MB
Server (Xeon E5-16xx/26xx)
Name Cores Threads Frequency Turbo Boost Multiplier L2 cache L3 cache TDP
Xeon E5-1620 4 8 3.60 GHz 3.90 GHz 38 4 × 256 KB 10 MB 130 W
Xeon E5-1650 6 12 3.20 GHz 3.80 GHz 6 × 256 KB 12 MB
Xeon E5-1660 3.30 GHz 3.90 GHz 39 15 MB
Xeon E5-2603 4 4 1.8 GHz Not supported[48] 18 4 × 256 KB 10 MB 80 W
Xeon E5-2609 2.4 GHz Not supported[49] 24
Xeon E5-2620 6 12 2.0 GHz 2.5 GHz 25 6 × 256 KB 15 MB 95 W
Xeon E5-2630 2.3 GHz 2.8 GHz 28
Xeon E5-2630L 2.0 GHz 2.5 GHz 20 60 W
Xeon E5-2637 2 4 3.0 GHz 3.5 GHz 30 2 × 256 KB 5 MB 80 W
Xeon E5-2640 6 12 2.5 GHz 3.0 GHz 6 × 256 KB 15 MB 95 W
Xeon E5-2643 4 8 3.3 GHz 3.5 GHz 33 4 × 256 KB 10 MB 130 W
Xeon E5-2650 8 16 2.0 GHz 2.8 GHz 28 8 × 256 KB 20 MB 95 W
Xeon E5-2658 2.1 GHz 2.4 GHz N/A
Xeon E5-2650L 1.8 GHz 2.3 GHz 18 70 W
Xeon E5-2660 2.2 GHz 3.0 GHz 30 95 W
Xeon E5-2665 2.4 GHz 3.1 GHz 31 115 W
Xeon E5-2667 6 12 2.9 GHz 3.5 GHz 29 6 × 256 KB 15 MB 130 W
Xeon E5-2670 8 16 2.6 GHz 3.3 GHz 33 8 × 256 KB 20 MB 115 W
Xeon E5-2680 2.7 GHz 3.5 GHz 35 130 W
Xeon E5-2687W 3.1 GHz 3.8 GHz 31 150 W
Xeon E5-2689 2.6 GHz 3.6 GHz 36 115 W
Xeon E5-2690 2.9 GHz 3.8 GHz 38 135 W
Xeon E5-16xx v2 (uniprocessor)
Model Cores Frequency Turbo L2 L3 TDP I/O bus Memory
number cache cache
Quad Core
Xeon E5-1607 v2 4 3 GHz N/A 4 × 256 KiB 10 MiB 130 W DMI 2.0 4 × DDR3-1600
Xeon E5-1620 v2 4 3.7 GHz 0/0/0/2 4 × 256 KiB 10 MiB 130 W DMI 2.0 4 × DDR3-1866
Six Core
Xeon E5-1650 v2 6 3.5 GHz 1/1/2/2/2/4 6 × 256 KiB 12 MiB 130 W DMI 2.0 4 × DDR3-1866
Xeon E5-1660 v2 6 3.7 GHz 1/1/1/1/2/3 6 × 256 KiB 15 MiB 130 W DMI 2.0 4 × DDR3-1866
Eight Core
Xeon E5-1680 v2 8 3 GHz 4/4/4/4/5/7/8/9 8 × 256 KiB 25 MiB 130 W DMI 2.0 4 × DDR3-1866
Xeon E5-26xx v2 (dual-processor)
Model Cores Frequency Turbo L2 L3 TDP I/O bus Memory
number cache cache
Quad Core
Xeon E5-2603 v2 4 1.8 GHz N/A 4 × 256 KiB 10 MiB 80 W 2 × 6.4 GT/s QPI 4 × DDR3-1333
Xeon E5-2609 v2 4 2.5 GHz N/A 4 × 256 KiB 10 MiB 80 W 2 × 6.4 GT/s QPI 4 × DDR3-1333
Xeon E5-2637 v2 4 3.5 GHz 1/1/2/3 4 × 256 KiB 15 MiB 130 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
Six Core
Xeon E5-2620 v2 6 2.1 GHz 3/3/3/3/4/5 6 × 256 KiB 15 MiB 80 W 2 × 7.2 GT/s QPI 4 × DDR3-1600
Xeon E5-2630 v2 6 2.6 GHz 3/3/3/3/4/5 6 × 256 KiB 15 MiB 80 W 2 × 7.2 GT/s QPI 4 × DDR3-1600
Xeon E5-2643 v2 6 3.5 GHz 1/1/1/1/2/3 6 × 256 KiB 25 MiB 130 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
Six Core, low power
Xeon E5-2618L v2 6 2 GHz N/A 6 × 256 KiB 15 MiB 50 W 2 × 6.4 GT/s QPI 4 × DDR3-1333
Xeon E5-2630L v2 6 2.4 GHz 2/2/2/2/3/4 6 × 256 KiB 15 MiB 60 W 2 × 7.2 GT/s QPI 4 × DDR3-1600
Eight Core
Xeon E5-2640 v2 8 2 GHz 3/3/3/3/3/3/4/5 8 × 256 KiB 20 MiB 95 W 2 × 7.2 GT/s QPI 4 × DDR3-1600
Xeon E5-2650 v2 8 2.6 GHz 4/4/4/4/5/6/7/8 8 × 256 KiB 20 MiB 95 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
Xeon E5-2667 v2 8 3.3 GHz 3/3/3/3/4/5/6/7 8 × 256 KiB 25 MiB 130 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
Xeon E5-2673 v2 8 3.3 GHz 3/3/3/3/4/5/6/7 8 × 256 KiB 25 MiB 110 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
Xeon E5-2687W v2 8 3.4 GHz 2/2/2/2/3/4/5/6 8 × 256 KiB 25 MiB 150 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
Eight Core, low power
Xeon E5-2628L v2 8 1.9 GHz 2/2/3/3/4/4/5/5 8 × 256 KiB 20 MiB 70 W 2 × 7.2 GT/s QPI 4 × DDR3-1600
Ten Core
Xeon E5-2658 v2 10 2.4 GHz 2/2/3/3/4/4/ 10 × 256 KiB 25 MiB 95 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
5/5/6/6
Xeon E5-2660 v2 10 2.2 GHz 4/4/4/4/4/4/ 10 × 256 KiB 25 MiB 95 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
5/6/7/8
Xeon E5-2670 v2 10 2.5 GHz 4/4/4/4/4/4/ 10 × 256 KiB 25 MiB 115 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
5/6/7/8
Xeon E5-2680 v2 10 2.8 GHz 3/3/3/3/3/4/ 10 × 256 KiB 25 MiB 115 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
5/6/7/8
Xeon E5-2690 v2 10 3 GHz 3/3/3/3/3/3/ 10 × 256 KiB 25 MiB 130 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
3/4/5/6
Ten Core, low power
Xeon E5-2648L v2 10 1.9 GHz 2/2/3/3/4/4/ 10 × 256 KiB 25 MiB 70 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
5/5/6/6
Xeon E5-2650L v2 10 1.7 GHz 2/2/2/2/2/2/ 10 × 256 KiB 25 MiB 70 W 2 × 8.0 GT/s QPI 4 × DDR3-1600
2/2/3/4
Twelve Core
Xeon E5-2651 v2 12 1.8 GHz 2/2/2/2/2/2/ 12 × 256 KiB 30 MiB 105 W 2 × 6.4 GT/s QPI 4 × DDR3-1600
2/2/2/2/3/4
Xeon E5-2692 v2 12 2.2 GHz 4/4/4/4/4/4/ 12 × 256 KiB 30 MiB 115 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
4/4/5/6/7/8
Xeon E5-2695 v2 12 2.4 GHz 4/4/4/4/4/4/ 12 × 256 KiB 30 MiB 115 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
4/4/5/6/7/8
Xeon E5-2696 v2 12 2.5 GHz 6/6/6/6/6/6/ 12 × 256 KiB 30 MiB 120 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
6/6/7/8/9/10
Xeon E5-2697 v2 12 2.7 GHz 3/3/3/3/3/3/ 12 × 256 KiB 30 MiB 130 W 2 × 8.0 GT/s QPI 4 × DDR3-1866
3/4/5/6/7/8
