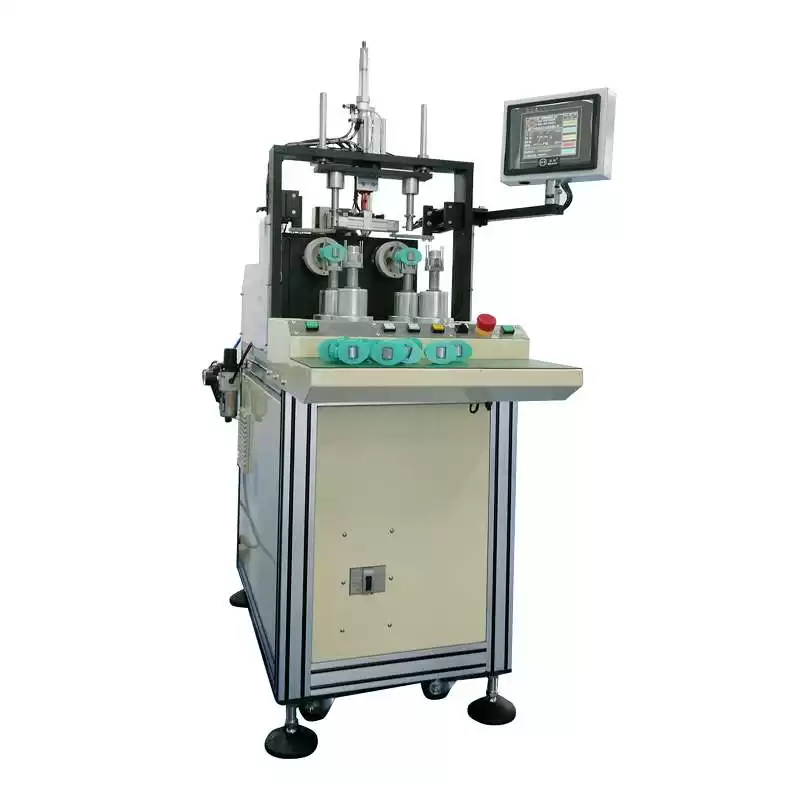

Dual-Spindle Flying Fork Winding Machine
Machine Features：
1.The Flyer Fork Winding Machine is applicable for small-amount winding for small and medium-sized motor bobbin with high precision and high efficiency.
2.The machine can execute the auto actions of Winding, Pole change, Coil hooking, Coil cutting and Auto converting and Exchanging. The automation degree is high and what has to be done by people is to only load and unload the bobbins.
3.All the key parts are imported from Japan, Italy and US including Panasonic servo system，SKF bearing ,Unitta Belts，SUNX sensor and CKD/SMC Pneumatic parts.
4.When winding, the end of the wire is kept all the time till the end of the winding process. The function not only saves the operation time for loosing the end wire, but also avoids the occurrence of undesired entry of the wire end into the coils.
5.Panasonic servo motor control (with speed converter inside) is employed for angle rotation, making it possible to turn to any angle desired and no locking is necessary.
6.The interface is in Chinese and English version is optional. The JOG function enables automatic programming when winding process is ongoing. (More than 90% of the movements can be done without manual programming.
7.LCD monitor is equipped, which conveniently shows the data for the current operation of the machine such as the rotary direction of the main spindle, number of loops, angles and winding time and etc. Texts are automatically shown when false occurs.
8.When winding some bobbins, the related program can be called directly.Besides 60 winding programs that stored in the memory of the machine, a computer can be connected to it to realize limitless storage.
9.Optimized design of winding fixture for quick changeover.
Technical Parameters:
|
Model #
|
STC1906
|
|
Control system
|
Meteor F2 controller
|
|
Spindle number
|
2
|
|
Spindle pitch
|
250mm
|
|
Spindle speed
|
MAX.7,000RPM
|
|
Wire range
|
0.04-1.2mm
|
|
Max. core outer diameter
|
Ф120mm
|
|
Max. core thickness
|
50
|
|
Slot number
|
1-36
|
|
Max. winding width
|
55mm
|
|
Winding direction
|
Clockwise /counterclockwise set freely
|
|
Spindle position
|
± 1°
|
|
Table position
|
± 1°
|
|
Machine size
|
600(L)*1600(W)*1400(H)mm ,
|
|
Machine weight
|
250kg
|
|
Power voltage
|
AC 220V 50HZ
|
|
Power consumption
|
1.5 KVA
|
|
Air pressure
|
0.45-0.65Mpa
|
