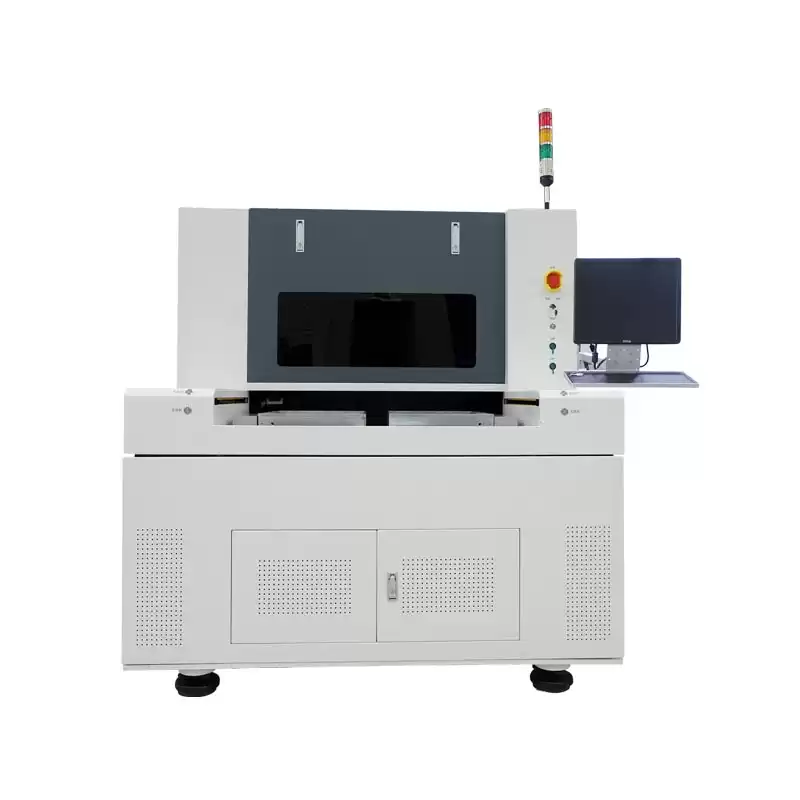

Dual Tables PCB Laser Depaneling Machine Without Strian
PCB Laser Depaneling Machine Overview:
The PCB laser depaneling machine integrates high-speed and high-precision optical processing system, independent process and processing path optimization system, which can accurately cut the shape and control the half cutting depth. The application of ultra short pulse ultraviolet laser has greatly improved the processing quality of products.
Some degree of mechanical stress for traditional depaneling is exerted on the boards. This inflicted stress can lead to delamination or cause a space to develop. These methods also require that the final connections between the boards and panel be removed. The bending stress can damage components close to the areas of necessary removal. Laser depaneling machine is the most recent tool in delaminating flex and rigid boards.
PCB Laser Depaneling Machine ;Features:
1. Effectively control the processing heat effect, and improve the edge collapse and thermal effect of the product
2. High quality laser, no contact processing, no burr and burr after cutting
3. Mature process system can accurately calculate and segment the graphics, and realize the process of processing parameters and processing graphics
4. Application fields: pcb/fpc/pi/cpi/mpi/pcba/cof/cop/cob/fr4/lcp, etc
PCB Laser Depaneling Machine Spec:
|
Cutting Path
|
Straight line, oblique line, curve and other arbitrary graphics
|
|
Laser
Wavelength
|
355nm
|
|
Laser Source
|
UV, ;picosecond
|
|
Positioning
Precision of Worktable of Linear Motor
|
±3μm
|
|
Repetition
Precision of Worktable of Linear Motor
|
±2μm
|
|
Effective
Working Field
|
350mm x 500mm
|
|
Galvanometer Working Field Per One Process
|
50mmх50mm
|
PCB Laser Depaneling Machine Application:
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
laser pcb depaneling machine avoid separation loss and simplify your process! During the laser cutting process, circuit reliability is significantly improved, material usage and cleaning work are reduced or even eliminated, which can result in significant savings in depaneling costs. This laser pcb depaneling machine range offers an unprecedented combination of performance, reliability and economy.
In addition, the division of flexible printed circuit boards is the strength of the laser. For this type of application, all the various benefits of lasers come into play, and the cutting results cannot be replicated by any other separation process. Flexible PCB Laser Cutting Machine is also very popular in the market now.
Also, we have a UV Laser Depaneling Machine that is worth mentioning.
The UV Laser Depaneling Machine can process any material, and the UV
laser also has no radiant heat, so the point of laser application will
not cause damage to the surrounding field.
