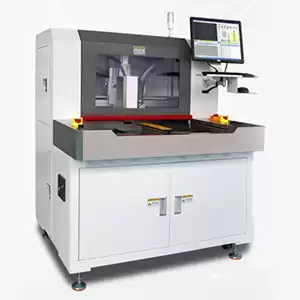

Dual Tables PCB Depaneling Router 60000RMP
With the dual tables PCB depaneling router technique, a router bit is used to drill through the multiblock; this is best for PCBs with sharp angles with lower stress. This model is suitable for middle and high volume production. And this dual tables PCB depaneling router is workable for FR4/aluminum tab panels depaneling.
SPECS:
|
Model Number
|
SMTR02
|
|
Machine Size
|
1200(L) x 1050(W) x 1440(H)mm
|
|
Voltage
|
220V/50Hz, 3.5KW
|
|
Max PCB Size
|
300x350mm
|
|
PCB Thickness
|
0.4-6mm
|
|
Feeding Mode
|
Manual
|
|
PCB Positioning
|
Customized fixture
|
|
Programming
|
Vision teaching, inline programming
|
|
Cutting Spindle
|
SycoTec 60000rpm/min(standard)
|
|
Cooling Type
|
Self cooling
|
|
Dust Collection Mode
|
Bottom/top collection
|
|
Cutting Speed
|
1-100mm/s
|
|
Cutting Accuracy
|
±0.01mm
|
|
Routing Bit
|
0.8-3.0 Diameter, left rotation
|
|
Repeat Accuracy
|
±0.02mm
|
|
Vacuum Cleaner Size
|
625(L) x 600(W) x 1160(H)mm
|
|
Vacuum Cleaner Power
|
3HP, 2.2KW
|
|
Vacuum Cleaner Weight
|
130kgs
|
|
Active Protective Function
|
Safety light curtain
|
|
Security Door
|
Manual door
|
|
Programming Method
|
Camera assisted teaching
|
;
FEATURES:
1. Full electronic control, no air request
2. High stability, easy maintenance
3. Simple operation, short changeover time
4. Design for small and middle size PCBA
5. Dual working tables
