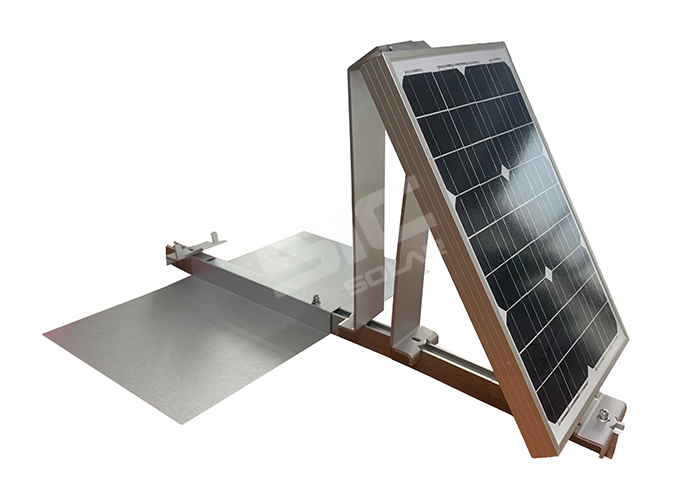

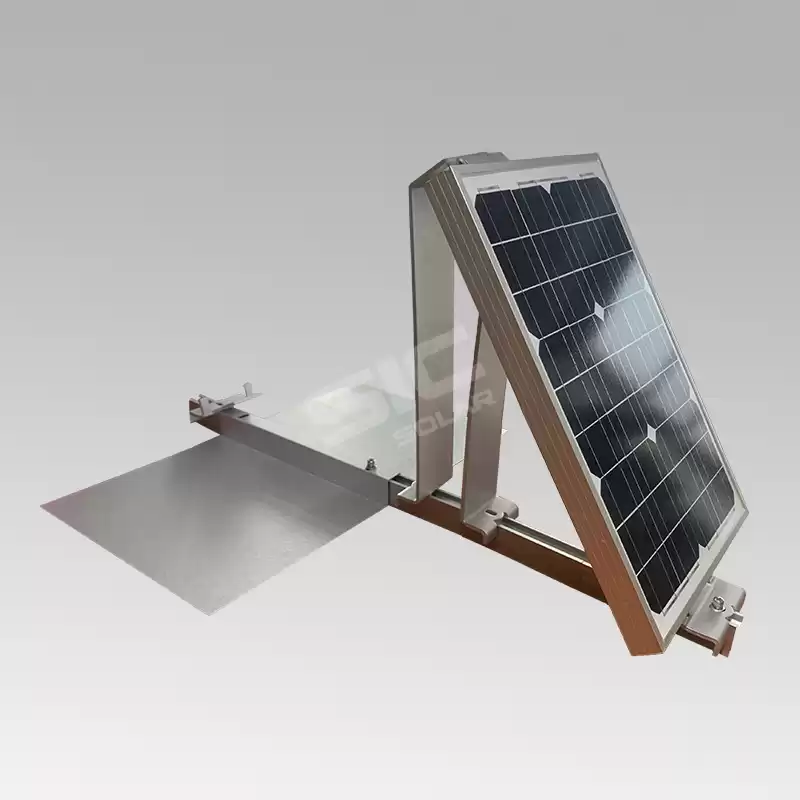

East-West ballast solar mounting brackets
Ballasted pv mounting system could be installed on flat roof or ground. With light alu material, it could be mounted quickly without harming the installation surface. The whole solar panel array could be connected by rails, which form a high strength system to meet strict weather condition.
Category: Flat roof mounting
|
Installation Site
|
Flat Roof or Ground
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
|
Warranty
|
10 years and 25 years service time
|

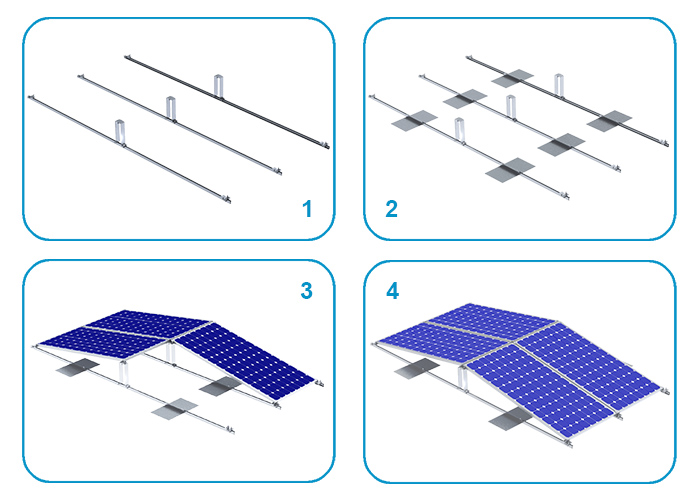

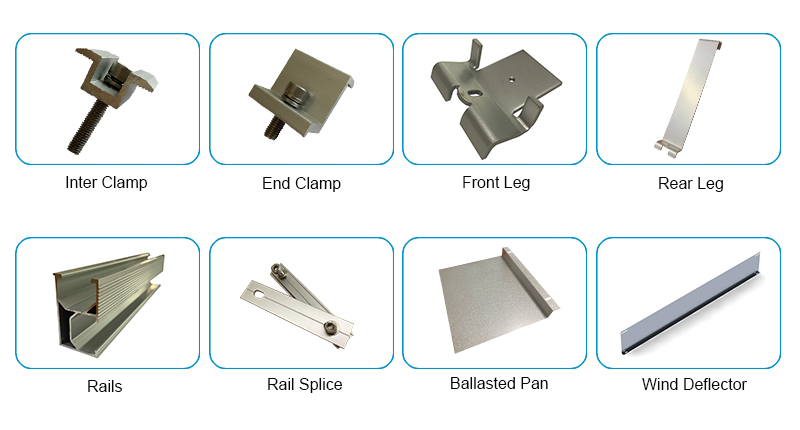

1.Locate the rails, front legs and rear legs according to our drawing.
2.Put two ballast pan under each panel, and then put on the concrete ballast.
3.Fix the solar panel on ballast mounting structure by clamps.
4.Finished.

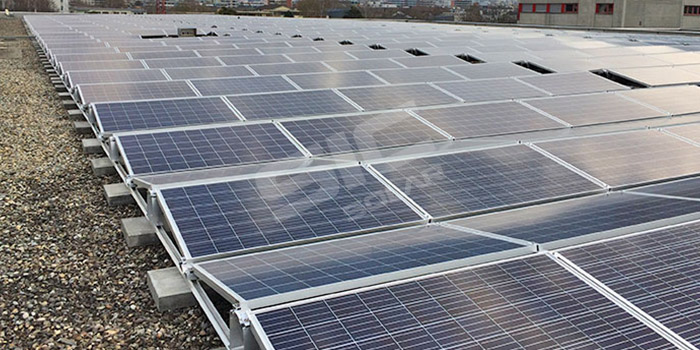

☆ High flexibility - The panel direction could be East-West or south according to your site request.
☆ Ballast design -Non-Penetrating to concrete roof.
☆ Easy to use – Light alu components is easy for installation
☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
Aluminum quality certificate -- AL6005-T5 composition list
Small components could be packed into cartons with plywood pallet.
