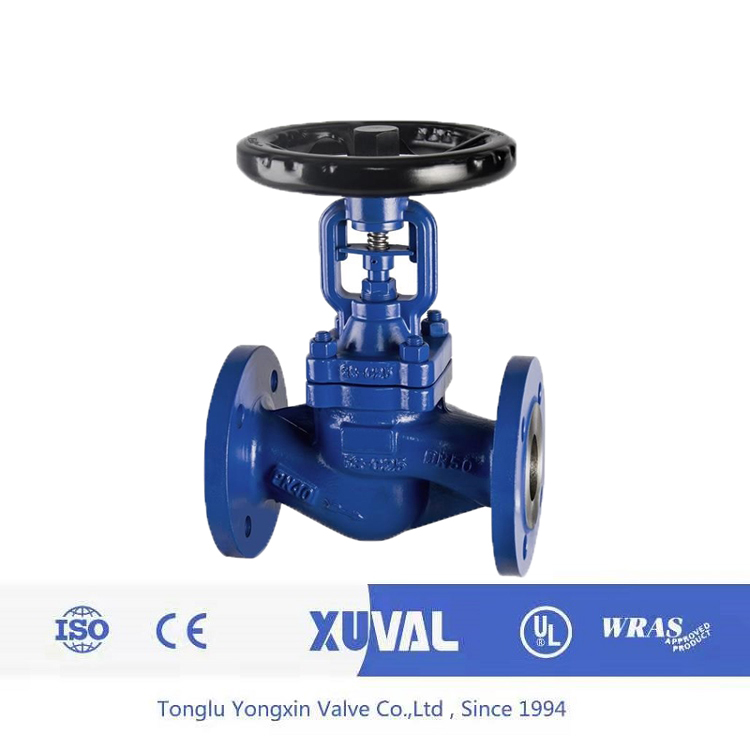

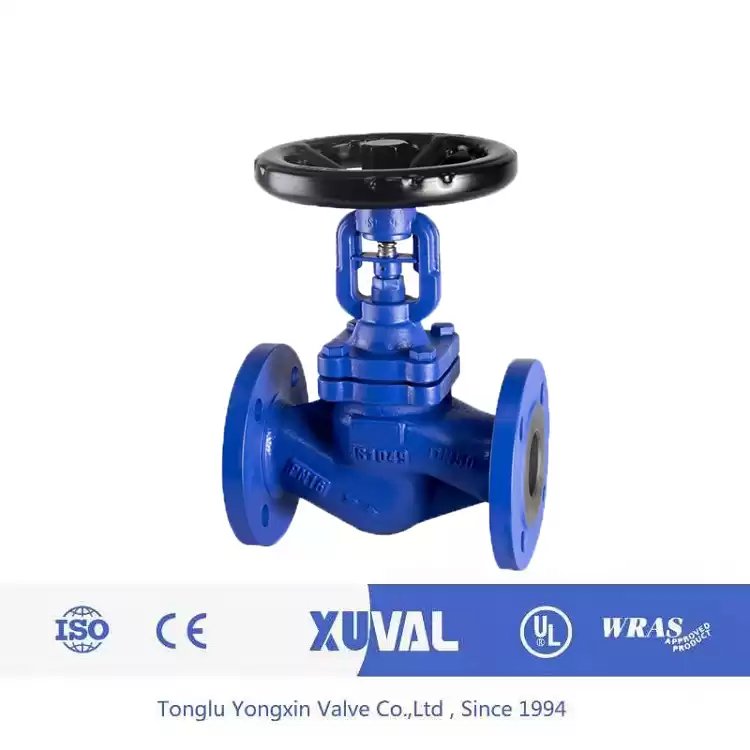

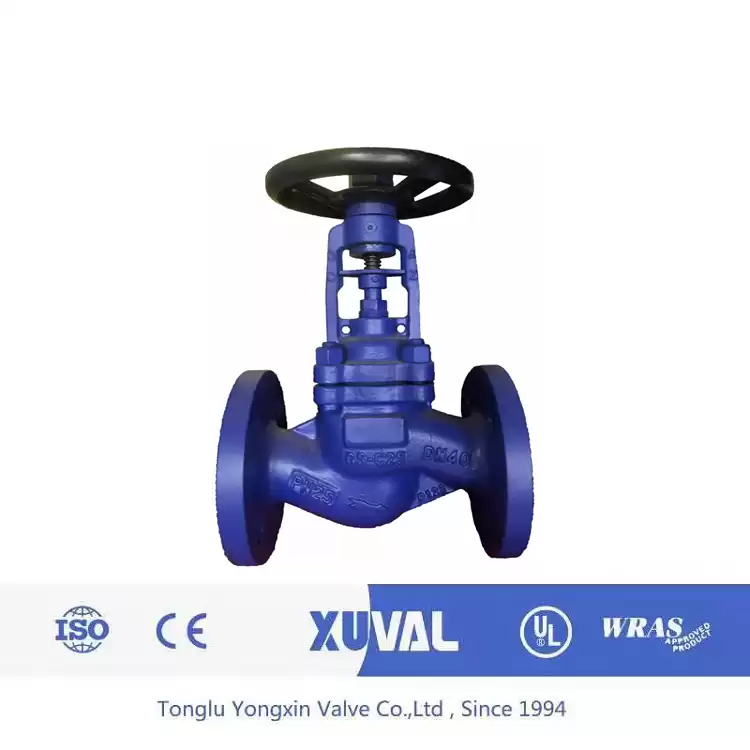

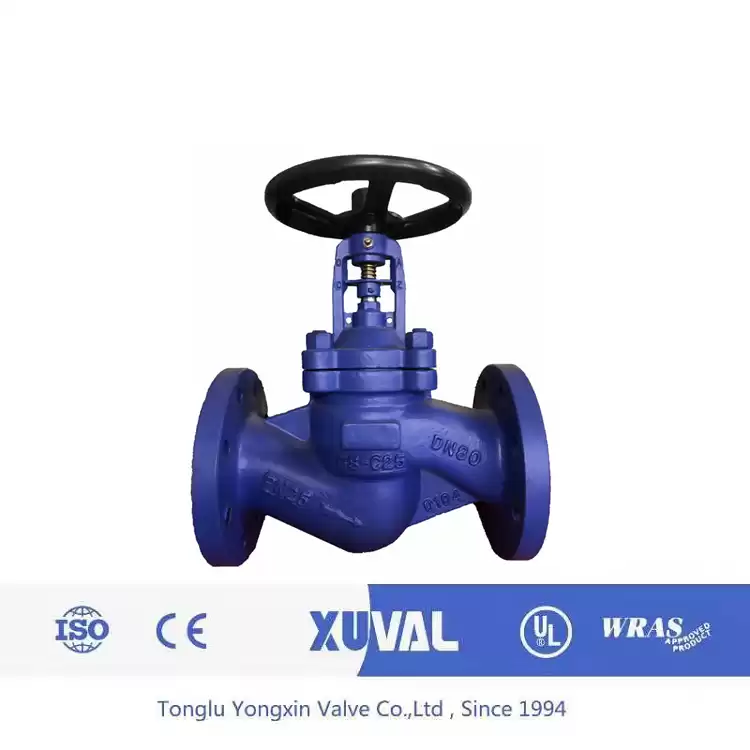

Ductile iron bellow seat globe valve

Advantage

1.Bellow seal element. The key part of bellow sealed globe valves is metal bellow. It is the connection between cover and stem with automatic roll welding. The metal bellow can keep the stem part no leakage.
2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life.
3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
4.Grease nipple. It can direct lubricate the stem, nut and sleeve.
5.Ergonomic hand wheel. It provide longer service life and easier operation.



Ductile iron bellow seat globe valve


cast iron bellow seat globe valve,Steam globe valve (also known as "bellows globe valve"), this valve imported advanced foreign technology, using double bellows design, welded to the stem to maintain stable performance, avoid vibration caused by the valve plug stem vibration.


Under high temperature conditions, the stem does not contact with the medium to ensure that the stem leakage is zero.At the same time ensure enough strength and toughness, can switch tens of thousands of times.The handwheel is ergonomically designed for longer service life and easy and convenient operation.Steam valve opening and closing is plug valve, sealing surfaces appear flat or cone, disc make linear movement along the centerline of the fluid, also known as door and valve is one of the most widely used, it is popular, is due to open and close in the process of friction surface, more durable, opening, manufacturing easy, convenient maintenance, not only suitable for low voltage, and is suitable for high pressure.Widely used in food, medicine, petroleum, chemical, natural gas, steel, environmental protection, papermaking and other transportation pipeline as medium cut off or circulation.


Performance advangate:

1.Bellow is the key part of bellow sealed valves,which is welded to both the valve bonnet and valve stem, with automatic roll welding. The metal bellow can keep the stem part 100% no leakage.

2.Double seal design (bellows+packing). Bellow from a metal seal to prevent leakage,and packing can provide seal if the bellow failed.

3.Overlay welded seat can keep reliable sealing under severe conditions.

4.Ergonomic hand wheel. It provide longer service life and easier Operation.


Feature

1.Design standard: EN12516

2.Face to face dimension: EN558-1
3.Flanged ends:EN1092-1,DN40-200 thickness according EN1092-2
4.Test & inspection: EN12266


Product Description :

Application

1
Steam System
2 Thermal Oil System
3 Hot and cold water


Product Parts and Material

No.

Parts Name

Material

1

Body

GS-C25

CF8

2

Seat

Overlay 13Cr

SS304

3

Disc surface

Overlay 13Cr

SS304

4

Stem

X20Cr13

SS304

5

Bellows

SS304/SS316/SS321/SS316Ti

SS304/SS316/SS321/SS316Ti

6

Gasket

Graphite+SS

Graphite+SS

7

Bellows cover

SS304/SS316

SS304/SS316

8

Bonnet

GS-C25/1.061

CF8/1.4301

9

Nut

A194 2H

A194 8

10

Bolt

A193 B7

A193 B8

11

Packing

Graphite

Graphite

12

Gland

C.S

CF8

13

Pin

Steel

Steel

14

Guide piece

Steel

Steel

15

Stem nut

Ductile Iron

Copper alloy

16

Grease Nipple

H2

H2

17

Hand wheel

Steel

Steel

18

Lock nut

A105

A105










Main Dimensions
Flg.VK811 PN16
Size L D W H Weight(kg) Stroke Kvs(m3/h)
DN40 200  150  180 245 9.5 12 30
DN50 23 165 200 253 12.5 15 47
DN65 290 185  220 295 17 17 77
DN80 310  200 250 328 22 22 120
DN100 350  220 300 385 36 28 188
DN125 400 250 350 427 52 34 285
DN150 480  285 400 480 81 40 410
DN200 600 340 450 672 135 60 725
DN250 730  405 550 775 240 75 1140
DN300 850  460 600 852 305 85 1660



Main Dimensions
Flg.VK811 PN25
Size L D W H Weight(kg) Stroke Kvs(m3/h)
DN40 200  150  180 245 9.5 12 30
DN50 230  165 200 253 12.5 15 47
DN65 290 185  220 295 17 17 77
DN80 310  200 250 328 22 22 120
DN100 350  220 300 385 37 28 188
DN125 400 250 350 427 53 34 285
DN150 480  285 400 480 82 40 410
DN200 600 340 450 672 140 60 725
DN250 730  405 550 775 245 75 1140
DN300 850  460 600 852 315 85 1660

Main Dimensions
Flg.VK811 PN40
Size L D W H Weight(kg) Stroke Kvs(m3/h)
DN40 200  150  180 245 9.5 12 30
DN50 230  165 200 253 12.5 15 47
DN65 290 185  220 295 17.5 17 77
DN80 310  200 250 328 23 22 120
DN100 350  235 300 385 38 28 188
DN125 400 270 350 427 54 34 285
DN150 480  300 400 480 83 40 410
DN200 600 375 450 672 142 60 725
DN250 730  450 550 775 260 75 1140
DN300 850  515 600 852 320 85 1660


Globe valve Packing & Delivery :

Packing Details: all by seaworthy plywood case and packed strongly by packing belt as below

Delivery Details: Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.






FAQ :

Q: Are you trading company or manufacturer ?

A: We are a factory. And you are always welcome to visit us at any time.


Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity, normally, we are able to make sure the delivery will not exceed 45days.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: Can you OEM or ODM?

A:Yes,  our R&D team and technical team was responsible for design.  The valves can be made according to your special request, like trim material, paint colour, outer and inner packaging etc.


Q:Can I have a sample order for globe valve?

A:  Yes.Of course. It is 100% no problem to make a sample order to check quality, and delivery. Also, a mixed samples are acceptable to us.


Q: What is your terms of delivery?

A: We provide EXW,FOB,CFR or CIF,etc.any terms you prefer to.


Q: How about your warranty period?

A:  12 months from the shipment ; And spare parts like handwheel, flange will be for free if it is broken in transit.
