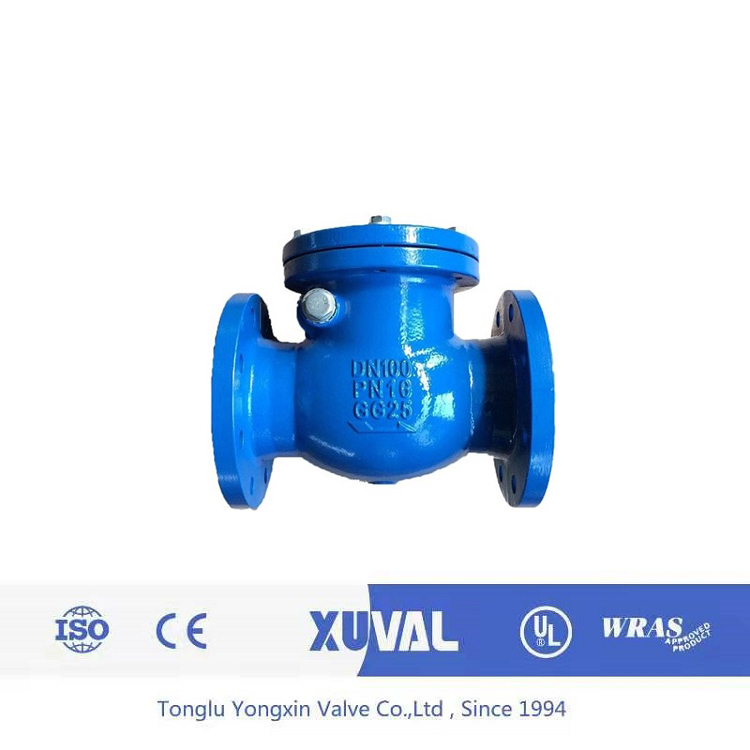

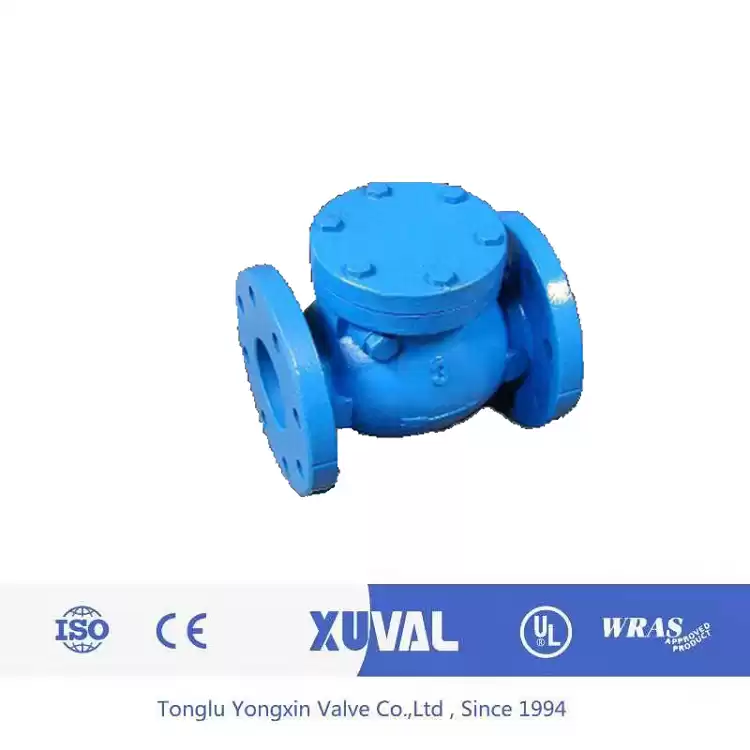

Ductile iron metal seated swing check valve
Swing check valve also known as one-way valve or reverse check valve, its function is to prevent the medium in the pipeline back flow. A valve that opens or closes on its own by the flow and force of the medium to prevent the flow of the medium is called a check valve. Check valve belongs to automatic valve class, mainly used on the pipe of medium unidirectional flow, only allow medium to flow in one direction to prevent accidents. Valves of this type shall generally be installed horizontally in pipes.
Purpose:
Swing check valve is suitable for nominal pressure PN1.0MPa~42.0 MPa,Class150-2500;
nominal diameter DN15~1200 mm,NPS1/2~48;
working temperature -196~540 on various lines to prevent medium backflow.
By selecting different materials (WCB,CF8(M), CF3(M),1Gr5Mo ,15CrMo1V,GGG50, it can be used in water, steam, oil, nitric acid, acetic acid, strong oxidizing medium and urea.
Swing check valve is mainly used in petroleum, chemical, pharmaceutical, fertilizer, electricity and other pipelines.
Suitable for clean medium, not suitable for medium containing solid particles and high viscosity
Application
|
1
|
Face to face is according to BS5153 PN10/16
|
|
2
|
Flange drilled is according to BS4504 tabe E or D
|
Test
|
Working pressure
|
PN10
|
PN16
|
Shell pressure
|
1.5MPa
|
2.4MPa
|
Seat pressure
|
1.1MPa
|
1.76MPa
|
Main Parts and Materials
|
|
Number
|
Part Name
|
Material
|
|
1
|
Body
|
EN-GJL-250
|
|
2
|
Seat ring
|
Bronze
|
|
Brass
|
|
3
|
Disc Ring
|
Brass/Bronze
|
EPDM/NRB
|
|
4
|
Disc
|
EN-GJL-250
|
|
5
|
Hanger
|
EJ-GJS-500-7
|
|
6
|
Hanger Pin
|
Stainless Steel
|
|
7
|
Cover Gasket
|
Graphite With Soft Steel
|
|
8
|
Cover
|
EN-GJL-250
|
Unit:mm
Main Dimensions
|
Size
|
L
|
D
|
D1
|
D2
|
b
|
n-d1
|
H
|
w.t
|
DN40
|
165
|
150
|
110
|
88
|
18
|
4-19
|
110
|
10.5
|
DN50
|
203
|
165
|
125
|
102
|
20
|
4-19
|
130
|
12.5
|
DN65
|
216
|
185
|
145
|
122
|
20
|
4-19
|
140
|
17.3
|
DN80
|
241
|
200
|
160
|
138
|
22
|
8-19
|
150
|
24.5
|
DN100
|
292
|
220
|
180
|
158
|
24
|
8-19
|
160
|
37.5
|
DN125
|
330
|
250
|
210
|
188
|
26
|
8-19
|
190
|
41
|
DN150
|
356
|
285
|
240
|
212
|
26
|
8-23
|
210
|
46.2
|
DN200
|
495
|
340
|
295
|
268
|
30
|
12-23
|
250
|
120
|
DN250
|
622
|
405
|
355
|
320
|
32
|
12-28
|
310
|
198
|
DN300
|
699
|
460
|
410
|
378
|
32
|
12-28
|
340
|
282
|
Packing & Delivery :
Packing Details : all by seaworthy plywood case and packed strongly by packing belt as below
Delivery Details : Generally it is 5-10 days if the goods are in stock. or 15-30 days if the goods are OEM or not enough subject to the order quantity. But anyway, normally, we are able to make sure the delivery will not exceed 45 days.
