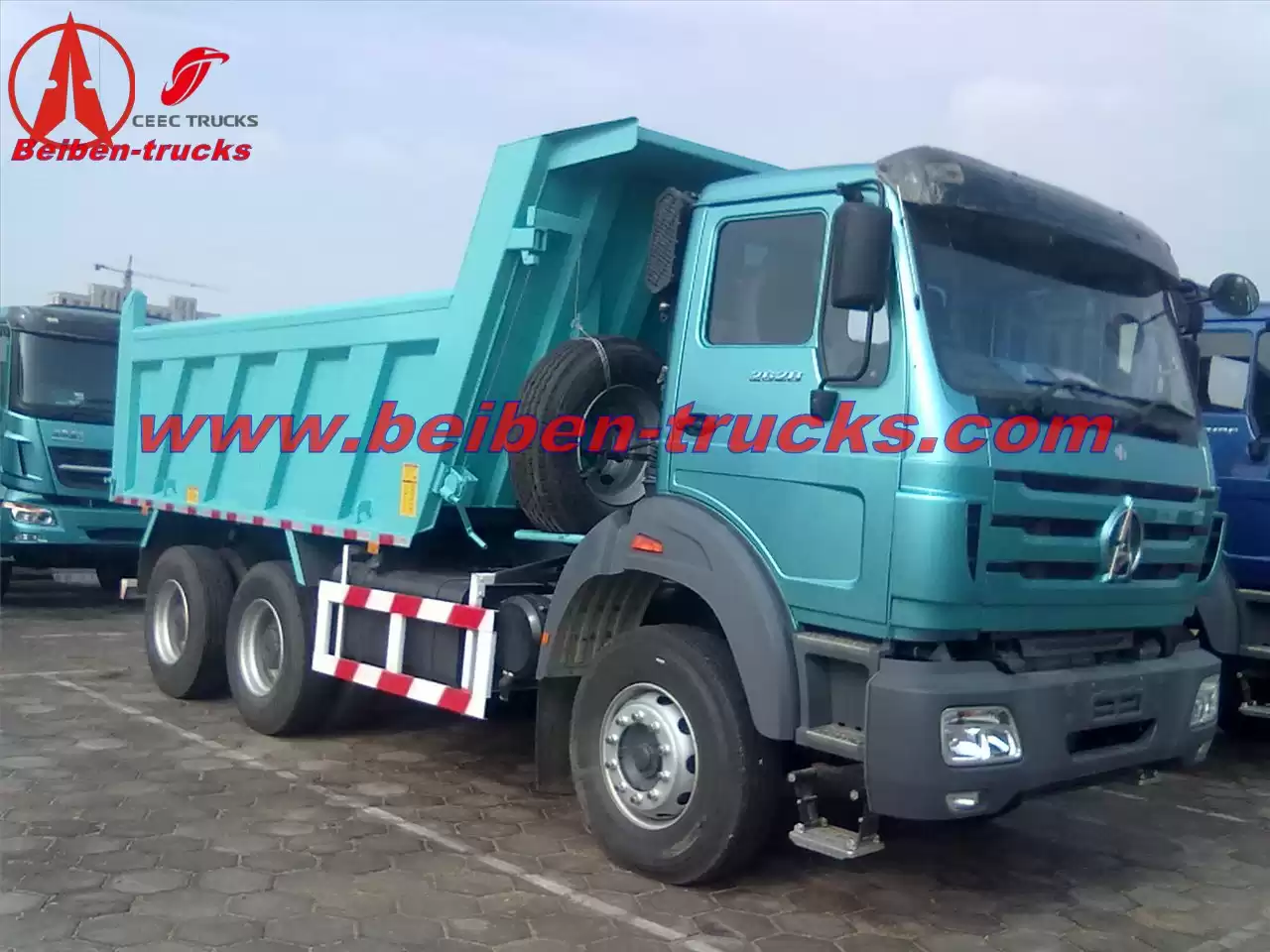

Durable Beiben NG80 Heavy Duty 6x4 dumper truck For Sale

Durable Beiben NG80 Heavy Duty 6x4 dumper truck For Sale, we focus greatly on designing and exporting our beiben NG80 6x4 dump trucks to congo, africa, more than 10 years on exporting durable beiben NG80 heavy duty dump trucks.



Durable Beiben NG80 Heavy Duty 6x4 dumper truck For Sale, we focus greatly on designing and exporting our beiben NG80 6x4 dump trucks to congo, africa, more than 10 years on exporting durable beiben NG80 heavy duty dump trucks.

Durable Beiben NG80 Heavy Duty 6x4 dumper truck For Sale

1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service

Product Description

SPECIFICATIONS FOR CONGO BEIBEN NG80  DUMP TRUCK

Vehicle Specifications

Model

ND32602B34

Traction 4X2,6X4,8X4

6X4

Power

420HP

Weight Parameter

Complete Vehicle Kerb Mass(kg)

11970

Maximum authorized total mass (kg)

26000

Dimension Parameter

External Dimensions(mm)

Length (mm)

7169/7680

Width(mm)

2495/2500

Height(mm)

3180/3430

wheelbase(mm)

3450+1450

Internal cargo Sizes

Length (mm)

5200

Width (mm)

2300

Height (mm)

1500

Performance Parameter

Maximum Speed(km/h)

75

Maximum Grade ability(%)

35

Turning diameter(m)

16

Recommended Configuration

Engine

Engine Type

WP420

Rated power(kW)/Rev(r/min)

266/2200

Horse power

360HP

Torque(N*m)/Rev(r/min)

1800/1400-1600

Transmission

9JS180

Clutch(mm)

430

Gearbox

9 forward gears/ 2 reverse gears

Axle

Front Axle

BENZ-7.5

Rear Axle

BENZ-13

Axle load-bearing

Front axle

7500


Rear axle

13000

Fuel Tank(L)

400

Track(mm)

1995/1800/1800

Front overhang/rear overhang(mm)

1320/1700

Type

12.00R20

Cabin

Sleeper

none

OTHER

Engine horse power

290hp,330hp,340hp and 360hp,380hp

420hp is optional

Tyre

nylon,radial and tubeless is optional

ABS

optional

COLOR

optional
