Durable Fast Hydraulic Truck Mounted Crane For Transporting Materials , 11meters Lifting Height





  1. Name: Knuckle boom crane, Lorry mounted crane, Cargo truck crane, Truck loader crane, Hydraulic truck crane
  2. Max Lifting Capacity: 6300 kg
  3. Max Lifting Moment: 13.23 t.m
  4. Max Oil Flow of Hydraulic System: 25 L/min
  5. Max. Lifting height: 11meters
  6. Brand: XCMG
  7. Crane Weight: 2115 kg
  8. Oil Tank Capacity: 90 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:

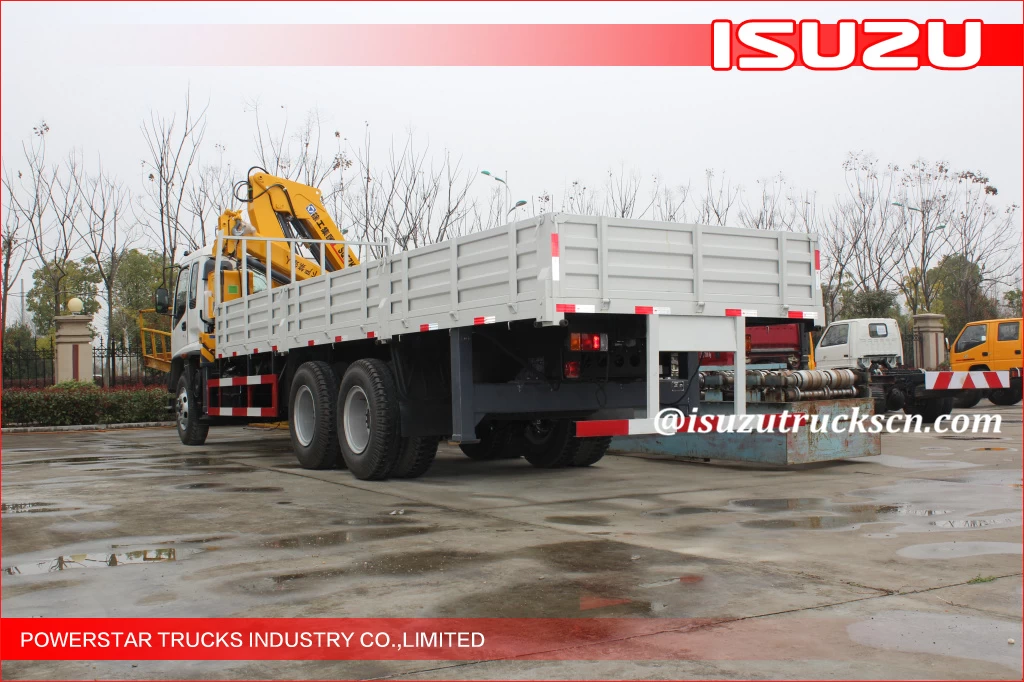

Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.


Knuckle boom crane SQ6.3ZK2Q is used for lifting 6.3tons, moment is 13.23T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.

Knuckleboom cranes have the ability to easily load and unload materials in just about any possible situation.



Specifications:



Model

SQ6.3ZK2Q

Unit

Max Lifting Moment

13.23

t.m

Max Lifting Capacity

6300

kg

Recommend Power Needed At Recommend Oil Flow

18

kw

Max Oil Flow of Hydraulic System

25

L/min

Rated Pressure Of Hydraulic System

28

MPa

Oil Tank Capacity

90

L

Rotation Angle

(360°) All Rotation

°

Crane Weight

2115

kg

Installation Space

1050

mm

Choice of Chassis

ISUZU



SQ6.3ZK2Q Lifting capability diagram

Working radius (m)

2.1

4.44

6.2

8.01

Lifting capacity (kg)

6300

2700

1700

1200



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
