Durable Plastic Swimming Pool Overflow Grating

Overflow grating is the best solutions for swimming pool grating that provides maximum comfort to the feet and excellent durability. The Pool overflow grating is made of HDPE which is resistance to ultraviolet light.


  • Press Strength400 KN (41 ton/sqm)
  • Total Volume0.6m3/bundle
  • Size250x20x25mm
  • ColorWhite
  • MaterialHDPE

Plastic Swimming Pool Overflow Grating Specification:

 Item No.  LK-P25
 Material  HDPE and flat steel (Outer plastic, inner steel)
 Size  250x20x25mm
 Other Available Size  200x20x20mm, 300x20x300mm
 Color  White or Green (Other color can be customize)
 Shape  One faucet or two faucet
 Pressure Strength  400KN (41Ton/Sqm)
 Unit Weight  150g/pc
 Hardness  86
 Water Drainage Rate  95%
 Vertical Circulating Capacity  50cm3/s
 Water Retention  3.5litre/m2
 Elongation  9%
 Tensile Strength  250MPa
 Application  Swimming pool, pool site, basin, sauna bath room, guttery, ditch, landscape pool, anti-skid slot of drain etc.
 Feature

 Solid and Corrosion Resistant(Outer plastic plus inner steel);

 Recoverable, recycle, classical environment protection material;

 Environmental friendly, non-pollution, no toxic chemicals;

 Easy installation and easy to clean and maintenance convenient;

 Anti-slip and wear-resistant for long life;

 Water-proof, weather resistance, flexible and strong arcing curves;

 Ideal for overflow systems of swimming pool and spa;

 Attractive, non-slip top surface;

 Package  45pcs/bundle, 0.6m3/bundle



Introduction About Overflow Grating:

Overflow Grating uses high density polyethylene (HDPE) and flat steel as raw material. With high strength, corrosion resistance, fast drainage, easy installation feature, plastic overflow grating is the best solution for swimming pool and other grating. If combined with pebbles the overflow channel grating will have beautiful landscape and excellent drainage effect.

The most popular size of overflow pool grating, the 300mm wide product can be found in pools all across China. The modular design makes our overflow grating easy to install and maintenance.

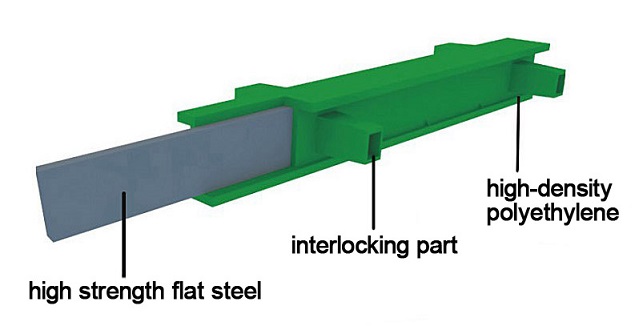

Plastic Overflow Grating Main Material:

Eco-friendly Overflow grating

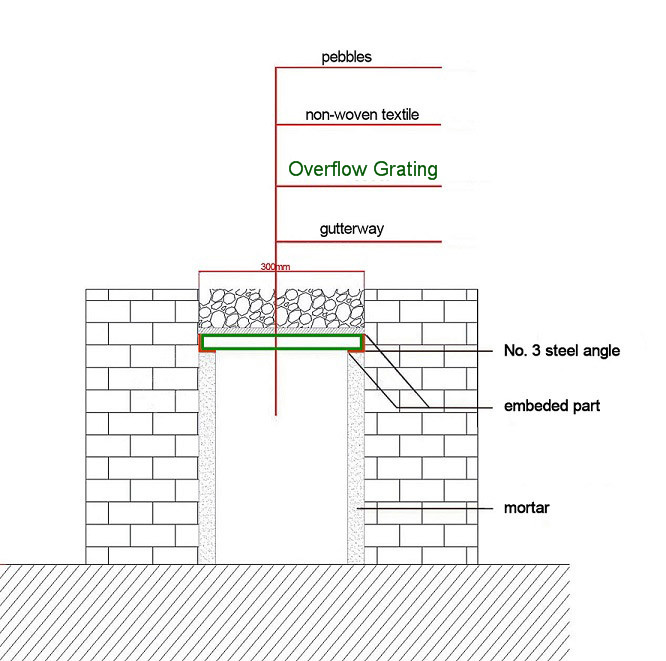

Overflow Grating Construction Section View:

Durable Overfloor Grating


Plastic Overflor Grating



Reference:

More information about Plastic Overflor Grating, please refer: http://www.greengrassgrid.com/overflow-grating_c6
