This square roof truss system is one of the most important product we offer. We specialize in this for 10 years. The main characteristic of popular aluminum truss is beautiful looking with many years experient craftman welding technology. This durable aluminum truss has heavy duty loading capacity. It can hang
up to 2.5ton on a span of 6m. The aluminum truss tower is assemble design, so that convenient to transport. we can also make the customized lighting truss according to our customer request!
Specification:
|
Aluminum Alloy 6061-T6/6082-T6
|
|
Main Tube
|
Vice Tube
|
Brace Tube
|
|
50x4mm/50x3mm
|
50x2/30x2mm
|
20x2/25x2/30x2mm
|
|
Tube size base on truss size or customer's request
|
|
Span(m)
|
symmetrical load(kg)
|
Deflection(mm)
|
Centre Load(kg)
|
Deflection(mm)
|
|
2
|
1800
|
10
|
1300
|
10
|
|
3
|
1500
|
25
|
1060
|
20
|
|
4
|
1200
|
40
|
880
|
30
|
|
5
|
880
|
55
|
620
|
40
|
|
6
|
750
|
65
|
380
|
65
|
|
8
|
510
|
80
|
195
|
85
|
|
10
|
410
|
95
|
120
|
95
|
|
12
|
210
|
110
|
95
|
105
|
Chaoda has developed a broad range of trusses and a unique system to connect them, Spigot connection truss, we are designed to make them suitable for a variety of applications, from a simple led screen truss or exhibition booth to big stage truss structures prepared for high loading.
Chaoda truss in different sizes, length and shapes, including straight lengths, corners and curves; all designed and manufactured according to European standard TUV and ISO9001, we give you loading date, user manual and video to teach you how to use these truss .
Installation:
Test report:

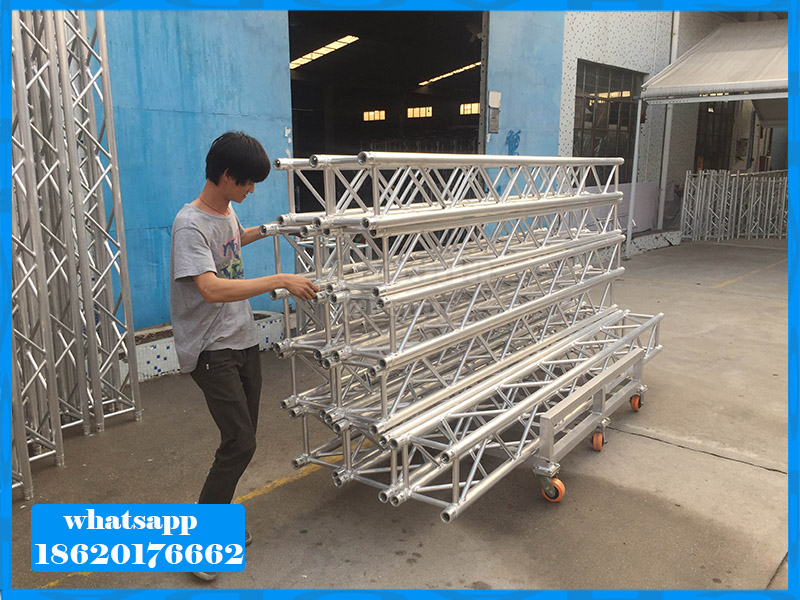

Packing and shipping:

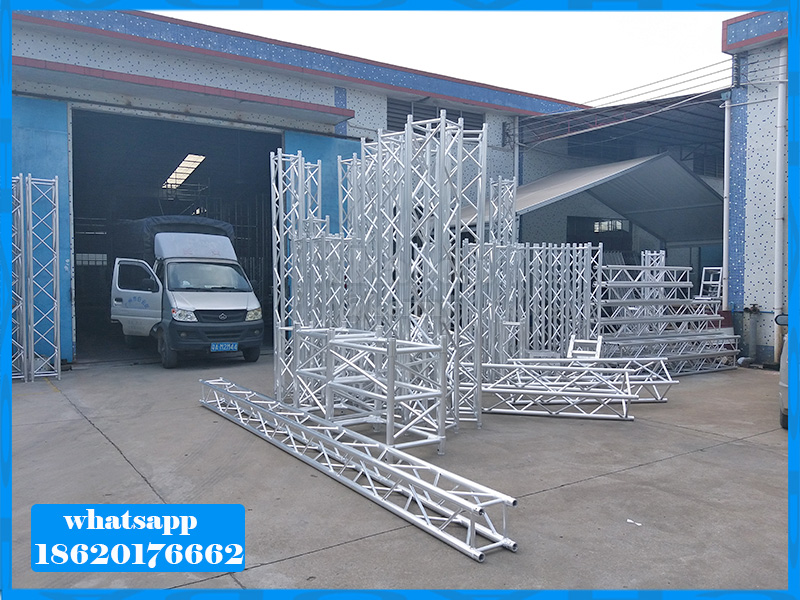

Factory:
FAQ:
1. Q: What certificate do Chaoda Truss have?
A: SGS and TUV certification.
2. Q: What is the terms of payment?
A: We accept Western Union, by T/T, 30% of invoice value as deposit, 70% balance paid before shipment, and some others.
3. Q: Where is the loading port?
A: Port Huangpu in Guangzhou or Ports in Shenzhen.
4. Q: What is your packaging?
A: Air bubble film or carton or flight case.
5. Q: How long the deliver time?
A: General it is about 5-15 days.
6. Q: What is your after-sales service?
A: Free parts provided once broken within one year.
7. Q: Do Chaoda Truss accept OEM order?
A: Yes, we welcome OEM order as well.
