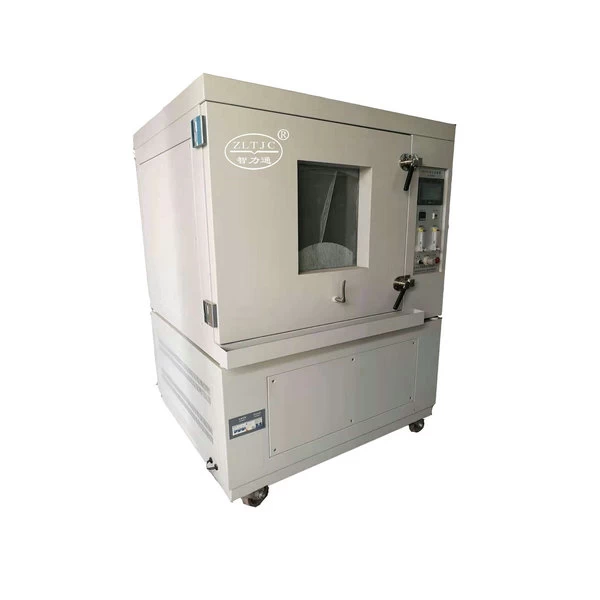

Dust Test Chamber
Model: ZLT-DC

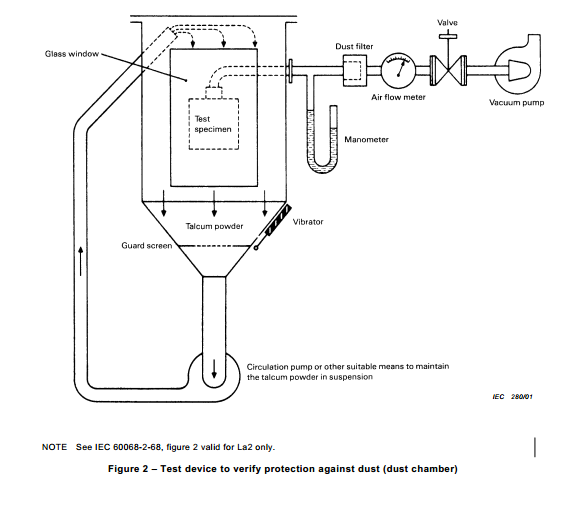

For checking the protection against solid foreign objects to verify the degrees of protection IP5X “Dust- protected” and IP6X “Dust-tight”, in accordance with IEC60529/2001 figure 2 and IEC 60598 etc.
Technical parameters:
Stainless steel test cabinet with internal space dimensions: as per customer's requirements
Outside dimensions: as per customer's requirements
with solid door threshold suitable for supporting heavy specimens, dust catch channel outside beneath the door threshold,
Powder Capacity: 2-4kg/m³
Gas velocity: <2m/s
Vacuum degree: No more than 20KPA
With circulating fan, vibrating motor , vacuum pump, flow meter,pressure regulation valve, filter and powder heater
PLC Control
Power supply : AC380V 50Hz 5kw
