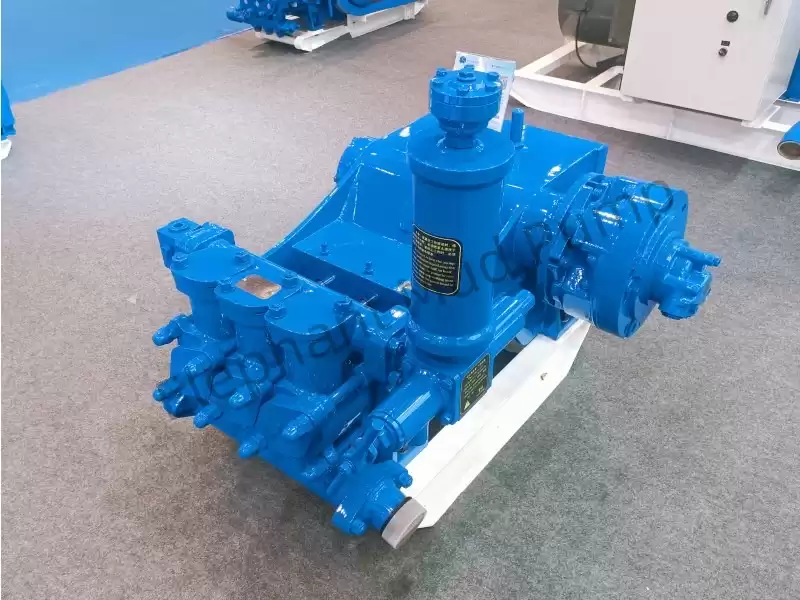

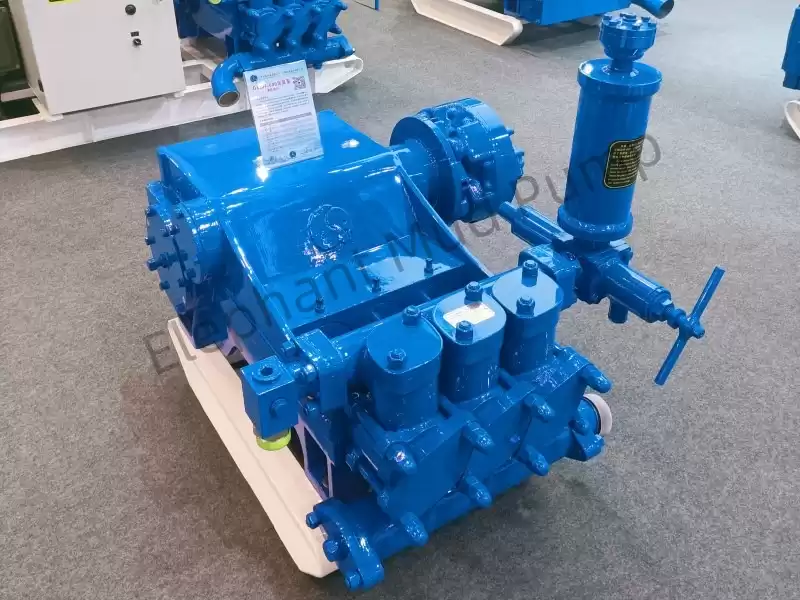

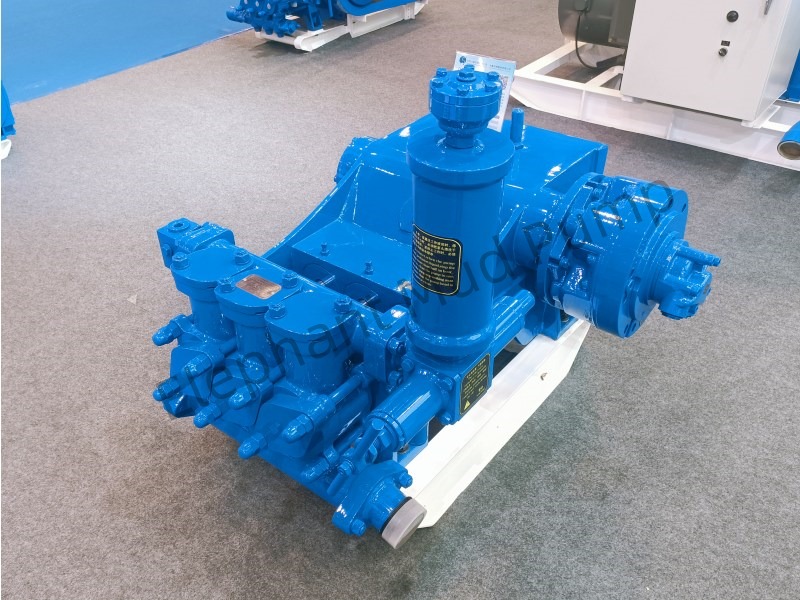

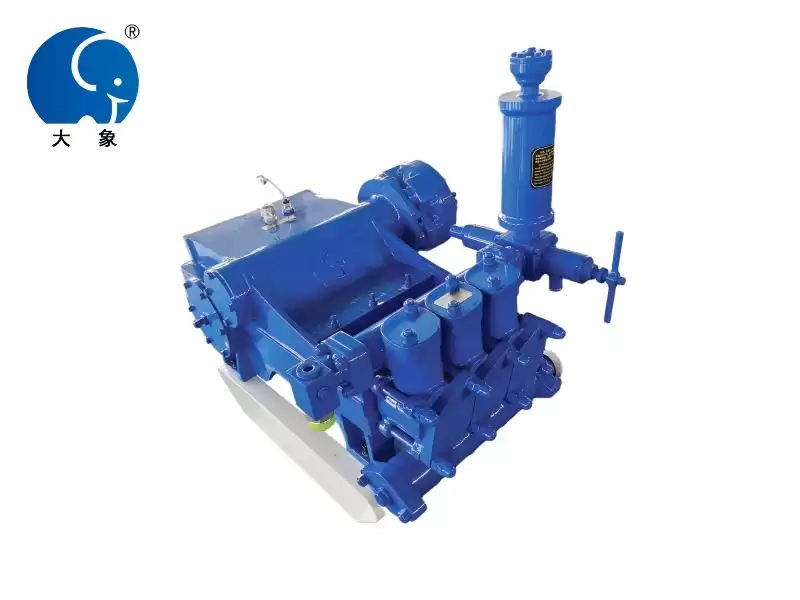

DXBH-600 Rig Mud Pump For 50ton HDD

DXBH-600 Triplex mud pump mainly works with the drilling rig around 50ton.



DXB-600 Hydraulic mud pump is a kind of multi-purpose horizontal triplex reciprocating single-acting piston pump, adopting double displacement hydraulic motor to drive.



It mainly works with the trenchless drilling rig about 50T. It can also be used for other purposes, such as grouting, mine drainage and long-distance water delivery.



This kind of mud pump has two flows and pressures, by remotely adjusting hydraulic motor flow.



Technical Parameters and Specifications:

Type Horizontal Triplex Reciprocating Single Acting Piston Mud Pump
Stroke (mm) 110
Cyclinder Diameter (mm) 100
Flow ( L/min) 600           300
Pressure (Mpa) 4                8
Input Speed (r/min) 928          464
Input Power (KW) 48
Dimensions (mm) 1140*937*880
Weight (kg) 635
Hydraulic Motor Model 2-350-170
Hydraulic Motor Pressure (Mpa) 21
Maximum Motor Flow (L/min) 180



Check this video to get more information regarding our DXBH-600 piston mud pump.



Advantages:

1 - Specializing in mud pump design,production and sales more than 10 years,with area of 30,000sqm,over 150 employees.

  • *  Professional Design Team:customizing the mud pump as per your requirements,such as the shape, color,etc.
  • *  Production Team:guaranting the production time and the quality, never late for shipment.
  • *  Sales and after-sales Team:1 Year Warranty; 24 Hours Online Service; Video Technical Support.
  • 2 - The Partners we cooperate.

3 - Adopting advanced structure and new materials.

With following features: Reliable capability, long service life of the wearing parts, small volume, good decomposability and convenient movement etc.



4- Advanced and professional testing and inspection equipment.
