Dynamic Strength Tester (2m/s) AT04

Dynamic Strength Tester is used for testing the performance of children tricycle after impacting a 50×50mm obstacle block at a speed of 2m/s.

Facebook Twitter Pinterest LinkedIn 分享

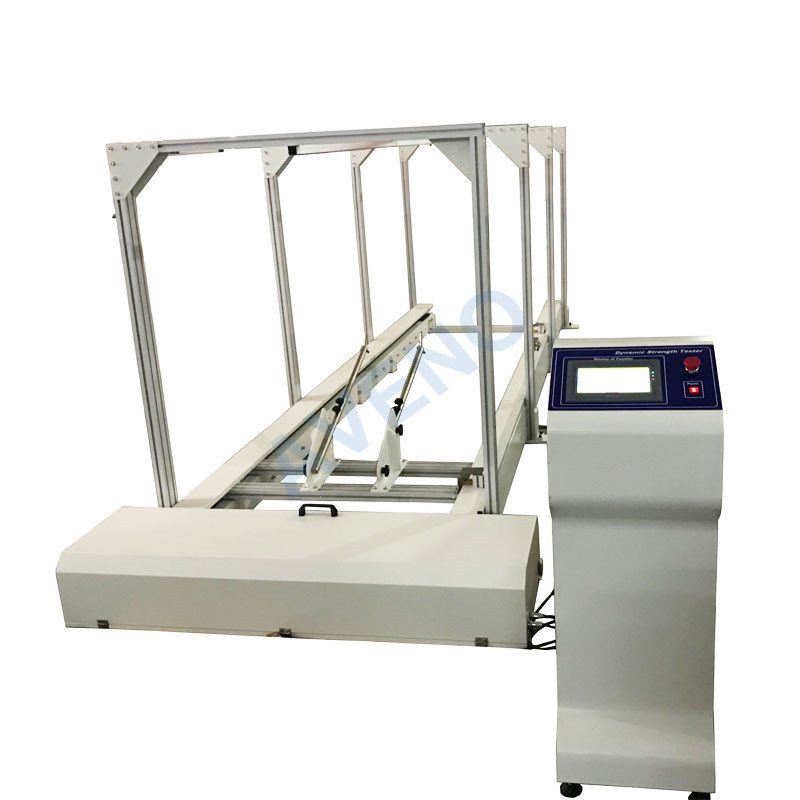

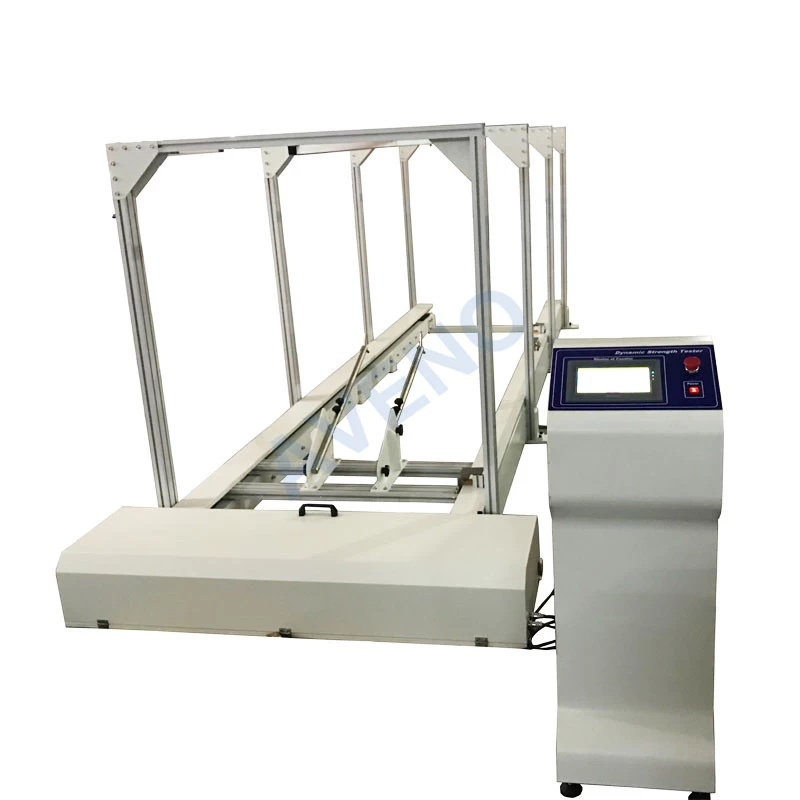

AT04-Dynamic Strength Tester (2m/s)


Application Of Dynamic Strength Tester (2m/s)

Dynamic Strength Tester is used for testing the performance of children tricycle after impacting a 50×50mm obstacle block at a speed of 2m/s.


Standards Of Dynamic Strength Tester (2m/s)

EN71-1 section 8.22

ASTM F963 section 8.20

ISO 8124-1 section 5.24.4 and 5.27

GB 6675 section 5.24.4


Key Specification Of Dynamic Strength Tester (2m/s)

Model

AT04 Dynamic Strength Tester (2m/s)

Control method

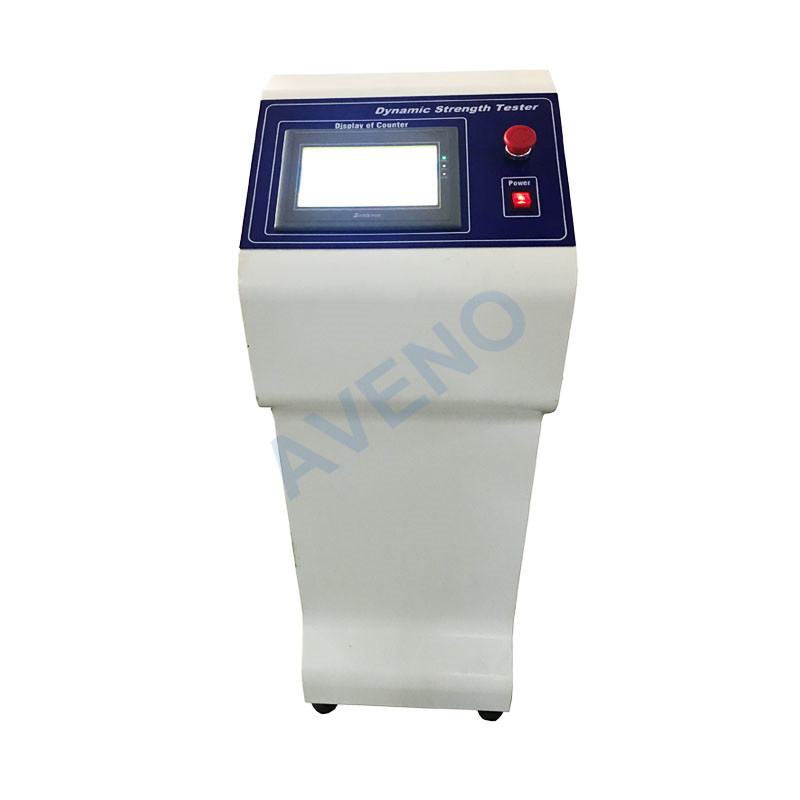

Touch screen control

Sample

Finished Children's Ride Vehicle

Test quantity

1

Test speed

2±0.2m/times

Load weight weight

25Kg/50Kg (can be realized)

Obstacle block

50mm×50mm

Test channel width

90cm

Power supply

AC 220V 50/60Hz

Dimension

Host: 153×480×156cm

Control box: 36×32×100cm

Weight

500kg


Accessories Of Dynamic Strength Tester (2m/s)

Standard Accessories

Dynamic load (A+B)

1set
