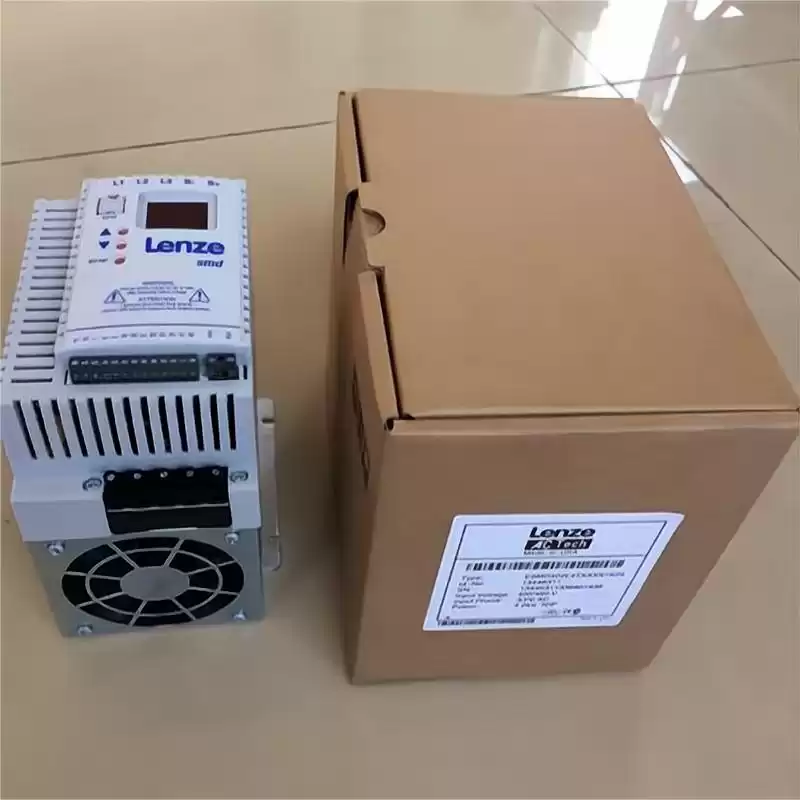

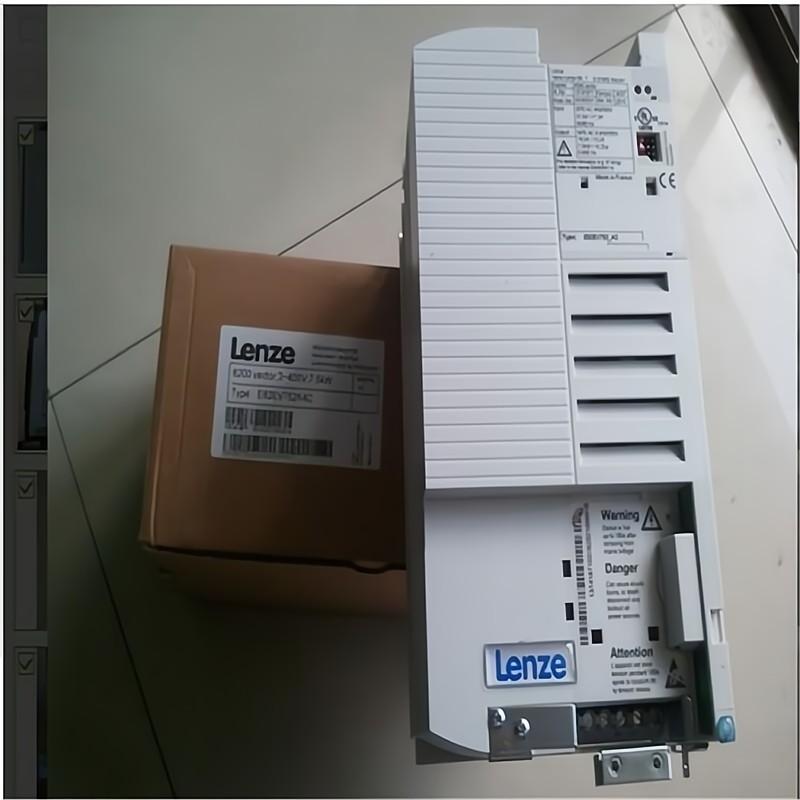

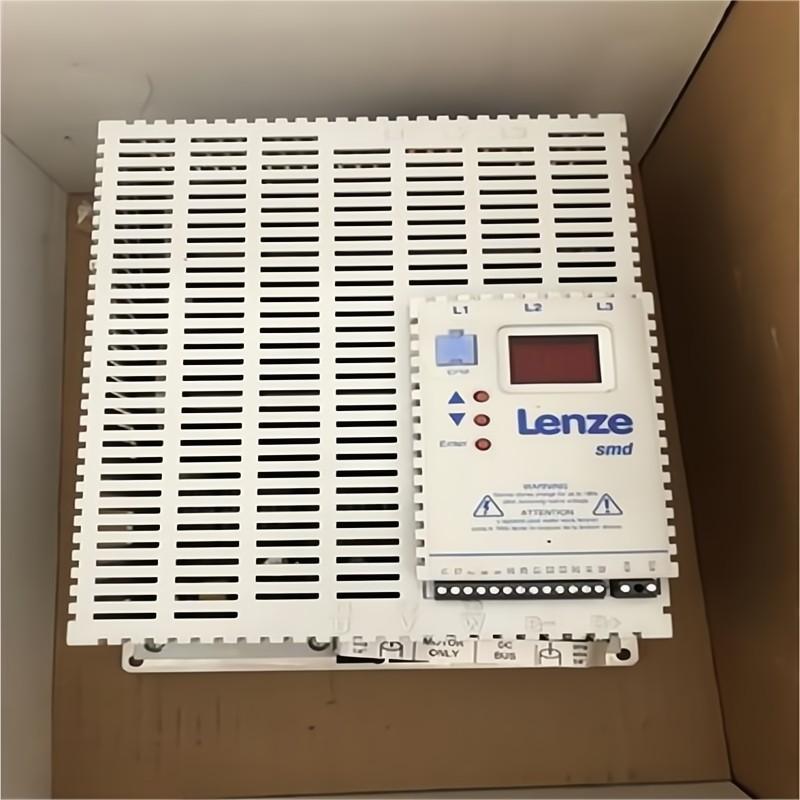

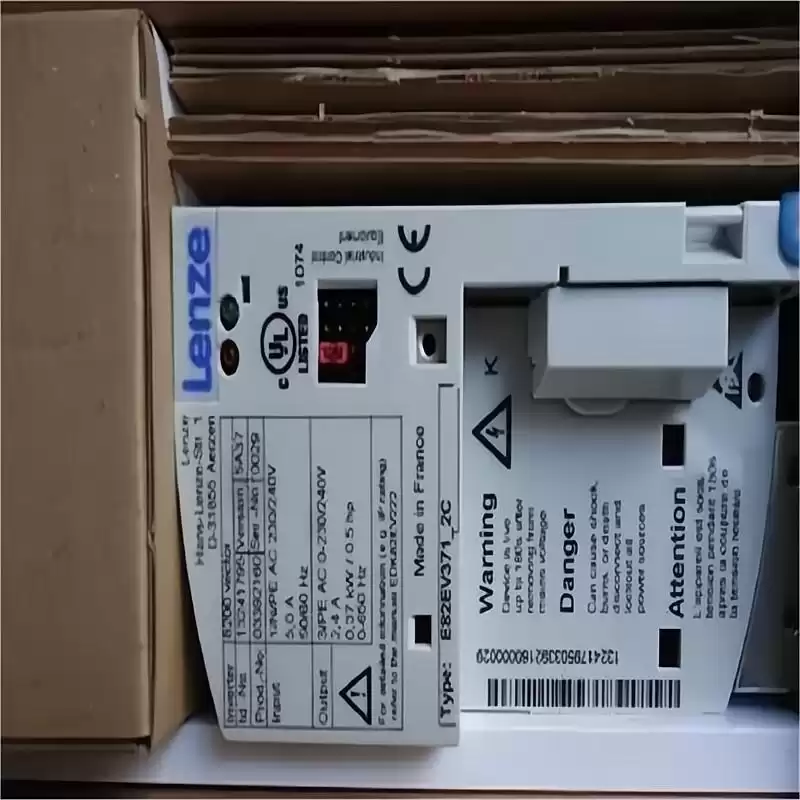

E82EV113K4C Lenze Frequency inverter
The Lenze 8200 AC Drive frequency inverter. Complete with everything you need for convenient operation, handling, diagnostics and communication. This is what the 8200 vector modular range of frequency inverters in the power range from 0.25 to 90 kW stands for. Pluggable function modules enable precisely tailored integration of the 8200 vector into the control and automation architecture of your machine or installation.
Power: 11kW
Amps: 23.5
Supply: Three Phase 400v
Model: E82EV113K4C
Filter: Built-In
Performance: High Performance
Dimensions: 18 20 30
Weight: 7 kg
Torque: Constant Torque General Purpose
Their compact dimensions of the 11kW Lenze 8200 AC Drive vector frequency inverter allows you to save space in your control cabinet. For individual cooling concepts, we offer the "push-through technique" and "cold plate technique" models. The units are operated either via a plug-in Keypad XT control console or a PC in connection with the convenient and free-of-charge Global Drive Control easy operating software
Note Keypad XT is an option.
The Lenze 8200 AC Drive vector frequency inverter – for standard applications
The concept of the Lenze 8200 AC Drive frequency inverter is based on a modular system of components adjusted to each other. If combined with a Lenze geared motor or a Lenze three-phase AC motor, you can produce electronic variable speed drives for a wide range of applications in the 0.25 to 90 kW power range
Keypad (Optional)
Lenze 8200 Keypad
Advanced Keypad XT for the Lenze 8200 AC Drive
The keypad for the Lenze 8200 AC Drive provides a visual for the operating parameters and set parameters for the inverter. The keypad is plugged onto the front of the inverter and is also used for the status display, error diagnosis and, with integrated memory, to transfer parameters to other inverters.
Ref EMZ9371BC
Lenze 8200 AC Drive Advanced Keypad XT Features:-
Password protection
Plain text display
Predefined basic configurations
User-specific menus
Suitable for the 8200 vector and 9300 inverters series
IP20 degree of protection
Features of Lenze 8200 AC Drive frequency inverter:-
The option of 'bookcase' mounting
Permits a space-saving installation in the control cabinet. Installation costs are reduced using integrated filters (optional).
