The TQ402/TQ412, EA402 and IQS900 form a proximity measurement system,This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.
TQ4xx-based proximity measurement systems are particularly suitable for measuring the relative vibration and axial position of rotating machine shafts, such as those found in steam, gas and hydraulic turbines, as well as in alternators, turbo compressors and pumps.
KEY FEATURES AND BENEFITS
• Non-contact measurement system based on eddy-current principle
• Ex certified versions for use in hazardous areas (potentially explosive atmospheres)
• Conforms to API 670 recommendations
• 1, 5 and 10 m systems
• Temperature-compensated design
• Voltage or current output with protection against short circuits
• Frequency response: DC to 20 kHz (−3 dB)
• Measurement range: 2 or 4 mm
• Temperature range: −40 to +180 °C
Technical Specifications
| Part Number |
913-402-000-013 |
| Ordering Information |

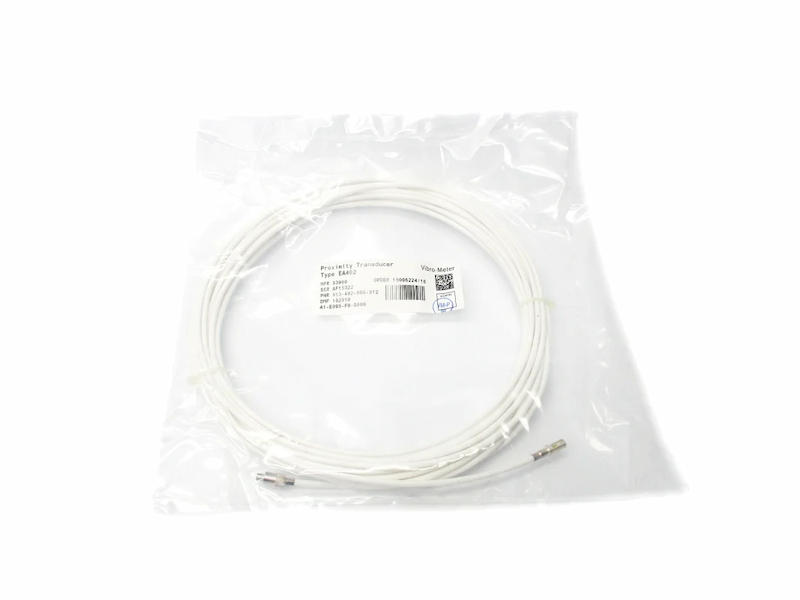

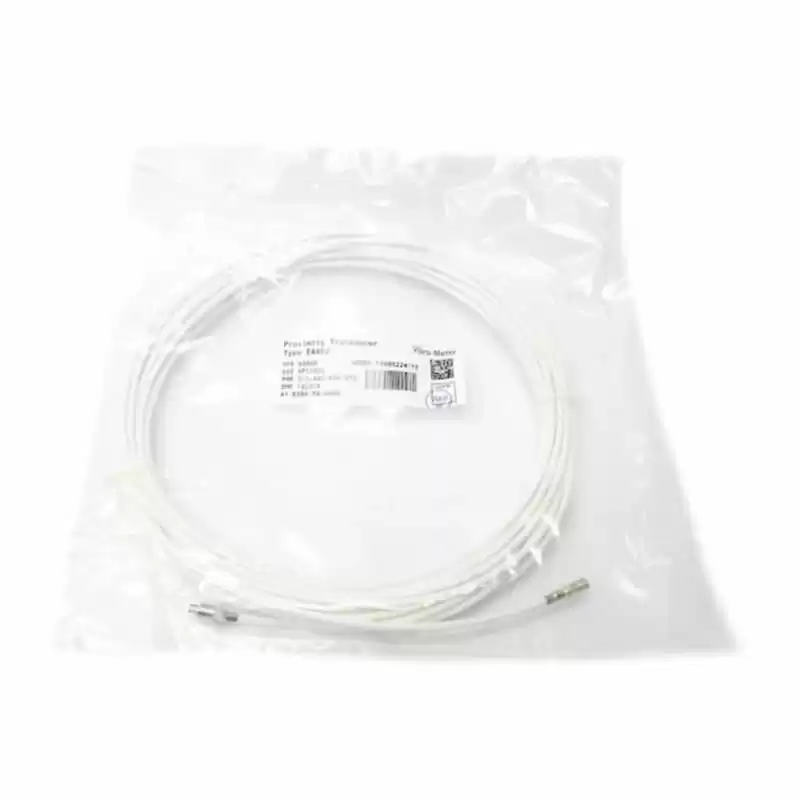

EA402 |
| Product Catalog |
Vibration Monitoring |
| Description |
Proximity Transducer |
| Voltage |
−20 to −32 V |
| Current |
−13 mA ± 1 mA |
| Dimension |
16 cm × 16 cm × 12 cm |
| Weight |
0.8 kg |
