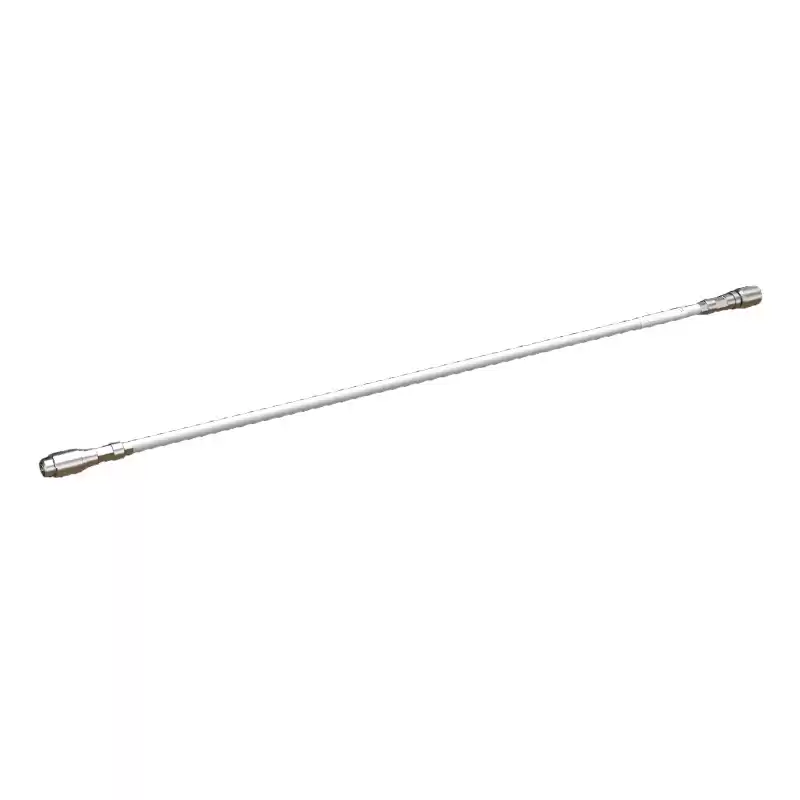

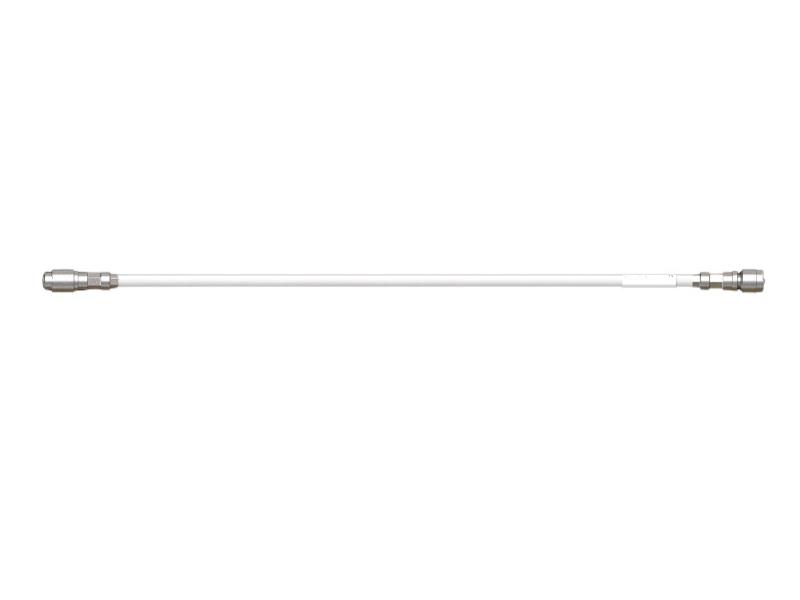

EA902 913-902-000-011 A1-E4000-F0-G0 Extension Cable
The EA902 is high-quality, high-reliability extension cable, it is for use with a TQ9x2 proximity sensor (TQ902,TQ912, TQ922, TQ932 or TQ942) and IQS900 signal conditioner. For use in harsh environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).
A TQ902 based proximity measurement chain consists of a TQ902 proximity sensor, an optional EA902 extension cable and a IQS900 signal conditioner, configured for a particular industrial application. The EA902 extension cable is used to effectively lengthen the front-end, as required. Together, these form a calibrated proximity measurement chain in which each component is interchangeable.
Features
· Very high-quality, reliable extension cable for TQ9x2 proximity measurement chains
· 70 Ω coaxial cable with FEP insulation (Ø3.6 mm)
· 1-core, with shield
· Self-locking miniature coaxial connector (female) to self-locking miniature coaxial connector (male)
· Versions certified for use in potentially explosive atmospheres
· Conforms to API 670 5th edition

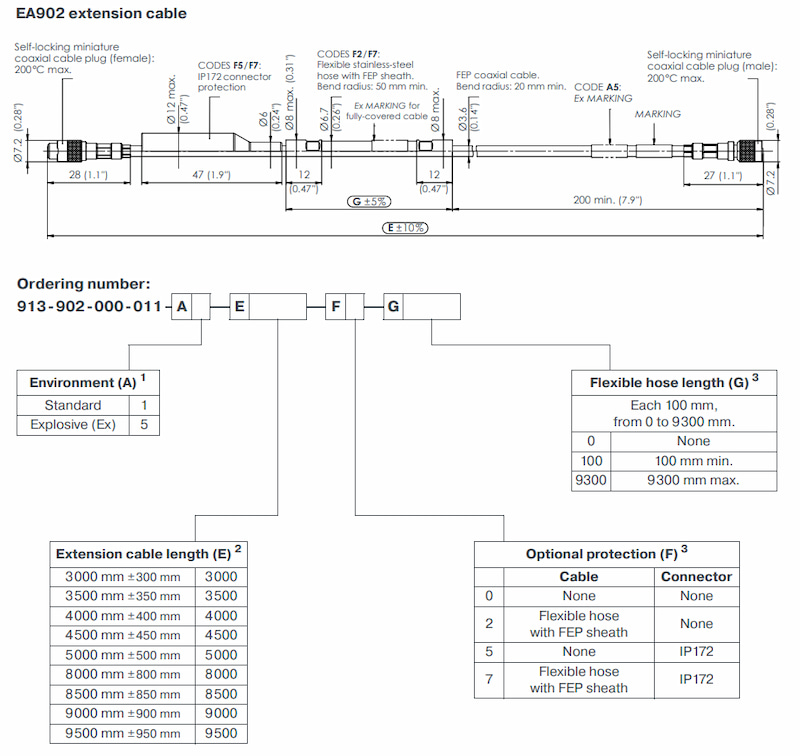

MECHANICAL DRAWINGS AND ORDERING INFORMATION
1. For use in hazardous areas (potentially explosive atmospheres), each component of a sensor / measurement chain (TQ902/TQ912, EA902 and IQS900) must be appropriately Ex certified, that is, with ordering option code A5.
2. The total system (chain) length = TQ902 or TQ912 integral cable length + EA902 extension cable length (E).
3. When optional protection such as a flexible stainless-steel hose with FEP sheath is ordered:
Flexible hose length (G) max. = EA902 extension cable length (E) − 200 mm, for an extension cable that is protected to the maximum extent possible (“fully-covered cable”).
Technical Specifications
| Manufacturer |
VM |
| Part Number |
EA902 |
| Ordering Information |
913-902-000-011 A1-E4000-F0-G0 |
| Product Catalog |
Vibration Monitoring |
| Description |
Extension Cable |
| Voltage |
24 Vdc |
| Current |
25 mA |
| Dimensions |
7.2 mm x 4000 mm |
| Weight |
0.5 kg |
