EAST-WEST ballasted Roof Solar Mounting System is the latest aerodynamic rail-based mounting solution. The Racking has refined its rail based solution with an east-west orientation, to provide customers with the same core elements of integrated wire management that allows for installers to install more panels, while saving space on the roof. With an east-west configuration, this system offers best value by reducing costs and installation time.
East West Mounting structure features low ballast requirements and structural integrity, while offering customizable solutions with its flexibility in row spacing and tilt angle.
Features
- Rail based design provides stiffness, reducing ballast requirements and roof loads
- Non-penetrating design prevents damage to your roof

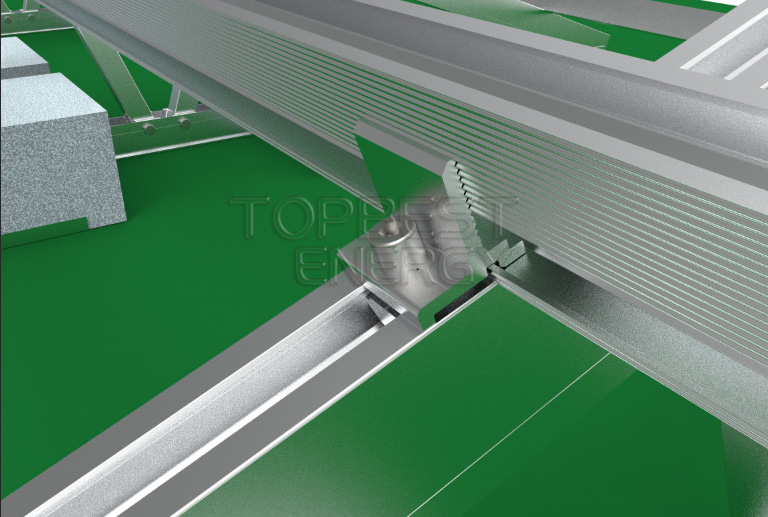

- Windshields include integrated press-fit nuts for a faster installation
- Aluminum components ensure long lasting performance

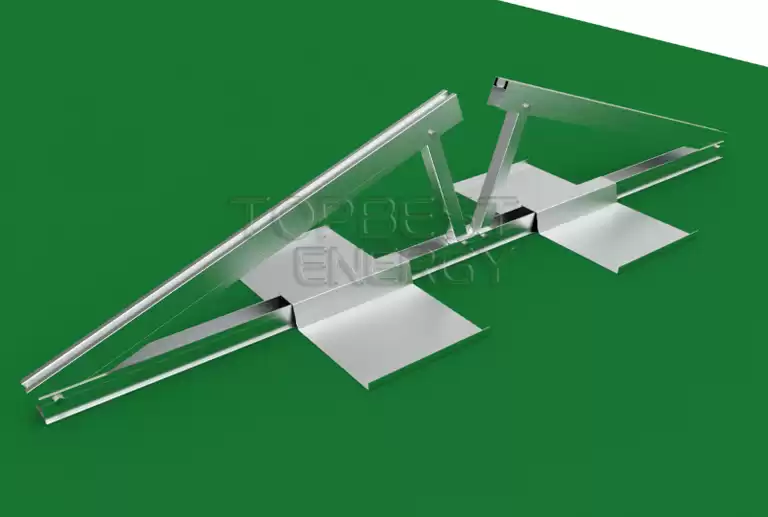

- Pre-attached rubber mats offer additional protection for the roof
- 25-year standard product warranty
East-west solar roof structure technical Information
- Inclinations: 5°, 10°, 15°, 20° (Landscape), 3°, 5° (Portrait)
- Orientation Panel: Landscape, Portrait
- Panel Type: Frame PV module
- Material: Aluminum 6005-T5
- Roof Type: All types of flat roofs
- Roof Pitch: Up to 5°
- Building Height: Up to 60’/ 18.3m (higher upon request)
- Ballast Weight: Dependent on wind zone and exposure category
- Wind Speed: Up to 170 mph (274 km/h)
- Wind Tunnel Testing: Complies with ASCE 7-10, NBCC 2005, IBC 2012 & OBC 2012 standards

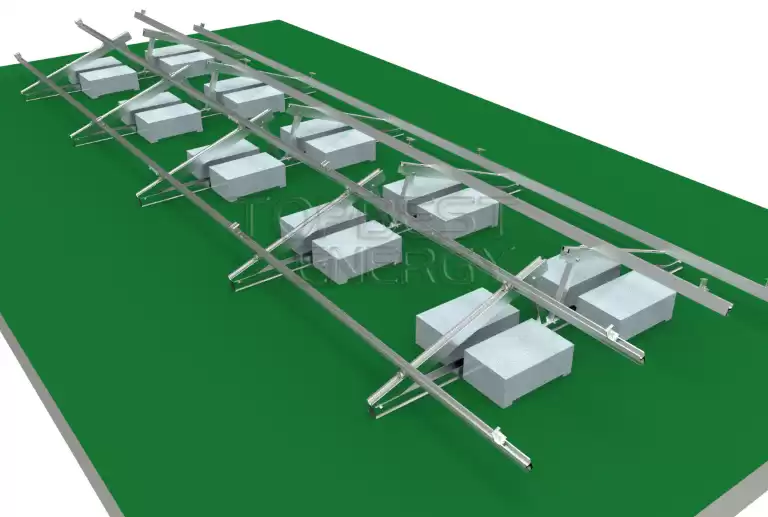

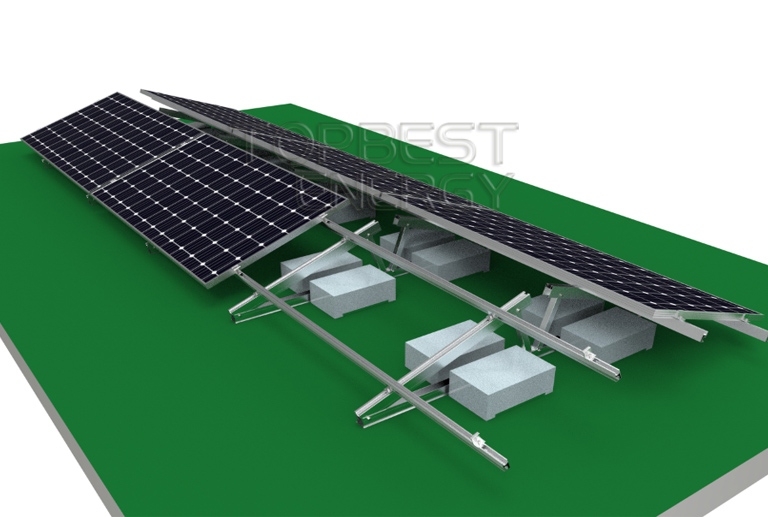

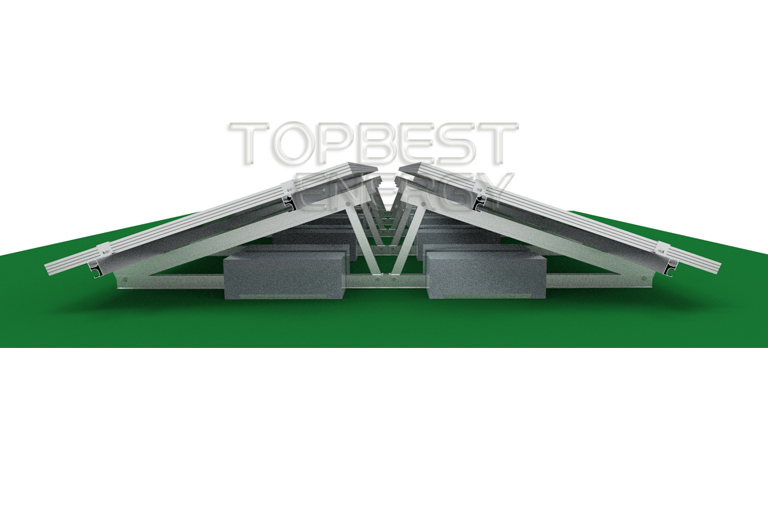

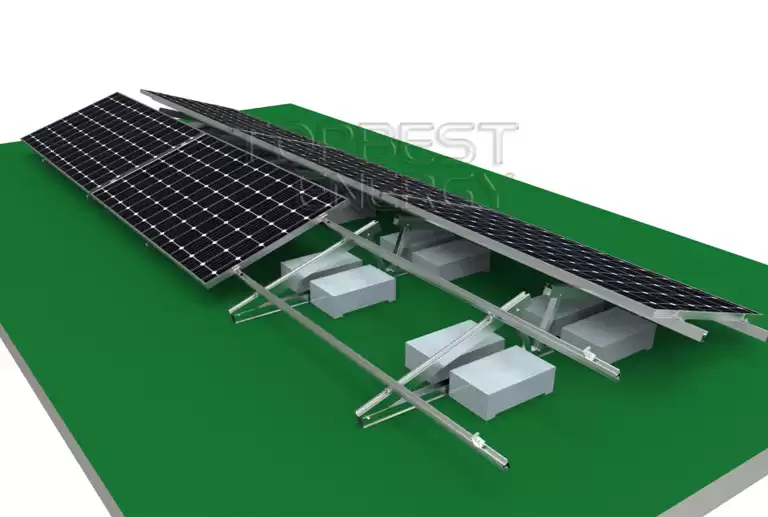

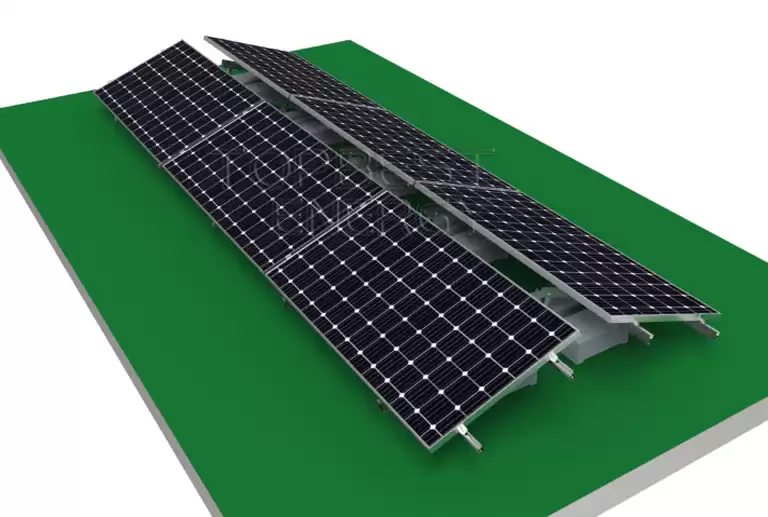

East-west ballasted system
