East-west Tilt Adjustable Solar Mounting Brackets

East-west Tilt Adjustable Solar Mounting Brackets is made of aluminum to mount on ground screws foundation. SG1-EW is suitable for both framed and thin film modules in any size. This bracket is suitable for slopes and is equipped with adjustable parts to adjust the rail in the east-west direction.


  • Wind Load60m/s
  • Snow Load1.4kN/m2
  • Moudle Angle10-60 Degrees
  • Panel FramingFramed、Frameless
  • Panel OrientationPortrait、Landscape
  • Roof Types
  • FoundationGround screw、Concrete block

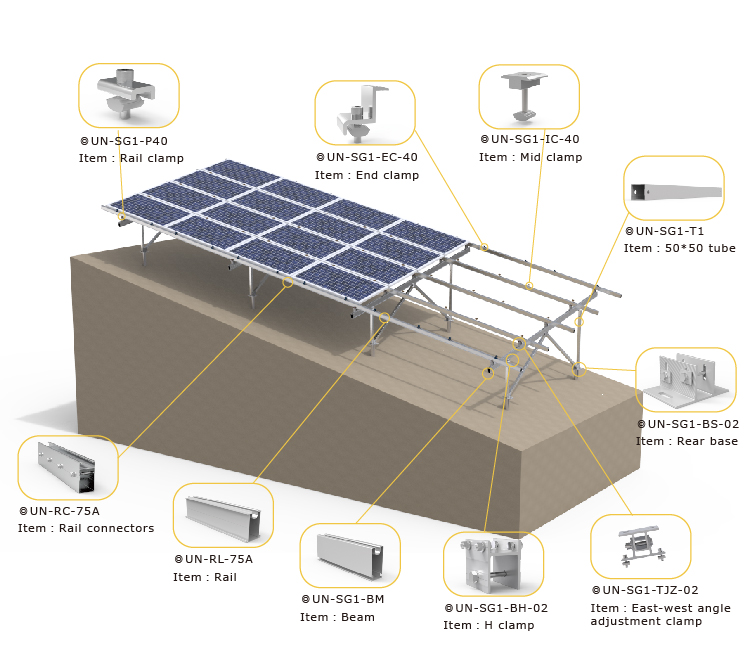

East-west Tilt Adjustable Solar Mounting Brackets SG1-EW

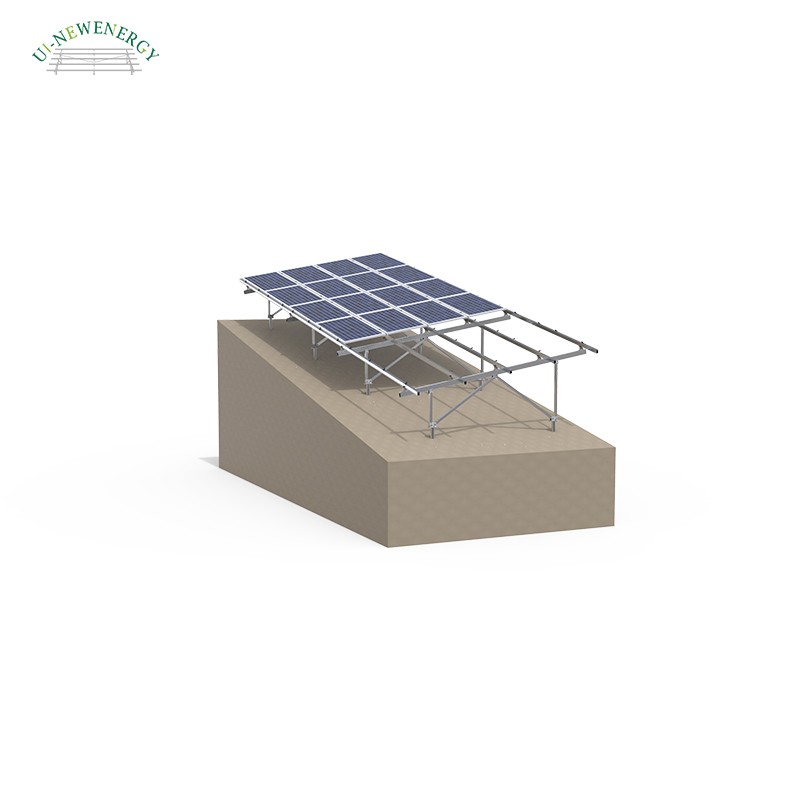

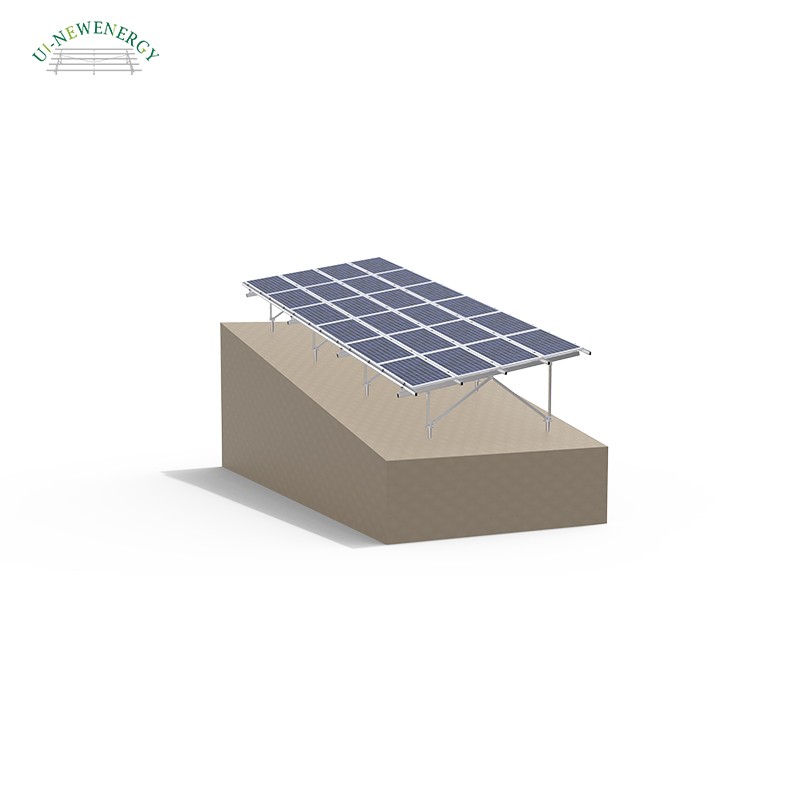

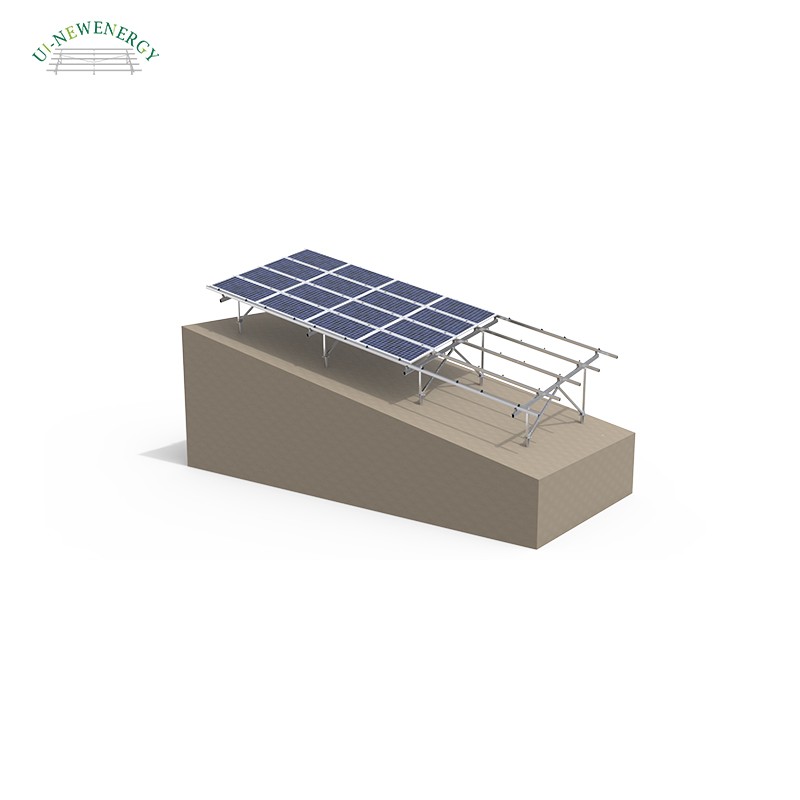

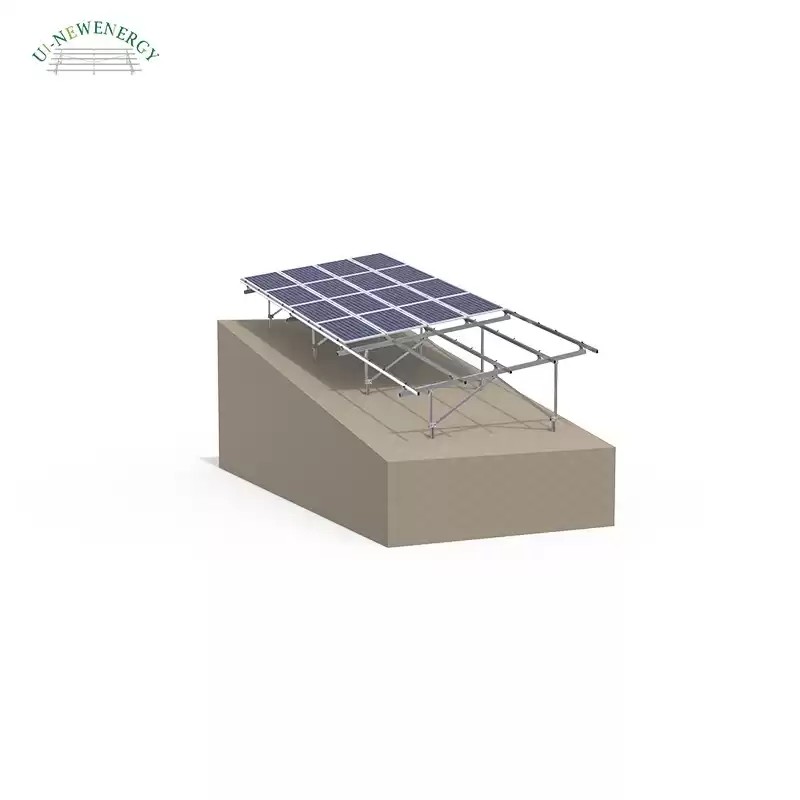

East-west Tilt Adjustable Solar Mounting Brackets is suitable for slopes and is equipped with adjustable parts to adjust the track in the east-west direction.

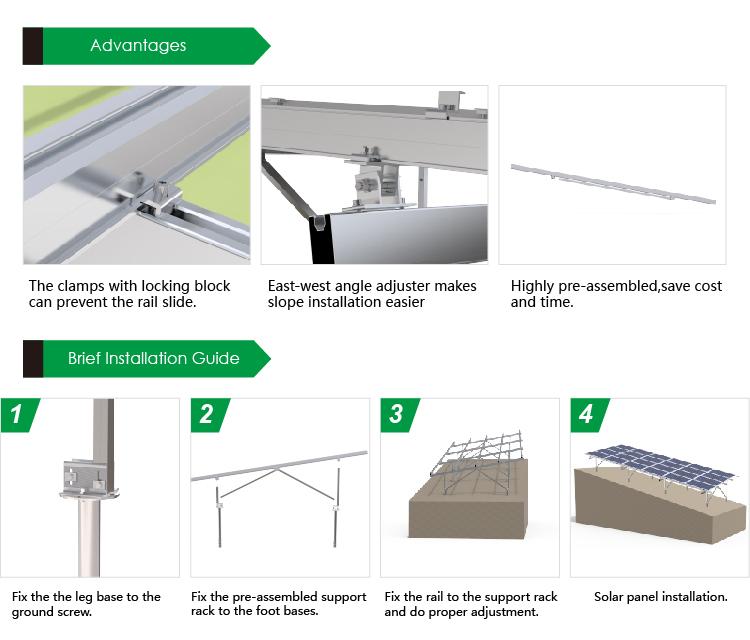

Ground Photovoltaic System Bracket Features:

A.Quick installation with large-scale ground photovoltaic system power station construction progress.

B.Flexible form of adjustment to meet the complex requirements of the construction site.

C.Refine the number of accessories to facilitate the identification of workers on site .

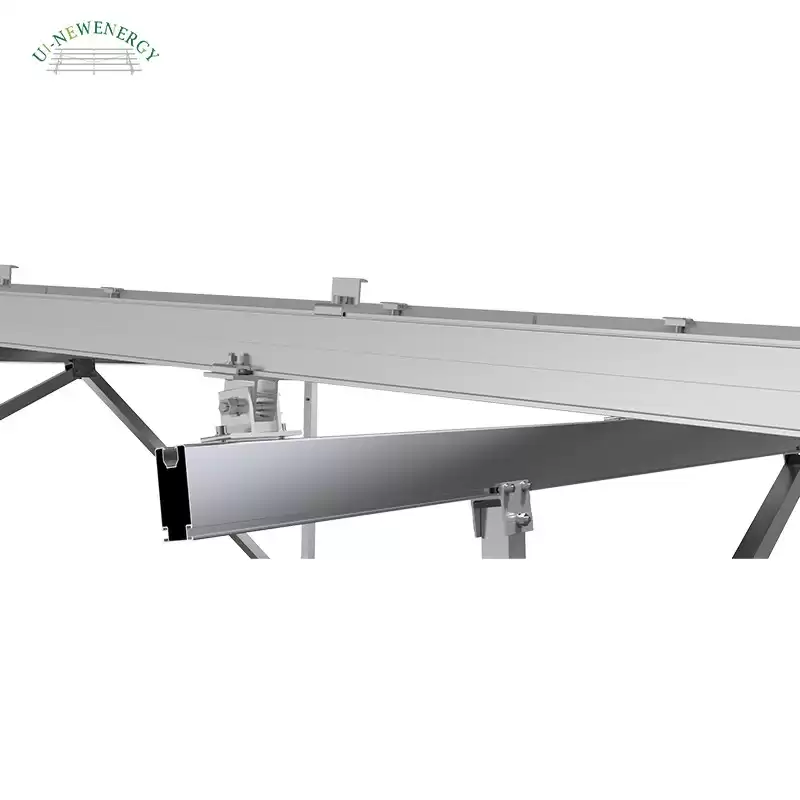

D.With adjustable parts to adjust the track in the east-west direction.

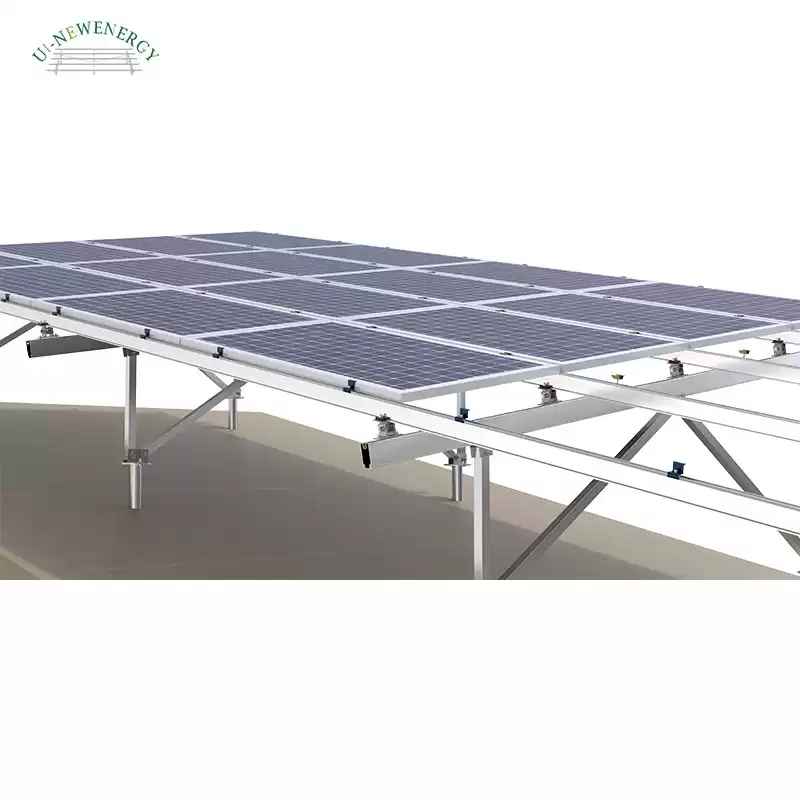

Ground Mount Solar

Product Parameter
Product Name Solar Ground Mounting System
Installation Site Open Field/ Ground / Earth / Concrete Ground
Material Aluminum 6005-T5
Surface Anodized
Color Silver or Customized
Module Angle 10-35 Degrees According to Your Requirement or Latitude
Wind Speed 60m/s
Snow Load 1.4kN/m2
Standard AS/NZS 1170; JIS C8955:2017
Warranty 10 Years
Service Life 25 Years
Advantages Easy Installation; Safety And Reliability; 10 -Year Warranty

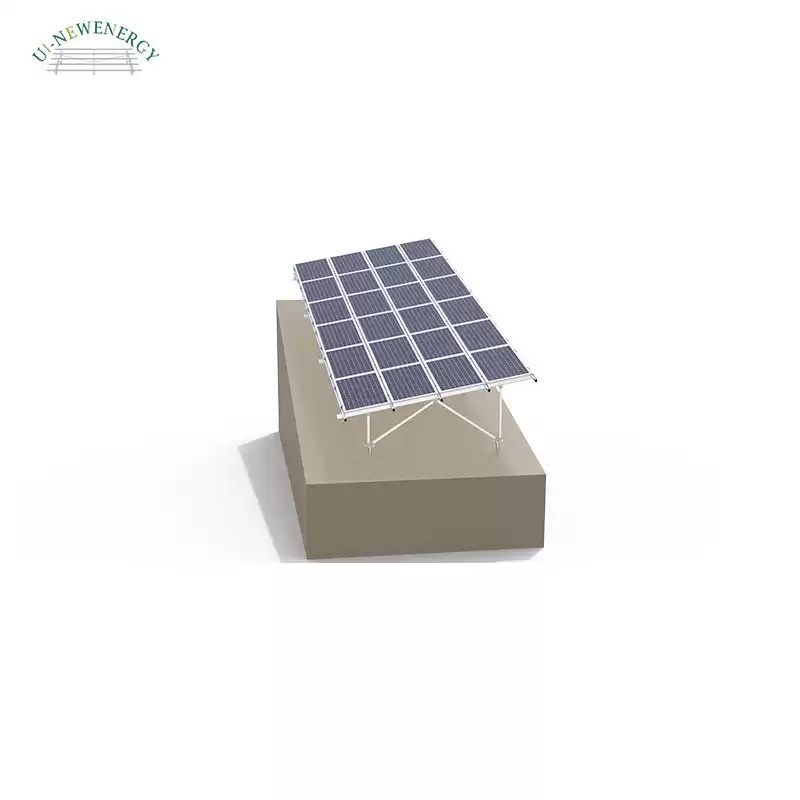

Ground Solar System



  F A Q

Q1:Are you a factory or trading company?
A1: We are a factory in China, specializing in solar mounting system project planning and aluminum profile customization and processing.

Our product are solar ground structures, solar carport, solar farm, ground screw and related components ect.


Q2: Where is your factory located? How can I visit there?
A2: Our factory is located in Xiamen city, Fujian province,China.
You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us.


Q3: How does you factory do regarding quality control?
A3: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.


Q4: How can I get some samples?

A4:We are honored to offer samples according to your inquiry.


Q5:What necessary info. for us to design and quote?
1.What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
