Easy Install Clip Lock Solar Mounting System for Metal Roof

Clip Lock mounting system is a specific solution for non-trapezoidal metal rooftop, with principle  to use Clips to grab bulges of tin roof. Weve designed a variety of clips to match different types tin roof. It is an easy install structure generally without drilling into roofs.The simple operation of installing allow to save much time and labor cost.


  • ApplicationMetal Roof
  • Service Life>25 Years
  • Warranty10 Years
  • Max. Snow Load1.4 KN/m²
  • Max. Wind Speed60m/s
  • CertificationsISO9001/CE
  • StandardAS/NZS 1170

Product Introduction

The Clip Lock mounting system is a specific solution for non-trapezoidal metal rooftop, with principle  to use Clips to grab bulges of tin roof. We’ve designed a variety of clips to match different types of tin roof. .

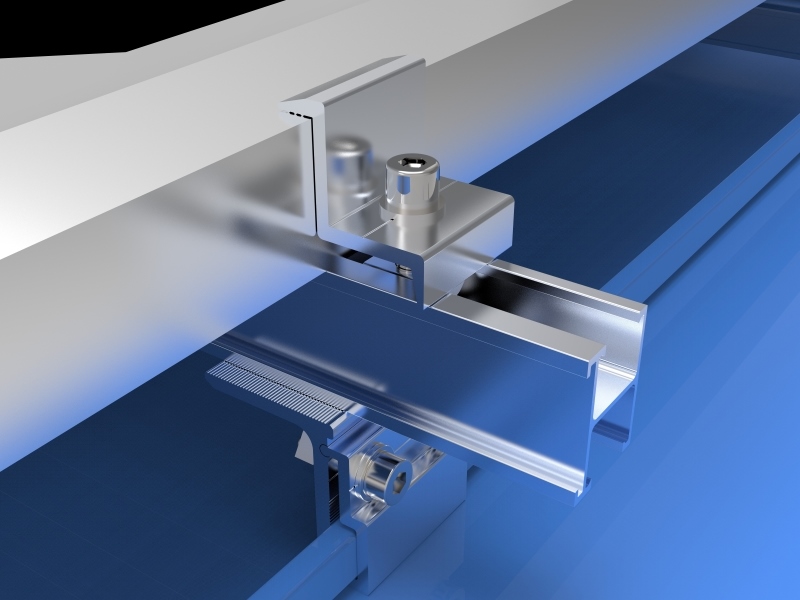

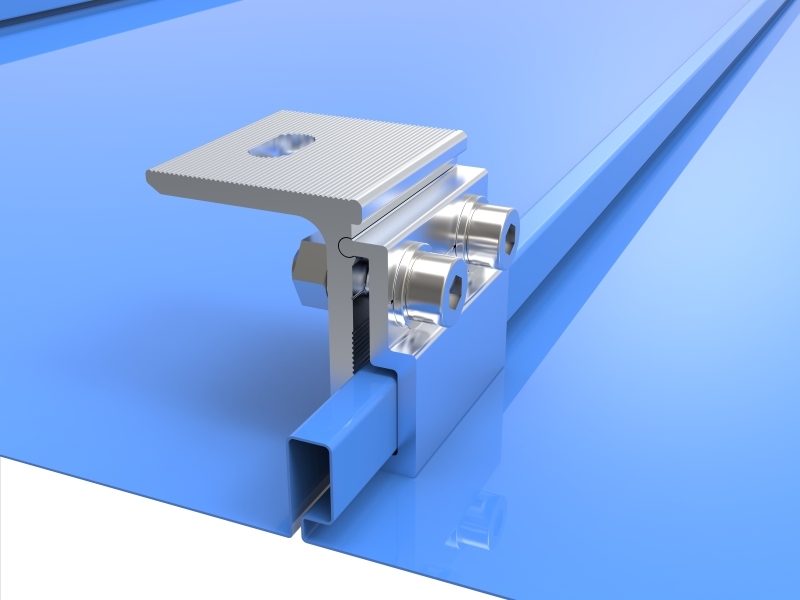

clip lock mounting structure for metal roof solar

It is an easy install structure generally without drilling into roofs. The simple operation of installing allow to save much time and labor cost.

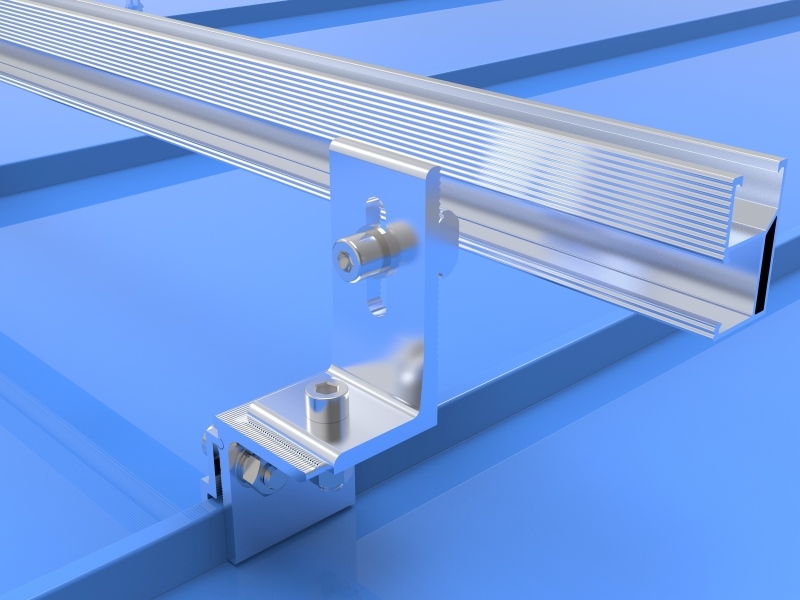

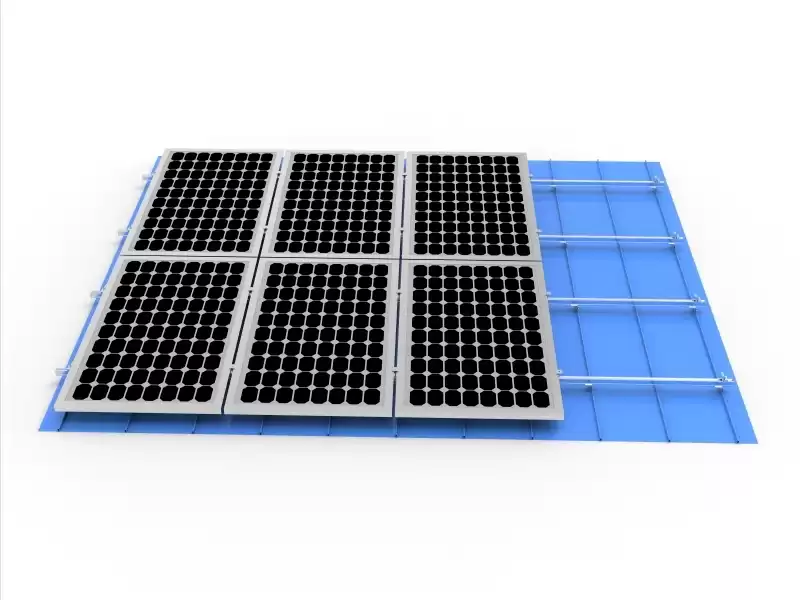

metal roof solar mounting clip lock structure

With main parts made of surface anodized aluminum AL6005/T5, the system can stand firm and keep a long life service, supporting the PV modules converting sunlight into electricity.





Parameters

Brand ZIYUAN
Mterial AL6005/T5 & SUS304 & SUS410
Surface Coating Anodized
Design Code JIS C 8955 2017
Standard AS/NZS 1170
Max. Wind Speed 60m/s
Max. Snow Load 1.4KN/m²
Warranty 10 years
Service Life >25 years
Mounting Type Roof Mounting
Tilt Angle Other



Mounting Parts Details

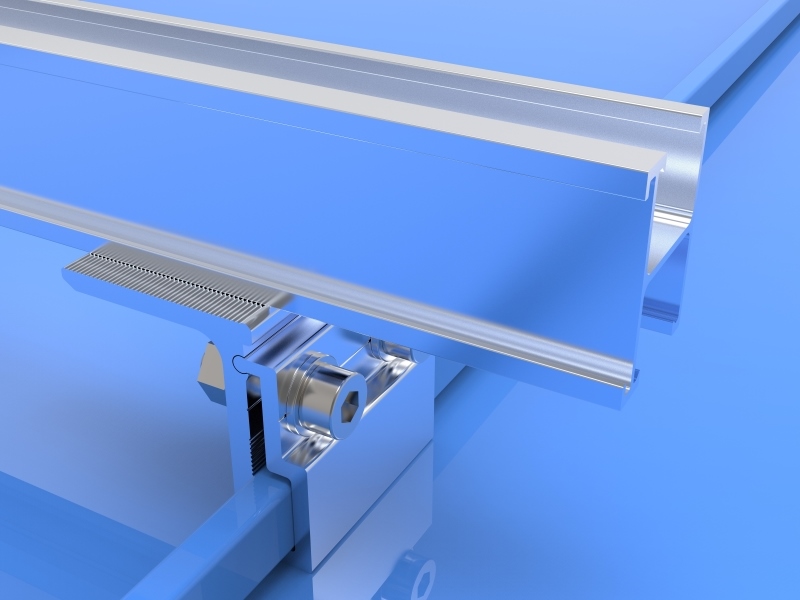

metal roof clamp locks solar mounting accessories

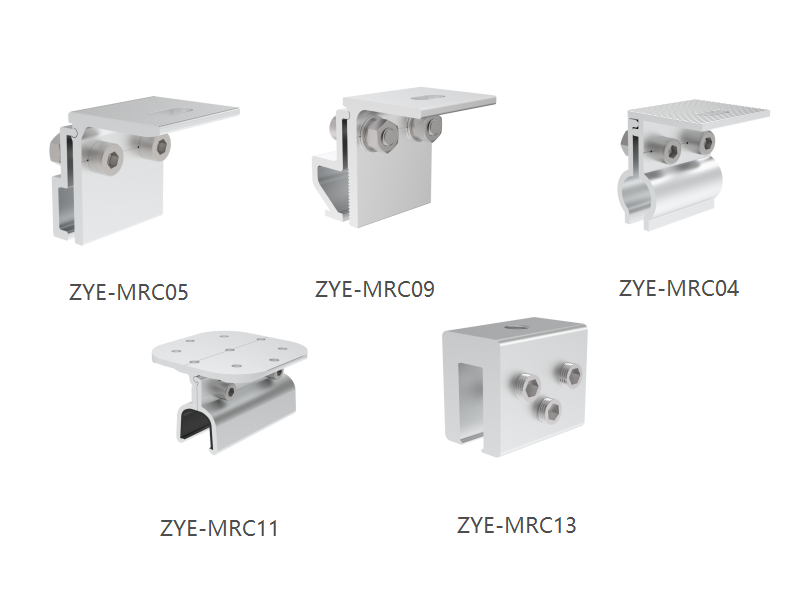

We’ve designed a variety types of clips to match different types of tin roof and here are some general ones show on the left.

Peoject Case

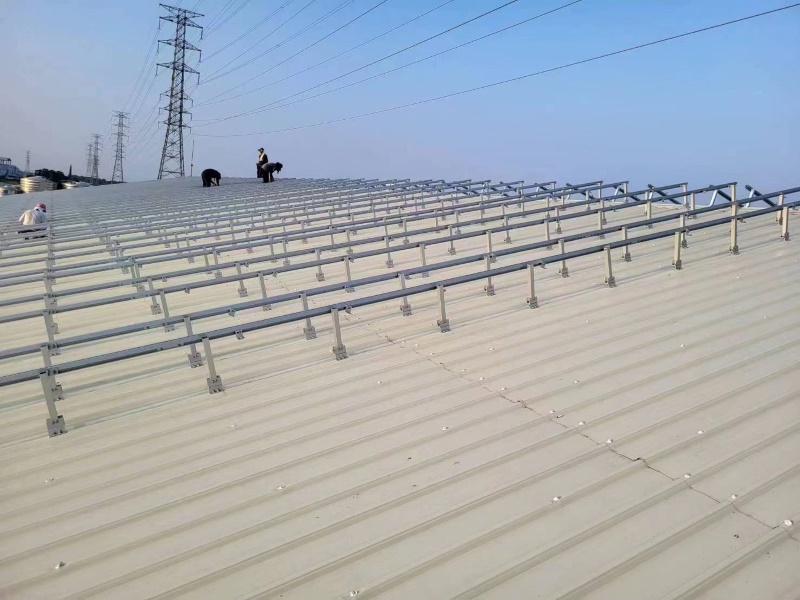

clamp lock solar roof mounting system agricultural metal roof

Our Advantages

  • factory- solar mounting products
    Own Factory & Strict QC

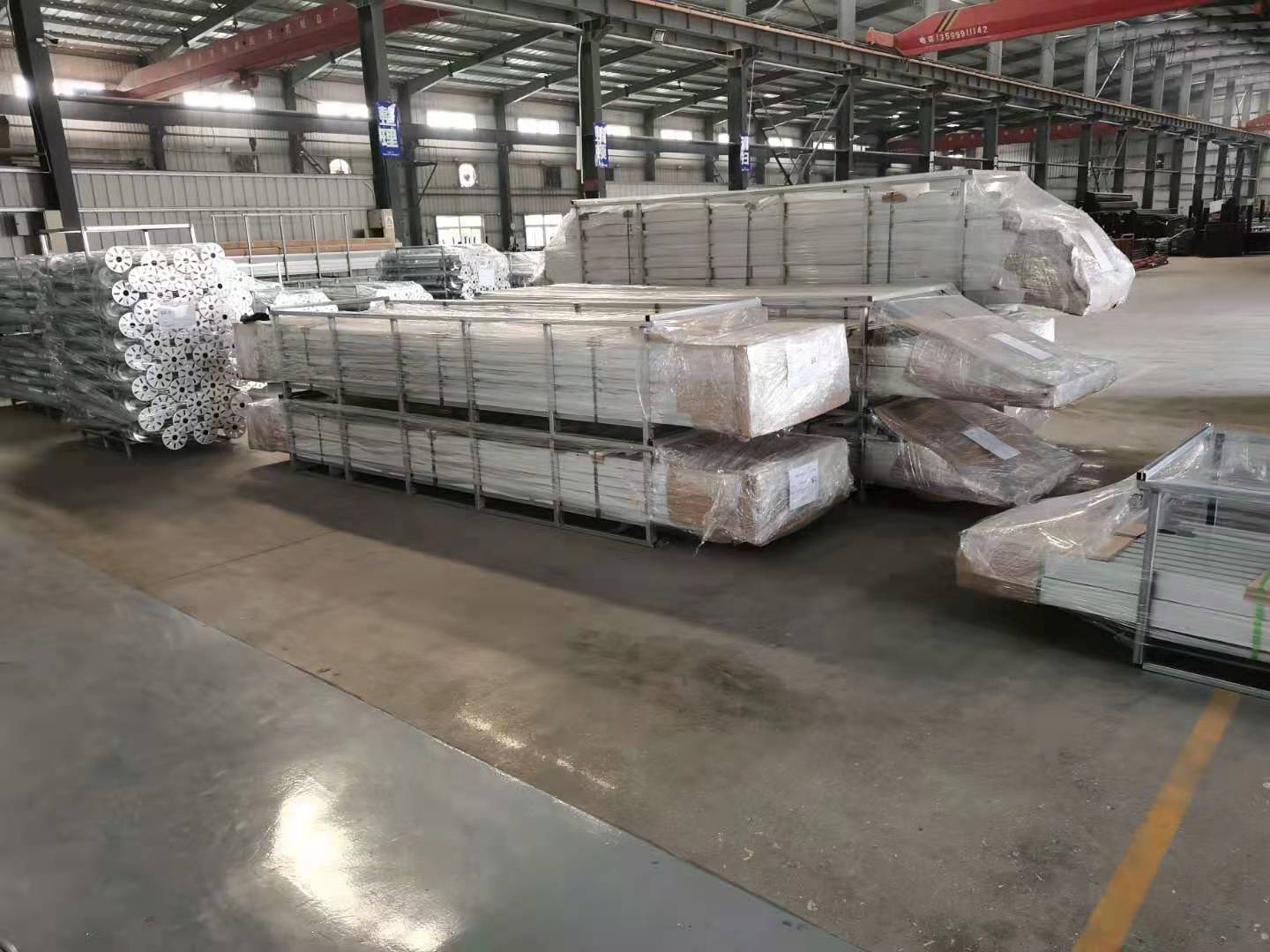

    ZIYUAN hs its own factory  with more than 100 skilled & experienced workers. The production line is strictly in accordance with high standards and attach great importance to quality control and inspection.
  • engineer team of solar brackets
    Experienced Engineer Team
    The first-class production engineers, technicians and R & D team offer innovative design and reliable solution to customers based on more than 8 years of experience.
  • service team-solar mounting products
    Professional Service
    ZIYUAN has an excellent sales team, can quickly respond to customers' inquiries and provide professional advice.



Packaging & Shipping

  • packaging solar brackets
  • Solar supporting brackets
  • Loading & Shipping of Solar Products
