Production Introduction

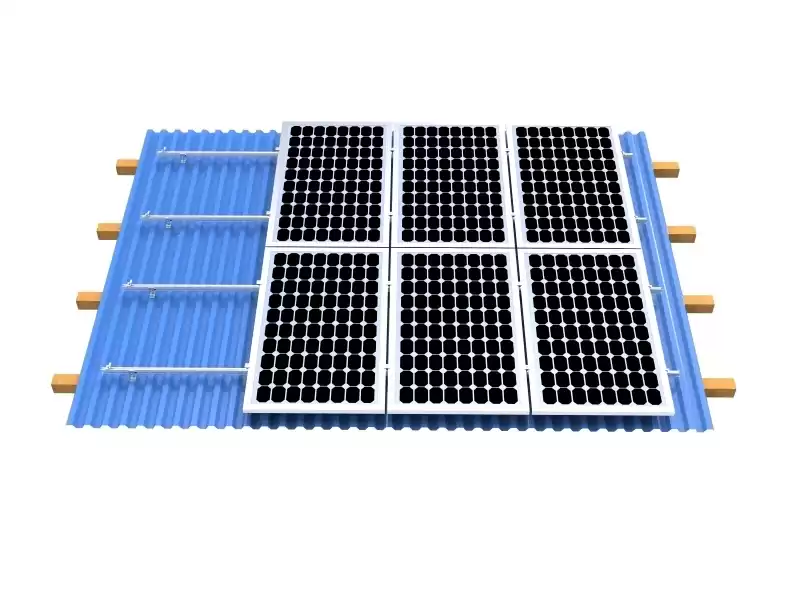

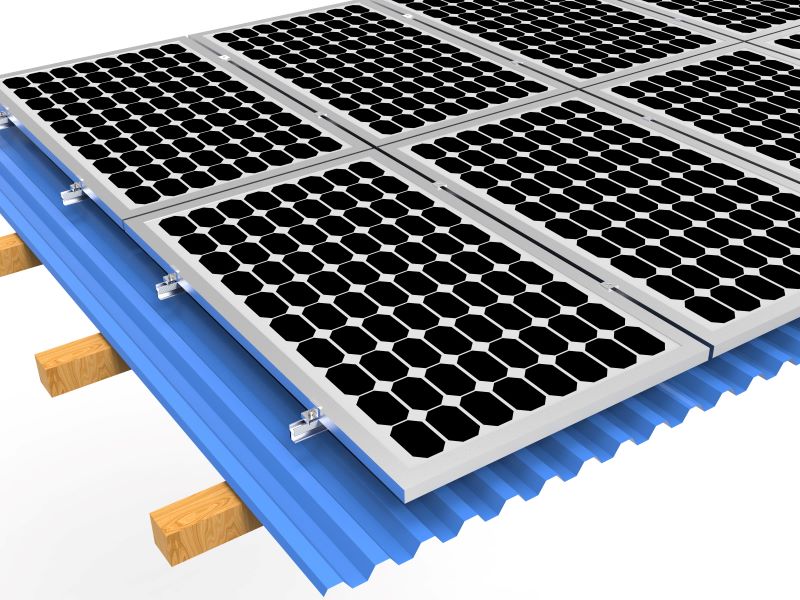

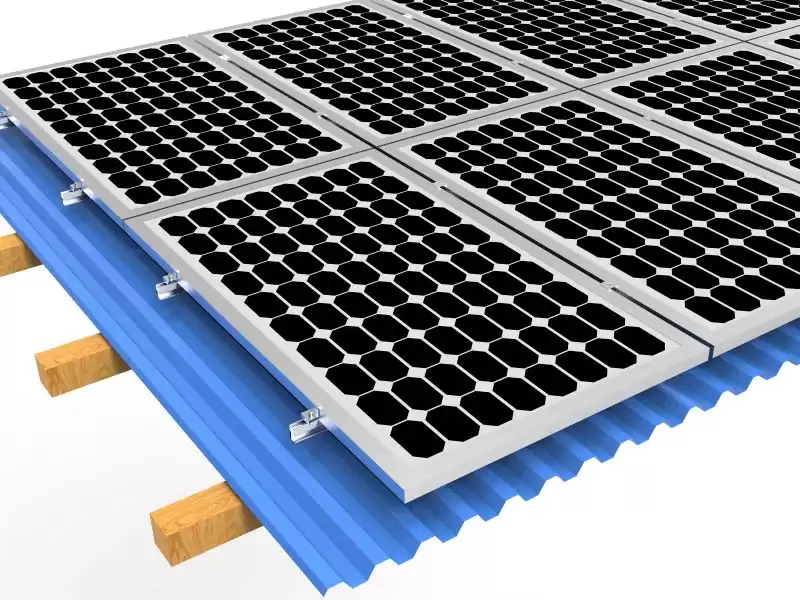

The L-Foot Solar Mounting Structure for metal roof solar system is widely applicable for residence, warehouse, factory, or other industrial building where cover with metal roof. Being simple, the structure is easy to install, saving much time and labor cost.
The main parts are L Feet, Rails, Rail Connectors, Mid Clamps and End Clamps. With main parts made of surface anodized aluminum AL6005/T5, the system can stand firm and keep a long life service, supporting the PV modules converting sunlight into electricity.
Product Parameters
| Brand |
ZIYUAN |
| Material |
AL6005/T5 & SUS304 &SUS410 |
| Surface Coating |
Anodized |
| Design Code |
JIS C 8955 2017 |
| Standard |
AS/NZS 1170 |
| Max. Wind Speed |
60m/s |
| Max. Snow Load |
1.4KN/m² |
| Warranty |
10 years |
| Service Life |
＞25 years |
| Mounting Type |
Roof Mounting |
| Tilt Angle |
Other |
Mounting Parts Details

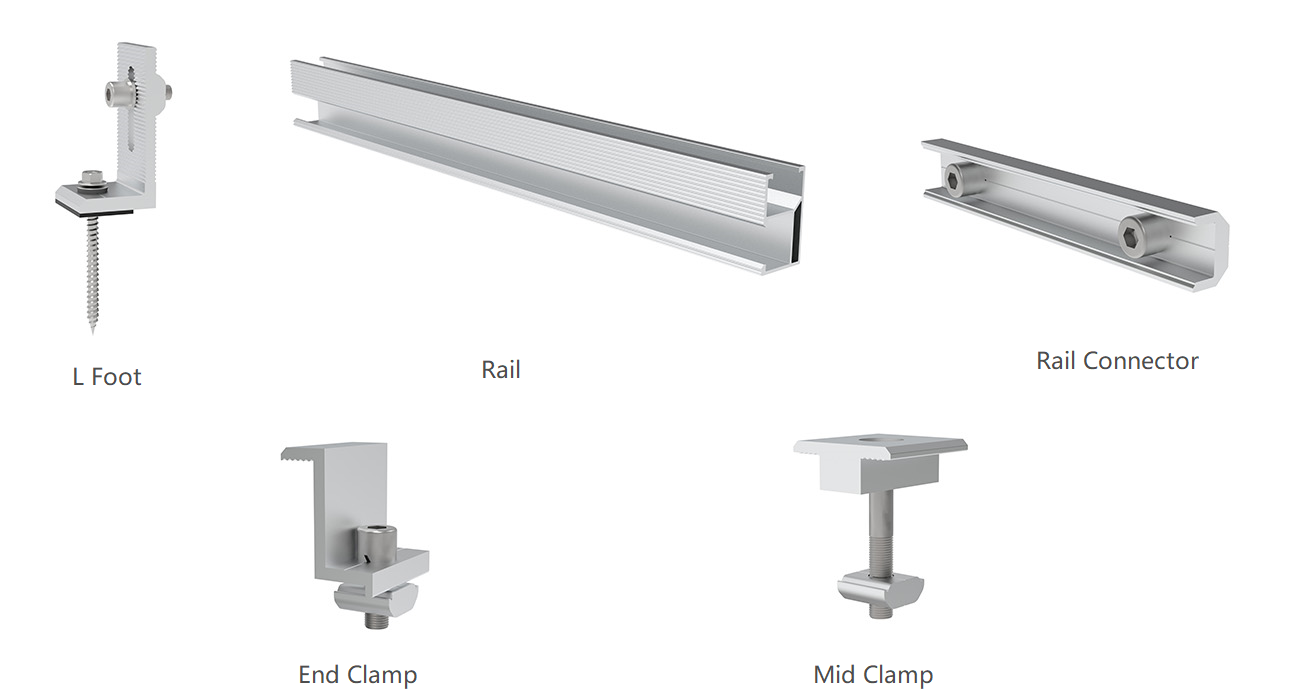

The main parts are L feet, Rails, Rail Connectors, End Clamps and Mid Clamps.
Main Features
•√ Corrugated L foot as base to connect the panle system and rooftop while offering an adjustable clearance height to some extent.
•√ Modular & preassembled & simple components make the installation easy and fast, which can be cost and labor saving.
•√ Highly optimized for its strength, durability and corrosion resistance.
Install Steps
1.

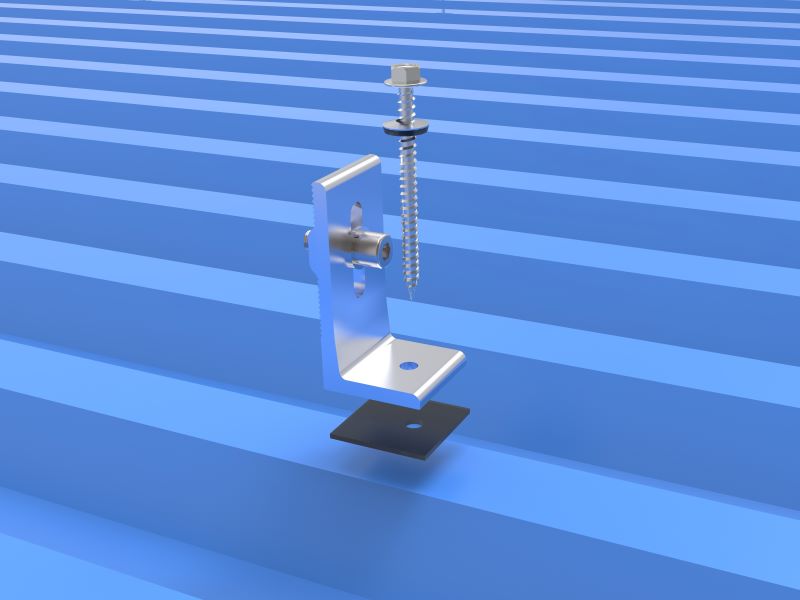

1.Drill a hole in the correct position as planned then install the EPDM rubber pad and L Feet, and lock the screw into the roof beam below.
2.

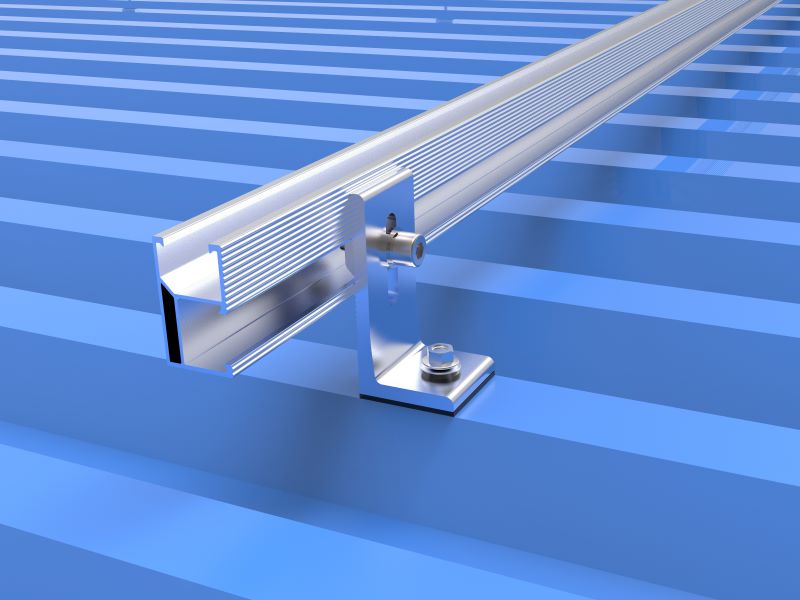

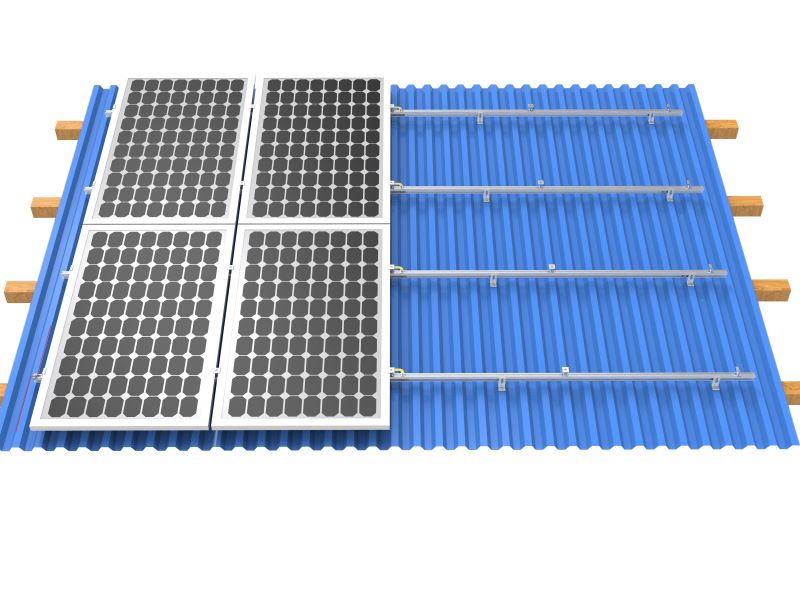

2.Install the rail on the L feet,lock the bolt tightly and make sure all the rails are on the same level. The height can be adjustable and fixed with the striated grooves on L feet.
3.

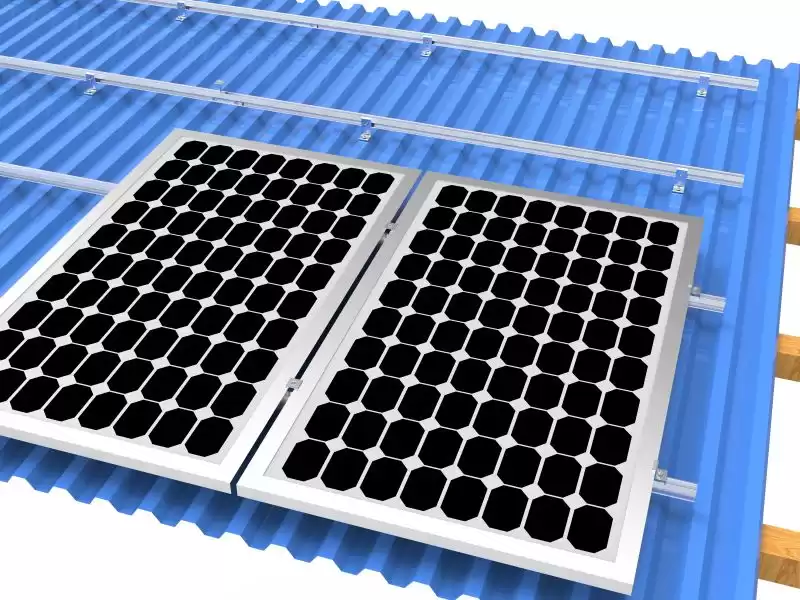

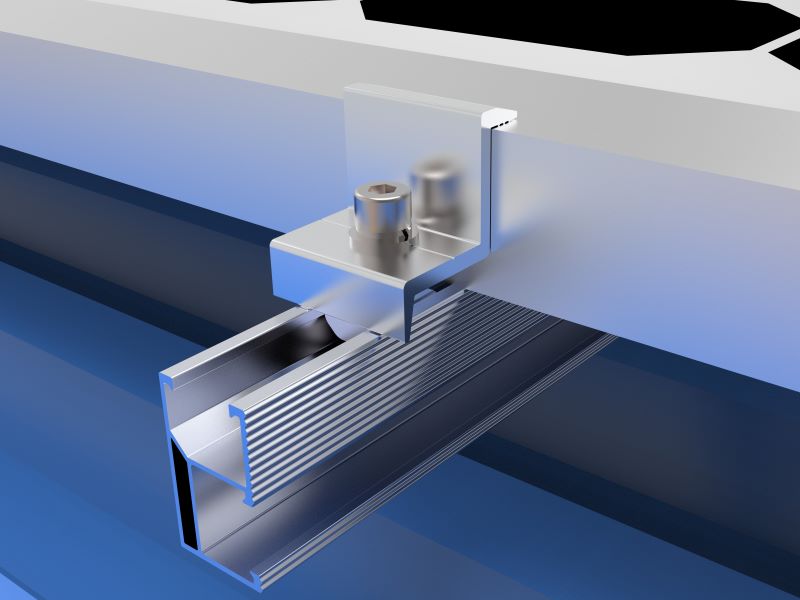

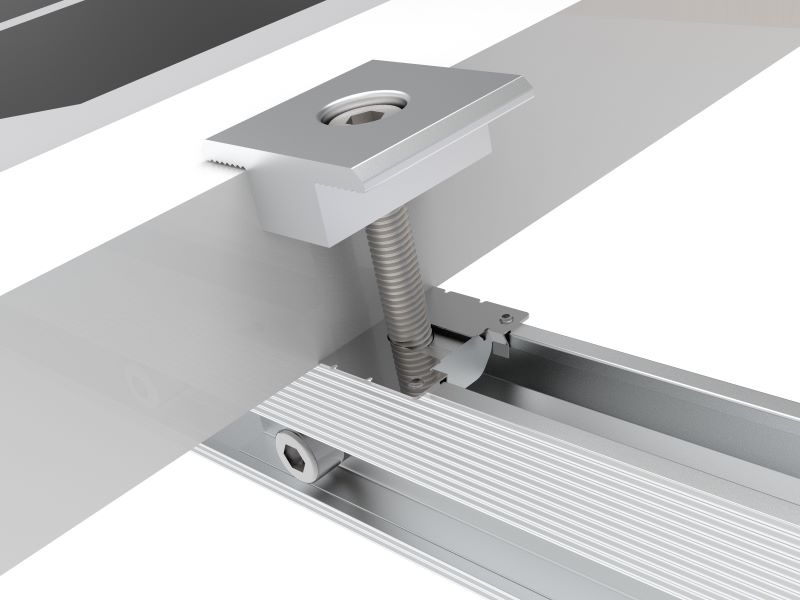

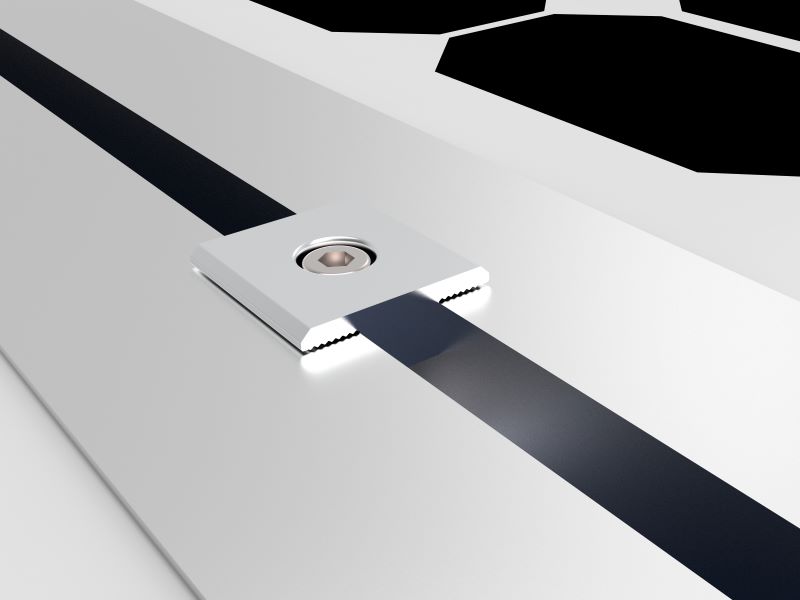

3.Install the solar panel on the Rails with the End Clamp and Mid Clamp, lock the bolt tightly.

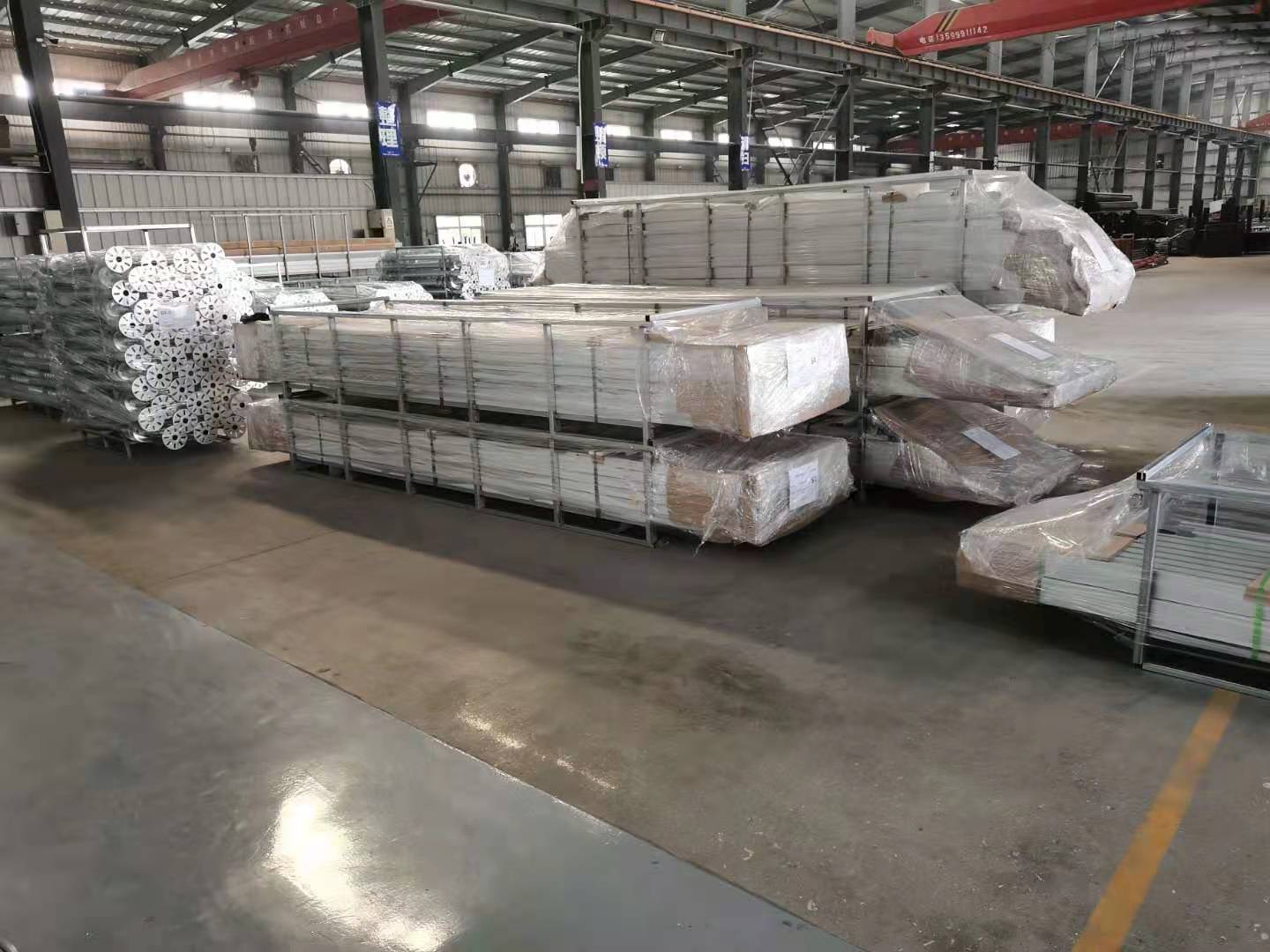

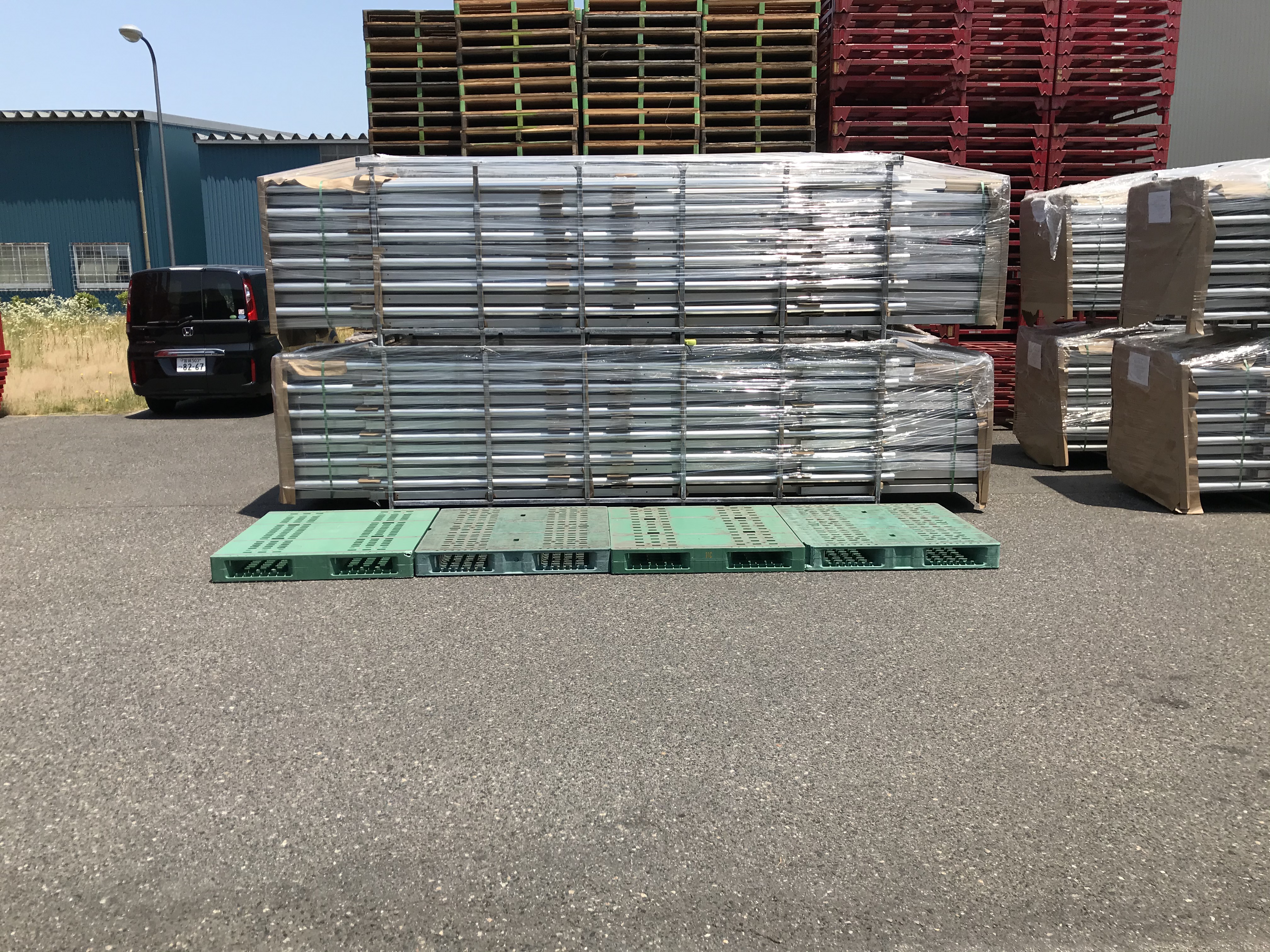

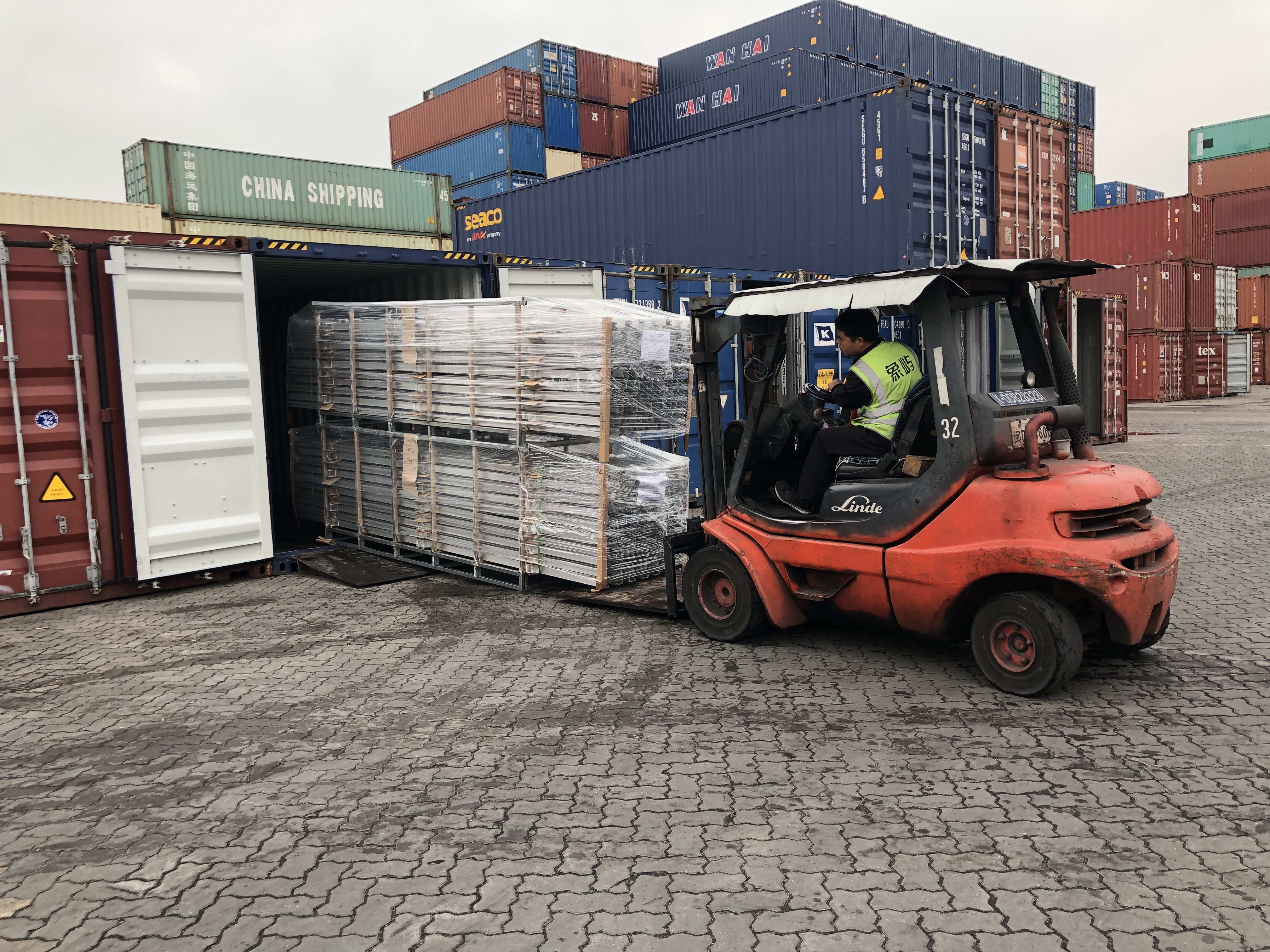

Packaging & Shipping
Our Advantages
-
Own Factory and Strict QC
ZIYUAN has its own factory with more than 100 skilled and experienced workers, the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.
-
Experienced Engineer Team
The first-class production engineers, technicians and R & D team offer innovative design and reliable solution to customers based on more than 8 years of experience.
-
Professional Service
ZIYUAN has an excellent sales team, can quickly respond to customers' inquiries and provide professional advice.
FAQ
FAQ about the product
1/
Is it necessary to panetrate the metal roof during installation?
Penetration is not always necessary for metal roof installations. Many mounting systems use clamps to securely grasp the roof without the need for roof penetration. It depends on your roof type.
2/
Can the metal roof solar mounting structure be adjustable?
Yes, many metal roof solar mounting structures offer adjustability. This allows for optimizing the tilt angle of the panels to maximize energy production.
3/
Should I hire a professional installer for a metal roof solar installation?
It is highly recommended to hire a professional solar installer with experience in working with metal roofs. They have the expertise to properly assess the roof, select the appropriate mounting system, and ensure a safe and efficient installation.
FAQ about company
01 Q: Do you have your own factory?
A: ZIYUAN has own factory with more than 100 skilled and experienced workers the production line is strictly in accordance with high standards and attach great importance to quality control and inspection.
02 Q: Do you have an experienced design team?
A: Of course,our first-class production engineers,technicians and R&D team offer innovative design and reliable solution to customers based on more than 8vears of experiences.
03 Q: Do you have any experience in OEM?
A: Yes, ZIYUAN has provided OEM service design service and buyer label service for more than10 years.
04 Q: Have your products been certified?
A: Yes the products of ZIYUAN have been certified by ISo, sGS, TUV and AS/NZS1170.2
05 Q: How long is your delivery time?
A: It depends on actual order quantity and your special requirements.Generally, it will be 1-2weeks.
06 Q: How is your payment term?
A: If total amount is less than US$5000, we need 100% in advance; if total amount is more than US$5000, we need 30%T/Tin advance and balance before shipment. Other payment term can also be negotiated based on actual.
