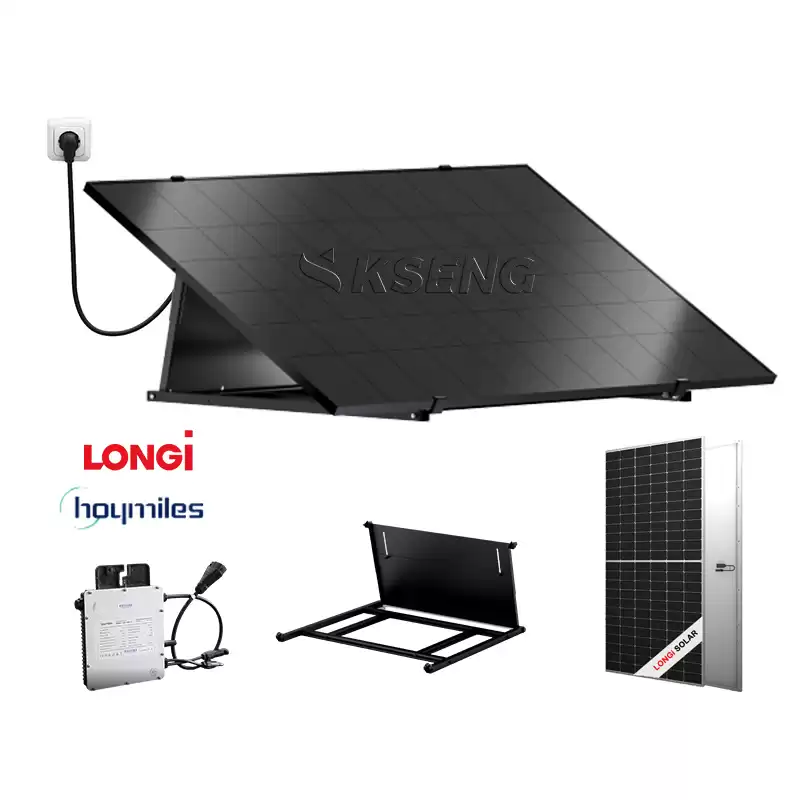

Easy Solar Kit System

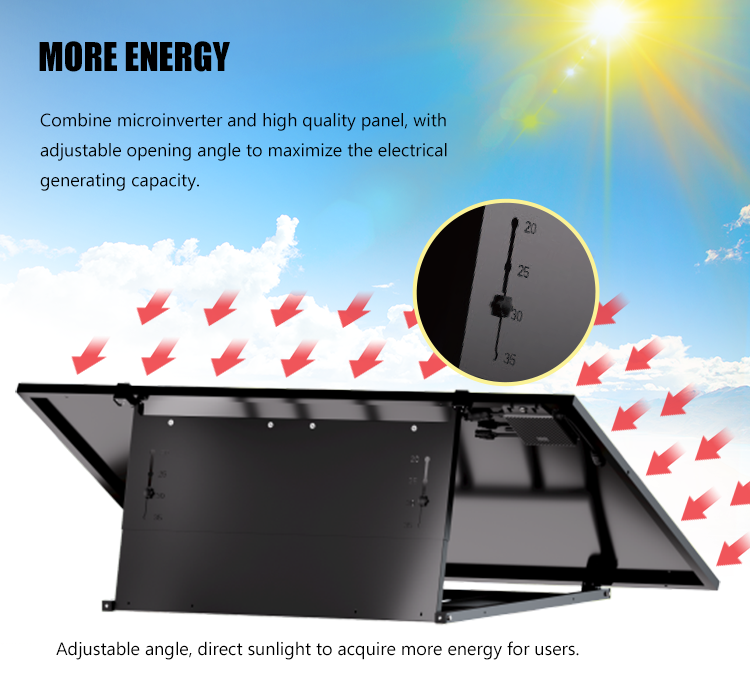

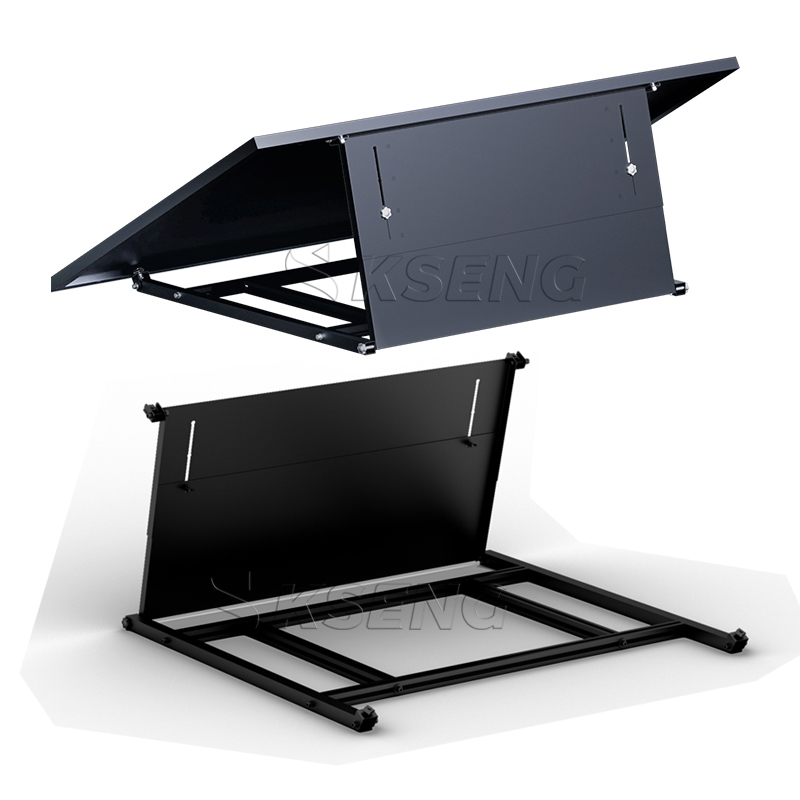

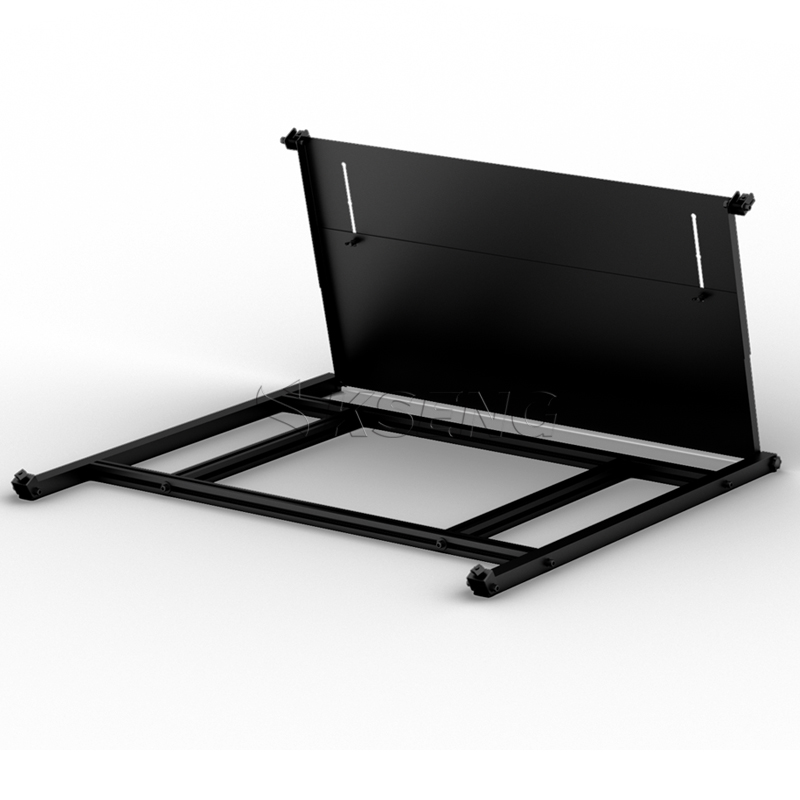

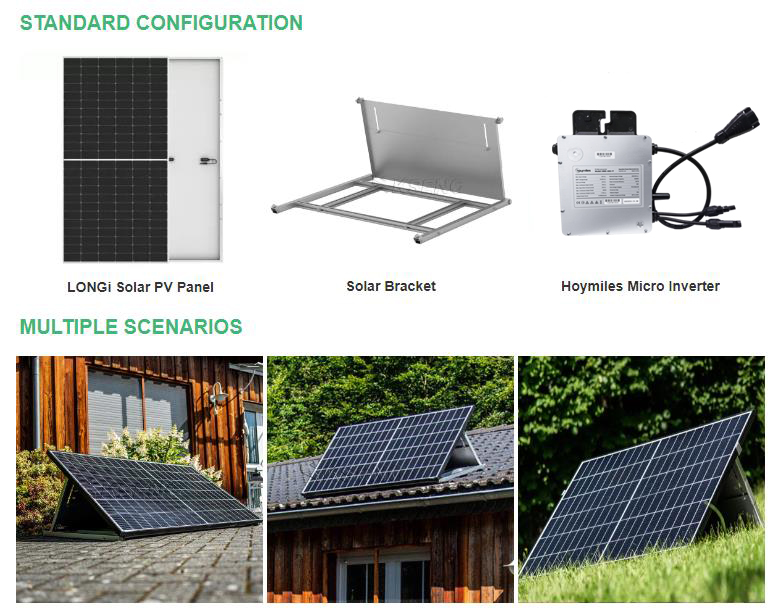

Kseng easy solar kit is a plug ‒and-play system composed of solar panel, micro inverter and angle-ad justable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.
Advantages
1.Output Power Up To 500 VA
2.Modular Design, No Debugging And Easy Installation

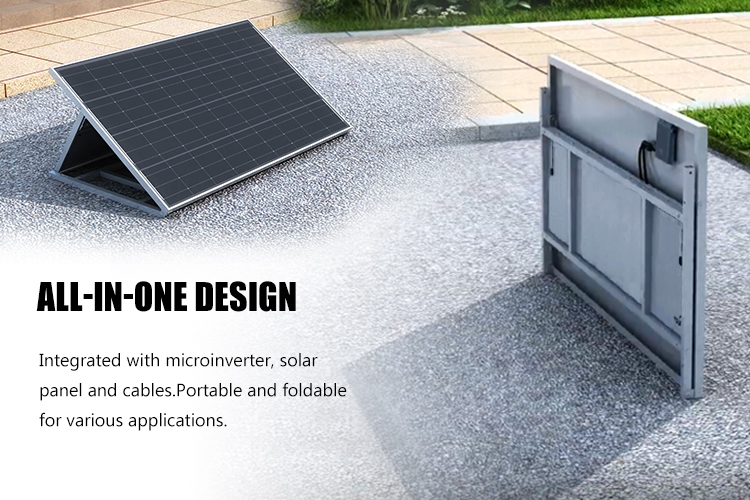

3.Various Scenes, Roof, Balcony and Garden
4.App Cloud Monitoring, MPPT Controller To Optimize Power Generation Effiffifficiency
5.12-Year Global Warranty
Products Description
|

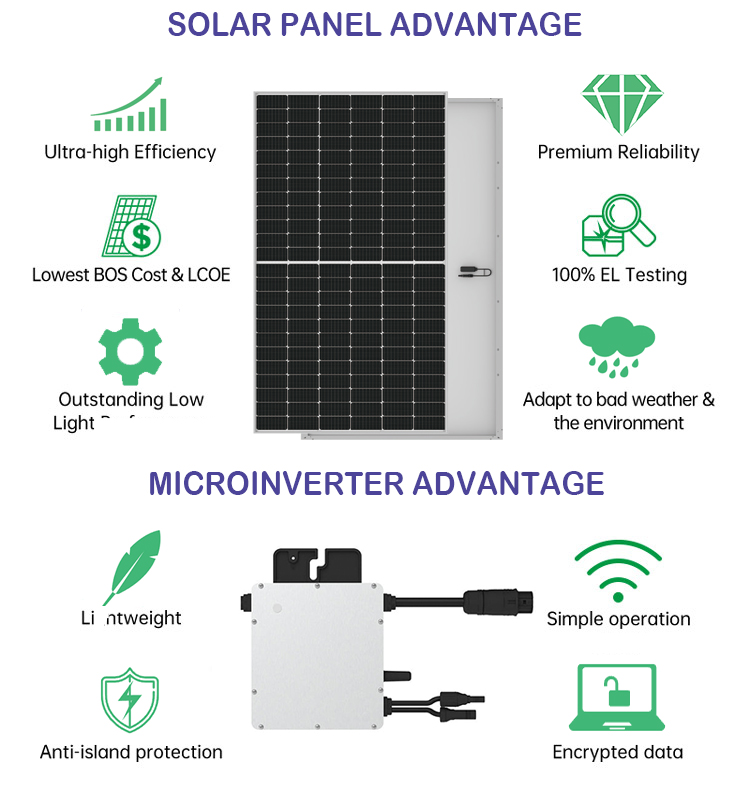

Solar PV Panel
|
|
|
Power:
|
410 W
|
|
Module efficiency:
|
21%
|
|
Current at maximum power:
|
13.12A
|
|
Glass:
|
Single glass, 3.2mm coated tempered glass
|
|
Frame:
|
Anodized aluminum alloy frame
|
|
Dimension:
|
1722 X 1134 X 30 mm
|
|
Weight:
|
20.8 kg
|
|
Micro Inverter
|
|
|
Recommended module power:
|
320 to 540 + W
|
|
Maximum Input current:
|
12.5 A
|
|
Rated output power:
|
400VA
|
|
Rated output current:
|
1.82 /1.74/1.67A
|
|
Output voltage/range:
|
220土10/ 180-275V
|
|
Dimensions:
|
182 X 164 X 30 mm
|
|
Weight:
|
1.75 kg
|
|
AC Extension Cable
|
|
|
Length of Cable:
|
2/3/5/ 10 m optional
|
|
Rated Voltage:
|
AC 230 V
|
|
Certificate:
|
VDE, CE
|
|
General Parameter
|
|
|
Environment protection rating:
|
IP67
|
|
Operating ambient temperature range:
|
-40to 60 °C
|
|
Relative humidity:
|
0 - 100 %
|
