EBL Pocket Plate Range NiCd Battery

EverExceed pocket type nickel cadmium battery has been supplied stable and reliable battery solution for many industrial power applications. Our block batteries function in a wide range of temperatures, resist electrical abuse, shock and vibrations and need only basic maintenance. This ensures a low total cost of ownership (TCO) over a life cycle that can last 20 years or more.

  • CertificatesTUV;IEC;ROHS;DEKRA
  • UsageRailway DC power supply, UPS switch transition
  • OEM/ODM ServiceYes, customized
  • Rated Capacity(Ah)10Ah-1300Ah
  • Rated Voltage(V)1.2V
  • ModelEBL Series
Facebook Twitter Pinterest LinkedIn 分享


Technical features:











Easy storage & installation
High resistance to electrical & mechanical abuse
Deep cycle ability
Nickel-cadmium block batteries are quick and easy to install as original equipment and may be stored for many years in a discharged state under correct conditions. On installation a simple bolted connector enables the battery to be rapidly commissioned
High tolerance to electrical abuses such as overcharge and over discharge.High tolerance to rough handling and mechanical abuse due to strong components and robust construction
Battery's unique electrochemistry enables it to regularly withstand any depth of discharge.Tolerates deep discharges and can be deep cycled










Wide operating temperature range
Superior reliability
Excellent fast charging ability

Extraordinary temperature advantage and wide operating temperature range (-40°C to +70°C)


Sustainable in harsh unpredictable conditions. Service proven pocket plate technology without the risk of sudden death

Designed to recharge very quickly and economically, using standard single or two-level charging equipment










Long service life
Assured quality
Prolonged warranty
Up to 20+ years completely faithful service. No replacement cost & no downtime
Authorative TUV, CE certificates and IEC60623,IEC62259 test reports
5 years long warranty

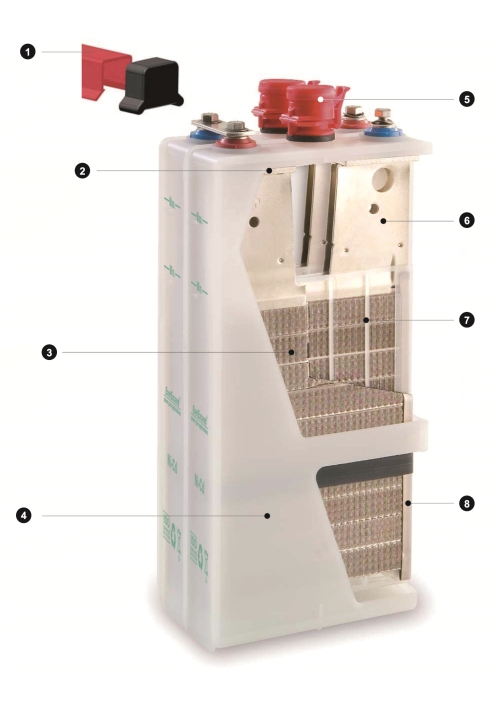

①Protective cover
To prevent external short-circuits；

In line with EN50272-2(safety) with ip2 level；


②Plate groups bus
Connects the plate tabs with the terminal post；

Plate tabs and terminal post are projection-welded to the plate groups bus；


③Plate

Horizontal pockets of double-perforated steel stirps；


④Cell container

Material:translucent transparent polypropylene；


⑤Flame-arresting vents

Material: polypropylene；


⑥Plate tab

Spot-welded both to the plate side-frames and to the upper edge of the pocket plate；


⑦Separating grids
These separate the plates and insulate the plate rames from each other；

The grids allow free circulation of electrolyte between the plates；


⑧Plate frame
Seals the plate pockets and serves as a current collector.

Applications:

• Railway DC power supply, UPS switch transition

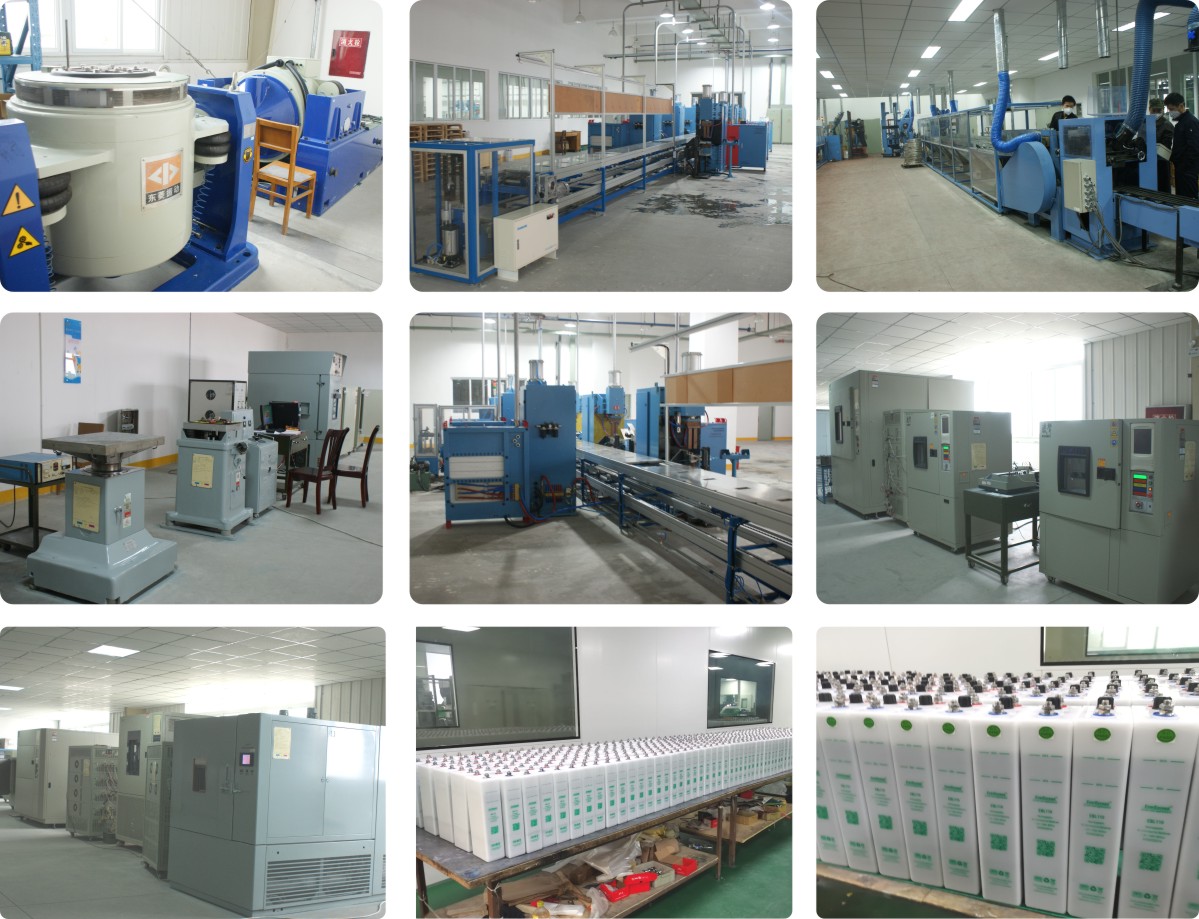

Factory:
