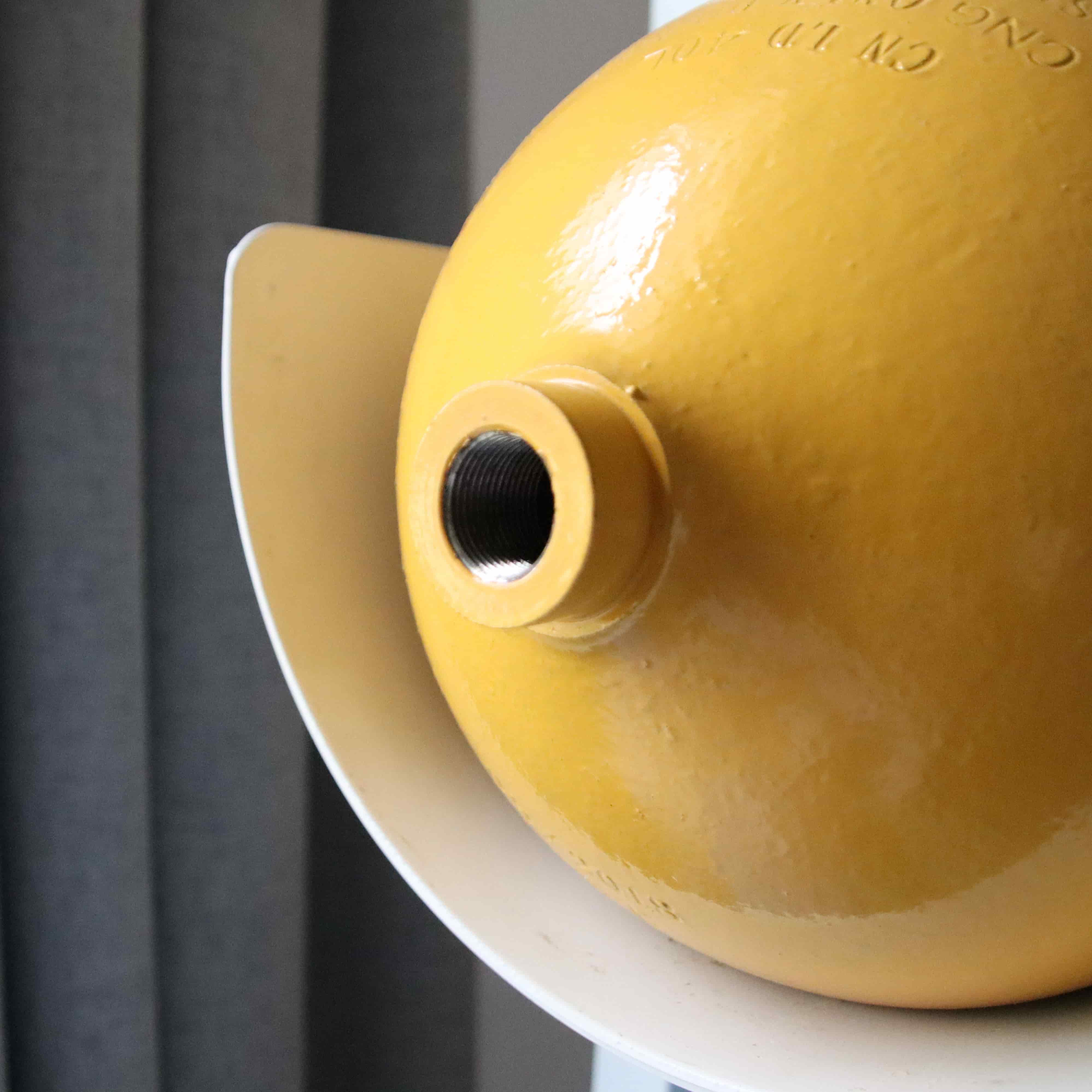

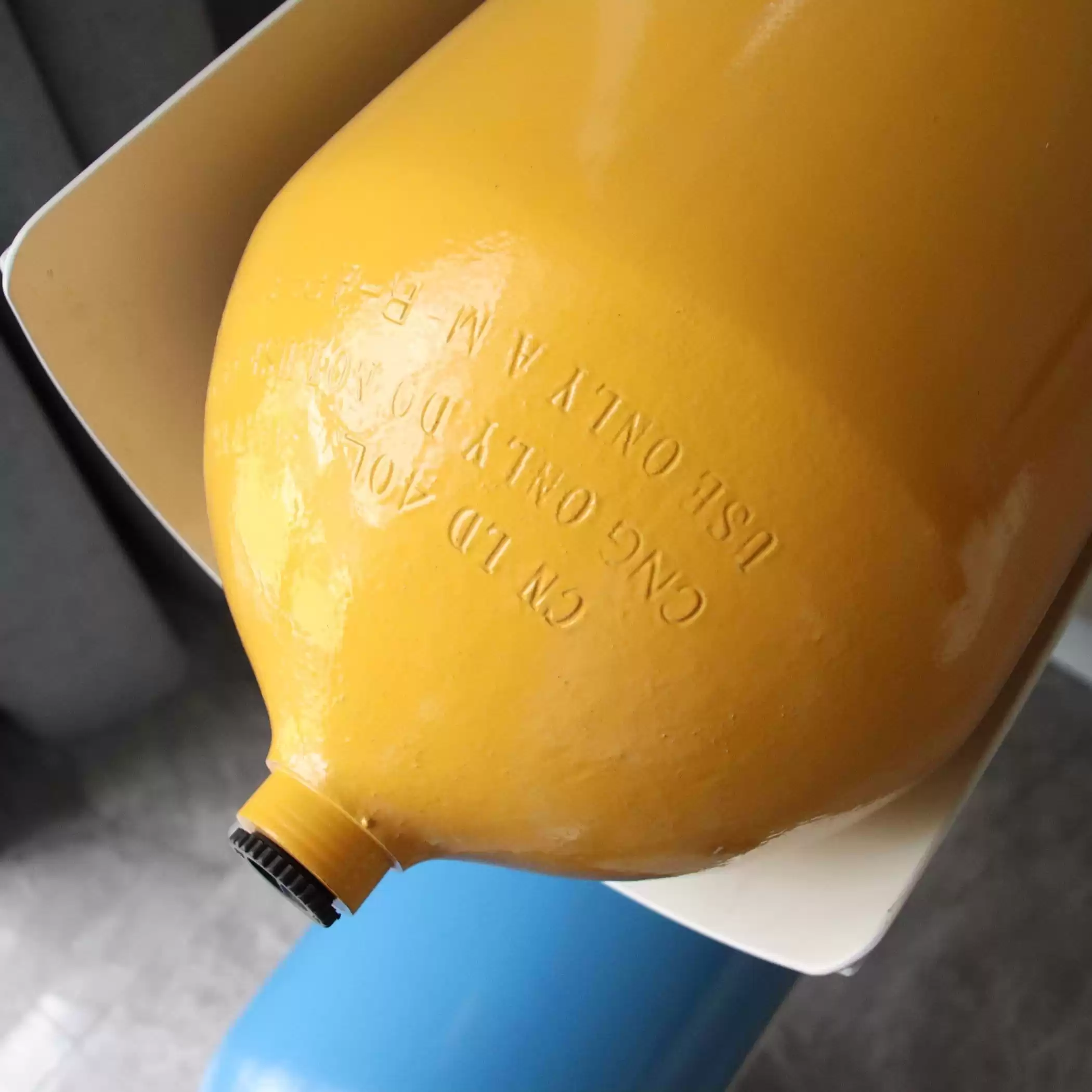

CNG TYPE 1 GAS CYLINDER

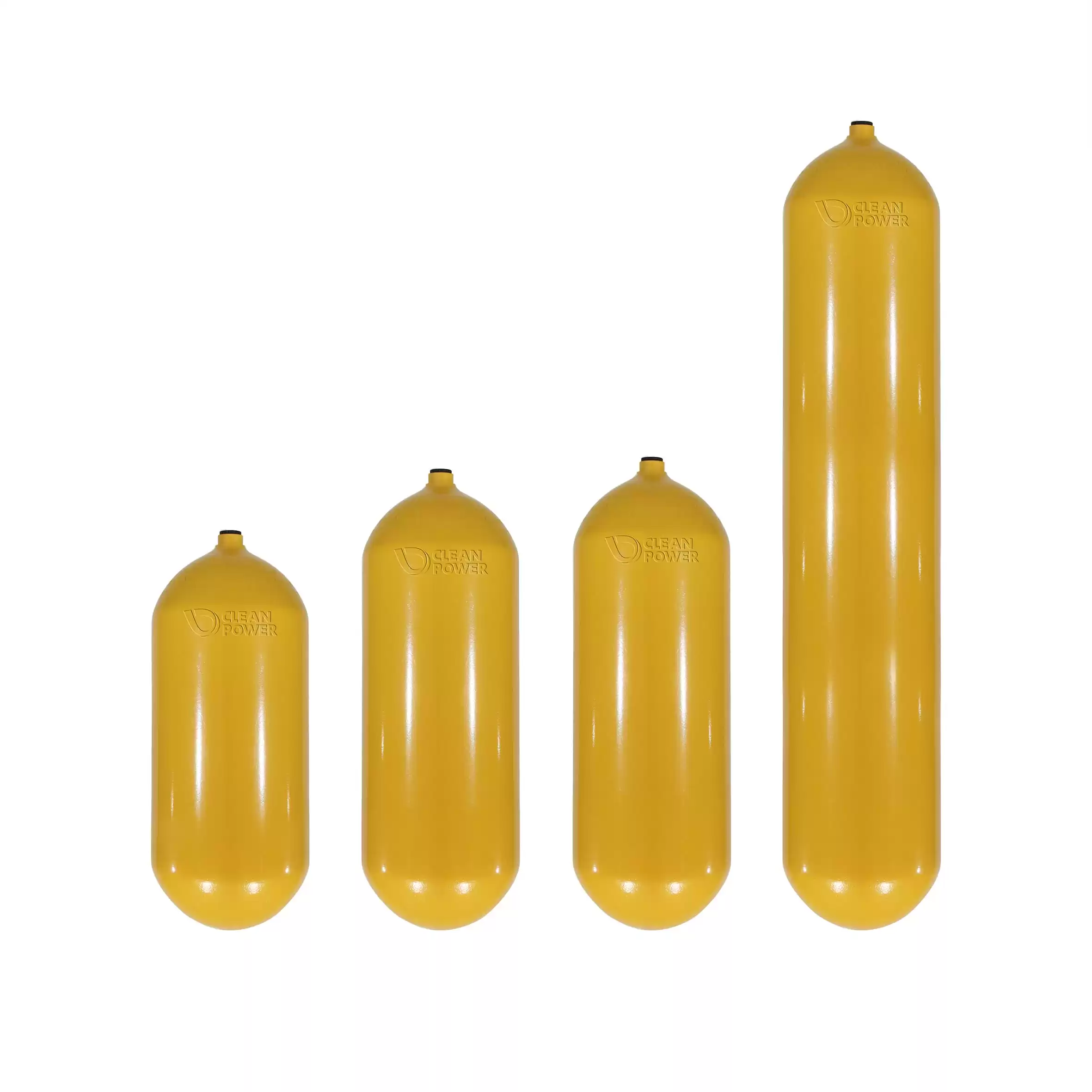

CNG Type 1 cylinders are specially designed containers for storing compressed natural gas, offering both pressure resistance and safety. The cylinders are available in different sizes, such as 65L, 75L, 80L, and 150L, and the color and logo can be customized according to specific requirements.
| Implementation standard |
Cylinder Model
and Standard |
Norminal Working Pressure
(bar) |
Hyd.test Pressure
(bar) |
Design Wall Thickness
(mm) |
Material |
Bottom Shape |
Outer Diameter
(mm) |
Water Capacity
(L) |
Length
(mm) |
Weight
(kg) |
| ECE R110 |
CNG1-356-V-20B |
200 |
300 |
7.5 |
34CrMo4 |
Convex |
356 |
65 |
890 |
69.3 |
| 75 |
1001 |
77.2 |
| 80 |
1056 |
81.2 |
| 150 |
1810 |
134.0 |
Range of Application:

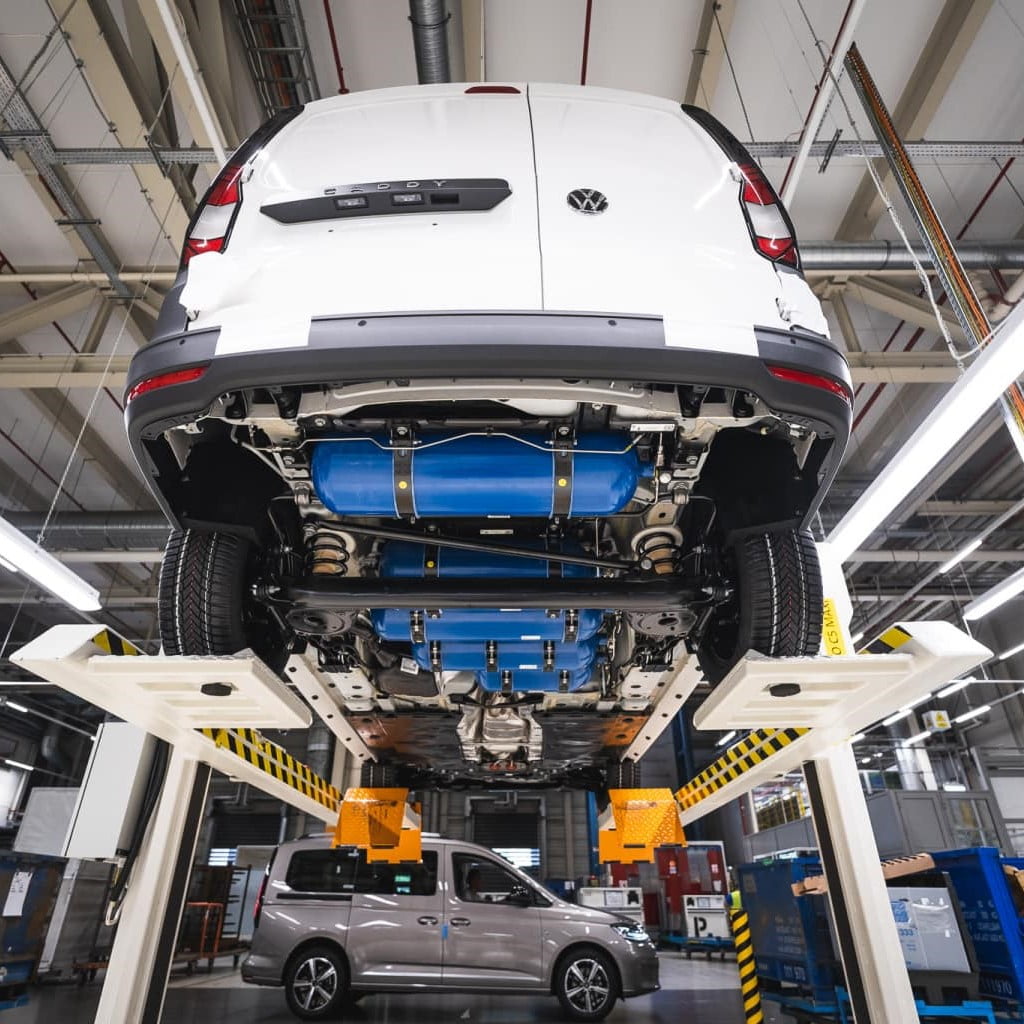

CNG cylinders can be used in a wide range of vehicles, including cars, buses and trucks, to store and transport natural gas as fuel. Using CNG as a fuel offers multiple benefits over conventional fossil fuels such as gasoline or diesel. CNG is a cleaner fuel that produces fewer harmful emissions, making it a more environmentally friendly option. And, CNG is generally more affordable when compared to gasoline or diesel, making it a cost-effective refueling option
.
Why Choose Us?
- Strong production capacity：With a self-built factory covering over 56,000 square meters and employing over 240 staff, the company has the capacity to produce 300,000
- Direct sales from the source factory：By eliminating foreign trade companies, purchasers can directly access the manufacturer for one-stop procurement
- 10 years of industry experience：The factory holds IATF 16949 and ISO 9001 quality management system certificates,
- Customization capability：Our products can be customized according to your preferences, including color, size, thread, and logo.
- At present, the company has 6 gas cylinder spinning production lines, 3 heat treatment and tempering lines, 2 automatic production lines for machine adding, spraying and winding, and 1 LPG composite gas cylinder production line
CNG Cylinder Product Inspection Display
Our factory through many cylinder testing, to ensure that the product is safe and reliable, so that you can rest assured to buy and use. Each test procedure is scientifically rigorous and should not be neglected. From materials to processes, CNG gas cylinders strive to combine excellent quality and safety, and each link shows exquisite technology and quality assurance.
Quality Control
Our products strictly follow the international standards, with ISO 11439, ISO11119, ISO9089, UN ISO9809, ECE R110, EN11245 and other international certificates, as well as the company's own ISO9001 and IATF 16949 and other international quality system certificates.
Since its establishment over ten years ago, the company has a self-built factory covering an area of 56,000 square meters. We currently have a workforce of 240 employees, including 50 senior technical and management personnel. Additionally, we possess the production capacity to manufacture 300,000 various types of gas cylinders per year, as well as 9,000 sets of CNG framework assemblies and gas supply systems.
