ECO PLASTIC GRATING FLOORING GRID WORD FOR HORSES
The unique design of plastic grating flooring grid is allows the flow of water through it. This insures stormwater to filter through the soil below the paved surface, preventing the numerous environmental issues associated with water runoff.
INTRODUCTION:

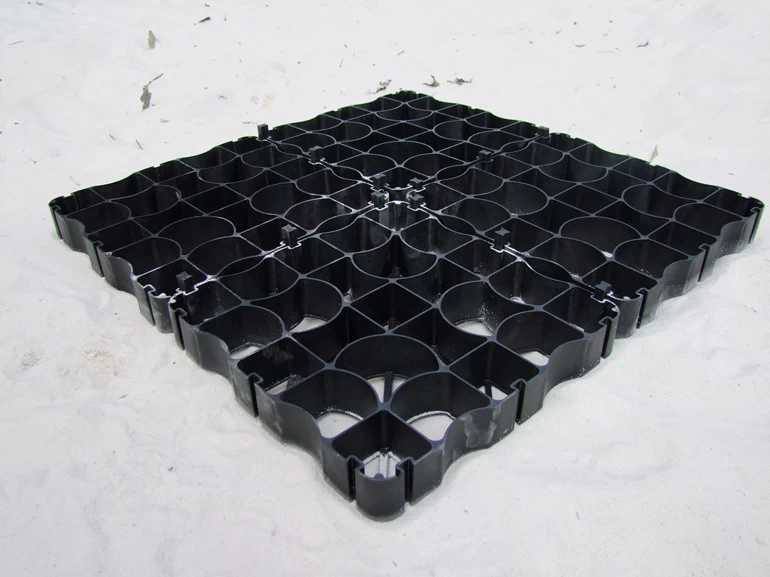

Plastic Grid Work for Horses is an ideal ground reinforcement system for house riding and other equestrian sports.Maximal load capacity 250tons/m2 ensures a high degree of safety in the ridding arena. Reduce maintenance cost and daily cleaning efforts. House droppings are easily removed from the surface of the grids. High degree of elasticity and good grips offer the house an excellent reliable ground surface.
WHY WE ARE SPECIAL AND BETTER?
After studied the European Standard design, we made a revision on interlocking part, which is able to interlock tightly and ensure the interlocking parts no broken during horses running.
9 individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1 m² in one go.
APPLICATION
Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas.
Recommended Apply Place: Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas
ECO GRID WORD FOR HORSES TECHNICAL DATA
Loading Bearing capacity: More than 250tons/m2 after filled
Material: HDPE (100% Recycled High Density Polyethylene)
Color: Black; Dark Green
Cell Wall Thickness: 2mm
Weight: 0.65kg/pc; 5.85kg/m²
Size: 336*336*50mm
Open Cell Percentage: 92% top; 75% base
Anti HCL: According to GB4218-1984, 30%x24h, no visible change
Anti NaOH: According to GB4218-1984, 30%x24h, no visible change
Thermal Aging: According to GB/T 7141-1999, 70ICx24h, no visible change
UV resistance: According to GB/T18830, UPE>30T(UVA)AV<5%, Qualified
Toxicity: Non Toxic
Durability: durability of at least 10 years in neutral ground of 4<pH<9
Packing: Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m² in one go.
Loading Quantity: 570m2/20'GP; 1150m2/40'GP; 1310m2/40'HC
FEATURE
Non-slip
Elastic and robust
Crack-proof
Weatherproof
Environmentally friendly, 100% recyclable
High load capacity
Ammonia resistant
Withstands frost and UV light
Does not rot
ADVANTAGES
No mud
Equal load on all joints
The tread layer remains separate from the substructure
Minimal maintenance
High degree of elasticity
Load capacity of up to 250tons/m2
Outstanding drainage
More than 200 elastic elements per m2
Quick and easy to install
Environmentally friendly
Minimal hoof impact marks
Patented safety locking system
Permanent drainage
Robust surface with good grip
All-weather areas, the ideal surface all year round
Open stables keep free from mud and puddles.
Recruit Global Distributors of Plastic Grating Flooring Grid
