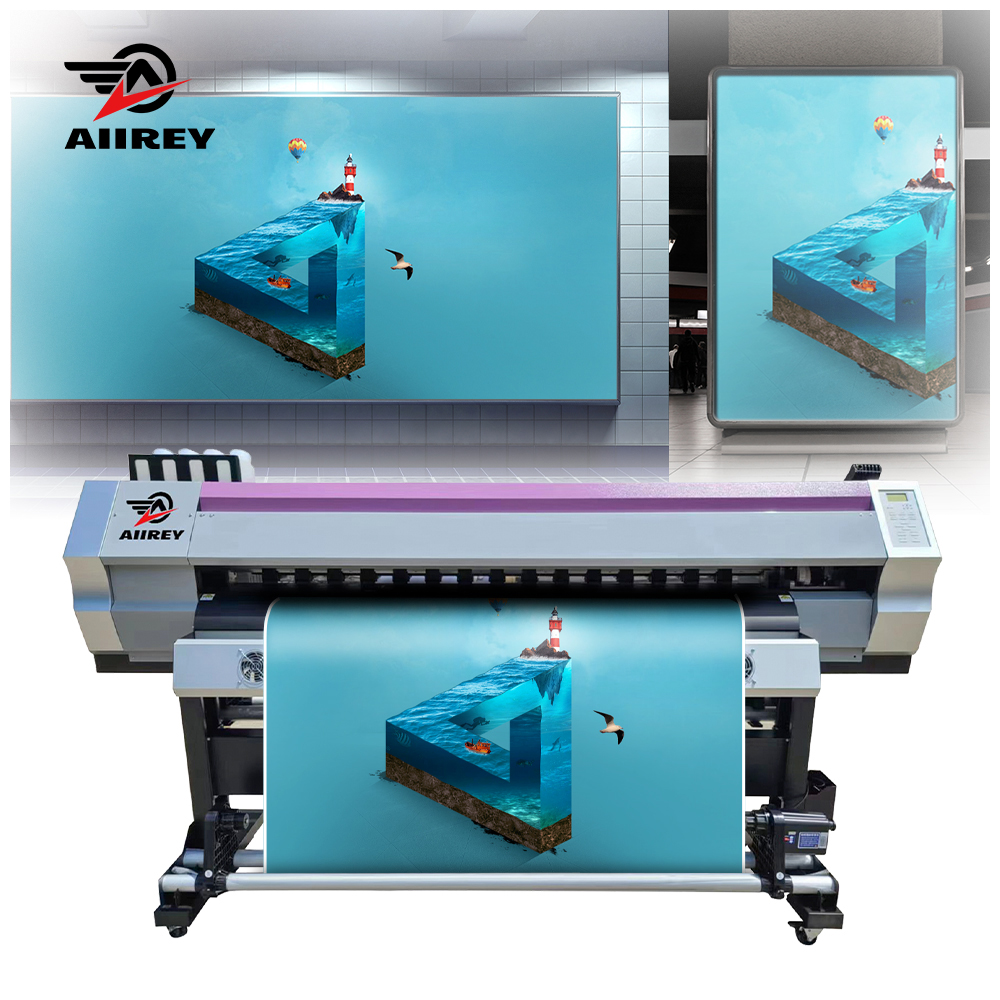

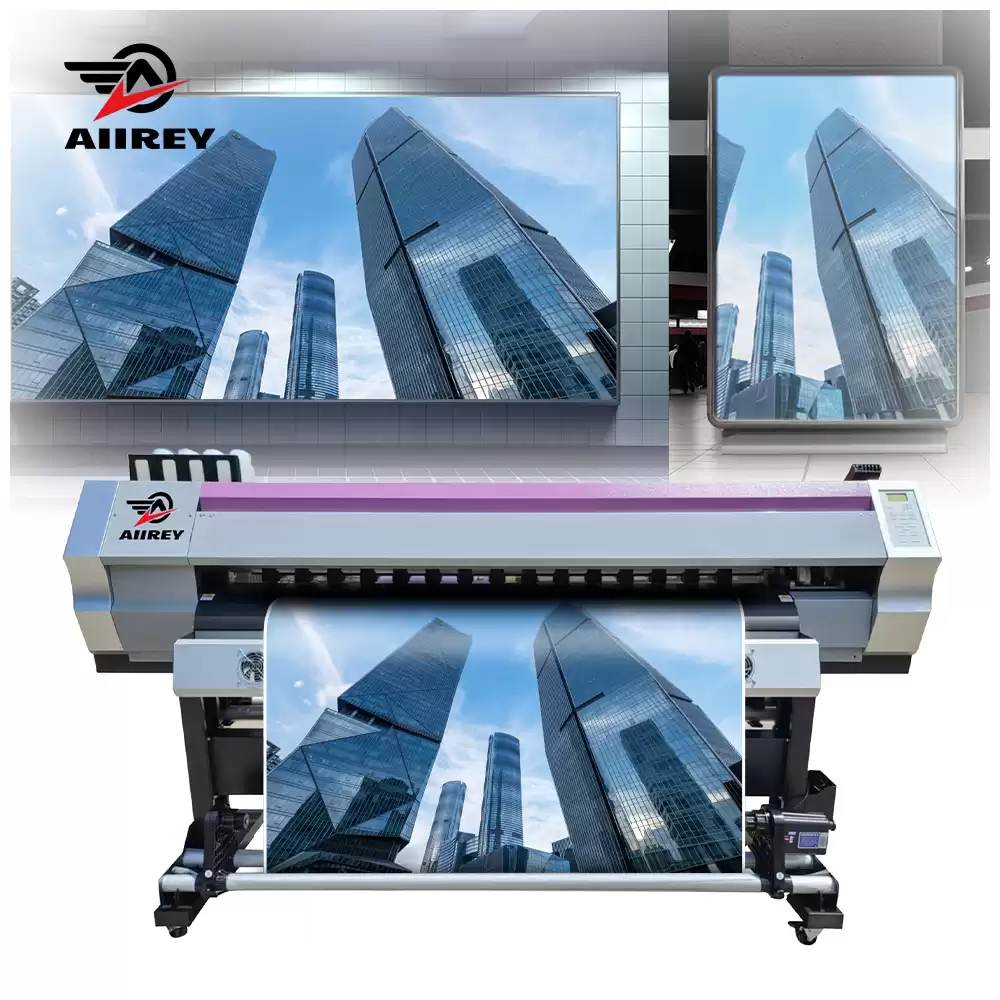

Eco Solvent Printer with High-Speed Printing Mode for Efficiency
Unlock boundless creativity with the innovative 1.6m Eco-Solvent Printer—a testament to ingenuity and imagination. Embrace the power of limitless expression as this remarkable device turns your ideas into masterpieces. Witness the seamless translation of your wildest imaginations onto a canvas of vibrant colors and exceptional details. With the 1.6m Eco-Solvent Printer as your artistic companion, redefine what's possible and embark on a journey of inspired innovation.
This reflective vinyl printer is compact so it can be installed and operated in tight spaces. This vinyl printer offers better ink absorption and precise print quality. The vacuum bed of this vinyl press ensures consistent print quality with low waste and keeps media flat and wrinkle-free to avoid media head strikes. The take-up and feed system provides easy media loading for high productivity and long unattended printing operations.

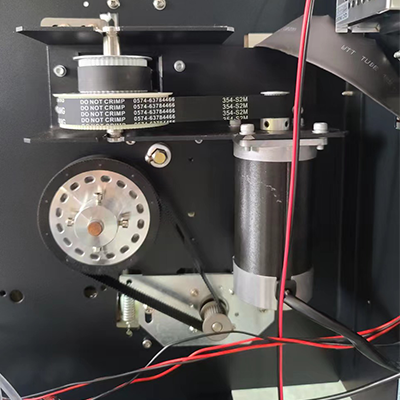

01.Brushless DC Motor
The motor-driven carriage plate not only ensures high-precision printing but also reflects the long life of the motor, and the motion system is stable and durable.

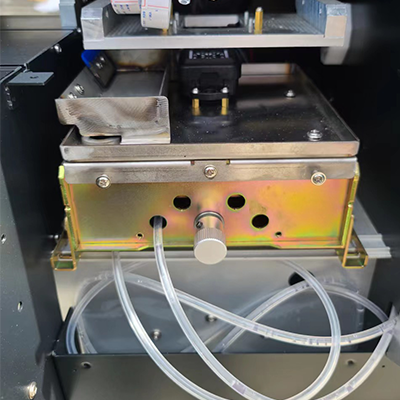

02.Sprinkler Maintenance Station
The newly designed maintainance station with a protective cap and a moisturizing fluid injection system can moisturize the print head well and prolong the life of the print head. The fully sealed cap can also improve the cleaning effect.

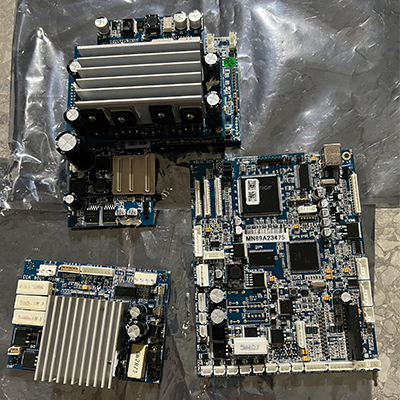

03.Independent research and development board
Because we are not a pure board manufacturer,we cannot compare to other board manufacturers in terms of operability and aesthetics,but our algorithm is developed in cooperation with Epson, so we have more advantages in terms of printing effects.

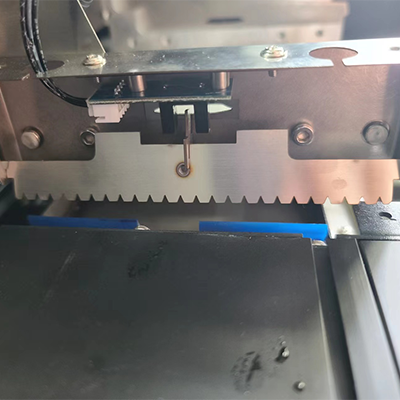

04.The anti-scratch blade
The anti-scratch blade can make the machine stop moving when it receives any printing resistance, which can prevent the printhead from contacting the printing material, and can prevent the printhead from being blocked and damaging the printhead.
AF-1601
|
Nozzle Type
|
3200-A1,3200-E1,3200-U1,XP600,EPSON five generations
|
Printing Speed
|
4 pass High speed mode 28m²/hour
6 pass High speed mode 24m²/hour
|
Color Mode
|
CMYK（XP600 printer head can be installed LC/LM）
|
Ink Type
|
Eco-solvent ink/water-based ink/paint ink/UV ink, etc.
|
RIP software
|
Maintop, photoprint optional
|
Print Format
|
1610mm
|
Media Transfer
|
USB2.0
|
Media Type
|
All kinds of indoor and outdoor advertising decoration materials / high-gloss photo paper / PP paper / adhesive / light film / car sticker / oil canvas / PVC film / light film / double-sided spray / knife scraping cloth / mesh cloth / glass stickers, etc.
|
Media Transmission
|
Indoor and outdoor: automatic damping feeding system
|
Heating Equipment
|
Front, middle and back three-stage heating
|
Power Supply
|
AC110v(±10%）50/60HZ:AC220v(±10%）50/60HZ
|
Power
|
600w
|
Working Environment
|
Temperature 15℃-30℃ Humidity 45%RH-80%RH
|
Ink supply method
|
Continuous ink supply system
|
Weight
|
140KG
|
Package Dimensions
|
2920*685*625mm
|
About US&After-sale service
1. Inquiry for professional quotation and patient communication.
2. Confirm the price, lead time, payment term etc to complete orders.
3. AIIFAR Sales will give you the PROFORMA INVOICE to you with details.
4. Customers make the payment for deposit via aliexpress,TT, West Union or Paypal.
5. Initial production will be arranged in terms of the lead time, we will inform customers in first time if any uncertain matters will happen, adjust the new lead time.
6. Middle production will keep you informed for the latest updates.
7. Customer make the payment for the balance before shipping.
8. End production will give you the tracking after arrange the shipment. If you need more and shipping by sea, we will also give you the photo for approval.
9. Order can be said “finish” when you receive the goods and satisfy with them and our service.
10. Feedback about Quality & Service, Market Feedback & Suggestions, we can do better.
