Economic Engineering Concrete Batching Plant

1. Engineering concrete batching plant:

Engineering Concrete Batching Plant equipped with 3 bins accumulative weighing aggregate batcher , trough belt aggregate conveyor, 1 nos cement /fly ash weighing hopper, 1 nos water weighing bin, 1 nos additive weighing tube and twin shafts compulsory mixer, the whole production line can be run automatically and manually by intelligent computer control system.

2. Main Features of Engineering concrete plants :

1. Stand small area and small investment

2. Modular design, easy to install and relocate

3. Powerful mixing for good quality concrete

4. Easy to operate and do maintenance

5. Simple design but all function in

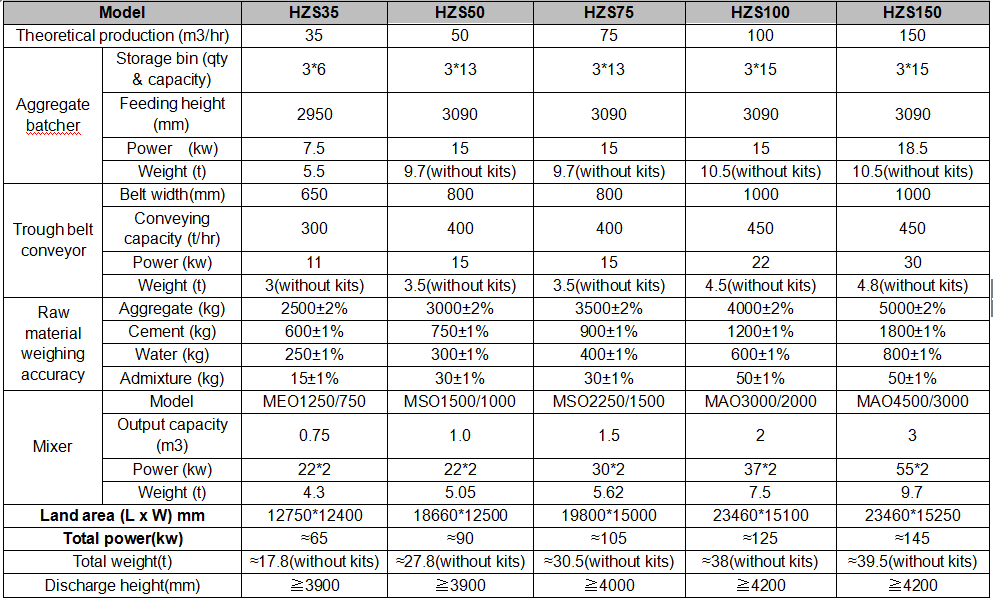

3. Main Technical Parameter of Engineering batching Plants :

 Note: All above parameters are subject to  final products, the above total power exclude screw conveyor.

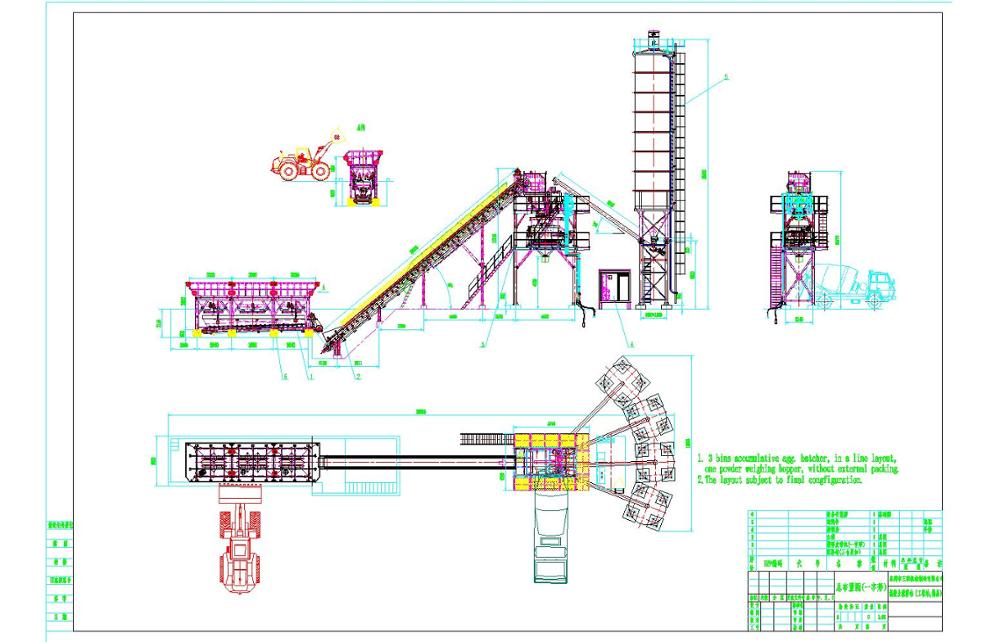

4.General layout drawing of Engineering small batching plant:

5. Application of Engineering concrete plant:

The Engineering Concrete Plant are very suit for the medium and quick project in remote area, like the road, bridge, tunnel and so on, also it’s a ideal plant for a new investor who want to do RMC business.

The following is the production process for HZS Series Ready mixed Concrete Batching Plants.
