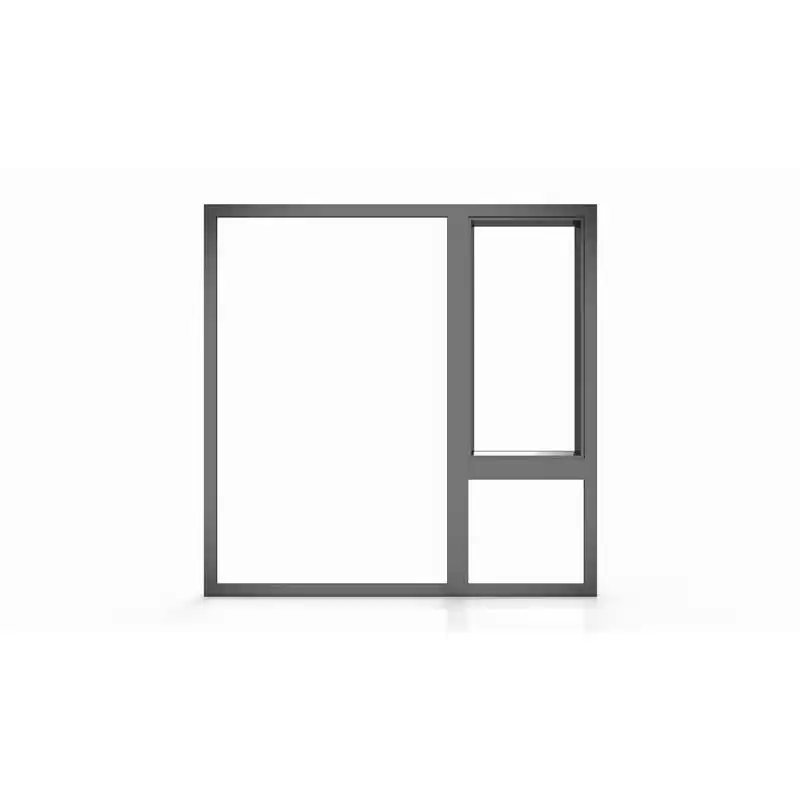

Economical Metal Window Aluminium Frame Casement Window

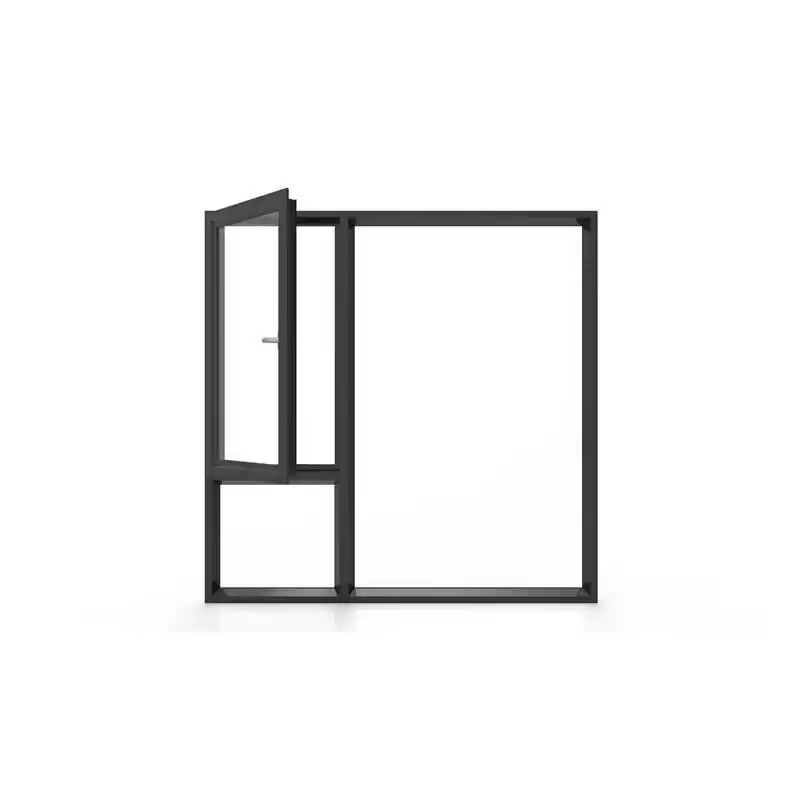

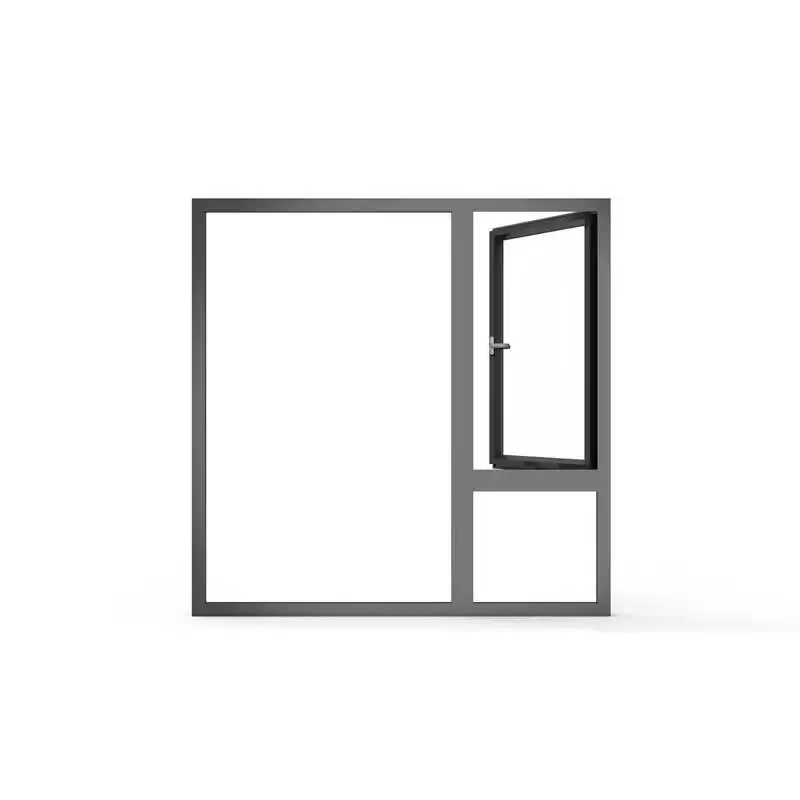

Aluminium frame casement windows are hinged at the side and open outward like a door. It looks like a picture window because unlike double hung or sliding windows, a casement window has no rail. Some casement windows are simply pushed open, but most have a hand crank. Screens are placed on the inside of the window, where they're more protected from the elements. If you're installing windows over a sink, countertop or appliance, a casement window with a crank can be the perfect solution.
- 20 micron anodizing thickness provides long lasting finish and consistent color

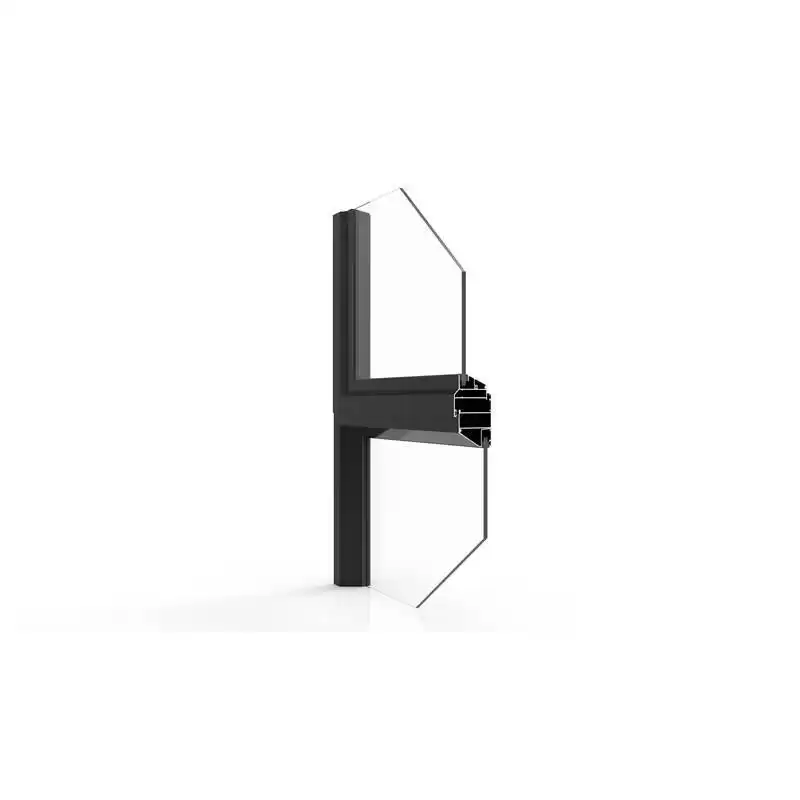

- Miter cut frame and sash construction for structural integrity
- Casements and Awnings feature a slim operator cover and handle engineered to deliver superior performance and strength with a patented two-directional fixing design
- Operators provide optimized gear ratio for smooth operation of large sash and feature pre-fitted foam gasket for maximum air and water performance
| Parameters |
|
Suitable Width/Height of Sash
(mm)
|
Visible Width/Height
(mm)
|
Aluminium width
(mm)
|
Glass(Thickness) |
Width 450-1000mm
Height 450-1000mm
-Weight 80kg |
Frame Width optional;
Sash Width optional. |
Frame Depth 50mm
Sash Depth 50mm |
SGU:
5-10mm
|
| Performance |
|
Heat Preservation Performance
W(m2.k)
|
Sound Insulation Performance
(DB)
|
Watertight Performance
(Pa)
|
Airtight Performance |
Wind Load Resistance
(KPA)
|
| / |
40DB
|
300PA
|
/ |
3.1KPA
level 6
|
Customized - HOMI is a aluminium manufacturer with over 30 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
