Introduction

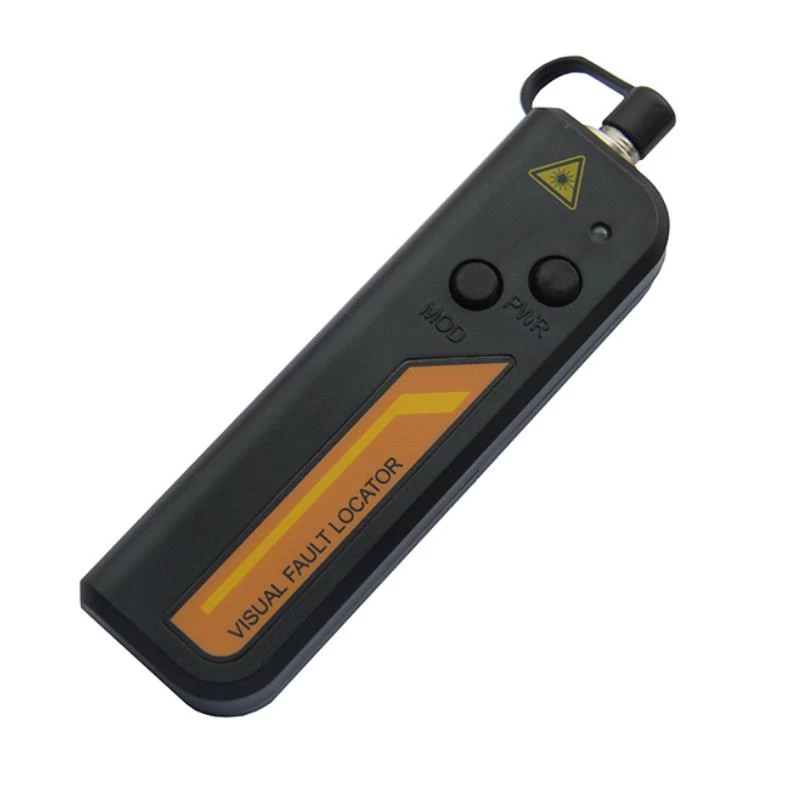

It is one efficient and low-cost basic
fiber test tool; it provides a visible way to find fiber faults and identify
fibers in an optical network during and after installation.
It includes:
Finding the breakpoint, poor connections,
bending or cracking in fiber optic cables.
Finding the faults of OTDR dead zone
End-to-end visual fiber identification
Features
-
Constant & stable output power.
-
Low battery warning, reminds users to
change the battery timely.
-
Long battery life (up to 40 hours with AAA
batteries)
-
Pocket size and light weight, easy to use.
-
Re-changeable
ceramic tube, to avoid returning to manufacturer for this small fault.
Specifications
|
Central Wavelength
|
650nm±10nm
|
|
Emitter Type
|
FP-LD
|
|
Output Power
|
1mw or 10mw
|
|
Optical Connector
|
2.5mm universal connector
For 1.25mm connectors, FC-1.25mm Hybrid
adaptor
can be optional on customer requests
|
|
Operating Model
|
Both CW and Pulse(2Hz) available
|
|
Power Supply
|
Two AAA alkaline batteries
|
|
Battery Operating Time
|
650nm@1mw ≥45hours;650nm@10mw≥15hours
Test with Panasonic LR6 AAA ALKALINE
battery
|
|
Operating Temperature
|
-10~+60 (℃)
|
|
Storage Temperature
|
-25~+70 (℃)
|
|
Dimension (mm)
|
115*45*27
|
|
Weight
|
50g (without batteries)
|
