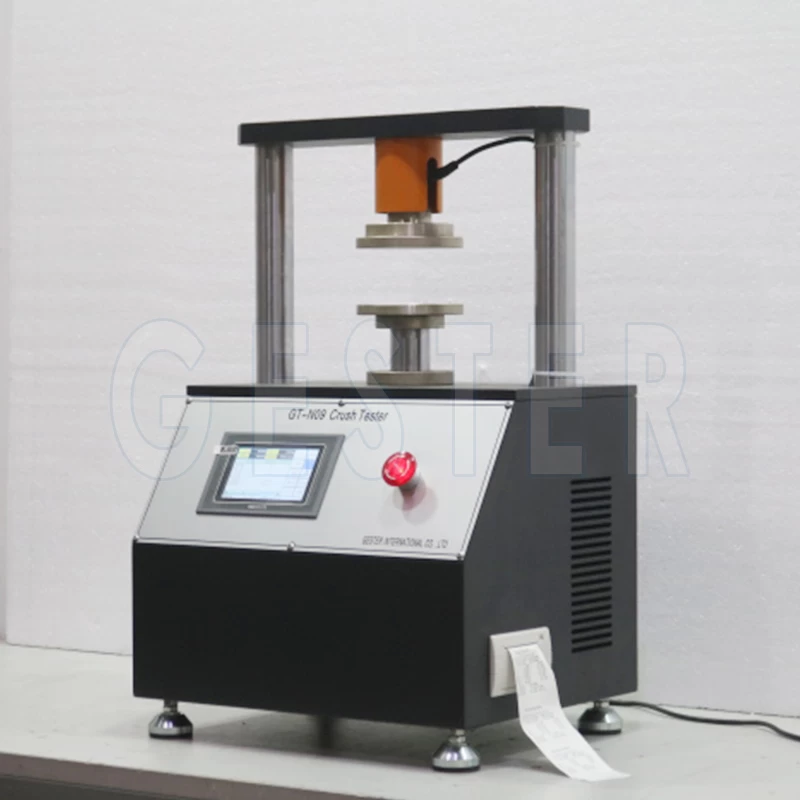

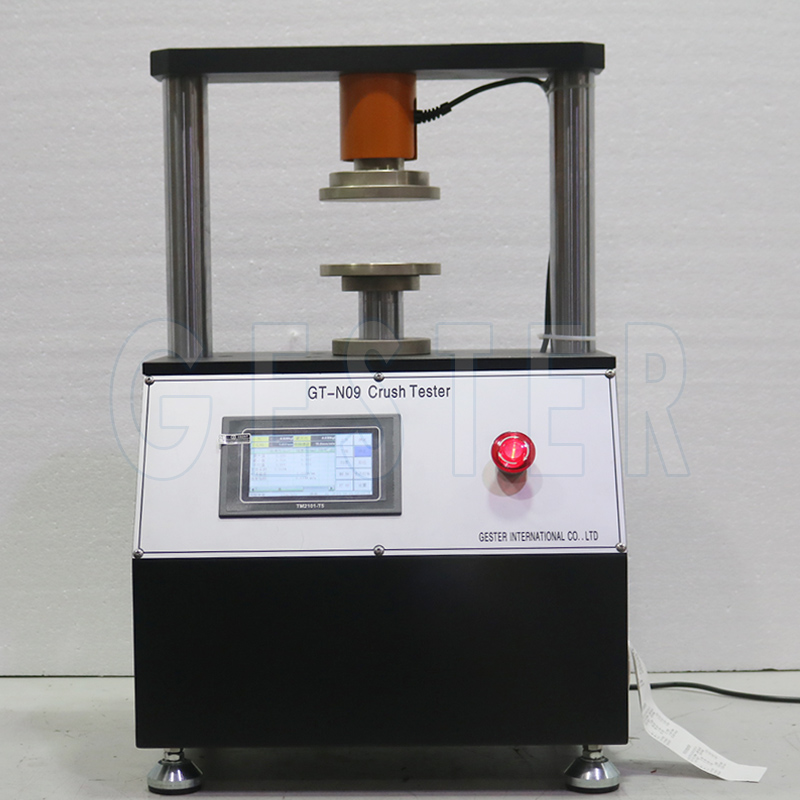

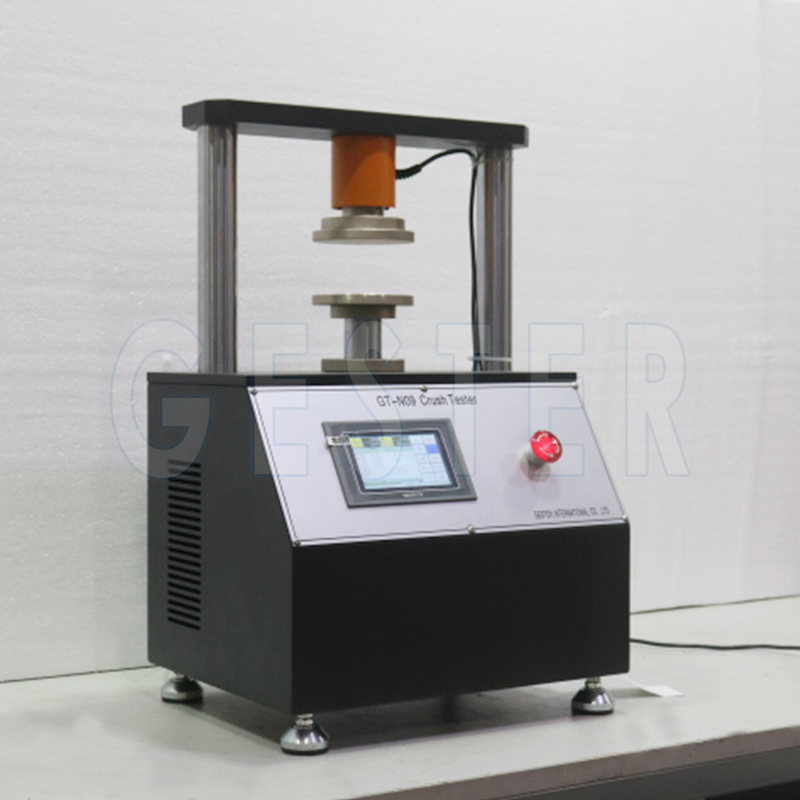

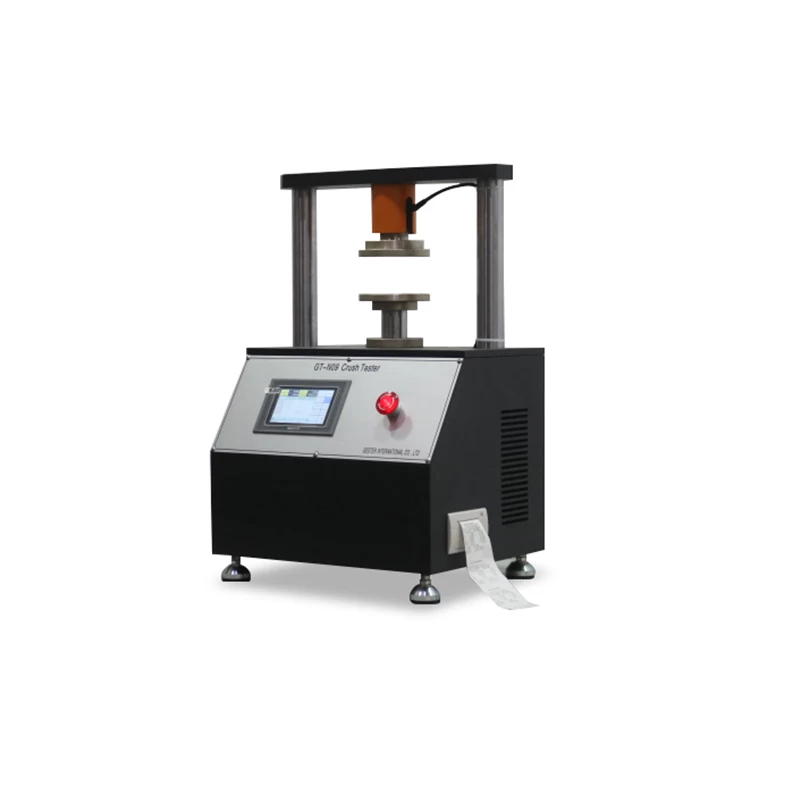

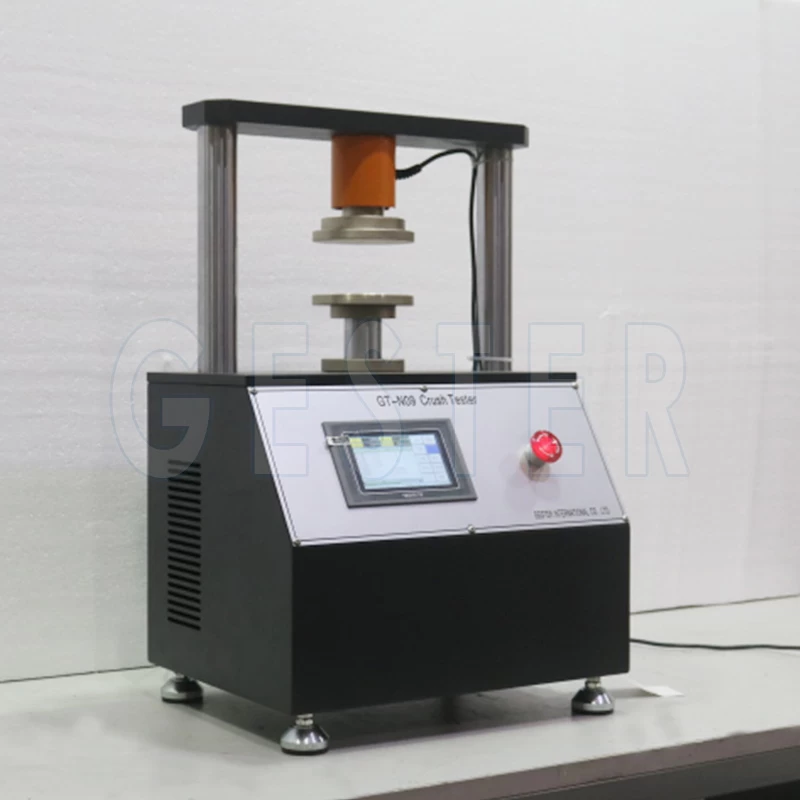

Edge Crush Test Machine (RCT/FCT/PAT/CMT) GT-N09

Edge Crush Test Machine is well-designed using modern mechanical design theory and human engineering design criteria and micro-process.

  • standardISO 3035 ,ISO 3037, ISO 7263 ,TAPPI-T472, TAPPI 811, JIS-P8126, GB/T 2679.8 ,GB/T 6546,GB/T 6548 ,GB/T 2679.6
  • certificateISO 9001, UKAS, CE
Facebook Twitter Pinterest LinkedIn 分享


edge crush test

Applications:

Edge Crush Test Machine is well-designed using modern mechanical design theory and human engineering design criteria and micro-process.

Crush Tester is upper pressure plate fixed type, which has high precision and applies to the test of Ring Crush Test (RCT), Edge Crush Test (ECT), Flat Crush Test (FCT), Pin Adhesion Test(PAT) and Concora Medium Test(CMT) Option Testing methods.



Standards:

ISO 3035 ,ISO 3037, ISO 7263 ,TAPPI-T472, TAPPI 811, JIS-P8126, GB/T 2679.8 ,GB/T 6546,GB/T 6548 ,GB/T 2679.6



Feature

  • High speed return after finishing test.
  • Imported step motor with servo control adopted.
  • The test result can be measured, statistical and printed automatically and the data can be  saved.

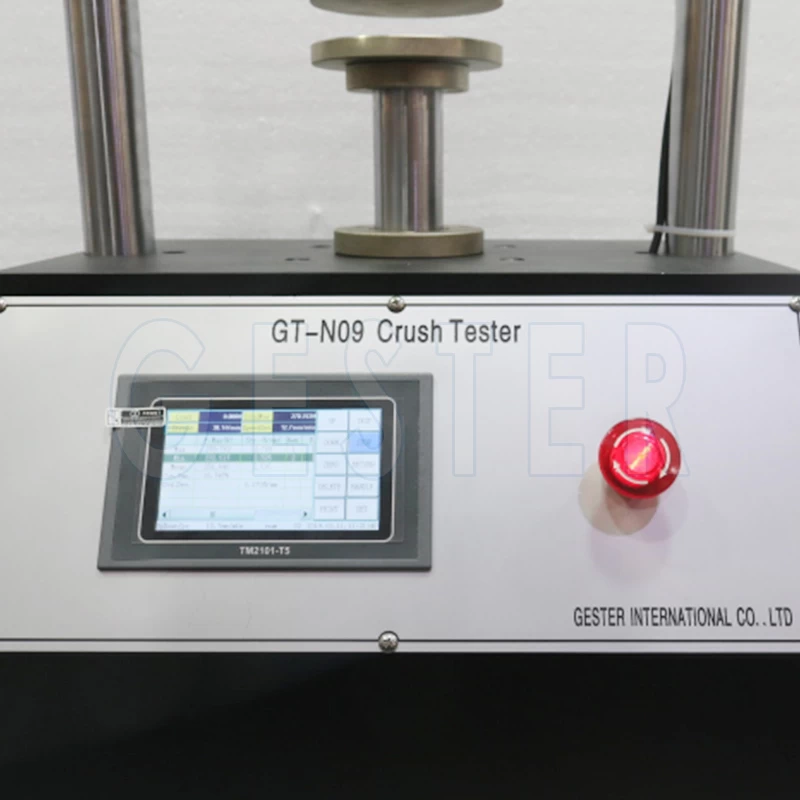

  • Blue color LCD display, which can be display the crush time and loading force real time ,GT-N09 type can display crush graph real time.
  • Thermal printer, high speed and no noise .
  • Use the modern design idea of mechanical and electrical integration, which has compact configuration, pleasing appearance and convenient maintenance.


Key Specifications


Model

GT-N09

Measuring Range

0-200kg

Compression Speed

12.7mm/min

Resolution

1/10,000

Accuracy

+/-1%

Dimensions

810 x 400 x 860mm

Weight

60kg
