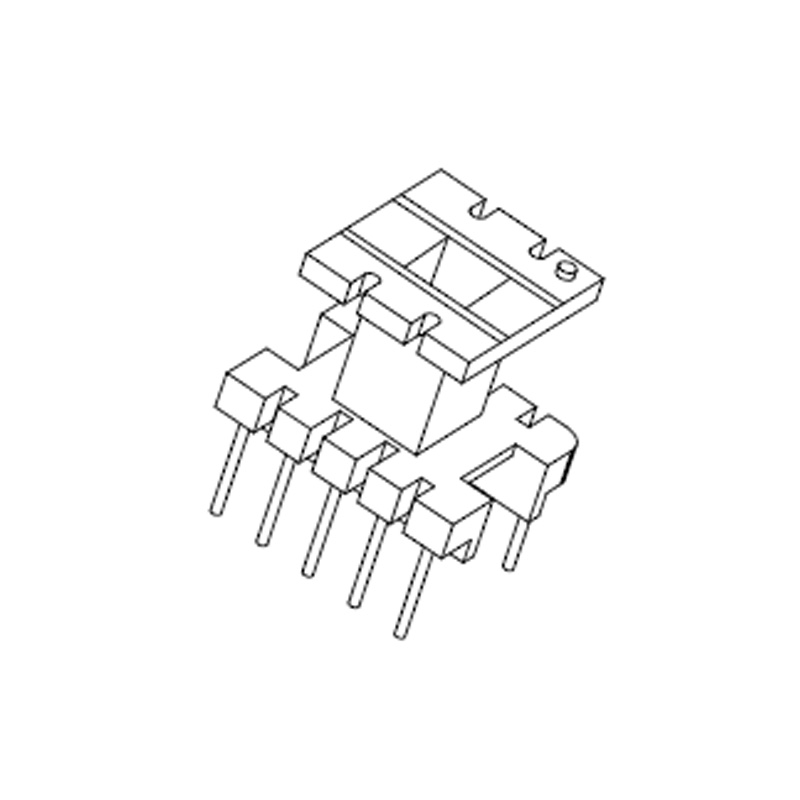

EE13 Vertical Transformer Bobbin 5+5 Pins Dip Type

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=8.5mm Size=12.4mmX12.4mmX11.7mm

EE13 Transformer Bobbin Horizontal Bobbin With 4+4 Pins

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.8mm Parallel Distance=12.5mm

Horizontal EE10 Transformer Bobbin, Pin 4+4 Double Slots Bobbin

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 DIP EE10 Bobbin, Parallel Distance=9mm Size=11.1mmX10mmX11.5mm

4+4 Pins EE13 Horizontal Bobbin For High Frequency Transformer

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10mm Size=12.4mmX13mmX12.8mm

EE10 Transformer Bobbin for Ferrite Core, Vertical Bobbin 4+4 Pin

4+4 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8mm Size=10.4mmX10.2mmX10.1mm

EE10 Bobbin Used in Switching Power Transformer, 4+4Pin Vertical Bobbin

4+4 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=8mm Size=12mmX10.2mmX10.35mm

EE13 Transformer Bobbin Double Slots with 5+5 Pins

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=8.5mm Size=12.3mmX12.3mmX10.7mm

Horizontal EE10 Transformer Bobbin, with 2+2 Pin Double Slots

2+2 Pins Double Slots Bobbin,Horizontal Phenolic Bobbin Pin pitch=7.5mm Parallel Distance=9mm Size=11.1mmX10mmX10.5mm,UL REC:94V-0

Vertical EE13 Transformer Bobbin Dip Type

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=8.5mm Size=12.3mmX12.3mmX10.7mm

Horizontal Bobbin EE13 Transformer Bobbin Dip Type

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=10mm Size=13mmX11.8mmX12.8mm

Horizontal EE13 Bobbin For PCB Mounting Transformer

2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=9mm Parallel Distance=10mm Size=14mmX12.6mmX14mm

EE13 Vertical Bobbin For High Frequency Transformer Dip type

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=8.5mm

EE13 Transformer Bobbin 4+4 Pins Dip Type Phenolic Material

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.0mm Parallel Distance=13.5mm S ize=15mmX13.4mmX15.4mm

EE13 Transformer Bobbin With 4+4 Pins Horizontal Bobbin

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.0mm Parallel Distance=11mm Size=15.5mmX15mmX14.8mm

Double Slots EE13 Bobbin With 3+3 Pins Dip Type Bobbin

3+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=5.0mm Parallel Distance=10mm Size=13.5mmX13.4mmX14mm

EE13 Vertical Bobbin For PCB Mounting Transformer Phenolic Material

3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.25mm Parallel Distance=13mm Size=16.5mmX13mmX12mm

EE13 Tranformer Bobbin With 5+4 Pins Phenolic Material

5+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=15.4mm Size=19mmX13.4mmX14.5mm

EE13 Transformer Bobbin for Fly Back Transformer With 4+4 Pins

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.8mm Parallel Distance=12.5mm Size=18.8mmX14mmX12.5mm

Double Slots EE13 Transformer Bobbin With 5+5 Pins

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=12.5mm Size=16mmX13mmX10.8mm

5+2 Pins EE13 Transformer Bobbin Horizontal Bobbin Dip Type

5+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.75mm Pin Pitch2=9mm Parallel Distance=16mm Size=19.4mmX12.6mmX13.1mm

EE13 Bobbin For High Frequency Transformer With 4+4 Pins

4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=3.8mm Parallel Distance=10mm Size=15mmX14mmX17.2mm

EE13 Double Slots Bobbin With 2+2 Pins Dip Style

2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=10mm, Parallel Distance=10mm Size=12.4mmX12.1mmX14.2mm

Vertical Bobbin EE13 Transformers Bobbin Phenolic Material

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=8.5mm Size=12.3mmX12.3mmX11.7mm

EE13 Transformer Bobbin Horizontal Bobbin For High Frequency Transformer

5+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=16mm Size=13.5mmX18.5mmX13.7mm

Vertical EE13 Bobbin Penolic Material With 5+5 Pins

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=15.9mm Size=15.9mmX8.5mmX10.7mm

EE13 Transformer Bobbin Double Slots With 2+2 Pins

2+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=8.5mm, Parallel Distance=9.8mm Size=11.2mmX12.2mmX13.4mm

EE13 Transformer Bobbin With 5+2 Pins Dip Type

5+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Size=13.2mmX19.4mmX12.9mm

EE13 Transformer Bobbin With 4+4 Pins Phenolic Material

4+4 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=13mm Size=16.8mmX12.86mmX12.95mm

EE13 Transformer Bobbin For PCB Mounting Transformer Phenolic Material

2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=8.5mm, Parallel Distance=10mm Size=12.5mmX14mmX14.6mm

Horizontal EE13 Transformer Bobbin With 4+4 Pins

4+4 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3.8mm, Parallel Distance=12.5mm Size=18mmX14mmX14.85mm

Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=10.3mm Size=16.4mmX13mmX16.5mm

Horizontal Bobbin EE16 Transformer Bobbin With 5+3 Pins

5+3 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=15.5mm Size=18.8mmX16mmX17.8mm

Horizontal Bobbin EE16 Transformer Bobbin With 4+4 Pins

5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=11mm Size=15mmX14.5mmX15mm

EE16 Horizontal Bobbin 5+5 Pins Phenolic Material

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=12.5mm Size=15.8mmX14.9mmX13.5mm

Horizontal Bobbin EE16 Transformer Bobbin With 5+5 Pins

5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3.2mm, Parallel Distance=15.5mm Size=18.6mmX16.1mmX13.4mm
