PCB Mounting Encapsulated Transformer Bobbin

Custom transformer EE19. Horizontal 5+5 pin bobbin. Bobbin Size=19.0mmX17.0mmX14.8mm. Parallel distance=12.6mm. Pin Pitch=5.0mm. Nylon material transformer bobbin.

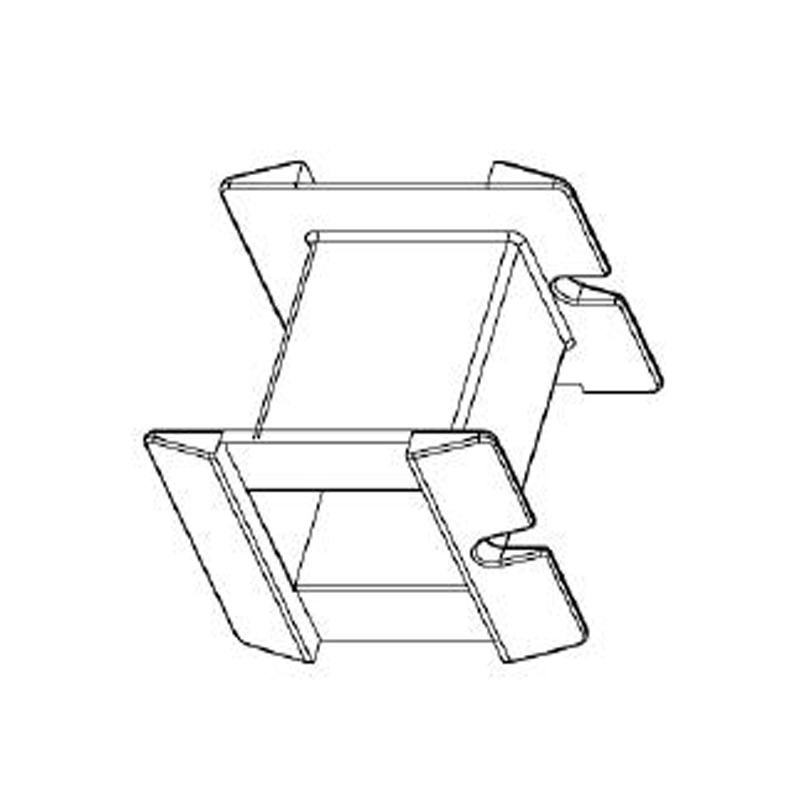

EE65 Ferrite Core Transformer Bobbin No Pin

EE65 power transformer for DC converter. No pin large bobbin EE65. Bobbin Size=51.7mmX43.7mmX49.5mm. We can make bobbin tooling. PA66 material EE65 transformer bobbin.

EE42 Power High Frequency Horizontal Bobbin

EE42 switching transformer. 6+6 pins horizontal EE42 coil bobbin. Bobbin Size=46.20mmX41.50mmX42.20mm. Parallel distance=37.55mm. Pin pitch1=7.62mm. Pin pitch2=5.08mm. We can make bobbin tooling. Phenolic material EE42 transformer bobbin.

EE42 SMPS Transformer Horizontal Bobbin 10 Pins

EE42 high frequency bobbin. Horizontal EE42 bobbin pin 5+5. Bobbin Size=46.50mmX29.40mmX34.30mm. Parallel distance=34.70mm. Pin pitch=5.0mm. We can make bobbin tooling. PBT material bobbin.

EE42 Vertical Ferrite Core 9+9 Pin Bobbin

Low core loss transformer. Vertical EE42 bobbin pin 9+9. Bobbin Size=45.7mmX37.40mmX38.4mm. Parallel distance=28.0mm. Pin pitch=5.0mm. We can make bobbin tooling. Phenolic material bobbin.

SMPS EE42 Flyback Transformer Vertical Bobbin

EE42 high frequency transformer. EE42 vertical winding bobbin 18pins. Bobbin Size=45.0mmX32.0mmX29.4mm. Parallel distance=27.5mm. Pin pitch=5.0mm. We can make bobbin tooling. Phenolic material bobbin.

EE42 Horizontal Transformer Bobbin Pin 8+8

Horizontal plastic transformer bobbin. EE42 horizontal coil former. Bobbin Size=42.0mmX41.8mmX41.2mm. Parallel distance=37.0mm. Pin pitch=5.0mm. We can make bobbin tooling. PBT material bobbin.

EE42 Electronic Transformer Vertical Bobbin

EE42 led transformer for power device. Horizontal and vertical type. Bobbin Size=45.1mmX32.2mmX46.3mm. Parallel distance=27.2mm. Pin pitch=5.0mm. We can make bobbin tooling. Phenolic material bobbin.

EE42 Power Supply Transformer Horizontal Coil Bobbin

EE42 horizontal transformer. Single slot EE42 8+9 pin coil former. Bobbin Size=44.0mmX42.0mmX41.2mm. Parallel distance=37.7mm. Pin pitch=5.0mm. We can make bobbin tooling. PBT material bobbin.

EI33 SMPS Transformer Vertical Bobbin

EE33 coil former 7+7pin. Vertical EE33 transformer bobbin. Bobbin Size=33.8mmX27.5mmX27.2mm. Pin Pitch=5.0mm. Parallel distance=22.5mm. DIP transformer phenolic material bobbin.

EI33 PCB Mounting Transformer Vertical Coil Bobbin

EI33 encapsulated transformer. Vertical EI33 14pins coil former. Bobbin Size=33.8mmX27.7mmX28.0mm. Pin Pitch=5.0mm. Parallel distance=22.7mm. CE and ROHS approved audio isolation EI33 high frequency transformer for battery charger

PCB Mounting Transformer EE30 Vertical Bobbin

Power supply EE30 transformer. Vertical EE30 coil former pin 5+5. Bobbin Size=25.7mmX21.6mmX23.9mm. Pin pitch=5.0mm. Parallel Distance=17.5mm. Low voltage and low frequency EE30 electronic winding transformer.

EE35 High Power Transformer Double Slots Bobbin

Double slots coil former EE35 transformer. Horizonttal EE35 2+2 pin bobbin. Parallel distance=22.0mm. Pin pitch=20.0mm. EE35 Bobbin Size=26.8mmX25.3mmX31.8mm. DIP pin transformer bobbin. EE35 PBT material bobbin.

EE10 High Voltage Transformer Vertical Bobbin 3+3 Pin

EE10 switching transformer. Vertical EE10 coil former 3+3 pin. Bobbin Size=15.4mmX9.4mmX10.8mm. Pin pitch=3.0mm. Parallel Distance=13.0mm. Low voltage and low frequency EE10 electronic winding transformer.

EE20 High Voltage Switching Transformer Bobbin

EE20 PCB mounted transformer. 5+3 pin horizontal EE20 transformer frame. Bobbin Size=27.0mmX22.8mmX20.5mm. Pin Pitch=4.0mm. Row distance=21.8mm. DIP transformer EE20 bobbin. Our EE series transformers usually used in switching power supply, LED lights, NC machine, measurement and control unit.

Vertical EE22 Switching Transformer 5+5 Pin bobbin

EE22 high frequency transformer. 5+5 pin EE20 vertical transformer frame. Bobbin Size=22.2mmX15.8mmX18.0mm. Pin Pitch=4.0mm. Row distance=10.0mm. EE22 transformers widely used in switching power supply, LED lights, NC machine, measurement and control unit.

EE42 Ferrite Core Switch Power Transformer Vertical Bobbin

EE42 high frequency transformer. Vertical type EE42 8pin bobbin. Bobbin Size=55.95mmX46.2mmX4.95mm. Pin pitch=5.5mm. We can make bobbin tooling. EE42 electronic transformer can used for electrical equipment, medical equipment, communication equipment, UPS. AC/DC Converter, LED drive and vehicle electronic equipment industry.

EE28 High Power Vertical Transformer Bobbin

EE28 bobbin four slots. 6+6 pin horizontal bobbin EE28. Bobbin Size=40.2mmX26.1mmX21.0mm. Pin Pitch=4.6mm. Parallel Distance=27.7mm. EE28 lead free transformer bobbin. DIP transformer bobbin. UL REC:94V-0.

EE8.3 Vertical Power Transformer Bobbin Pin 3+3

EE8.3 transformer bobbin for LED light. Vertical EE8.3 3+3 pins bobbin. Pin Pitch=2.5mm Parallel Distance=8mm. EE8.3 phenolic material coil bobbin. We have bobbin tooling.

High Frequency EE40 Switching Transformer 6+6 Pins Bobbin

EE40 power supply transformer. Vertical chape EE40 6+6 pin bobbin. Bobbin Size=32.2mmX28.0mmX30.3mm. Pin pitch=5.0mm. Parallel distance=22.5mm. We have bobbin tooling. EE40 electronic transformer used for electrical equipment, medical equipment, communication equipment, UPS and other electronic equipment industry.

EE25 Vertical Power Transformer 5+8 Pin

EE25 high frequency bobbins. 13pins EE25 coil former factoy. Supply matched EE25 ferrite cores. Bobbin Pin Pitch1=5.0mm. Bobbin Pin Pitch2=5.0mm. Parallel Distance=16.5mm. Bobbin Size=25.0mmX21.6mmX25.0mm. DIP transformer bobbin.

SMPS High Frequency Transformer EE16 Bobbin

EE16 power transformer manufacturing. EE16 ferrite core bobbin for high frequency transformer. Parallel Distance=10.5mm. Bobbin Size=15.9mmX13.0mmX14.0mm. Pin distance=3.25mm. Inductor customise bobbin EE16. We have many private bobbin toolings. We manufacture final transformers and coils.

EE30 Horizontal Switching Power Supply Transformer Bobbin

EE30 ferrite core transformer. 6+6 pins horizontal EE30 bobbin with single slot. Bobbin Size=32.0mmX29.0mmX28.8mm. Parallel Distance=25.0mm. Pin distance=5.0mm. Transformer bobbin factory, we have many private bobbin toolings. We can manufacture final transformers and inductors.

EE33 6+6 Pin Bobbin For PCB Mounting Transformer

EE33 horizontal bobbin for LED drive transformer. EE33 soft ferrite core supplier. Bobbin Size=33.2mmX33.0mmX26.7mm. Parallel Distance=25.0mm. Pin distance=5.0mm. 6+6 pins horizontal EE33 bobbin. We are China transformer bobbin factory, we have many bobbin toolings.

EE42 High Frequency Power Supply Transformer Frame

EE42 power high frequency transformer. Single section EE42 bobbin with pin 6+6. Bobbin Size=38.1mmX29.0mmX34.2mm. Pin pitch=5.0mm. Parallel Distance=35.0mm. We have bobbin tooling. We supply matched EE42 ferrite cores and transformers.

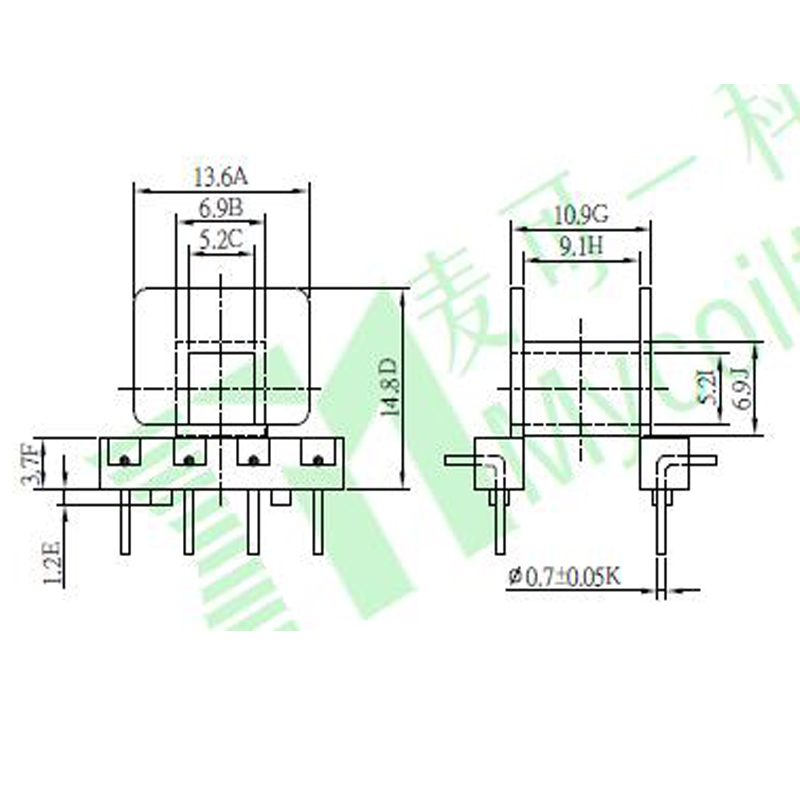

4+4 Pin EE19 Horizontal Flyback Transformer Frame

EE19 power transformer bobbin. Single slot EE19 4+4 pin coil bobbin. Bobbin Size=19.0mmX13.6mmX14.8mm. Parallel Distance=12.6mm. Pin pitch=3.8mm. We have bobbin tooling. We supply matched EE42 ferrite cores and transformers.

Vertical EE65/32/27 Bobbin For Power Transformer

EE65 electronic transformer bobbin. Single phase EE65/32/27 bobbin. Coil former Size=55.0mmX53.5mmX59.1mm. Parallel Distance=48.0mm.Pin pitch=5.0mm. We supply matched EE65 ferrite cores and transformers. EE65 transformer widely used in UPS, switching mode power supply, telecom communication systems, welding machines and other industries.

Vertical EE13 High Frequency Power Transformer Bobbin

EE13 mini electronic drive transformer. EE13 5+5 pin vertical frame. Coil former Size=13.3mmX12.3mmX19.85mm. Parallel Distance=8.5mm.Pin pitch=2.5mm. We supply EE13 PC40 material ferrite cores. Welcome customized EE13 transformer. Used in UPS, switching mode power supply, telecom communication systems, welding machines and other industries.

EE13 Vertical 5+5 Pin Coil Former For HF Transformer

EE13 power inverter transformer, 5+5 pin EE13 vertical shape bobbin, Coil former Size=13.3mmX12.3mmX21.6mm. Parallel Distance=8.5±0.3mm. Pin pitch=2.5mm. We manufacture EE13 electronic transformer for lighting, UPS, computer equipment, telecom communication systems, welding machines and other industries.

EE65 High Power Transformer Horizontal Frame

EE65 single phase transformer. Horizontal EE65 bobbin 8+8 pins. Bobbin Size=51.5mmX43.7mmX54.8mm. Parallel Distance=44.5mm. Pin pitch=5.0mm. Good quality EE65 encapsulated transformer, singled packed with carton.

EE13 Switching Power Supply Transformer Vertical Bobbin

EE13 bobbin for charging pile transformer. 4+4 pin EE13 ferrite core bobbin. Parallel Distance=8.5mm. Pin pitch=3.33mm.Coil former Size=12.2mmX9.8mmX9.3mm. We produce and design various EE13 electronic transformers, mainly used for power supplies, lighting, UPS, computer equipment, telecom communication systems, welding machines and other industries.

High Frequency Flyback Transformer EE16 Bobbin

EE16 power transformer. 4+6 pin horizontal EE16 two grooves former. Parallel Distance=12.1mm. Pin pitch=2.7mm. Bobbin Size=16.0mmX14.3mmX15.9mm. We produce and design EE16 electronic transformers, used in power supplies, lighting, UPS, computer equipment, telecom communication systems, welding machines and other industries.

EE16 SMPS Transformer Horizontal Bobbin

LED lighting transformer. EE16 horizontal bobbin 4+6 pin former. Bobbin Size=16.0mmX14.3mmX15.9mm. Pin pitch1=2.7mm. Pin pitch2=3.5mm. Parallel Distance=12.1mm. We produce and design EE16 electronic transformers, used in power supplies, lighting, UPS, computer equipment, telecom communication systems, welding machines and other industries.

EE16 High Voltage Power Supply Transformer Frame

EE16 PCB mount transformer. Horizontal 5+5 pin EE16 coil former. Bobbin Size=16.0mmX15.7mmX16.0mm. Pin pitch=2.5mm. Parallel Distance=13.0mm. We produce and design EE16 electronic transformers, used in AC/DC inverter or DC/AC converter, power supplies, lighting, UPS, computer equipment, telecom communication systems, welding machines and other industries.

High Frequency EE65 SMPS Transformer Frame

High power transformer. EE65 8+8 pin horizontal coil former. Bobbin Size=58.4mmX49.3mmX59.0mm. Parallel Distance=45.8mm. Pin pitch=5.0mm. Good quality EE65 power transformer, singled packed with carton, accept custom made transformer.
