Quick Details
|
Part Number: EEL/EE/EF Type Ferrite Core
|
Brand Name: MCT
|
|
Material: Mn-Zn/MP4/M5P /M7P/M10P
|
Logo: Can be customized
|
|
Core Type: Power core
|
OEM: Available
|
|
Features: High-frequency and low-loss ferrite cores
|
MOQ: Any quantity
|
|
Packing: Carton, can be customized
|
Custom Made: Available
|
|
Lead Time: 25 days after payment
|
Certification: ISO9001,ROHS,CE
|
Part Information

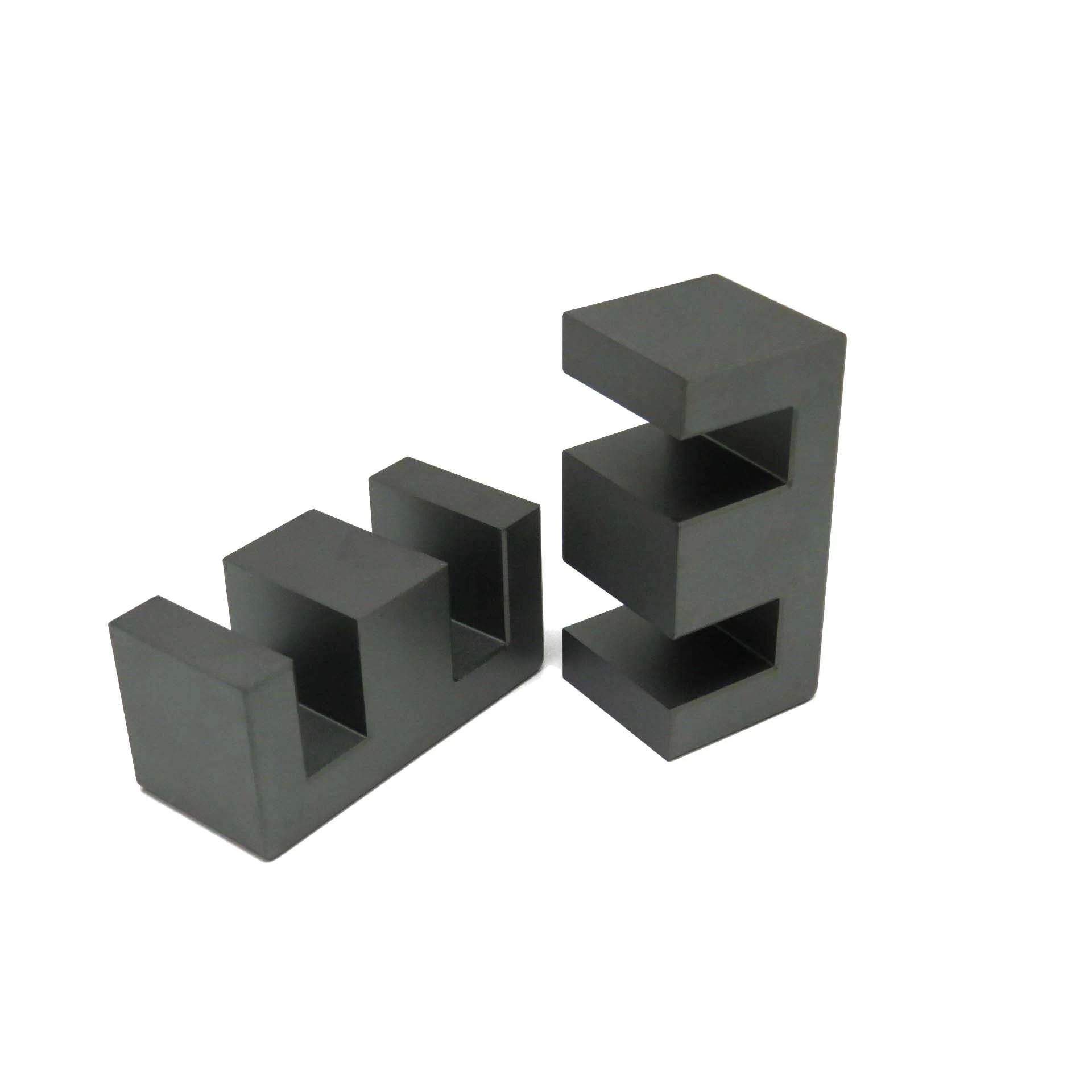

Product Name: EE/EF/EEL Ferrite Cores for Electronic Transformers
Products Range: Electronic transformers, choke coils, bobbins, relays, magnetic cores.
Applications: High frequency switching power transformers. Matching transformer. Filter transformer. Pulse transformer.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
All materials are environmental protected. We accept custom made and design service.
We have a technical team consist of 5 experienced engineers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
|
TYPE
|
Dimension:mm
|
Weight:g
|
|
A
|
B
|
C
|
D
|
E
|
F
|
|
EE5.0
|
5.25±0.1
|
5.3±0.16
|
1.95±0.1
|
3.80
|
1.35±0.08
|
4±0.16
|
0.2
|
|
EE6.3
|
6.17±0.13
|
5.7±0.1
|
1.96±0.05
|
3.70±0.1
|
1.35±0.08
|
3.70±0.16
|
0.24
|
|
EE8.3
|
8.3±0.3
|
8.0±0.2
|
3.6±0.2
|
6.0
|
2.0-.3
|
6.0±0.2
|
0.7
|
|
EE8.8
|
9.0±0.3
|
8.0±0.2
|
2.0±0.1
|
5.20±0.13
|
1.90±0.12
|
4.2±0.15
|
0.5
|
|
EE10/11/4.75
|
10.2±0.3
|
11.0±0.2
|
4.75±0.25
|
7.7±0.2
|
2.45±0.2
|
8.4±0.3
|
1.5
|
|
EE12.6
|
12.6±0.3
|
11.3±0.2
|
4.85
|
9.2
|
2.4±0.2
|
8.1±0.3
|
2.0
|
|
EE13/12/6.15
|
13.0±0.25
|
12.0±0.25
|
6.15±0.13
|
10.0
|
2.75±0.13
|
9.2±0.25
|
2.7
|
|
EE16/14.3/4.8
|
16.0±0.3
|
14.3±0.3
|
4.8±0.2
|
11.7
|
4.0±0.2
|
10.4±0.2
|
3.3
|
|
EEL16/25/4.89
|
16.0±0.4
|
25.0±0.4
|
4.9±0.2
|
11.7
|
4.2-0.4
|
20.5±0.5
|
5.2
|
|
EE16/14.3/6.8
|
16.0±0.5
|
14.3±0.4
|
6.8±0.2
|
12.5
|
3.80±0.2
|
11.2±0.4
|
4.1
|
|
EE16/16/4.5
|
16.1±0.5
|
16.1±0.3
|
4.5±0.2
|
11.3
|
4.55±0.2
|
11.8±0.4
|
3.7
|
|
EE19/16/4.85
|
19.1±0.4
|
16.0±0.4
|
4.85±0.25
|
14.1
|
4.8±0.25
|
11.3±0.3
|
4.6
|
|
EEL19/27.3/4.85
|
19.0±0.3
|
27.3±0.4
|
4.85±0.25
|
14.1
|
4.8±0.25
|
22.8±0.6
|
7.2
|
|
EE20/20/5
|
20.0±0.6
|
20.0±0.4
|
5.3-0.4
|
12.8
|
5.2-0.4
|
12.6±0.8
|
8.0
|
|
EE22/19/6
|
22.0±0.4
|
18.7±0.4
|
6.0-0.6
|
13.20
|
6.0-0.6
|
10.7±0.3
|
8.8
|
|
EE25/19/6.3
|
25.4±0.5
|
19.0±0.4
|
6.3±0.3
|
18.55
|
6.4±0.2
|
13.8±0.4
|
9.1
|
|
EE25A
|
25.4±0.6
|
20.0±0.4
|
6.35±0.3
|
18.7
|
6.4±0.3
|
13.5±0.4
|
10
|
|
EE25B
|
25.4±0.5
|
34.0±0.6
|
6.35±0.25
|
18.7
|
6.4±0.25
|
27.6±0.6
|
16.5
|
|
EE25C
|
25.4±0.5
|
31.8±1.0
|
6.35±0.25
|
19.05
|
6.4±0.25
|
25.4±0.6
|
15
|
|
EE28/21/10.6
|
28.0±0.6
|
21.0±0.6
|
10.6±0.3
|
18.6
|
7.2±0.30
|
12.6±0.6
|
21.5
|
|
EE28A
|
28.0±0.4
|
28.4±1.0
|
11.0-0.60
|
18.6
|
7.5-0.5
|
19.4±0.4
|
28
|
|
EE28B
|
28.0±0.5
|
34.5±0.6
|
11.0-0.5
|
18.6
|
7.5-0.5
|
25.6±0.4
|
32
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±25%）
|
|
C1
(mm-1)
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
MP4
|
M5P
|
M7P
|
M10P
|
|
EE5
|
4.78
|
2.66
|
12.5
|
33.5
|
285
|
|
|
|
|
EE6.3
|
3.67
|
3.30
|
12.2
|
40.60
|
405
|
|
|
|
|
EE8.3
|
2.75
|
7.00
|
19.2
|
134.0
|
675
|
|
|
|
|
EE8.8
|
3.10
|
5.00
|
15.60
|
78.00
|
400
|
|
|
|
|
EE10
|
2.16
|
12.1
|
26.1
|
315
|
905
|
|
|
|
|
EE12.6
|
2.39
|
12.4
|
29.7
|
369.5
|
960
|
|
|
|
|
EE13
|
1.77
|
17.1
|
30.2
|
517
|
1200
|
|
|
|
|
EE16
|
1.87
|
20.1
|
34.6
|
656
|
1160
|
|
|
|
|
EEL16
|
2.792
|
19.8
|
55.3
|
1090
|
900
|
|
|
|
|
EE16H
|
1.83
|
19.5
|
35.7
|
695.15
|
1240
|
|
|
|
|
EE16G
|
1.93
|
19.5
|
37.7
|
737
|
1100
|
|
|
|
|
EE19
|
1.74
|
22.8
|
39.6
|
903
|
1250
|
|
|
|
|
EEL19
|
2.64
|
23.4
|
61.70
|
1443
|
900
|
|
|
|
|
EE20
|
1.37
|
31.2
|
42.8
|
1340
|
1500
|
|
|
|
|
EE22
|
0.97
|
41.0
|
39.6
|
1610
|
2100
|
|
|
|
|
EE25
|
1.22
|
40.0
|
48.7
|
1940
|
2000
|
|
|
|
|
EE25A
|
1.20
|
41.8
|
50.0
|
2090
|
1900
|
|
|
|
|
EE25B
|
1.91
|
40.3
|
77.0
|
3100
|
2500
|
|
|
|
|
EE25C
|
1.82
|
40.4
|
73.4
|
2965
|
1450
|
|
|
|
|
EE28
|
0.57
|
85.4
|
49.3
|
4260
|
3500
|
|
|
|
|
EE28A
|
0.75
|
8.6
|
64.3
|
5530
|
3500
|
|
|
|
|
EE28B
|
0.84
|
86.3
|
73.4
|
6343
|
3060
|
|
|
|
|
TYPE
|
Dimension:mm
|
Weight:g
|
|
A
|
B
|
C
|
D
|
E
|
F
|
|
EE30/7
|
30.1±0.7
|
30.0±0.4
|
7.3-05
|
19.5
|
7.2-0.5
|
19.9±0.25
|
21
|
|
EE30/11
|
30.0±0.5
|
30.0±0.4
|
10.7±0.3
|
19.5
|
7.2-0.5
|
19.9±0.25
|
32
|
|
EE33
|
33.1±0.5
|
28.0±0.6
|
12.7±0.3
|
23.5
|
9.7±0.3
|
19.3±0.3
|
39
|
|
EE35
|
34.6±0.5
|
28.5±0.5
|
9.3±0.35
|
25.5
|
9.35±0.3
|
19.6±0.25
|
30
|
|
EE40
|
40.0±0.5
|
34.0±0.6
|
10.70±0.3
|
27.6
|
10.70±0.3
|
10.25±0.25
|
50
|
|
EE41
|
41.0±0.5
|
33.0±0.4
|
12.5±0.3
|
28.6
|
12.5±0.3
|
21.0±0.3
|
63
|
|
EE4212
|
43.0-2.4
|
42.4±0.4
|
12.0-0.5
|
29.5
|
12.2-0.5
|
30.0+0.8
|
70
|
|
EE4215
|
43.0-2.4
|
42.4±0.4
|
15.2-0.5
|
29.5
|
12.2-0.5
|
30.0+0.8
|
88
|
|
EE4220
|
43.0-2.4
|
42.4±0.4
|
20.0-0.8
|
29.5
|
12.2-0.5
|
30.0+0.8
|
116
|
|
EE47
|
47.12±0.76
|
39.26±0.4
|
15.62±0.25
|
31.82
|
15.62±0.25
|
24.4±0.4
|
106
|
|
EE4815
|
50.0-2.6
|
42.0
|
15-1.1
|
33.0
|
15.0-1.1
|
24.6+2.0
|
110
|
|
EE50
|
50.0±0.7
|
42.6±0.5
|
14.6±0.4
|
34.2
|
14.6±0.4
|
26.5±0.6
|
116
|
|
EE55A
|
55.15±1.0
|
55.0±0.5
|
20.7±0.3
|
37.5
|
16.95±0.3
|
37.5±0.5
|
221
|
|
EE55B
|
55.15±1.0
|
55.0±0.5
|
24.7±0.3
|
37.5
|
16.95±0.3
|
37.5±0.5
|
265
|
|
EE56
|
56.6±0.7
|
47.3±0.5
|
18.8±0.3
|
38.1
|
18.8±0.25
|
29.3±0.6
|
180
|
|
EE65A
|
65.0±1.2
|
65.5-0.8
|
19.8±0.7
|
44.20
|
20.0-0.7
|
44.4+1.6
|
300
|
|
EE65B
|
65.0±1.2
|
65.5-0.8
|
27.4-1.0
|
44.20
|
20.0-0.7
|
44.4+1.6
|
390
|
|
EE70
|
70.5±1.0
|
65.5±0.5
|
31.6±0.2
|
48.0
|
21.65+0.8
|
44.5±0.4
|
540
|
|
EE80
|
80.0±0.8
|
75.9±0.5
|
20.2±0.4
|
60.0
|
20.0±0.4
|
56.0±0.4
|
360
|
|
EE85A
|
85.0±2.5
|
88.0±2.0
|
26.5±0.6
|
55.0
|
27.2-0.6
|
57.4+2.0
|
675
|
|
EE85B
|
85.0±2.5
|
88.0±2.0
|
31.5±0.5
|
55.0
|
27.2-0.6
|
57.4+2.0
|
810
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±25%）
|
|
C1
(mm-1)
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
MP4
|
M5P
|
M7P
|
M10P
|
|
EE30/7
|
1.12
|
59.7
|
66.9
|
4000
|
2100
|
|
|
|
|
EE30/11
|
0.86
|
110
|
57.8
|
6358
|
2800
|
|
|
|
|
EE33
|
0.57
|
117
|
67.0
|
7839
|
4300
|
|
|
|
|
EE35
|
0.893
|
77.7
|
69.5
|
5400
|
2400
|
|
|
|
|
EE40
|
0.60
|
127
|
77.0
|
9810
|
4350
|
|
|
|
|
EE41
|
0.523
|
157.8
|
79.5
|
12477
|
4100
|
|
|
|
|
EE4212
|
0.70
|
143.0
|
97.8
|
13980
|
2800
|
|
|
|
|
EE4215
|
0.55
|
178.0
|
97.0
|
17266
|
3400
|
|
|
|
|
EE4220
|
0.416
|
235.0
|
97.8
|
23000
|
5000
|
|
|
|
|
EE47
|
0.38
|
234.0
|
89.2
|
20920
|
5500
|
|
|
|
|
EE4815
|
0.36
|
254.3
|
91.0
|
23141
|
3500
|
|
|
|
|
EE50
|
0.36
|
228.0
|
95.9
|
21865
|
6100
|
|
|
|
|
EE55A
|
0.35
|
355.0
|
123.0
|
43665
|
6800
|
|
|
|
|
EE55B
|
0.239
|
420.0
|
123.0
|
52000
|
8200
|
|
|
|
|
EE56
|
0.31
|
343.0
|
107.0
|
36710
|
6900
|
|
|
|
|
EE65A
|
0.378
|
386.0
|
146.0
|
56375
|
5800
|
|
|
|
|
EE65B
|
0.28
|
532.0
|
147.0
|
78204
|
8600
|
|
|
|
|
EE70
|
0.22
|
686.0
|
150.0
|
102900
|
10800
|
|
|
|
|
EE80
|
0.45
|
399.0
|
183.5
|
73216.5
|
6100
|
|
|
|
|
EE85A
|
0.264
|
714.0
|
188.0
|
134232
|
8200
|
|
|
|
|
EE85B
|
0.22
|
859.0
|
189.0
|
162351
|
10000
|
|
|
|
|
TYPE
|
Dimension:mm
|
Weight:g
|
|
A
|
B
|
C
|
D
|
E
|
F
|
|
EE90
|
90.0±2.0
|
56.4±0.7
|
16.5±0.5
|
64.0
|
25.0±1.0
|
31.4-2
|
292
|
|
EE110
|
110.0±2.5
|
112.0-0.2
|
36.0±1.0
|
74.2
|
36.0±1.0
|
74.4+2.4
|
1560
|
|
EE118
|
118
|
173.0+1.5
|
35.0±0.8
|
82.0
|
35.0±0.5
|
138.0±1.0
|
2290
|
|
EE128
|
130.0±2.0
|
126.0±1.0
|
40.0±0.5
|
89.0
|
40.0±1.5
|
86.0
|
2200
|
|
EE160
|
162.0±7.5
|
166.0±1.0
|
40.0±1.0
|
120.0
|
40.0±1.5
|
128.0±1.0
|
3200
|
|
EE185
|
185.0±3.0
|
154.0±1.5
|
27.5±1.0
|
128.0
|
53.0±1.0
|
100±1.5
|
2800
|
|
EE240
|
240.0±4.0
|
232±1.0
|
40.0
|
176.0
|
60.0
|
172.0
|
6860
|
|
EE320
|
320.0±5.0
|
250±1.0
|
20.0±1.5
|
217.0
|
100.0±2.0
|
150±1.5
|
5950
|
|
TYPE
|
Effective parameter
|
AL（nH/N2）（AL±25%）
|
|
C1
(mm-1)
|
Ae
(mm2)
|
Le
(mm)
|
Ve
(mm3)
|
MP4
|
M5P
|
M7P
|
M10P
|
|
EE90
|
0.34
|
419.0
|
141.0
|
59079
|
5760
|
|
|
|
|
EE110
|
0.19
|
1280
|
244.0
|
312320
|
9000
|
|
|
|
|
EE118
|
0.328
|
1240
|
407.0
|
505000
|
7000
|
|
|
|
|
EE128
|
0.35
|
1600
|
284.0
|
454400
|
12000
|
|
|
|
|
EE160
|
0.5
|
1600
|
398
|
636800
|
9000
|
|
|
|
|
EE185
|
0.24
|
1488
|
370
|
55056
|
12000
|
|
|
|
|
EE240
|
0.227
|
2530
|
576
|
1456908
|
9325
|
|
|
|
|
EE320
|
0.29
|
2000
|
577
|
1154000
|
8000
|
|
|
|
